Machine vision lenses
8 mm, 2/3", 5 MP, C-mount Machine Vision Lens, 8.0 mm, 5.0 Megapixel (LS-FFL-0650)
Model LS-FFL-0650
- Focal length8.0 mm
- MountC-mount
- Sensor2/3"
- ApertureF2.5 Manual iris
- Resolution5.0 Megapixel
$169.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.35 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
8 mm, 2/3", 5 MP, C-mount Machine Vision Lens. High resolution: 5.0 megapixel cover all 4K & 1080P. Large format: 2/3" size covering 2/3", 1/1.8", 1/2" camera. Big aperture: F1.4 big aperture makes imaging far better. At a glance: focal length 8.0 mm; format 2/3"; resolution 5.0 Megapixel; aperture F2.5 Manual iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0650 |
|---|---|
| Format | 2/3" |
| Angle of view (2/3", DxHxV) | 69 x 58 x 45 deg |
| Angle of view (1/2", DxHxV) | 54 x 44 x 34 deg |
Optics
| Focal length | 8.0 mm |
|---|---|
| Back focal length | 8.29 mm |
| Aperture | F2.5 Manual iris |
| M.O.D. | 0.2 m |
| Distortion | -0.73% |
| Filter thread | M30.5 x P0.5 |
Sensor and imaging
| Resolution | 5.0 Megapixel |
|---|

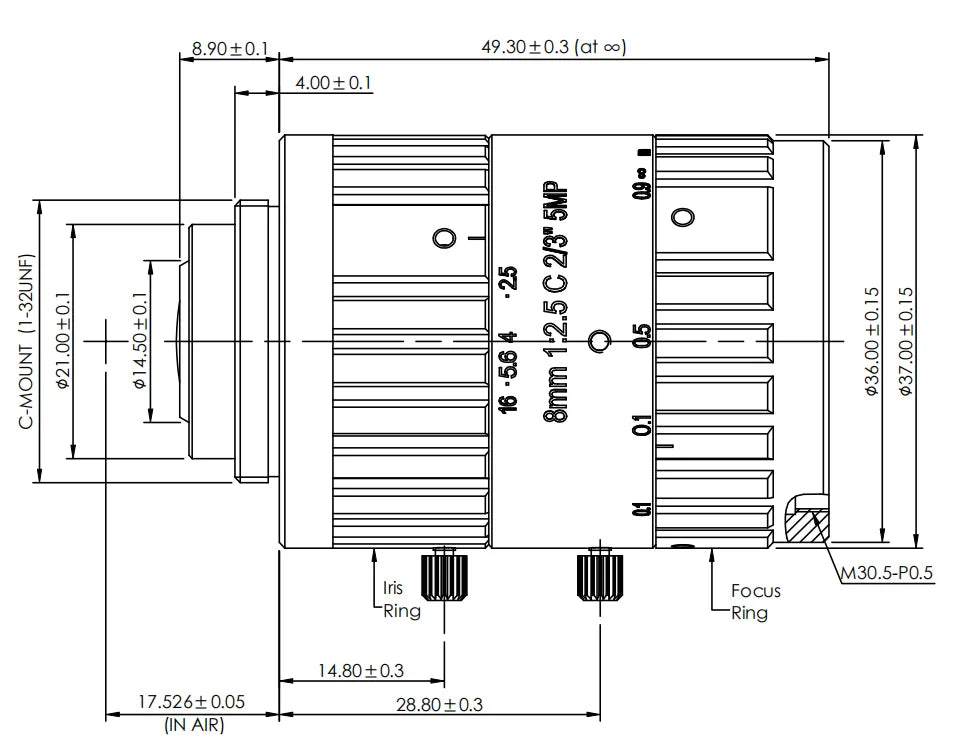

Mechanical
| Size | dia. 49.3 x 37 mm |
|---|---|
| Optical total length | 66.8 mm |
| Mount | C |
| Weight | 180 g |
| Shipping weight (estimated) | 0.35 kg |
