16 mm, 2/3", 6 MP, C-mount Machine Vision Lens (LS-FFL-0665)
Model LS-FFL-0665
- Focal length16 mm
- MountC-mount
- Sensor2/3"
- ApertureF2.8 Manual iris
- Resolution6.0 Megapixel (2.4μm pixel size)
$209.00
Ships in 2-3 weeks
0.18 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
16 mm, 2/3", 6 MP, C-mount Machine Vision Lens. 2/3" 6 megapixel C-mount machine vision lenses for 2.4 um pixel sensors, F2.8 manual iris, 12 to 50 mm, transmission T>=85% at 486-656 nm. At a glance: focal length 16 mm; format 2/3"; resolution 6.0 Megapixel (2.4μm pixel size); aperture F2.8 Manual iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0665 |
|---|---|
| Format | 2/3" |
| Angle of view (2/3", DxHxV) | 37.2 x 30.4 x 23 deg |
| Transmission | AT486~656nm T≥85% |
| CRA | 11.2° |
| Notes | 8G Element |
Optics
| Focal length | 16 mm |
|---|---|
| Aperture | F2.8 Manual iris |
| M.O.D. | 0.1 m |
| Distortion (optical) | 0.1% |
| Filter thread | M27 x P0.5 |
| Relative illumination | 64% |
| Total track length (TTL) | 50.44 mm |
| Back focal length | 12.58 mm |
Sensor and imaging
| Resolution | 6.0 Megapixel (2.4μm pixel size) |
|---|
Mechanical
| Mount | C |
|---|---|

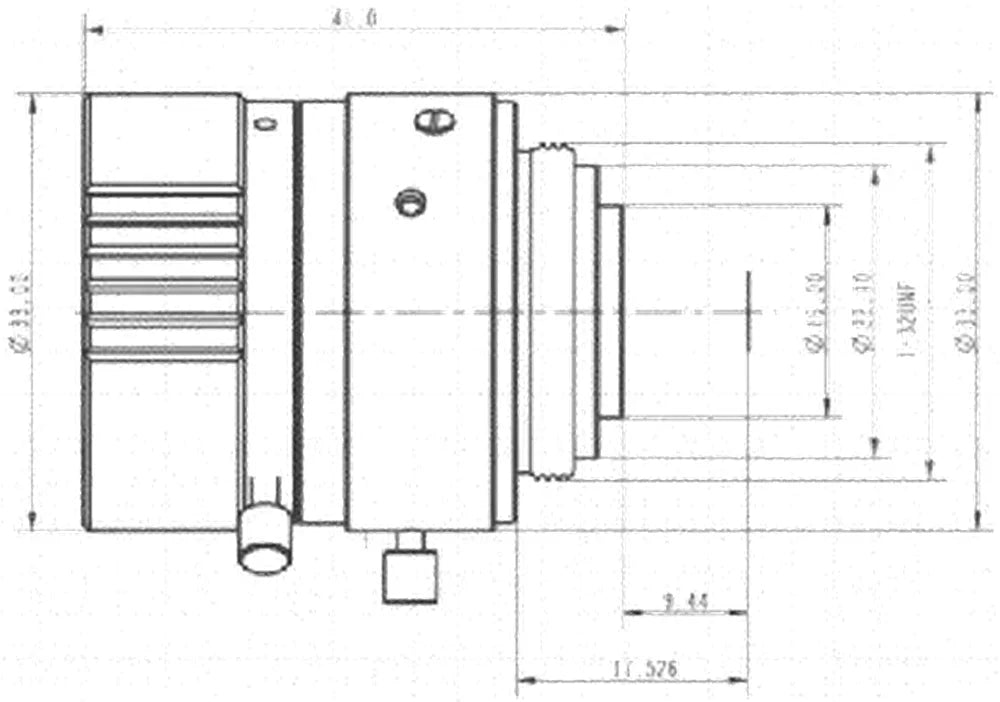

| Size | dia. 33 x 32.9 mm |
| Weight | 55 g |
| Shipping weight (estimated) | 0.18 kg |
Photo shows a representative model of this series; see the specifications for this model.
Other models in the 2/3" machine vision lenses (LS-FFL-S90) series
See all 50 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-0658 | 12 mm, 2/3", 6 MP, C-mount | $179.00 | Ships in 2-3 weeks | View |
| LS-FFL-0639 | 12 mm, 2/3", 5 MP, C-mount | $179.00 | Ships in 2-3 weeks | View |
| LS-FFL-0640 | 12 mm, 2/3", 8 MP, C-mount | $179.00 | Ships in 2-3 weeks | View |
| LS-FFL-0666 | 25 mm, 2/3", 5 MP, C-mount | $199.00 | Ships in 2-3 weeks | View |
| LS-FFL-0667 | 25 mm, 2/3", 5 MP, C-mount | $199.00 | Ships in 2-3 weeks | View |
| LS-FFL-0668 | 25 mm, 2/3", 8 MP, C-mount | $199.00 | Ships in 2-3 weeks | View |
| LS-FFL-0671 | 25 mm, 2/3", 8 MP, C-mount | $199.00 | Ships in 2-3 weeks | View |
| LS-FFL-0672 | 25 mm, 2/3", 6 MP, C-mount | $199.00 | Ships in 2-3 weeks | View |
| LS-FFL-0659 | 16 mm, 2/3", 5 MP, C-mount | $209.00 | Ships in 2-3 weeks | View |
| LS-FFL-0660 | 16 mm, 2/3", 5 MP, C-mount | $209.00 | Ships in 2-3 weeks | View |
| LS-FFL-0661 | 16 mm, 2/3", 8 MP, C-mount | $209.00 | Ships in 2-3 weeks | View |
| LS-FFL-0664 | 16 mm, 2/3", 8 MP, C-mount | $209.00 | Ships in 2-3 weeks | View |
| LS-FFL-0673 | 35 mm, 2/3", 5 MP, C-mount | $219.00 | Ships in 2-3 weeks | View |
| LS-FFL-0674 | 35 mm, 2/3", 5 MP, C-mount | $219.00 | Ships in 2-3 weeks | View |
| LS-FFL-0675 | 35 mm, 2/3", 8 MP, C-mount | $219.00 | Ships in 2-3 weeks | View |
| LS-FFL-0678 | 35 mm, 2/3", 8 MP, C-mount | $219.00 | Ships in 2-3 weeks | View |
| LS-FFL-0679 | 35 mm, 2/3", 6 MP, C-mount | $219.00 | Ships in 2-3 weeks | View |
| LS-FFL-0641 | 4 mm, 2/3" | $229.00 Quote | Ships in 2-3 weeks | View |
| LS-FFL-0642 | 4 mm, 2/3", 6 MP, C-mount | $229.00 | Ships in 2-3 weeks | View |
| LS-FFL-0643 | 5 mm, 2/3", 6 MP, C-mount | $229.00 | Ships in 2-3 weeks | View |
| LS-FFL-0644 | 6 mm, 2/3", 5 MP, C-mount | $239.00 | Ships in 2-3 weeks | View |
| LS-FFL-0645 | 6 mm, 2/3", 5 MP, C-mount | $239.00 | Ships in 2-3 weeks | View |
| LS-FFL-0680 | 50 mm, 2/3", 5 MP, C-mount | $249.00 | Ships in 2-3 weeks | View |
| LS-FFL-0681 | 50 mm, 2/3", 5 MP, C-mount | $249.00 | Ships in 2-3 weeks | View |
