Machine vision lenses
6 mm, 2/3", 5 MP, C-mount Machine Vision Lens, F1.4-C (LS-FFL-0644)
Model LS-FFL-0644
- Focal length6 mm
- MountC-mount
- Sensor2/3"
- ApertureF1.4-C
- Resolution5.0 Megapixel
$239.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.34 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
6 mm, 2/3", 5 MP, C-mount Machine Vision Lens. 5.0 megapixel 6 mm machine vision lens with a 2/3" format covering 2/3", 1/1.8" and 1/2" cameras. F1.4 aperture and <1.5% low distortion. At a glance: focal length 6 mm; format 2/3"; resolution 5.0 Megapixel; aperture F1.4-C; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0644 |
|---|---|
| Format | 2/3" |
| Image format | dia. 8.75 mm |
| C.R.A. | 0.39 deg |
| B.F.L. | 8.57 mm |
| Angle of view (2/3", 16:9) | 86 x 79 x 49 deg |
| Angle of view (2/3", 4:3) | 86 x 74 x 58.6 deg |
| Angle of view (2/3", DxHxV) | 86 x 79 x 49 deg |
| CRA | 2.5° |
| Elements | 11G |
Optics
| Focal length | 6 mm |
|---|---|
| Aperture | F1.4-C |
| M.O.D. | 0.1 m |
| Distortion | <1.5% |
| Relative illumination | >58% |
| Back focal length | 8.57 mm |
Sensor and imaging
| Resolution | 5.0 Megapixel |
|---|

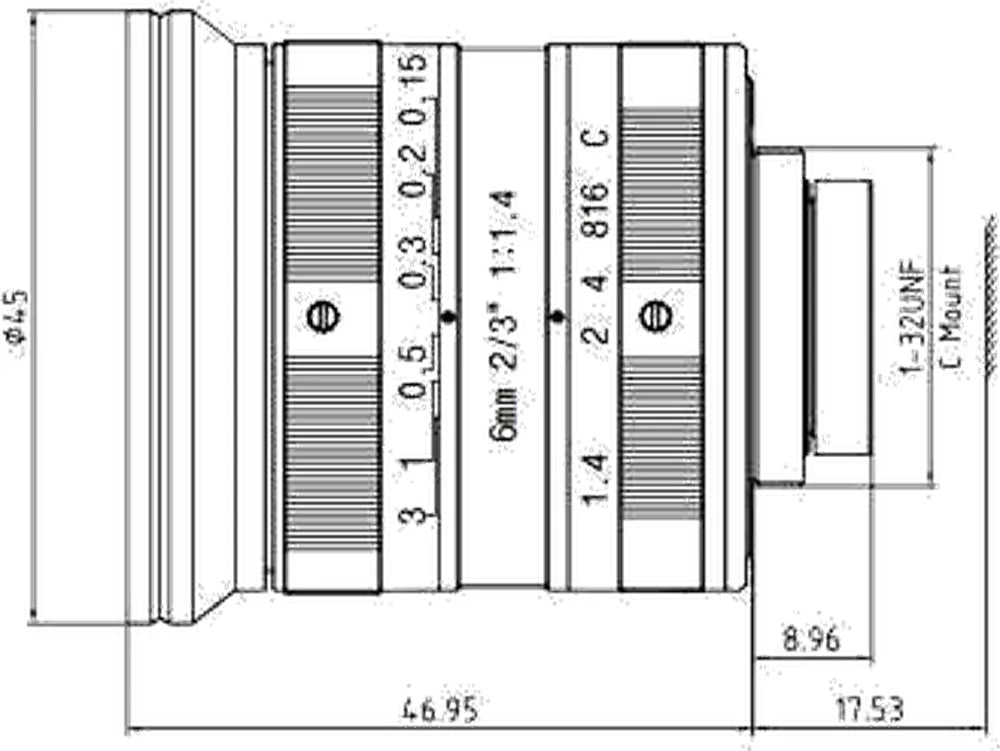

Mechanical
| Size | dia. 45 x 46.95 mm |
|---|---|
| Mount | C |
| Weight | 170 g |
| Image height | 8.75 |
| Optical total length | 64.6 mm |
| Shipping weight (estimated) | 0.34 kg |
