2/3" machine vision lenses
  • 2/3" machine vision lenses

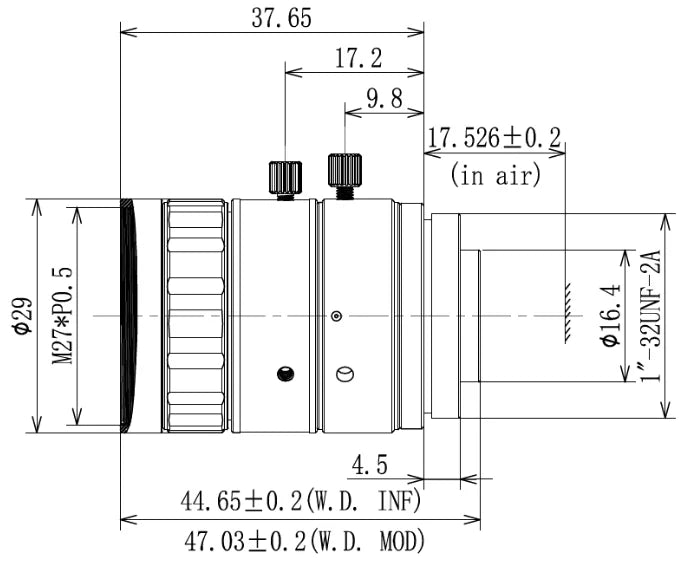

  • LS-FFL-0656 dimensions (mm)

Machine vision lenses

12 mm, 2/3", 10 MP, C-mount Machine Vision Lens, 10 Megapixel, F2.0 Manual iris (LS-FFL-0656)

Model LS-FFL-0656

  • Focal length12 mm
  • MountC-mount
  • Sensor2/3"
  • ApertureF2.0 Manual iris
  • Resolution10 Megapixel
$309.00

In stock - ships the same business day (3 available, order by 2 PM ET)

0.26 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

12 mm, 2/3", 10 MP, C-mount Machine Vision Lens, 10 Megapixel, F2.0 Manual iris (LS-FFL-0656)LS-FFL-0656

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

12 mm, 2/3", 10 MP, C-mount Machine Vision Lens. Compact (<29 mm diameter) 12 mm F2.0 manual-iris machine vision lens for 2/3" sensors, rated 10 megapixel (4K, 1080P), covering 2/3", 1/1.8" and 1/2" cameras. For automation, inspection, 3D, SMT and AOI. At a glance: focal length 12 mm; format 2/3"; resolution 10 Megapixel; aperture F2.0 Manual iris; mount C.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0656
Format2/3"
Angle of view (2/3")48.1 x 39.7 x 27.5 deg
Angle of view (1/1.8")39.7 x 33.1 x 22.3 deg
Angle of view (1/2")35.8 x 29 x 21.9 deg
B.F.L.13.4 mm

Optics

Focal length12 mm
Max image circledia. 11.4 mm
ApertureF2.0 Manual iris
M.O.D.0.15 m
Distortion-1.2%@0.15 m ; 0.02%@0.4 m

Sensor and imaging

Resolution10 Megapixel

Mechanical

Sizedia. 29 x 37.65 mm
Filter sizeM27 x P0.5
MountC
Weight115 g
Shipping weight (estimated)0.26 kg
