100 mm, 2/3", 2 MP, C-mount Machine Vision Lens (LS-FFL-0688)
  • 100 mm, 2/3", 2 MP, C-mount Machine Vision Lens (LS-FFL-0688)

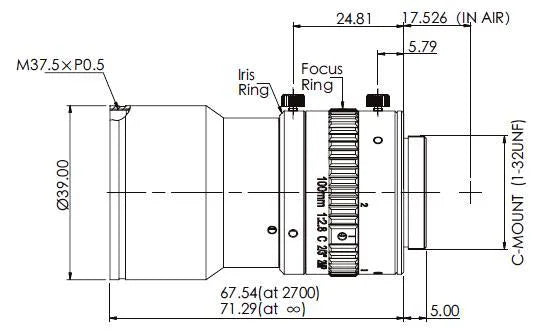

  • LS-FFL-0688 dimensions (mm)

Machine vision lenses

100 mm, 2/3", 2 MP, C-mount Machine Vision Lens (LS-FFL-0688)

Model LS-FFL-0688

  • Focal length100mm
  • MountC-mount
  • Sensor2/3"
  • ApertureF2.8 Manual iris
  • Resolution2.0 Megapixel
$359.00

Ships in 2-3 weeks

0.28 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

100 mm, 2/3", 2 MP, C-mount Machine Vision Lens (LS-FFL-0688)LS-FFL-0688

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

100 mm, 2/3", 2 MP, C-mount Machine Vision Lens. 100 mm 2/3" 2 megapixel machine vision (FA) lens with <0.05% distortion, C mount, for industrial recognition, positioning, measurement and AI sorting. At a glance: focal length 100mm; format 2/3"; resolution 2.0 Megapixel; aperture F2.8 Manual iris; mount C.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0688
Format2/3"
Angle of view (2/3", DxHxV)4.6 x 3.7 x 2.8 deg
Angle of view (1/1.8", DxHxV)3.7 x 3.0 x 2.3 deg
Angle of view (1/2.5", DxHxV)3.0 x 2.4 x 1.8 deg
NotesAll image circle over 100lp/mm

Optics

Focal length100mm
ApertureF2.8 Manual iris
M.O.D.2.7m
Distortion<0.05%
Filter threadM37.5 x 0.5

Sensor and imaging

Resolution2.0 Megapixel

Mechanical

Optical total length73.38mm
Sizedia. 39 x 65.86mm
MountC
Weight130g
Shipping weight (estimated)0.28 kg
