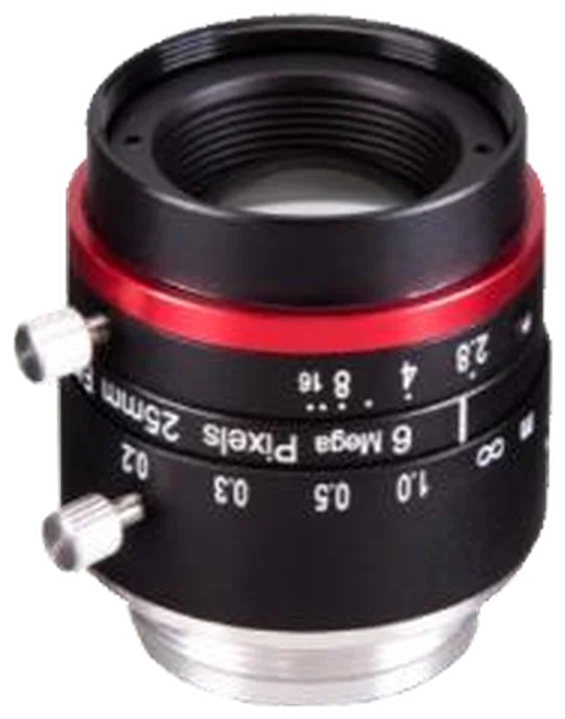

25 mm, 2/3", 10 MP, C-mount Machine Vision Lens, F2.0 manual iris (LS-FFL-0669)
  • 25 mm, 2/3", 10 MP, C-mount Machine Vision Lens, F2.0 manual iris (LS-FFL-0669)

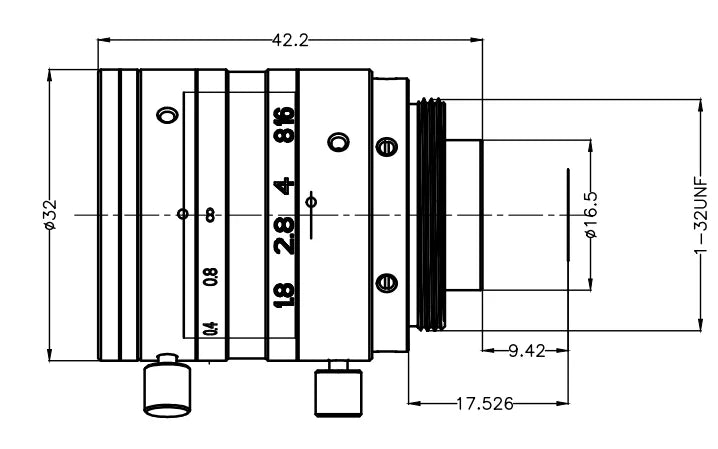

  • LS-FFL-0669 dimensions (mm)

Machine vision lenses

25 mm, 2/3", 10 MP, C-mount Machine Vision Lens, F2.0 manual iris (LS-FFL-0669)

Model LS-FFL-0669

  • Focal length25 mm
  • MountC-mount
  • Sensor2/3"
  • ApertureF2.0 manual iris
  • Resolution10 MP
$339.00

Ships in 2-3 weeks

0.2 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

25 mm, 2/3", 10 MP, C-mount Machine Vision Lens, F2.0 manual iris (LS-FFL-0669)LS-FFL-0669

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

25 mm, 2/3", 10 MP, C-mount Machine Vision Lens. 25 mm 2/3" 10 MP C-mount machine vision lens with 0.05%~0.01% TV distortion and a body under 32 mm diameter. At a glance: focal length 25 mm; format 2/3"; resolution 10 MP; aperture F2.0 manual iris; mount C.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0669
Format2/3"
Angle of view (2/3", DxHxV)25 x 20 x 15 deg
Angle of view (1/1.8", DxHxV)18.5 x 13.3 x 9 deg
CRA13.4°

Optics

Focal length25 mm
ApertureF2.0 manual iris
Max image circledia. 11 mm
M.O.D.0.15 m
Relative illumination84%
TV distortion0.05%~0.01%
Back focal length10.5 mm
Filter threadM27 x 0.5
Distortion0.15%

Sensor and imaging

Resolution10 MP
Pixel size3.45μm x 2.4μm

Mechanical

Sizedia. 32 x 34.1 mm
MountC
Weight75 g
Optical total length52 mm
Shipping weight (estimated)0.20 kg
