75 mm, 2/3", 5 MP, C-mount Machine Vision Lens (LS-FFL-0686)

Model LS-FFL-0686

Focal length75 mm
MountC-mount
Sensor2/3"
ApertureF2.0-22 Manual iris
Resolution5.0 Megapixel
Field of view123.2 x 98.5 x 73.9 mm

$309.00

Ships in 2-3 weeks

0.41 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

75 mm, 2/3", 5 MP, C-mount Machine Vision Lens. A long-distance 75 mm, 2/3" format, 5 megapixel FA machine vision lens with <0.02% distortion and 0.9 m working distance, for automated inspection and positioning. At a glance: focal length 75 mm; format 2/3" (dia. 11 mm); resolution 5.0 Megapixel; aperture F2.0-22 Manual iris; mount C.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-FFL-0686
Format	2/3" (dia. 11 mm)
Angle of view (2/3", DxHxV)	8.4 x 6.7 x 5 deg (field 123.2 x 98.5 x 73.9 mm)
Angle of view (1/2", DxHxV)	6.1 x 4.9 x 3.7 deg (field 89.6 x 71.7 x 53.8 mm)
Angle of view (1/3", DxHxV)	4.6 x 3.7 x 2.7 deg (field 67.2 x 53.8 x 40.3 mm)
B.F.L.	13.76 mm

Optics

Focal length	75 mm
Aperture	F2.0-22 Manual iris
M.O.D.	0.9 m
Distortion	<0.02%@y=5.5 mm ; 0.03%@y=3.0 mm
Filter thread	M40.5 x 0.5 mm
Field of view (2/3", DxHxV)	123.2 x 98.5 x 73.9 mm
Field of view (1/2", DxHxV)	89.6 x 71.7 x 53.8 mm
Field of view (1/3", DxHxV)	67.2 x 53.8 x 40.3 mm
Back focal length	13.76 mm

Sensor and imaging

Resolution	5.0 Megapixel

Mechanical

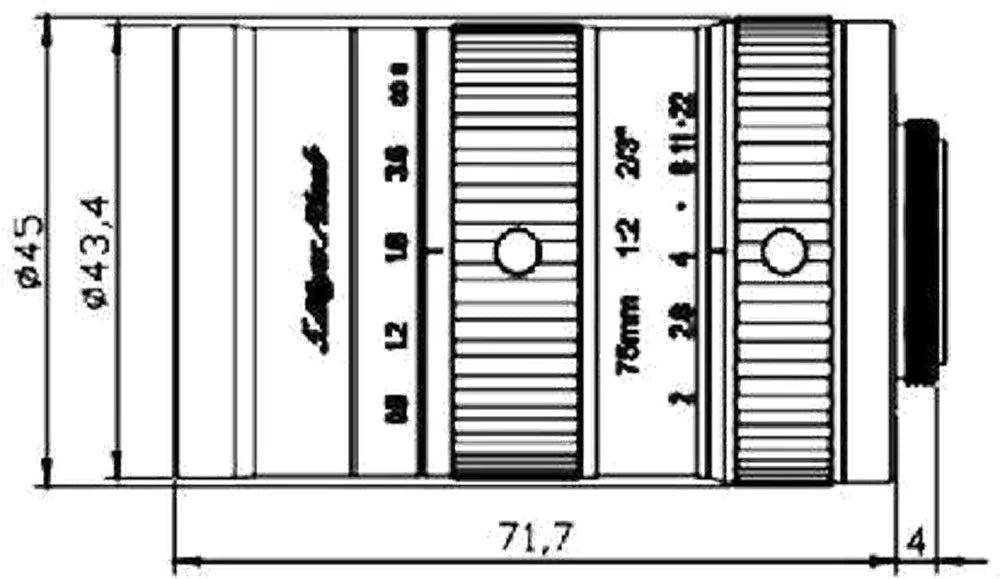

Size	dia. 45 x 71.7 mm
Mount	C
Weight	223 g
Shipping weight (estimated)	0.41 kg
