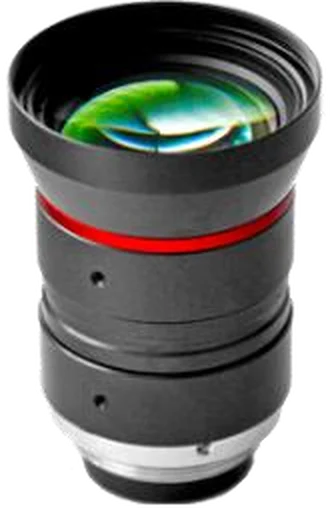

8 mm, 2/3", 10 MP, C-mount Machine Vision Lens, F2.4 manual iris (LS-FFL-0649)
  • 8 mm, 2/3", 10 MP, C-mount Machine Vision Lens, F2.4 manual iris (LS-FFL-0649)

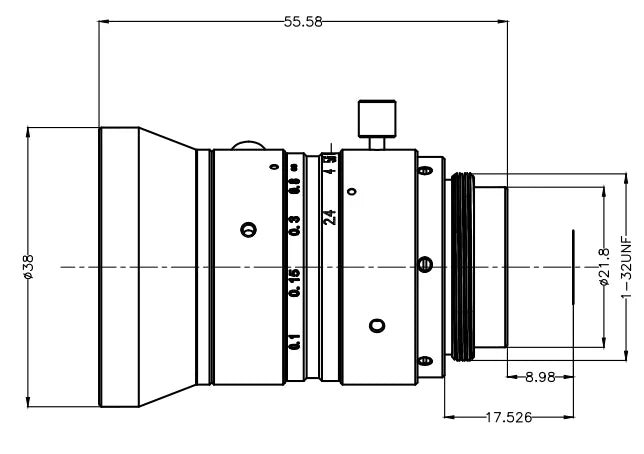

  • LS-FFL-0649 dimensions (mm)

Machine vision lenses

8 mm, 2/3", 10 MP, C-mount Machine Vision Lens, F2.4 manual iris (LS-FFL-0649)

Model LS-FFL-0649

  • Focal length8 mm
  • MountC-mount
  • Sensor2/3"
  • ApertureF2.4 manual iris
  • Resolution10 MP
$309.00

Ships in 2-3 weeks

0.31 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

8 mm, 2/3", 10 MP, C-mount Machine Vision Lens, F2.4 manual iris (LS-FFL-0649)LS-FFL-0649

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

8 mm, 2/3", 10 MP, C-mount Machine Vision Lens. 8 mm 2/3" 10 MP C-mount machine vision lens with 0.73%~0.45% TV distortion and a body under 38 mm diameter. At a glance: focal length 8 mm; format 2/3"; resolution 10 MP; aperture F2.4 manual iris; mount C.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0649
Format2/3"
Angle of view (2/3")68.3 x 57.5 x 45 deg
Angle of view (1/1.8")58 x 49 x 34 deg
CRA14°

Optics

Focal length8 mm
ApertureF2.4 manual iris
Max image circledia. 11 mm
M.O.D.0.1 m
Relative illumination68%
TV distortion0.73%~0.45%
Back focal length9.3 mm
Filter threadM37 x 0.5
Distortion1.3%

Sensor and imaging

Resolution10 MP
Pixel size3.45μm x 2.4μm

Mechanical

Sizedia. 38 x 47 mm
MountC
Weight150 g
Optical total length65.5 mm
Shipping weight (estimated)0.31 kg
