Machine vision lenses

35 mm, 2/3", 8 MP, C-mount Machine Vision Lens, 35mm (LS-FFL-0678)

Model LS-FFL-0678

Focal length35mm
Magnification-0.146X @250mm WD
MountC-mount
Sensor2/3"
ApertureF2.8 Manual iris
Resolution8.0 Megapixel

$219.00

Ships in 2-3 weeks

0.2 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

35 mm, 2/3", 8 MP, C-mount Machine Vision Lens. 35 mm F2.8 machine vision (FA) lens for 2/3" sensors (3.45 µm), 8 megapixel and usable on 10 megapixel cameras, TV distortion -0.018%, compact C-mount body. At a glance: magnification -0.146X @250mm WD; focal length 35mm; format 2/3" (dia. 11mm); resolution 8.0 Megapixel; aperture F2.8 Manual iris.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-FFL-0678
Format	2/3" (dia. 11mm)
CRA	7.8°
Notes	-10℃~+50℃
Angle of view (2/3", DxHxV)	17.8 x 14.3 x 10.8 deg
Angle of view (1/2", DxHxV)	13 x 10.5 x 7.9 deg
Angle of view (1/3", DxHxV)	9.8 x 7.8 x 5.9 deg

Optics

Focal length	35mm
Aperture	F2.8 Manual iris
Field of view (2/3")	75.6 x 60.5 x 45.4mm \| 17.8 x 14.3 x 10.8°
Field of view (1/2")	55 x 44 x 33mm \| 13 x 10.5 x 7.9°
Field of view (1/3")	41 x 33 x 25mm \| 9.8 x 7.8 x 5.9°
M.O.D.	250mm(Better 400mm)
Distortion (TV)	-0.018%
Magnification	-0.146X @250mm WD
Back focal length (optical)	15.8mm
Field of view (2/3", DxHxV)	75.6 x 60.5 x 45.4 mm
Field of view (1/2", DxHxV)	55 x 44 x 33 mm
Field of view (1/3", DxHxV)	41 x 33 x 25 mm
Filter thread	M24 x 0.5 mm
Total track length (TTL)	45.3 mm (near) ~ 50.3 mm (near)
Back focal length	15.8 mm

Sensor and imaging

Resolution	8.0 Megapixel

Mechanical

Filter size	M24 x 0.5mm
Optical total length	45.3mm(near) ~ 50.3mm(near)

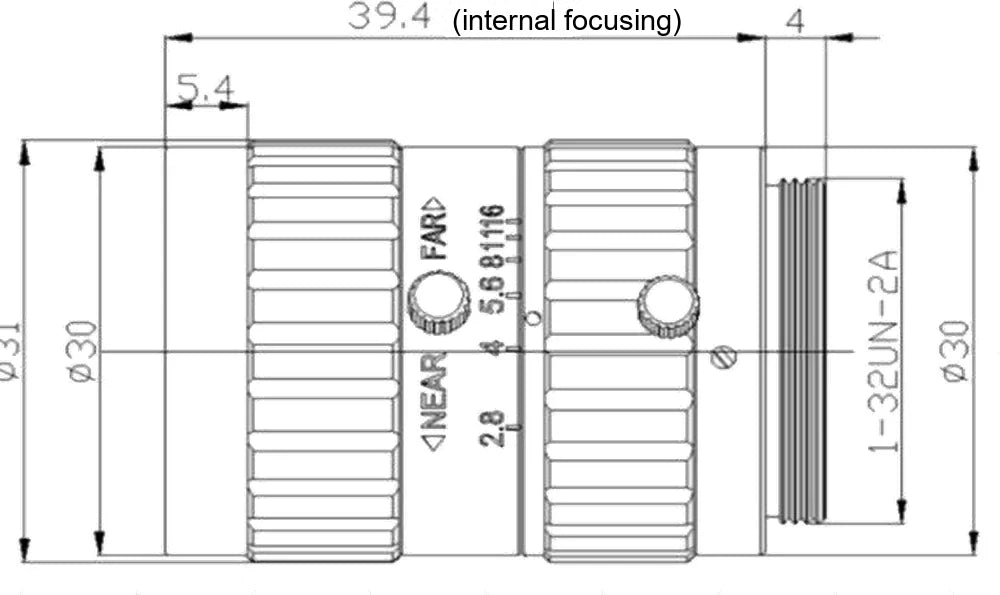

Size	dia. 31 x 39.4mm
Mount	C
Weight	72g
Shipping weight (estimated)	0.20 kg
