Machine vision lenses
6 mm, 2/3", 5 MP, C-mount Machine Vision Lens, F1.9-16 Manual iris (LS-FFL-0645)
Model LS-FFL-0645
- Focal length6 mm
- MountC-mount
- Sensor2/3"
- ApertureF1.9-16 Manual iris
- Resolution5.0 Megapixel
$239.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.31 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
6 mm, 2/3", 5 MP, C-mount Machine Vision Lens. A compact 6 mm, 2/3" format, 5 megapixel FA machine vision lens (F1.9, 39 x 39 mm) for industrial recognition, positioning and measurement. At a glance: focal length 6 mm; format 2/3"; resolution 5.0 Megapixel; aperture F1.9-16 Manual iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0645 |
|---|---|
| Format | 2/3" |
| Angle of view (2/3", DxHxV) | 87.2 x 71.5 x 61.4 deg |
| CRA | <11.65° |
| B.F.L. | 8.15~8.63 mm |
| Flange back | 17.526 mm in air |
Optics
| Focal length | 6 mm |
|---|---|
| Aperture | F1.9-16 Manual iris |
| M.O.D. | 0.1 m |
| Distortion | -1.77% |
| Relative illumination | F1.9 Y=5.5 40% / F4.0 y=5.5 89% |
| Filter thread | M37 x P0.5 mm |
| Focus range | 0.1 m - infinity |
| Back focal length | 8.15~8.63 mm |
Sensor and imaging
| Resolution | 5.0 Megapixel |
|---|

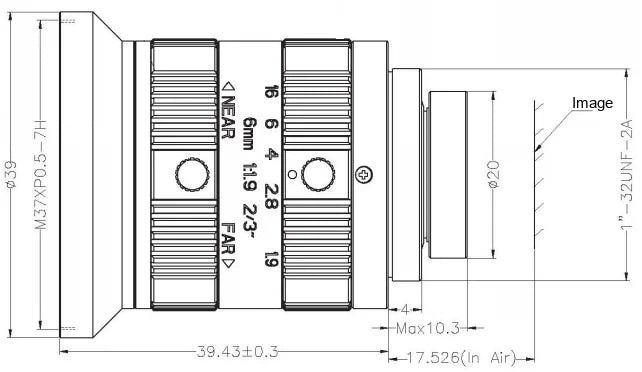

Mechanical
| Size | dia. 39 x 39.43 mm |
|---|---|
| Mount | C |
| Weight | 150 g |
| Optical total length | 56.9 mm |
| Shipping weight (estimated) | 0.31 kg |
