Machine vision lenses
25 mm, 2/3", 5 MP, C-mount Machine Vision Lens, 5.0 MP (LS-FFL-0666)
Model LS-FFL-0666
- Focal length25 mm
- MountC-mount
- Sensor2/3"
- ApertureF1.4 manual iris
- Resolution5.0 MP
$199.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.28 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
25 mm, 2/3", 5 MP, C-mount Machine Vision Lens. 25 mm 2/3" 5 MP C-mount F1.4 machine vision lens with <1% distortion. At a glance: focal length 25 mm; format 2/3"; resolution 5.0 MP; aperture F1.4 manual iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0666 |
|---|---|
| Format | 2/3" |
| Angle of view (2/3") | 25 x 20 x 15.4 deg |
| Angle of view (2/3", DxHxV) | 25 x 20 x 15.4 deg |
Optics
| Focal length | 25 mm |
|---|---|
| Aperture | F1.4 manual iris |
| Back focal length | 13.34 mm |
| M.O.D. | 0.4 m |
| Distortion | <1% |
Sensor and imaging
| Resolution | 5.0 MP |
|---|
Mechanical

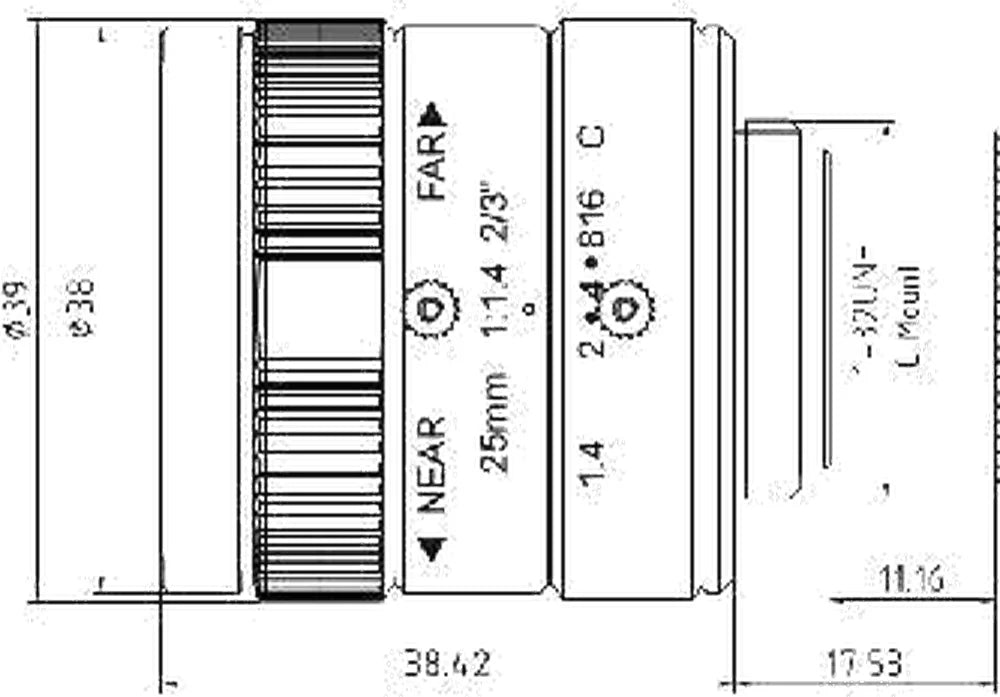

| Size | dia. 39 x 38.42 mm |
|---|---|
| Mount | C |
| Weight | 125 g |
| Optical total length | 48.5 mm |
| Shipping weight (estimated) | 0.28 kg |
