Machine vision lenses
8 mm, 2/3", 5 MP, C-mount Machine Vision Lens, 5.0 MP (LS-FFL-0647)
Model LS-FFL-0647
- Focal length8 mm
- MountC-mount
- Sensor2/3"
- ApertureF1.4 Manual Iris
- Resolution5.0 MP
$169.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.24 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
8 mm, 2/3", 5 MP, C-mount Machine Vision Lens. 8 mm, 2/3" 5 MP C-mount machine vision / FA lens with F1.4 manual iris, -0.6% distortion and M37 x P0.5 filter thread. Covers 2/3", 1/1.8" and 1/2" cameras for automation, inspection, positioning and measurement. At a glance: focal length 8 mm; format 2/3"; resolution 5.0 MP; aperture F1.4 Manual Iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0647 |
|---|---|
| Format | 2/3" |
| Angle of view (2/3") | 67 x 56 x 43 deg |
Optics
| Focal length | 8 mm |
|---|---|
| Aperture | F1.4 Manual Iris |
| M.O.D. | 0.1 m |
| Distortion | -0.6% |
| Filter thread | M37 x P0.5 |
| Optical magnification (image) | 0.075x at 100 mm WD to 0.009x at 900 mm WD |
| Field of view, 2/3" (HxV, image) | 120.7 x 89.8 mm at 100 mm WD; 227.7 x 170.0 mm at 200 mm; 334.8 x 250.3 mm at 300 mm; 441.8 x 330.5 mm at 400 mm; 548.8 x 410.7 mm at 500 mm; 655.8 x 490.9 mm at 600 mm; 762.8 x 571.1 mm at 700 mm; 869.8 x 651.3 mm at 800 mm; 976.8 x 731.5 mm at 900 mm |
| Back focal length | 10.7 mm |
Sensor and imaging
| Resolution | 5.0 MP |
|---|

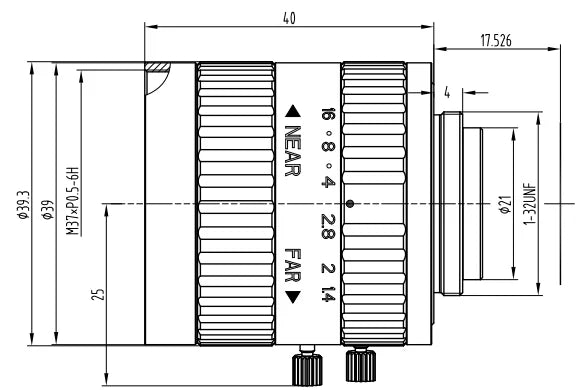

Mechanical
| Size | dia. 39.3 x 40 mm |
|---|---|
| Mount | C |
| Weight | 100 g |
| Optical total length | 57.5 mm |
| Shipping weight (estimated) | 0.24 kg |
