0.39x bi-telecentric lens, WD 258 mm
LS-TCL-0901
- Magnification 0.39x
- Mount F-mount
- Sensor APS-H
$1,870.00
Ships in 3-4 weeks
Lenses
Bi-telecentric lenses
Choose a double-telecentric optical layoutCompare cataloged bi-telecentric, or double-telecentric, lenses for dimensional imaging. Narrow the choice by sensor coverage, magnification, working distance and the published optical tolerances.
Products

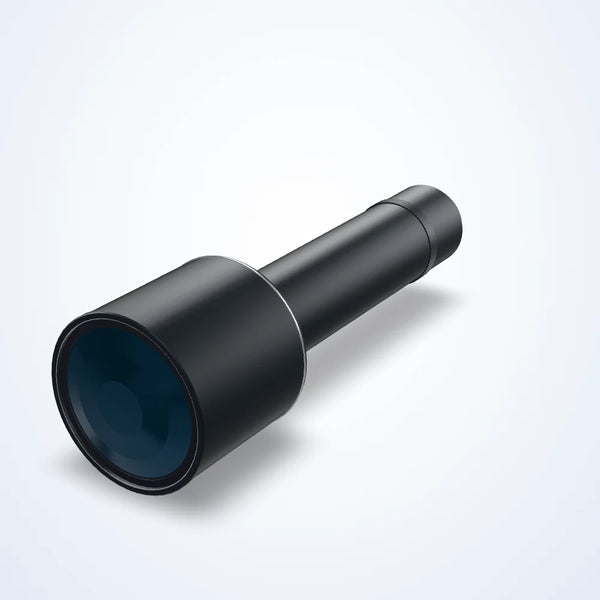

0.355x bi-telecentric lens, WD 263 mm
LS-TCL-0897
- Magnification 0.355x
- Mount M42, M58
- Sensor APS-H
$1,870.00
Ships in 3-4 weeks

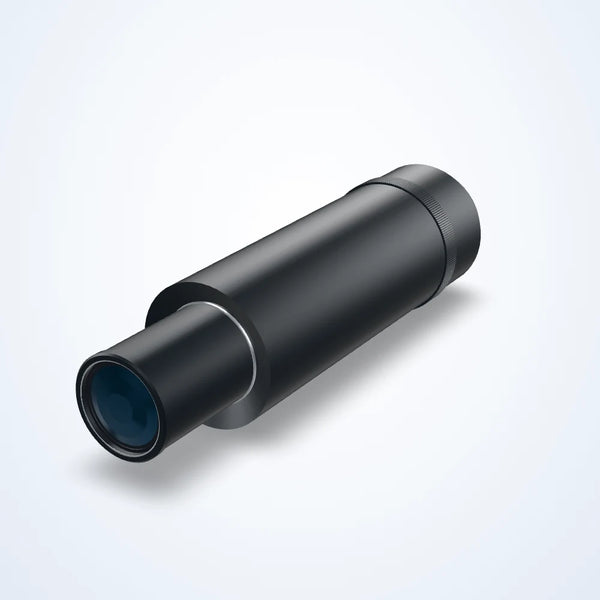

1.083x bi-telecentric lens, WD 110 mm
LS-TCL-0971
- Magnification 1.083x
- Mount F-mount
- Sensor APS-H
$1,815.00
Ships in 3-4 weeks
0.436x bi-telecentric lens, WD 258 mm
LS-TCL-0909
- Magnification 0.436x
- Mount M58
- Sensor Full frame
$1,600.00
Ships in 3-4 weeks

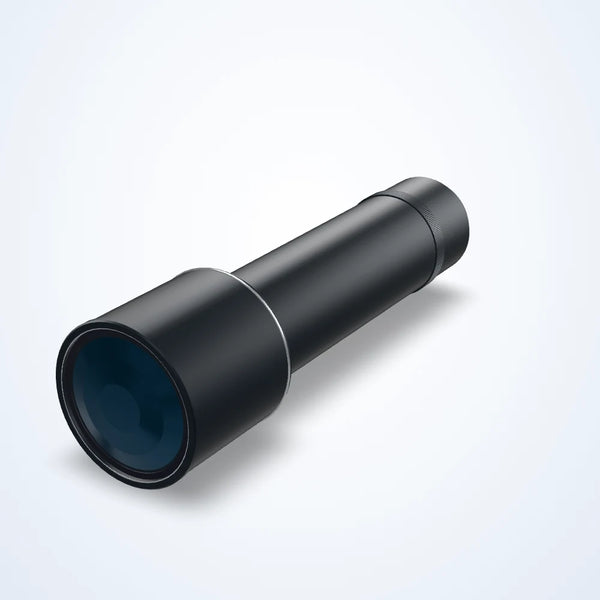

0.545x bi-telecentric lens, WD 228 mm
LS-TCL-0923
- Magnification 0.545x
- Mount F-mount
- Sensor Full frame
$1,070.00
Ships in 3-4 weeks
0.92x bi-telecentric lens, WD 138 mm
LS-TCL-0955
- Magnification 0.92x
- Mount F-mount
- Sensor Full frame
$790.00
Ships in 3-4 weeks

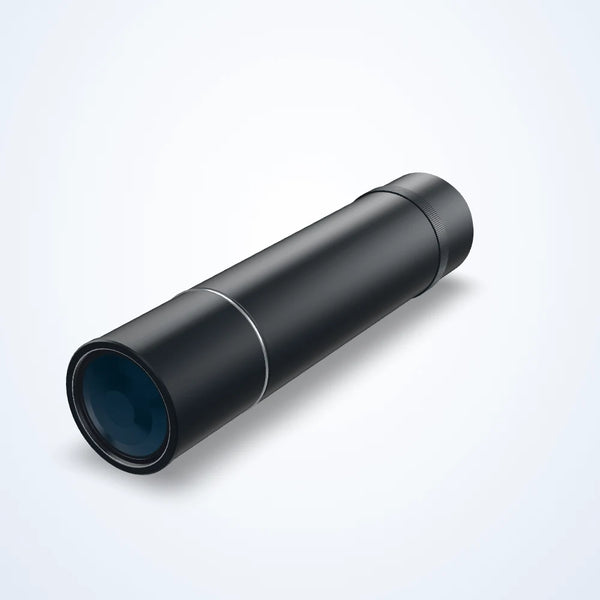

0.779x bi-telecentric lens, WD 138 mm
LS-TCL-0936
- Magnification 0.779x
- Mount F-mount
- Sensor Full frame
$790.00
Ships in 3-4 weeks
1.038x bi-telecentric lens, WD 118 mm
LS-TCL-0970
- Magnification 1.038x
- Mount F-mount
- Sensor Full frame
$715.00
Ships in 3-4 weeks
0.681x bi-telecentric lens, WD 158 mm
LS-TCL-0928
- Magnification 0.681x
- Mount F-mount
- Sensor Full frame
$695.00
Ships in 3-4 weeks
0.908x bi-telecentric lens, WD 128 mm
LS-TCL-0954
- Magnification 0.908x
- Mount F-mount
- Sensor Full frame
$665.00
Ships in 3-4 weeks
0.153x telecentric lens, 1.1", C-mount, M8
LS-TCL-0036
- Magnification 0.153x
- Mount C-mount
- Sensor 1.1"
$12,289.00Quote
Lead time confirmed with your quote
0.093x telecentric lens, 2/3", C-mount
LS-TCL-0028
- Magnification 0.093x
- Mount C-mount
- Sensor 2/3"
$11,739.00Quote
Lead time confirmed with your quote
0.068x telecentric lens, 1/2", C-mount, M8
LS-TCL-0024
- Magnification 0.068x
- Mount C-mount
- Sensor 1/2"
$11,739.00Quote
Lead time confirmed with your quote

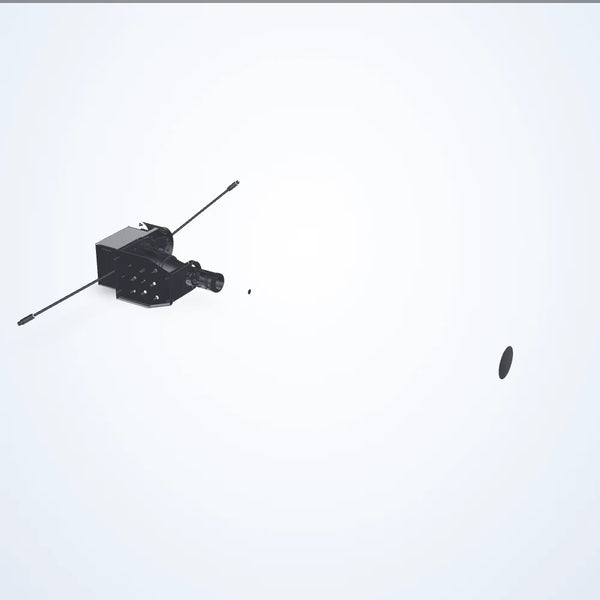

0.303x telecentric lens, 1.1", C-mount, M8
LS-TCL-0034
- Magnification 0.303x
- Mount C-mount
- Sensor 1.1"
$9,899.00Quote
Lead time confirmed with your quote

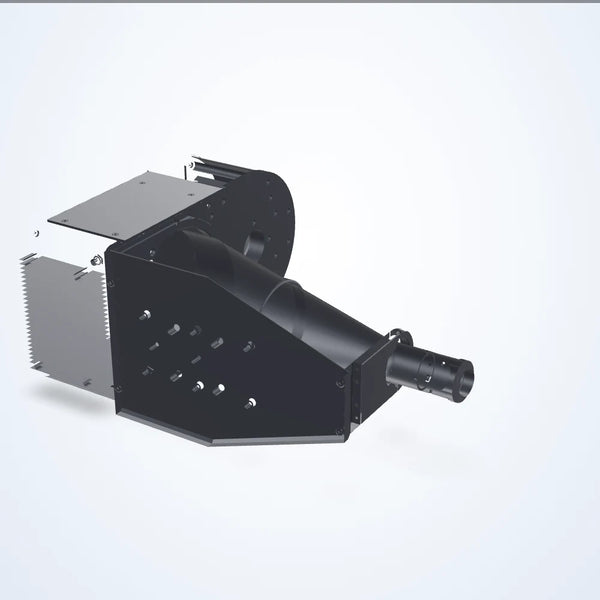

0.153x telecentric lens, 1.1", C-mount, flying leads / M8
LS-TCL-0035
- Magnification 0.153x
- Mount C-mount
- Sensor 1.1"
$9,309.00Quote
Lead time confirmed with your quote
0.093x telecentric lens, 2/3", C-mount, flying leads / M8
LS-TCL-0027
- Magnification 0.093x
- Mount C-mount
- Sensor 2/3"
$8,919.00Quote
Lead time confirmed with your quote

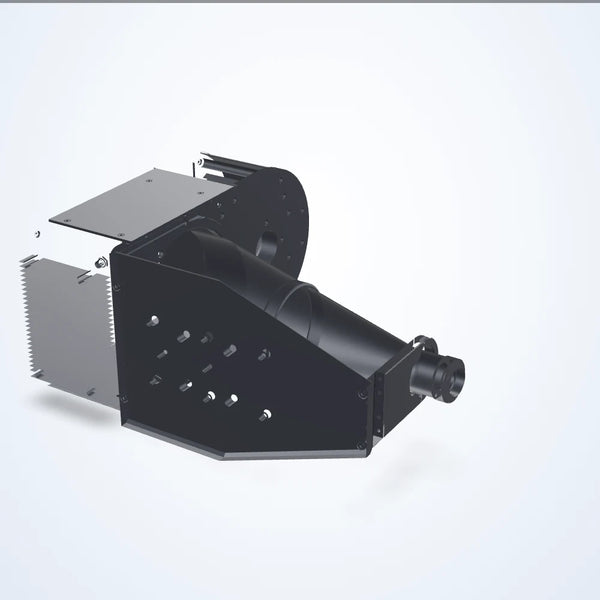

0.068x telecentric lens, 1/2", C-mount, flying leads
LS-TCL-0023
- Magnification 0.068x
- Mount C-mount
- Sensor 1/2"
$8,919.00Quote
Lead time confirmed with your quote

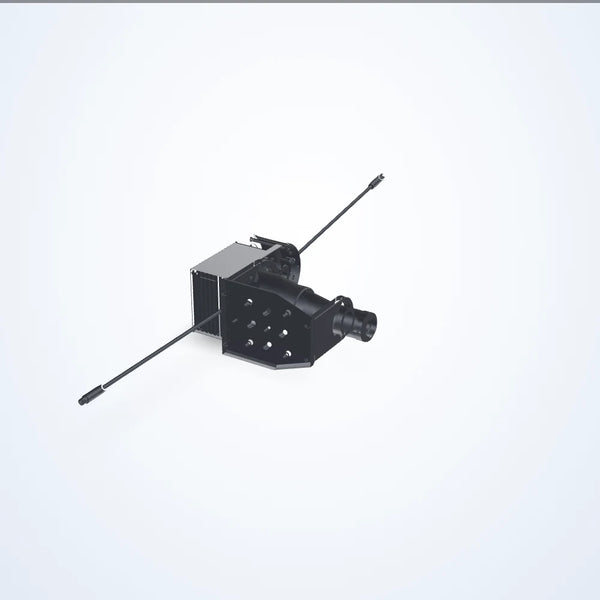

0.184x telecentric lens, 2/3", C-mount
LS-TCL-0026
- Magnification 0.184x
- Mount C-mount
- Sensor 2/3"
$8,229.00Quote
Lead time confirmed with your quote
0.134x telecentric lens, 1/2", C-mount, M8
LS-TCL-0022
- Magnification 0.134x
- Mount C-mount
- Sensor 1/2"
$8,229.00Quote
Lead time confirmed with your quote
0.303x telecentric lens, 1.1", C-mount
LS-TCL-0033
- Magnification 0.303x
- Mount C-mount
- Sensor 1.1"
$7,499.00Quote
Lead time confirmed with your quote
0.184x telecentric lens, 2/3", C-mount, flying leads
LS-TCL-0025
- Magnification 0.184x
- Mount C-mount
- Sensor 2/3"
$6,119.00Quote
Lead time confirmed with your quote
0.134x telecentric lens, 1/2", C-mount, flying leads
LS-TCL-0021
- Magnification 0.134x
- Mount C-mount
- Sensor 1/2"
$6,119.00Quote
Lead time confirmed with your quote

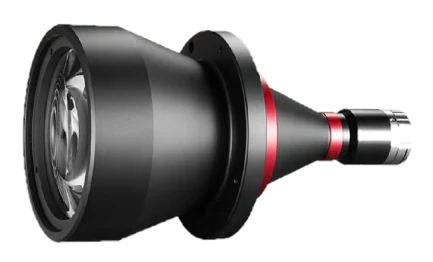

Bi-telecentric lens, 0.095x, 273 mm WD, 2/3"
LS-TCL-0707
- Magnification 0.095x
- Mount C-mount
- Sensor 2/3"
$2,529.00Quote
Ships in 2-3 weeks
Bi-telecentric lens, 0.158x, 178 mm WD, 2/3"
LS-TCL-0708
- Magnification 0.158x
- Mount C-mount
- Sensor 2/3"
$1,689.00
Ships in 2-3 weeks
| Compare | |||||||||
|---|---|---|---|---|---|---|---|---|---|
 LS-TCL-09010.39x bi-telecentric lens, WD 258 mm
| 0.39x | F-mount | APS-H | 258±4 mm | F9.2 | 71 MP | $1,870.00 | Ships in 3-4 weeks | |
 LS-TCL-08970.355x bi-telecentric lens, WD 263 mm
| 0.355x | M42, M58 | APS-H | 263±4 mm | F8.3 | 71 MP | $1,870.00 | Ships in 3-4 weeks | |
 LS-TCL-09711.083x bi-telecentric lens, WD 110 mm
| 1.083x | F-mount | APS-H | 110±2 mm | F18.3 | 71 MP | $1,815.00 | Ships in 3-4 weeks | |
 LS-TCL-09090.436x bi-telecentric lens, WD 258 mm
| 0.436x | M58 | Full frame | 258±4 mm | - | - | $1,600.00 | Ships in 3-4 weeks | |
 LS-TCL-09230.545x bi-telecentric lens, WD 228 mm
| 0.545x | F-mount | Full frame | 228±4 mm | F7.3 | - | $1,070.00 | Ships in 3-4 weeks | |
|
LS-TCL-09550.92x bi-telecentric lens, WD 138 mm
| 0.92x | F-mount | Full frame | 138±3 mm | F25.9 | - | $790.00 | Ships in 3-4 weeks | |
 LS-TCL-09360.779x bi-telecentric lens, WD 138 mm
| 0.779x | F-mount | Full frame | 138±3 mm | F14.6 | - | $790.00 | Ships in 3-4 weeks | |
 LS-TCL-09701.038x bi-telecentric lens, WD 118 mm
| 1.038x | F-mount | Full frame | 118±3 mm | F17.1 | - | $715.00 | Ships in 3-4 weeks | |
 LS-TCL-09280.681x bi-telecentric lens, WD 158 mm
| 0.681x | F-mount | Full frame | 158±3 mm | F12.8 | - | $695.00 | Ships in 3-4 weeks | |
 LS-TCL-09540.908x bi-telecentric lens, WD 128 mm
| 0.908x | F-mount | Full frame | 128±3 mm | F17.1 | - | $665.00 | Ships in 3-4 weeks | |
 LS-TCL-00360.153x telecentric lens, 1.1", C-mount, M8
| 0.153x | C-mount | 1.1" | - | - | - | $12,289.00Quote | Lead time confirmed with your quote | |
 LS-TCL-00280.093x telecentric lens, 2/3", C-mount
| 0.093x | C-mount | 2/3" | - | - | - | $11,739.00Quote | Lead time confirmed with your quote | |
 LS-TCL-00240.068x telecentric lens, 1/2", C-mount, M8
| 0.068x | C-mount | 1/2" | - | - | - | $11,739.00Quote | Lead time confirmed with your quote | |
 LS-TCL-00340.303x telecentric lens, 1.1", C-mount, M8
| 0.303x | C-mount | 1.1" | - | - | - | $9,899.00Quote | Lead time confirmed with your quote | |
 LS-TCL-00350.153x telecentric lens, 1.1", C-mount, flying leads / M8
| 0.153x | C-mount | 1.1" | - | - | - | $9,309.00Quote | Lead time confirmed with your quote | |
 LS-TCL-00270.093x telecentric lens, 2/3", C-mount, flying leads / M8
| 0.093x | C-mount | 2/3" | - | - | - | $8,919.00Quote | Lead time confirmed with your quote | |
 LS-TCL-00230.068x telecentric lens, 1/2", C-mount, flying leads
| 0.068x | C-mount | 1/2" | - | - | - | $8,919.00Quote | Lead time confirmed with your quote | |
 LS-TCL-00260.184x telecentric lens, 2/3", C-mount
| 0.184x | C-mount | 2/3" | - | - | - | $8,229.00Quote | Lead time confirmed with your quote | |
 LS-TCL-00220.134x telecentric lens, 1/2", C-mount, M8
| 0.134x | C-mount | 1/2" | - | - | - | $8,229.00Quote | Lead time confirmed with your quote | |
 LS-TCL-00330.303x telecentric lens, 1.1", C-mount
| 0.303x | C-mount | 1.1" | - | - | - | $7,499.00Quote | Lead time confirmed with your quote | |
 LS-TCL-00250.184x telecentric lens, 2/3", C-mount, flying leads
| 0.184x | C-mount | 2/3" | - | - | - | $6,119.00Quote | Lead time confirmed with your quote | |
 LS-TCL-00210.134x telecentric lens, 1/2", C-mount, flying leads
| 0.134x | C-mount | 1/2" | - | - | - | $6,119.00Quote | Lead time confirmed with your quote | |
 LS-TCL-0707Bi-telecentric lens, 0.095x, 273 mm WD, 2/3"
| 0.095x | C-mount | 2/3" | 273 mm | F4.9 | - | $2,529.00Quote | Ships in 2-3 weeks | |
 LS-TCL-0708Bi-telecentric lens, 0.158x, 178 mm WD, 2/3"
| 0.158x | C-mount | 2/3" | 178 mm | F4.9 | - | $1,689.00 | Ships in 2-3 weeks |
Choose a double-telecentric optical layout
Bi-telecentric optics are telecentric on both the object and image sides. The design class differs from object-side-only optics. Use the model data to establish the usable field and measurement conditions; the design label does not set one universal accuracy or depth-of-field value.
- Match magnification and sensor dimensions to the required object field, then check the image-circle rating and mount for the actual camera.
- Compare the published working distance, distortion and telecentricity for the intended object position and aperture. Keep model-specific values separate from general design principles.
- Check the lens outline and illumination clearance before fixing the station geometry. A suitable sensor format alone does not establish mechanical fit or measurement capability.
