0.262x 90° bi-telecentric lens, WD 338 mm, FOV Φ190 mm
LS-TCL-0879
- Magnification 0.262x
- Mount M72
- Sensor Large format
$4,900.00
Ships in 3-4 weeks
Lenses
Bi-telecentric lenses
Choose a double-telecentric optical layoutCompare cataloged bi-telecentric, or double-telecentric, lenses for dimensional imaging. Narrow the choice by sensor coverage, magnification, working distance and the published optical tolerances.
Products
0.262x 90° bi-telecentric lens, WD 338 mm, FOV Φ258 mm
LS-TCL-0878
- Magnification 0.262x
- Mount M72
- Sensor Large format
$4,900.00
Ships in 3-4 weeks
0.398x 90° bi-telecentric lens, WD 318 mm
LS-TCL-0904
- Magnification 0.398x
- Mount M72
- Sensor Large format
$4,800.00
Ships in 3-4 weeks
0.356x bi-telecentric lens, WD 330 mm, M72, BFL 19.5 mm
LS-TCL-0899
- Magnification 0.356x
- Mount M72
- Sensor Large format
$4,730.00
Ships in 3-4 weeks
0.356x bi-telecentric lens, WD 330 mm, M72, BFL 12 mm
LS-TCL-0898
- Magnification 0.356x
- Mount M72
- Sensor Large format
$4,730.00
Ships in 3-4 weeks
0.398x bi-telecentric lens, WD 318 mm, M72, BFL 12 mm
LS-TCL-0906
- Magnification 0.398x
- Mount M72
- Sensor Large format
$4,500.00
Ships in 3-4 weeks
0.398x bi-telecentric lens, WD 318 mm, M72, BFL 19.5 mm
LS-TCL-0905
- Magnification 0.398x
- Mount M72
- Sensor Large format
$4,500.00
Ships in 3-4 weeks

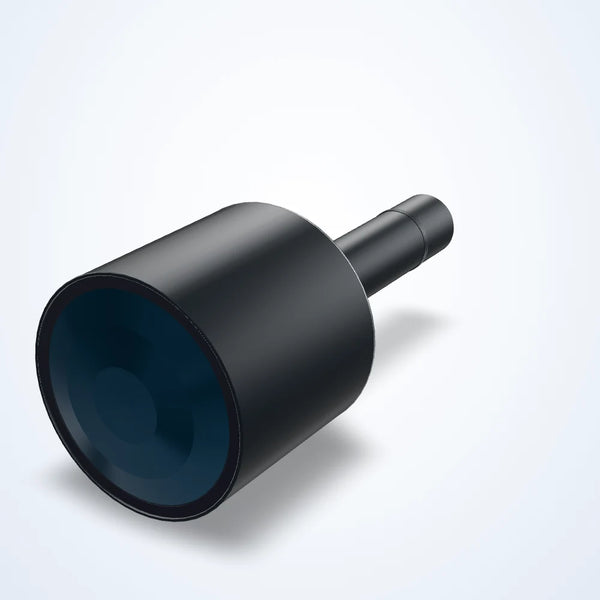

0.246x bi-telecentric lens, WD 340 mm
LS-TCL-0875
- Magnification 0.246x
- Mount M72
- Sensor Large format
$4,500.00
Ships in 3-4 weeks

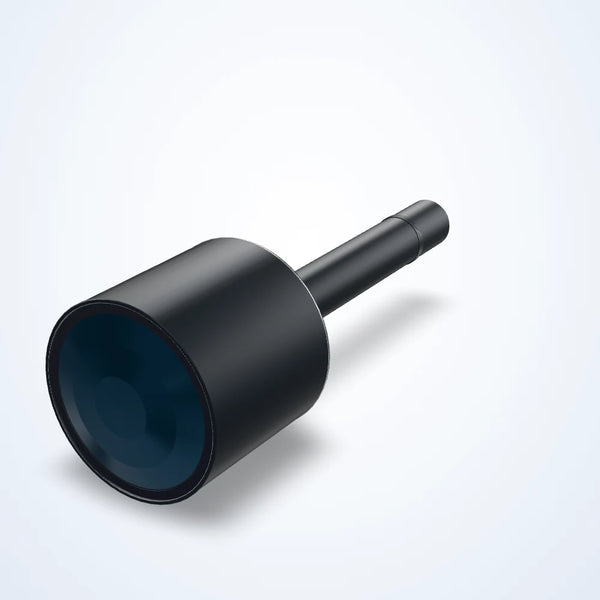

0.202x bi-telecentric lens, WD 372 mm
LS-TCL-0867
- Magnification 0.202x
- Mount M58
- Sensor Full frame
$4,495.00
Ships in 3-4 weeks
0.182x bi-telecentric lens, WD 410 mm
LS-TCL-0865
- Magnification 0.182x
- Mount M58
- Sensor Full frame
$4,495.00
Ships in 3-4 weeks

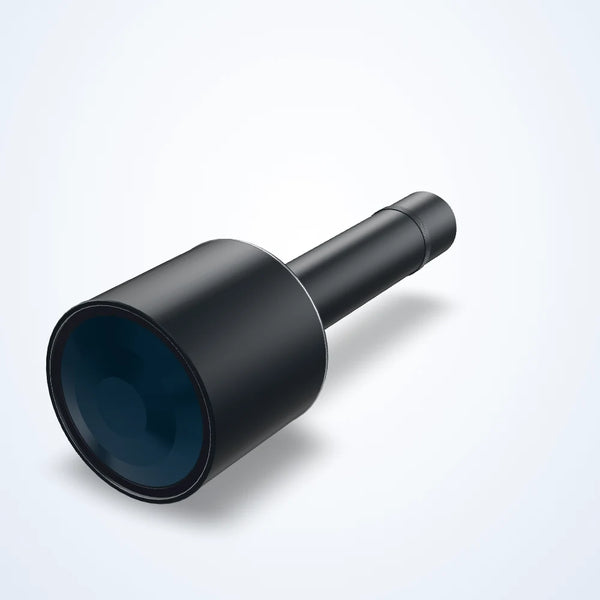

0.291x bi-telecentric lens, WD 300 mm
LS-TCL-0886
- Magnification 0.291x
- Mount F-mount
- Sensor Full frame
$4,070.00
Ships in 3-4 weeks
0.497x bi-telecentric lens, WD 288 mm, M72, BFL 19.5 mm
LS-TCL-0912
- Magnification 0.497x
- Mount M72
- Sensor Large format
$4,000.00
Ships in 3-4 weeks

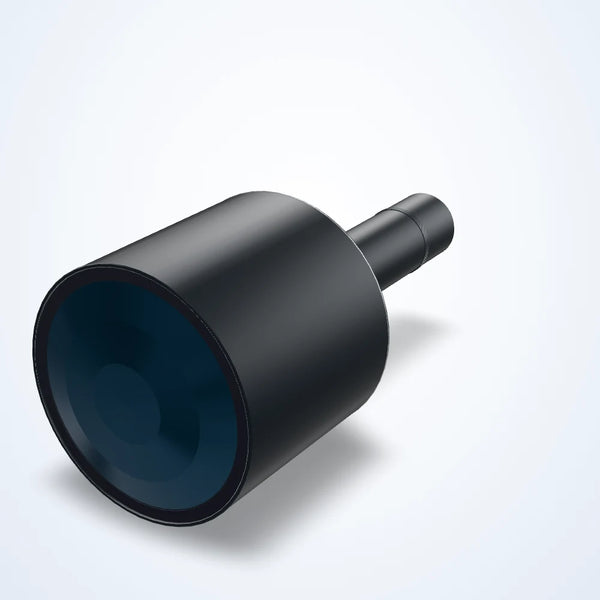

0.273x bi-telecentric lens, WD 372 mm
LS-TCL-0882
- Magnification 0.273x
- Mount M72
- Sensor Large format
$4,000.00
Ships in 3-4 weeks
0.26x bi-telecentric lens, WD 300 mm
LS-TCL-0877
- Magnification 0.26x
- Mount F-mount
- Sensor APS-H
$3,960.00
Ships in 3-4 weeks

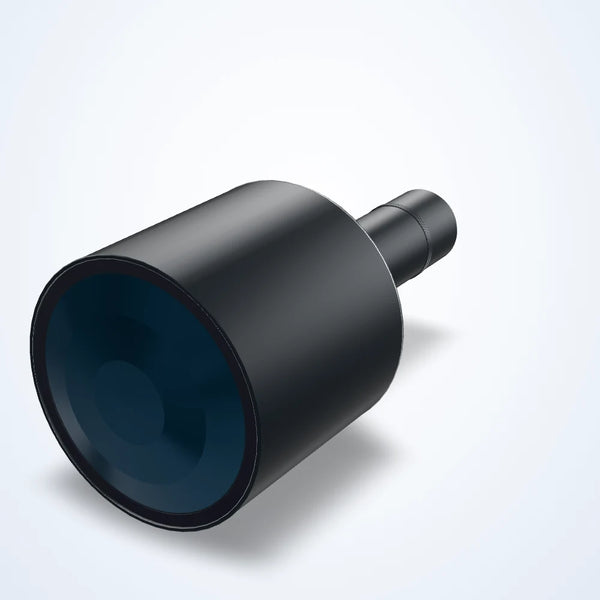

0.311x bi-telecentric lens, WD 330 mm
LS-TCL-0892
- Magnification 0.311x
- Mount M72
- Sensor Large format
$3,850.00
Ships in 3-4 weeks
0.229x bi-telecentric lens, WD 318 mm
LS-TCL-0872
- Magnification 0.229x
- Mount M42, M58
- Sensor APS-H
$3,850.00
Ships in 3-4 weeks

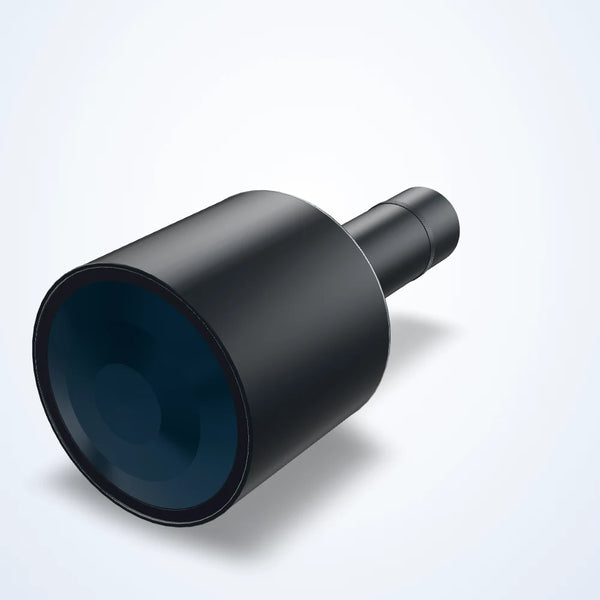

0.347x bi-telecentric lens, WD 318 mm
LS-TCL-0896
- Magnification 0.347x
- Mount M72
- Sensor Large format
$3,750.00
Ships in 3-4 weeks

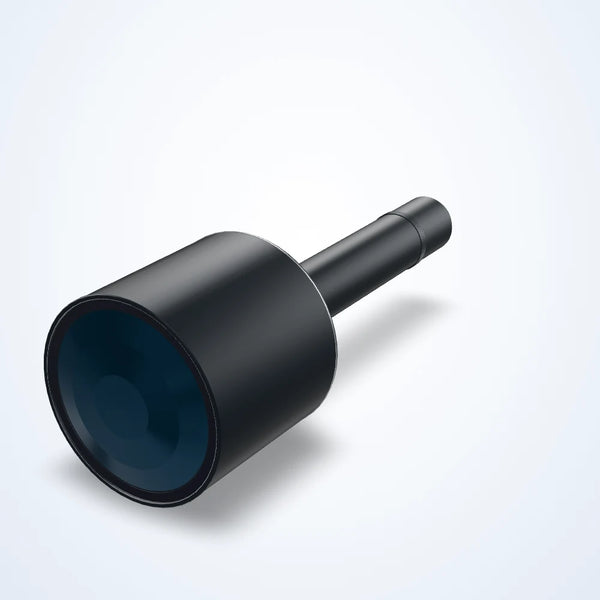

0.229x bi-telecentric lens, WD 330 mm
LS-TCL-0873
- Magnification 0.229x
- Mount F-mount
- Sensor Full frame
$3,690.00
Ships in 3-4 weeks

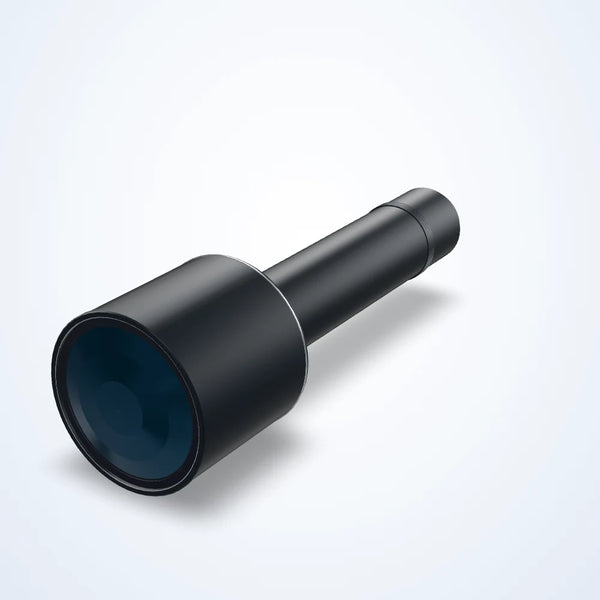

0.363x bi-telecentric lens, WD 273 mm
LS-TCL-0900
- Magnification 0.363x
- Mount F-mount
- Sensor Full frame
$3,530.00
Ships in 3-4 weeks
0.287x bi-telecentric lens, WD 288 mm
LS-TCL-0885
- Magnification 0.287x
- Mount M58
- Sensor APS-H
$3,520.00
Ships in 3-4 weeks
0.705x bi-telecentric lens, WD 125 mm
LS-TCL-0934
- Magnification 0.705x
- Mount M72
- Sensor Large format
$3,500.00
Ships in 3-4 weeks
0.393x bi-telecentric lens, WD 300 mm
LS-TCL-0902
- Magnification 0.393x
- Mount M72
- Sensor Large format
$3,450.00
Ships in 3-4 weeks
0.96x bi-telecentric lens, WD 150 mm, M90
LS-TCL-0957
- Magnification 0.960x
- Mount M90
- Sensor Large format
$3,200.00
Ships in 3-4 weeks

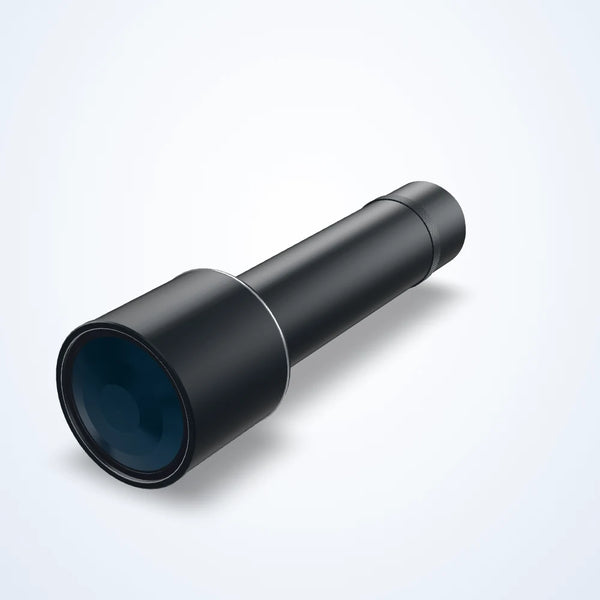

0.484x bi-telecentric lens, WD 208 mm
LS-TCL-0910
- Magnification 0.484x
- Mount M58
- Sensor Full frame
$3,200.00
Ships in 3-4 weeks
| Compare | |||||||||
|---|---|---|---|---|---|---|---|---|---|
 LS-TCL-08790.262x 90° bi-telecentric lens, WD 338 mm, FOV Φ190 mm
| 0.262x | M72 | Large format | 338 mm | F9.4 | 150 MP | $4,900.00 | Ships in 3-4 weeks | |
|
LS-TCL-08780.262x 90° bi-telecentric lens, WD 338 mm, FOV Φ258 mm
| 0.262x | M72 | Large format | 338 mm±5 | F8.8 | 150 MP | $4,900.00 | Ships in 3-4 weeks | |
 LS-TCL-09040.398x 90° bi-telecentric lens, WD 318 mm
| 0.398x | M72 | Large format | 318 mm±5 | F9.4 | 150 MP | $4,800.00 | Ships in 3-4 weeks | |
 LS-TCL-08990.356x bi-telecentric lens, WD 330 mm, M72, BFL 19.5 mm
| 0.356x | M72 | Large format | 330±5 mm | - | 150 MP | $4,730.00 | Ships in 3-4 weeks | |
|
LS-TCL-08980.356x bi-telecentric lens, WD 330 mm, M72, BFL 12 mm
| 0.356x | M72 | Large format | 330±5 mm | - | 150 MP | $4,730.00 | Ships in 3-4 weeks | |
|
LS-TCL-09060.398x bi-telecentric lens, WD 318 mm, M72, BFL 12 mm
| 0.398x | M72 | Large format | 318±5 mm | - | 150 MP | $4,500.00 | Ships in 3-4 weeks | |
|
LS-TCL-09050.398x bi-telecentric lens, WD 318 mm, M72, BFL 19.5 mm
| 0.398x | M72 | Large format | 318±5 mm | F9.4 | 150 MP | $4,500.00 | Ships in 3-4 weeks | |
 LS-TCL-08750.246x bi-telecentric lens, WD 340 mm
| 0.246x | M72 | Large format | 340±5 mm | F8.7 | - | $4,500.00 | Ships in 3-4 weeks | |
 LS-TCL-08670.202x bi-telecentric lens, WD 372 mm
| 0.202x | M58 | Full frame | 372±5 mm | F10.4 | - | $4,495.00 | Ships in 3-4 weeks | |
 LS-TCL-08650.182x bi-telecentric lens, WD 410 mm
| 0.182x | M58 | Full frame | 410±6 mm | - | - | $4,495.00 | Ships in 3-4 weeks | |
 LS-TCL-08860.291x bi-telecentric lens, WD 300 mm
| 0.291x | F-mount | Full frame | 300±5 mm | F14.6 | - | $4,070.00 | Ships in 3-4 weeks | |
|
LS-TCL-09120.497x bi-telecentric lens, WD 288 mm, M72, BFL 19.5 mm
| 0.497x | M72 | Large format | 288±5 mm | - | 150 MP | $4,000.00 | Ships in 3-4 weeks | |
 LS-TCL-08820.273x bi-telecentric lens, WD 372 mm
| 0.273x | M72 | Large format | 372±5 mm | F8.7 | - | $4,000.00 | Ships in 3-4 weeks | |
 LS-TCL-08770.26x bi-telecentric lens, WD 300 mm
| 0.26x | F-mount | APS-H | 300±5 mm | F13.1 | 71 MP | $3,960.00 | Ships in 3-4 weeks | |
 LS-TCL-08920.311x bi-telecentric lens, WD 330 mm
| 0.311x | M72 | Large format | 330±5 mm | F13.9 | - | $3,850.00 | Ships in 3-4 weeks | |
 LS-TCL-08720.229x bi-telecentric lens, WD 318 mm
| 0.229x | M42, M58 | APS-H | 318±5 mm | F6.5 | 71 MP | $3,850.00 | Ships in 3-4 weeks | |
 LS-TCL-08960.347x bi-telecentric lens, WD 318 mm
| 0.347x | M72 | Large format | 318±5 mm | F8.7 | - | $3,750.00 | Ships in 3-4 weeks | |
 LS-TCL-08730.229x bi-telecentric lens, WD 330 mm
| 0.229x | F-mount | Full frame | 330±5 mm | F6 | - | $3,690.00 | Ships in 3-4 weeks | |
 LS-TCL-09000.363x bi-telecentric lens, WD 273 mm
| 0.363x | F-mount | Full frame | 273±5 mm | F8.5 | - | $3,530.00 | Ships in 3-4 weeks | |
 LS-TCL-08850.287x bi-telecentric lens, WD 288 mm
| 0.287x | M58 | APS-H | 288±5 mm | - | 71 MP | $3,520.00 | Ships in 3-4 weeks | |
 LS-TCL-09340.705x bi-telecentric lens, WD 125 mm
| 0.705x | M72 | Large format | 125±3 mm | F7.0 | - | $3,500.00 | Ships in 3-4 weeks | |
 LS-TCL-09020.393x bi-telecentric lens, WD 300 mm
| 0.393x | M72 | Large format | 300±5 mm | F19.8 | - | $3,450.00 | Ships in 3-4 weeks | |
 LS-TCL-09570.96x bi-telecentric lens, WD 150 mm, M90
| 0.960x | M90 | Large format | 150±3 mm | - | - | $3,200.00 | Ships in 3-4 weeks | |
 LS-TCL-09100.484x bi-telecentric lens, WD 208 mm
| 0.484x | M58 | Full frame | 208±3 mm | F11.4 | - | $3,200.00 | Ships in 3-4 weeks |
Choose a double-telecentric optical layout
Bi-telecentric optics are telecentric on both the object and image sides. The design class differs from object-side-only optics. Use the model data to establish the usable field and measurement conditions; the design label does not set one universal accuracy or depth-of-field value.
- Match magnification and sensor dimensions to the required object field, then check the image-circle rating and mount for the actual camera.
- Compare the published working distance, distortion and telecentricity for the intended object position and aperture. Keep model-specific values separate from general design principles.
- Check the lens outline and illumination clearance before fixing the station geometry. A suitable sensor format alone does not establish mechanical fit or measurement capability.
