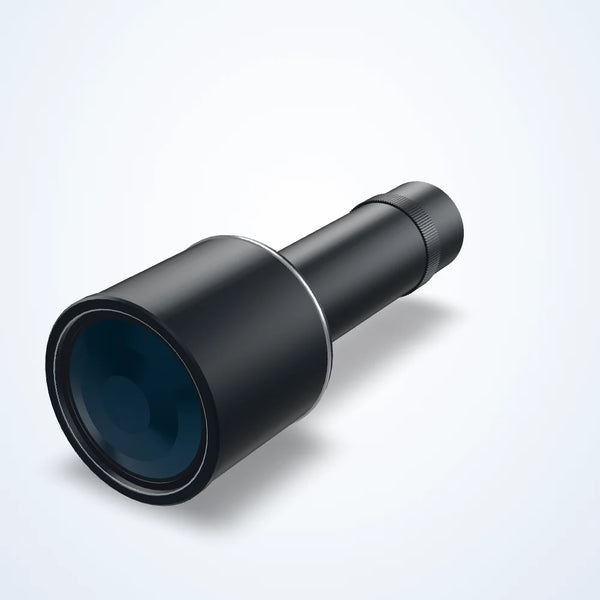

0.259x bi-telecentric lens, WD 158 mm, 1", C-mount
LS-TCL-1058
- Magnification 0.259x
- Mount C-mount
- Sensor 1"
$1,060.00
Ships in 3-4 weeks
Lenses
Bi-telecentric lenses
Choose a double-telecentric optical layoutCompare cataloged bi-telecentric, or double-telecentric, lenses for dimensional imaging. Narrow the choice by sensor coverage, magnification, working distance and the published optical tolerances.
Products

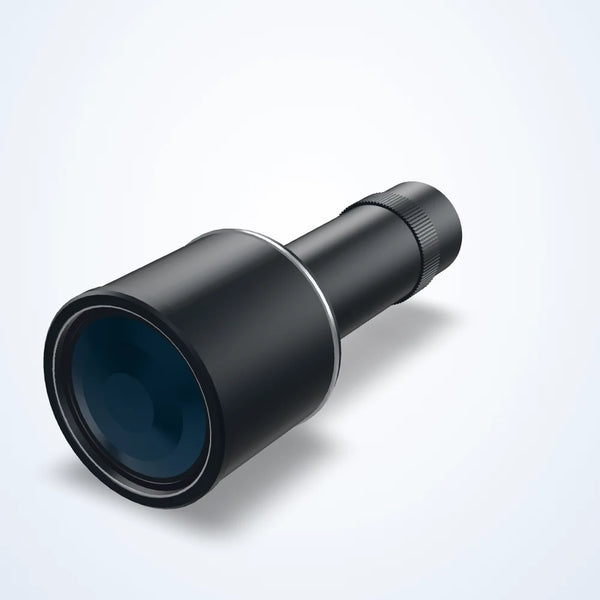

0.346x bi-telecentric lens, WD 138 mm, 1", C-mount
LS-TCL-1061
- Magnification 0.346x
- Mount C-mount
- Sensor 1"
$850.00
Ships in 3-4 weeks
0.346x bi-telecentric lens, WD 128 mm, 1", C-mount
LS-TCL-1060
- Magnification 0.346x
- Mount C-mount
- Sensor 1"
$850.00
Ships in 3-4 weeks

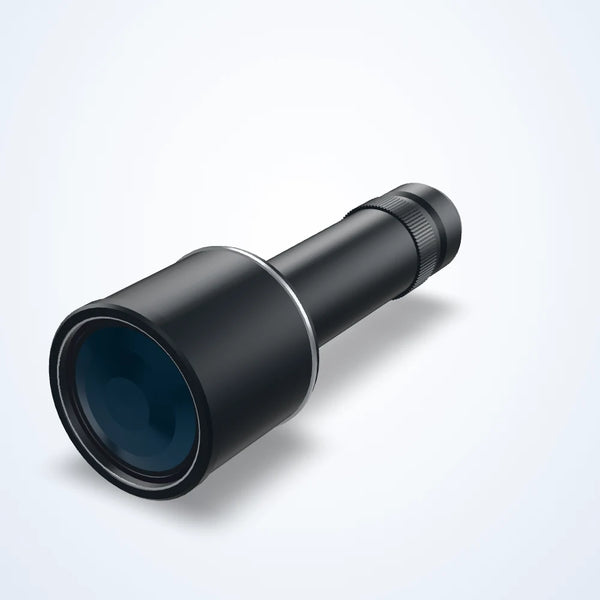

0.395x bi-telecentric lens, WD 118 mm, 1", C-mount
LS-TCL-1062
- Magnification 0.395x
- Mount C-mount
- Sensor 1"
$770.00
Ships in 3-4 weeks

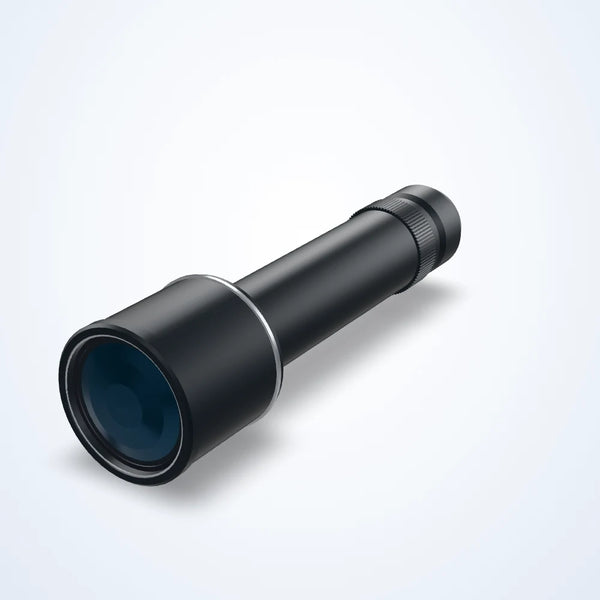

0.46x bi-telecentric lens, WD 110 mm, 1", C-mount
LS-TCL-1065
- Magnification 0.46x
- Mount C-mount
- Sensor 1"
$750.00
Ships in 3-4 weeks
0.638x bi-telecentric lens, WD 73 mm, 1", C-mount
LS-TCL-1068
- Magnification 0.638x
- Mount C-mount
- Sensor 1"
$645.00
Ships in 3-4 weeks

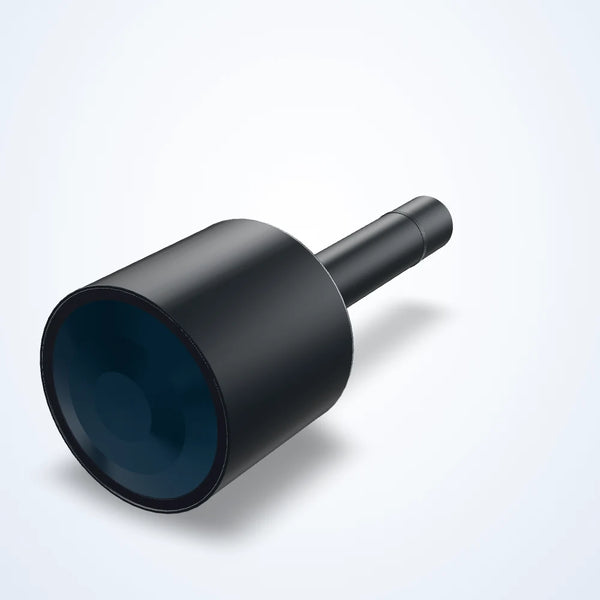

0.197x bi-telecentric lens, WD 465 mm
LS-TCL-0866
- Magnification 0.197x
- Mount M72
- Sensor Large format
$9,080.00Quote
Ships in 3-4 weeks

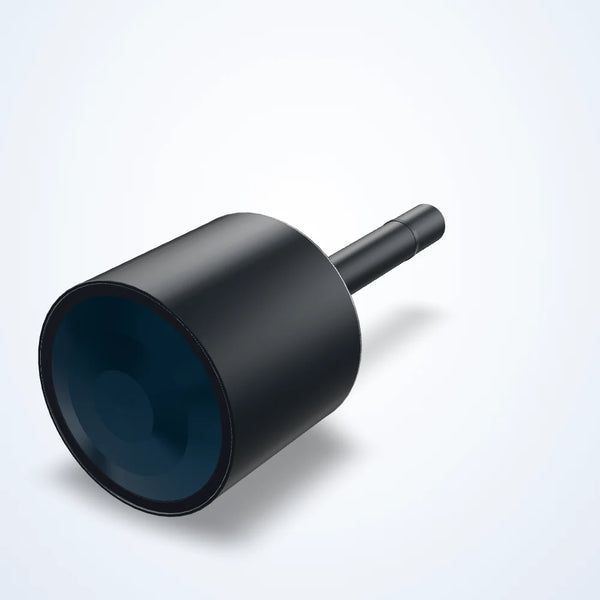

0.13x bi-telecentric lens, WD 465 mm
LS-TCL-0859
- Magnification 0.13x
- Mount F-mount
- Sensor APS-H
$9,020.00Quote
Ships in 3-4 weeks
0.225x bi-telecentric lens, WD 465 mm, M72, BFL 12 mm
LS-TCL-0871
- Magnification 0.225x
- Mount M72
- Sensor Large format
$9,000.00Quote
Ships in 3-4 weeks
0.225x bi-telecentric lens, WD 465 mm, M72, BFL 19.5 mm
LS-TCL-0870
- Magnification 0.225x
- Mount M72
- Sensor Large format
$9,000.00Quote
Ships in 3-4 weeks
0.225x 90° bi-telecentric lens, WD 465 mm
LS-TCL-0869
- Magnification 0.225x
- Mount M72
- Sensor Large format
$9,000.00Quote
Ships in 3-4 weeks

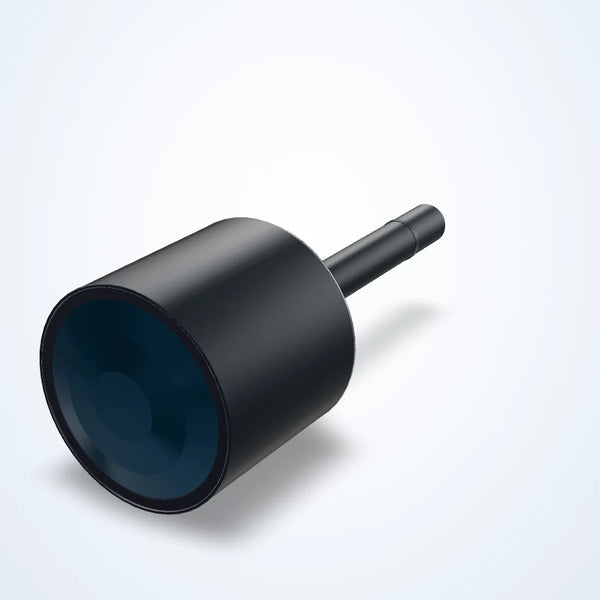

0.145x bi-telecentric lens, WD 465 mm
LS-TCL-0860
- Magnification 0.145x
- Mount M58
- Sensor Full frame
$8,830.00Quote
Ships in 3-4 weeks

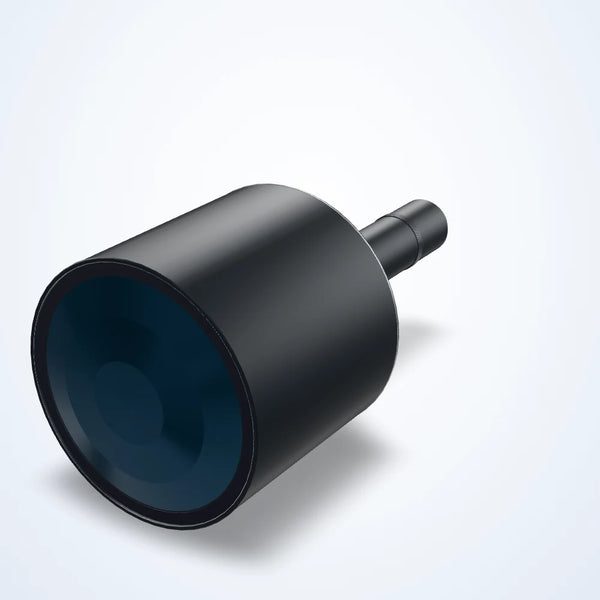

0.151x bi-telecentric lens, WD 338 mm
LS-TCL-0861
- Magnification 0.151x
- Mount M42, M58
- Sensor APS-H
$8,000.00Quote
Ships in 3-4 weeks
0.262x bi-telecentric lens, WD 338 mm, M72, BFL 12 mm
LS-TCL-0881
- Magnification 0.262x
- Mount M72
- Sensor Large format
$7,150.00Quote
Ships in 3-4 weeks
0.303x 90° bi-telecentric lens, WD 410 mm
LS-TCL-0891
- Magnification 0.303x
- Mount M72
- Sensor Large format
$6,500.00Quote
Ships in 3-4 weeks

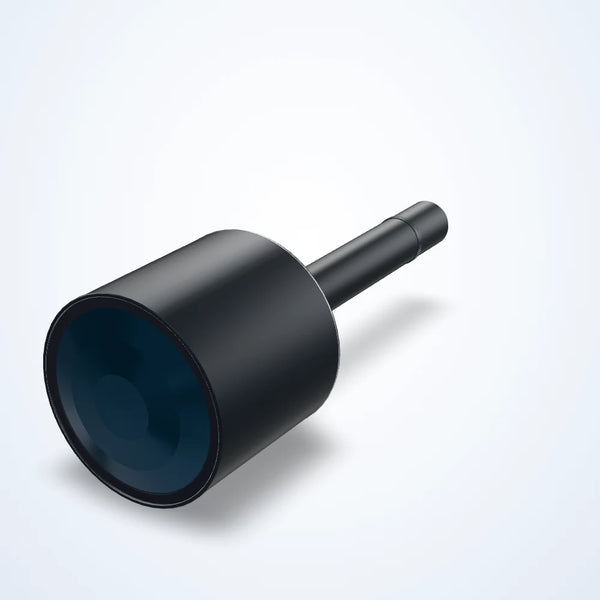

0.163x bi-telecentric lens, WD 410 mm
LS-TCL-0862
- Magnification 0.163x
- Mount F-mount
- Sensor APS-H
$6,160.00Quote
Ships in 3-4 weeks
0.282x bi-telecentric lens, WD 410 mm, M72, BFL 12 mm
LS-TCL-0883
- Magnification 0.282x
- Mount M72
- Sensor Large format
$5,885.00Quote
Ships in 3-4 weeks
0.262x bi-telecentric lens, WD 338 mm, M72, BFL 19.5 mm
LS-TCL-0880
- Magnification 0.262x
- Mount M72
- Sensor Large format
$5,885.00Quote
Ships in 3-4 weeks

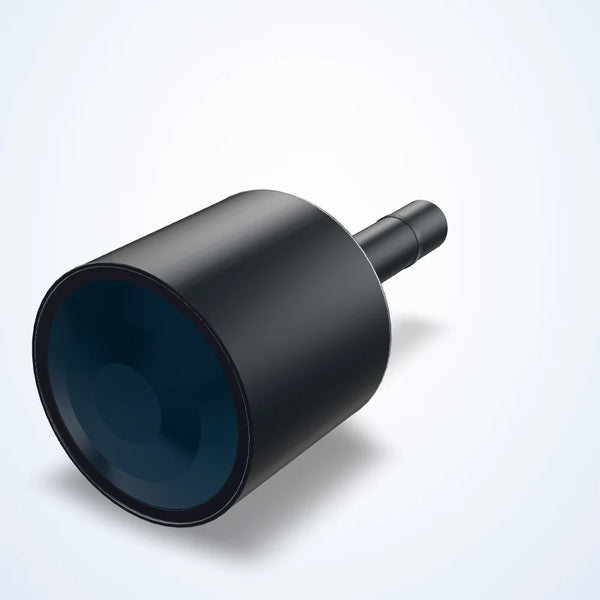

0.169x bi-telecentric lens, WD 338 mm
LS-TCL-0863
- Magnification 0.169x
- Mount M58
- Sensor Full frame
$5,780.00Quote
Ships in 3-4 weeks
0.313x bi-telecentric lens, WD 372 mm, M72, BFL 12 mm
LS-TCL-0893
- Magnification 0.313x
- Mount M72
- Sensor Large format
$5,500.00Quote
Ships in 3-4 weeks
0.282x bi-telecentric lens, WD 410 mm, M72, BFL 19.5 mm
LS-TCL-0884
- Magnification 0.282x
- Mount M72
- Sensor Large format
$5,500.00Quote
Ships in 3-4 weeks

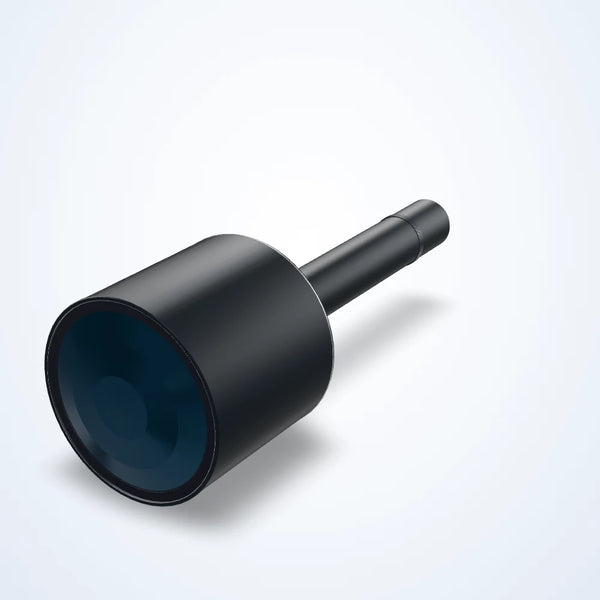

0.181x bi-telecentric lens, WD 372 mm
LS-TCL-0864
- Magnification 0.181x
- Mount M42, M58
- Sensor APS-H
$5,500.00Quote
Ships in 3-4 weeks

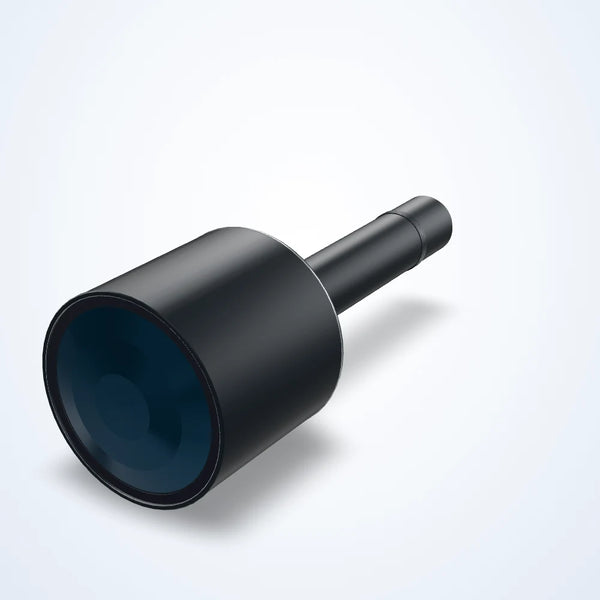

0.205x bi-telecentric lens, WD 330 mm
LS-TCL-0868
- Magnification 0.205x
- Mount F-mount
- Sensor APS-H
$5,280.00Quote
Ships in 3-4 weeks
0.229x bi-telecentric lens, WD 340 mm
LS-TCL-0874
- Magnification 0.229x
- Mount M72
- Sensor Large format
$5,000.00
Ships in 3-4 weeks
| Compare | |||||||||
|---|---|---|---|---|---|---|---|---|---|
 LS-TCL-10580.259x bi-telecentric lens, WD 158 mm, 1", C-mount
| 0.259x | C-mount | 1" | 158±3 mm | F6.5 | dia. 64 mm | $1,060.00 | Ships in 3-4 weeks | |
 LS-TCL-10610.346x bi-telecentric lens, WD 138 mm, 1", C-mount
| 0.346x | C-mount | 1" | 138±3 mm | F9.8 | dia. 48 mm | $850.00 | Ships in 3-4 weeks | |
 LS-TCL-10600.346x bi-telecentric lens, WD 128 mm, 1", C-mount
| 0.346x | C-mount | 1" | 128±3 mm | F6.5 | dia. 48 mm | $850.00 | Ships in 3-4 weeks | |
 LS-TCL-10620.395x bi-telecentric lens, WD 118 mm, 1", C-mount
| 0.395x | C-mount | 1" | 118±3 mm | F6.5 | dia. 42 mm | $770.00 | Ships in 3-4 weeks | |
 LS-TCL-10650.46x bi-telecentric lens, WD 110 mm, 1", C-mount
| 0.46x | C-mount | 1" | 110±2 mm | F7.8 | dia. 36 mm | $750.00 | Ships in 3-4 weeks | |
 LS-TCL-10680.638x bi-telecentric lens, WD 73 mm, 1", C-mount
| 0.638x | C-mount | 1" | 73±1 mm | F8.7 | dia. 26 mm | $645.00 | Ships in 3-4 weeks | |
 LS-TCL-08660.197x bi-telecentric lens, WD 465 mm
| 0.197x | M72 | Large format | 465±6 mm | F9 | dia. 300 mm | $9,080.00Quote | Ships in 3-4 weeks | |
 LS-TCL-08590.13x bi-telecentric lens, WD 465 mm
| 0.13x | F-mount | APS-H | 465±6 mm | F6.5 | - | $9,020.00Quote | Ships in 3-4 weeks | |
 LS-TCL-08710.225x bi-telecentric lens, WD 465 mm, M72, BFL 12 mm
| 0.225x | M72 | Large format | 465±6 mm | - | dia. 300 mm | $9,000.00Quote | Ships in 3-4 weeks | |
|
LS-TCL-08700.225x bi-telecentric lens, WD 465 mm, M72, BFL 19.5 mm
| 0.225x | M72 | Large format | 465±6 mm | - | dia. 300 mm | $9,000.00Quote | Ships in 3-4 weeks | |
 LS-TCL-08690.225x 90° bi-telecentric lens, WD 465 mm
| 0.225x | M72 | Large format | 465 mm | F6.6 | - | $9,000.00Quote | Ships in 3-4 weeks | |
 LS-TCL-08600.145x bi-telecentric lens, WD 465 mm
| 0.145x | M58 | Full frame | 465±6 mm | F6.7 | dia. 300 mm | $8,830.00Quote | Ships in 3-4 weeks | |
 LS-TCL-08610.151x bi-telecentric lens, WD 338 mm
| 0.151x | M42, M58 | APS-H | 338±5 mm | F6.5 | - | $8,000.00Quote | Ships in 3-4 weeks | |
|
LS-TCL-08810.262x bi-telecentric lens, WD 338 mm, M72, BFL 12 mm
| 0.262x | M72 | Large format | 338±5 mm | - | dia. 258 mm | $7,150.00Quote | Ships in 3-4 weeks | |
|
LS-TCL-08910.303x 90° bi-telecentric lens, WD 410 mm
| 0.303x | M72 | Large format | 410 mm | - | - | $6,500.00Quote | Ships in 3-4 weeks | |
 LS-TCL-08620.163x bi-telecentric lens, WD 410 mm
| 0.163x | F-mount | APS-H | 410±6 mm | F7.5 | - | $6,160.00Quote | Ships in 3-4 weeks | |
|
LS-TCL-08830.282x bi-telecentric lens, WD 410 mm, M72, BFL 12 mm
| 0.282x | M72 | Large format | 410±6 mm | - | dia. 240 mm | $5,885.00Quote | Ships in 3-4 weeks | |
|
LS-TCL-08800.262x bi-telecentric lens, WD 338 mm, M72, BFL 19.5 mm
| 0.262x | M72 | Large format | 338±5 mm | - | dia. 258 mm | $5,885.00Quote | Ships in 3-4 weeks | |
 LS-TCL-08630.169x bi-telecentric lens, WD 338 mm
| 0.169x | M58 | Full frame | 338±5 mm | F6.0 | dia. 258 mm | $5,780.00Quote | Ships in 3-4 weeks | |
|
LS-TCL-08930.313x bi-telecentric lens, WD 372 mm, M72, BFL 12 mm
| 0.313x | M72 | Large format | 372±5 mm | - | dia. 216 mm | $5,500.00Quote | Ships in 3-4 weeks | |
|
LS-TCL-08840.282x bi-telecentric lens, WD 410 mm, M72, BFL 19.5 mm
| 0.282x | M72 | Large format | 410±6 mm | - | dia. 240 mm | $5,500.00Quote | Ships in 3-4 weeks | |
 LS-TCL-08640.181x bi-telecentric lens, WD 372 mm
| 0.181x | M42, M58 | APS-H | 372±5 mm | F6.5 | - | $5,500.00Quote | Ships in 3-4 weeks | |
 LS-TCL-08680.205x bi-telecentric lens, WD 330 mm
| 0.205x | F-mount | APS-H | 330±5 mm | F6.5 | - | $5,280.00Quote | Ships in 3-4 weeks | |
 LS-TCL-08740.229x bi-telecentric lens, WD 340 mm
| 0.229x | M72 | Large format | 340±5 mm | - | dia. 258 mm | $5,000.00 | Ships in 3-4 weeks |
Choose a double-telecentric optical layout
Bi-telecentric optics are telecentric on both the object and image sides. The design class differs from object-side-only optics. Use the model data to establish the usable field and measurement conditions; the design label does not set one universal accuracy or depth-of-field value.
- Match magnification and sensor dimensions to the required object field, then check the image-circle rating and mount for the actual camera.
- Compare the published working distance, distortion and telecentricity for the intended object position and aperture. Keep model-specific values separate from general design principles.
- Check the lens outline and illumination clearance before fixing the station geometry. A suitable sensor format alone does not establish mechanical fit or measurement capability.
