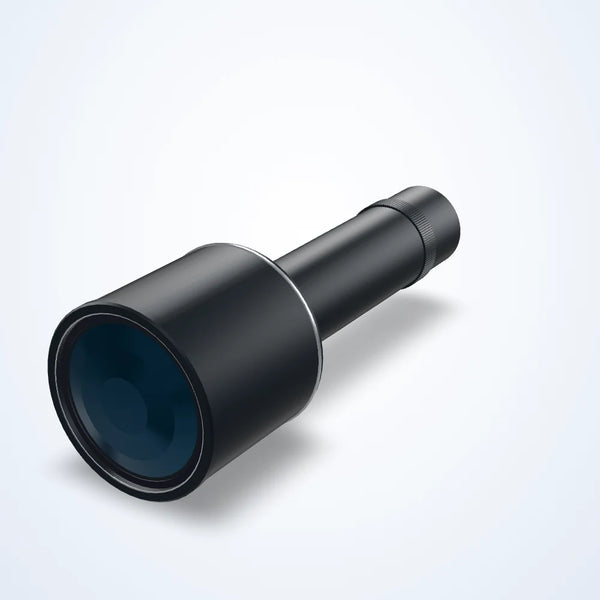

0.256x bi-telecentric lens, WD 178 mm, 1.1"
LS-TCL-1085
- Magnification 0.256x
- Mount C-mount
- Sensor 1.1"
$1,305.00
Ships in 3-4 weeks
Lenses
Bi-telecentric lenses
Choose a double-telecentric optical layoutCompare cataloged bi-telecentric, or double-telecentric, lenses for dimensional imaging. Narrow the choice by sensor coverage, magnification, working distance and the published optical tolerances.
Products
0.288x bi-telecentric lens, WD 158 mm, 1.1"
LS-TCL-1087
- Magnification 0.288x
- Mount C-mount
- Sensor 1.1"
$1,060.00
Ships in 3-4 weeks
0.329x bi-telecentric lens, WD 138 mm, 1.1"
LS-TCL-1088
- Magnification 0.329x
- Mount C-mount
- Sensor 1.1"
$1,020.00
Ships in 3-4 weeks

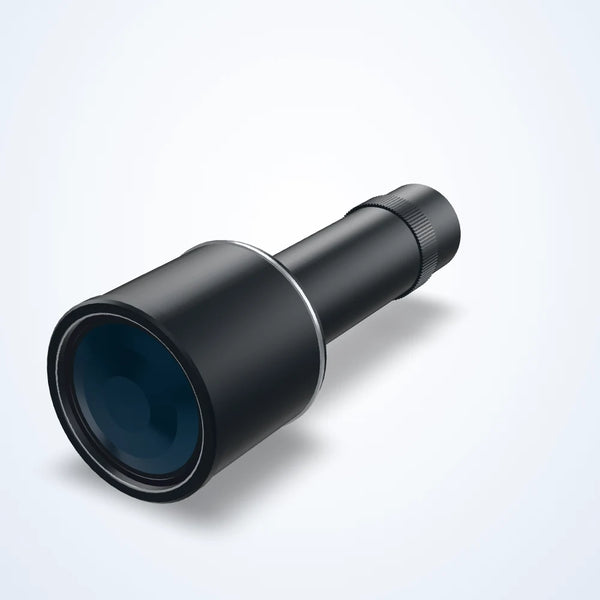

0.383x bi-telecentric lens, WD 138 mm, 1.1"
LS-TCL-1092
- Magnification 0.383x
- Mount C-mount
- Sensor 1.1"
$900.00
Ships in 3-4 weeks
0.383x bi-telecentric lens, WD 128 mm, 1.1"
LS-TCL-1091
- Magnification 0.383x
- Mount C-mount
- Sensor 1.1"
$900.00
Ships in 3-4 weeks

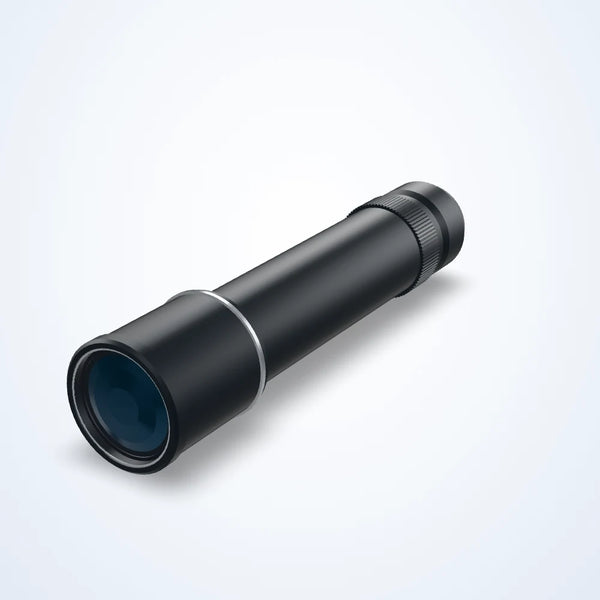

0.708x bi-telecentric lens, WD 73 mm, 1.1"
LS-TCL-1101
- Magnification 0.708x
- Mount C-mount
- Sensor 1.1"
$870.00
Ships in 3-4 weeks

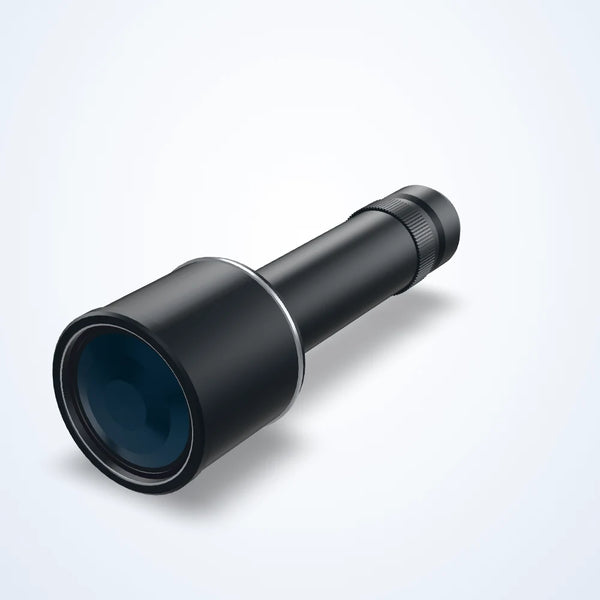

0.428x bi-telecentric lens, WD 118 mm, 1.1"
LS-TCL-1093
- Magnification 0.428x
- Mount C-mount
- Sensor 1.1"
$780.00
Ships in 3-4 weeks

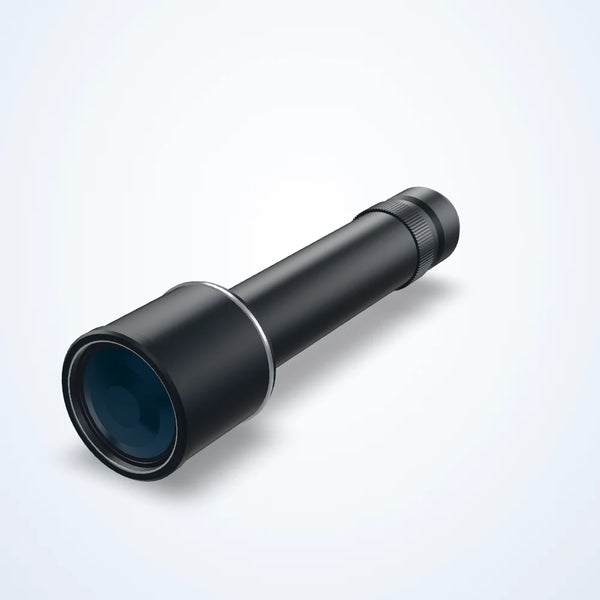

0.511x bi-telecentric lens, WD 110 mm, 1.1"
LS-TCL-1095
- Magnification 0.511x
- Mount C-mount
- Sensor 1.1"
$770.00
Ships in 3-4 weeks

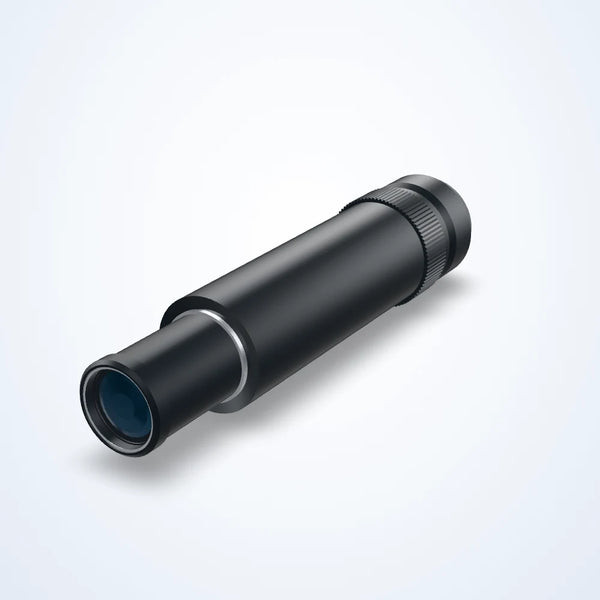

1.5x bi-telecentric lens, WD 110 mm, 1.1"
LS-TCL-1109
- Magnification 1.5x
- Mount C-mount
- Sensor 1.1"
$620.00
Ships in 3-4 weeks
0.055x bi-telecentric lens, WD 465 mm, 1", C-mount
LS-TCL-1044
- Magnification 0.055x
- Mount C-mount
- Sensor 1"
$8,560.00Quote
Ships in 3-4 weeks

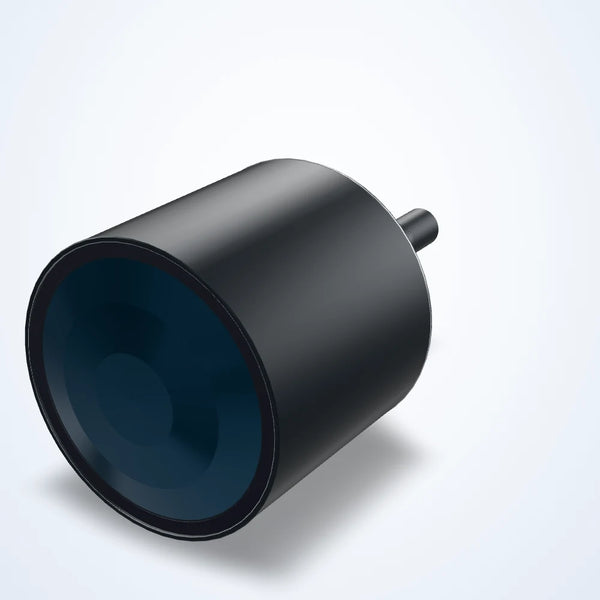

0.064x bi-telecentric lens, WD 338 mm, 1", C-mount
LS-TCL-1045
- Magnification 0.064x
- Mount C-mount
- Sensor 1"
$8,025.00Quote
Ships in 3-4 weeks

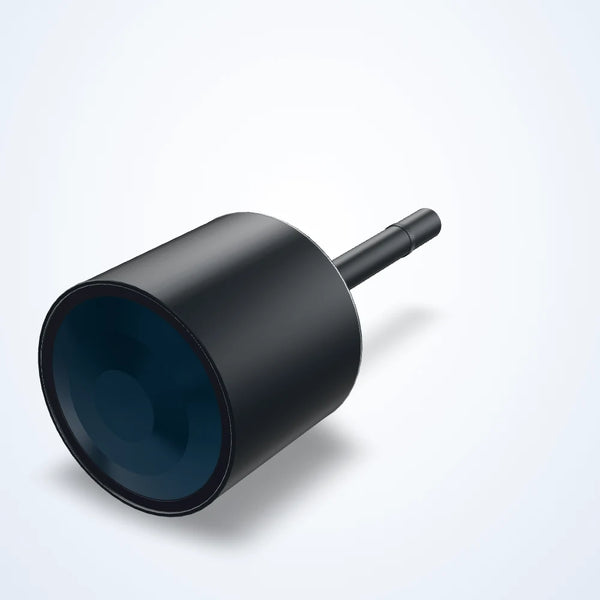

0.069x bi-telecentric lens, WD 410 mm, 1", C-mount
LS-TCL-1046
- Magnification 0.069x
- Mount C-mount
- Sensor 1"
$5,245.00Quote
Ships in 3-4 weeks

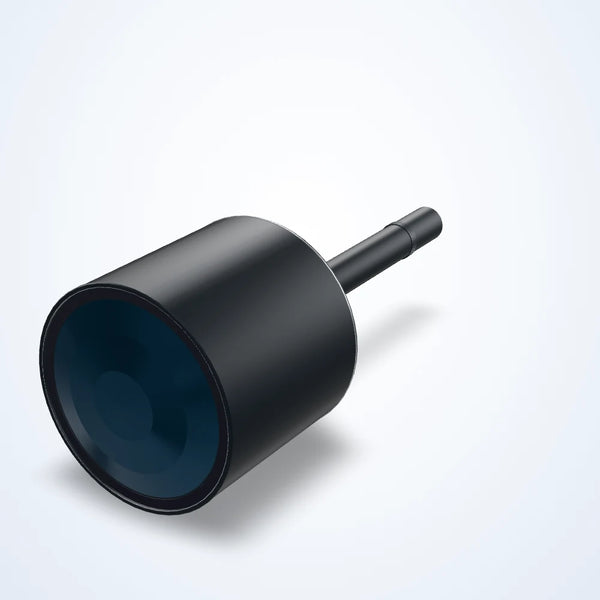

0.077x bi-telecentric lens, WD 372 mm, 1", C-mount
LS-TCL-1047
- Magnification 0.077x
- Mount C-mount
- Sensor 1"
$4,925.00
Ships in 3-4 weeks

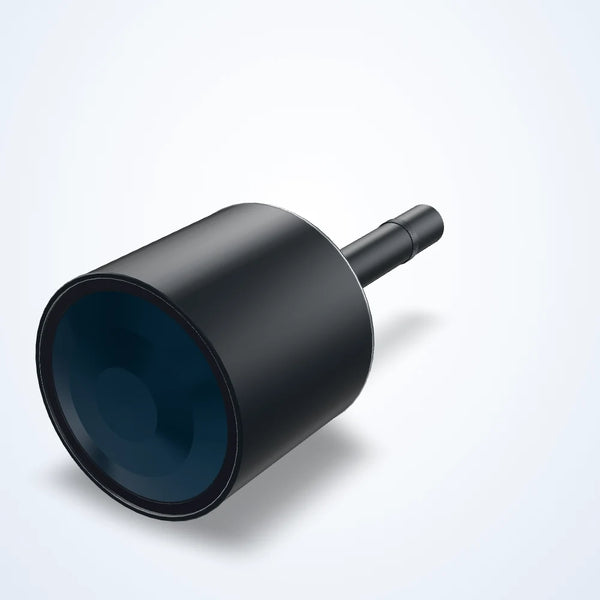

0.087x bi-telecentric lens, WD 330 mm, 1", C-mount
LS-TCL-1048
- Magnification 0.087x
- Mount C-mount
- Sensor 1"
$3,425.00
Ships in 3-4 weeks

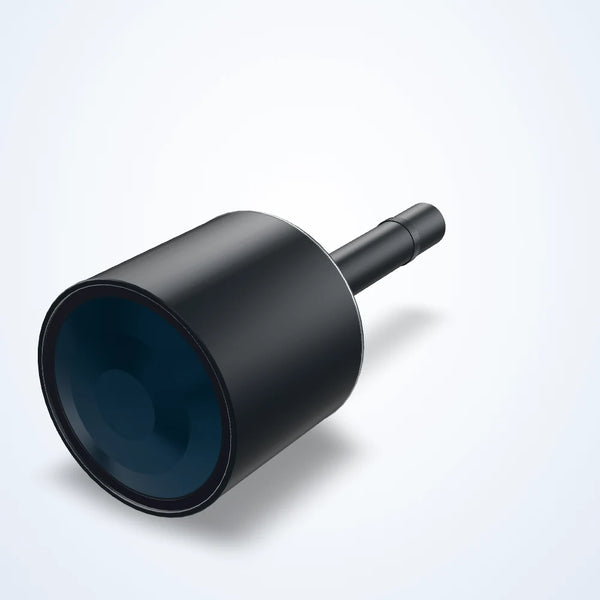

0.098x bi-telecentric lens, WD 318 mm, 1", C-mount
LS-TCL-1049
- Magnification 0.098x
- Mount C-mount
- Sensor 1"
$3,000.00
Ships in 3-4 weeks

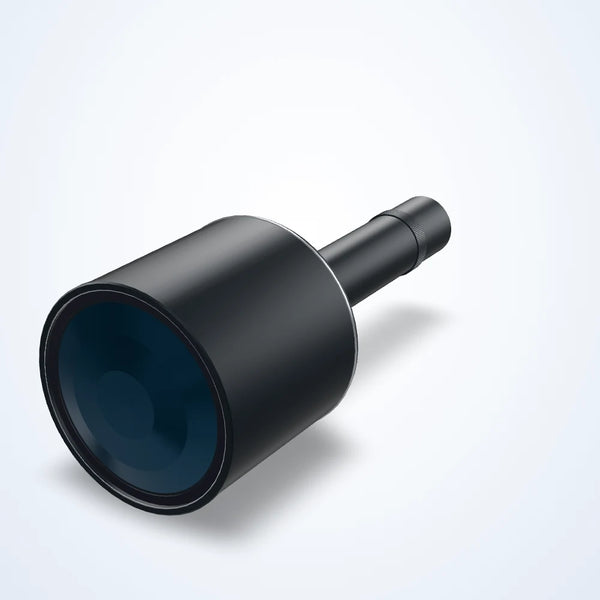

0.138x bi-telecentric lens, WD 273 mm, 1", C-mount
LS-TCL-1052
- Magnification 0.138x
- Mount C-mount
- Sensor 1"
$2,350.00
Ships in 3-4 weeks

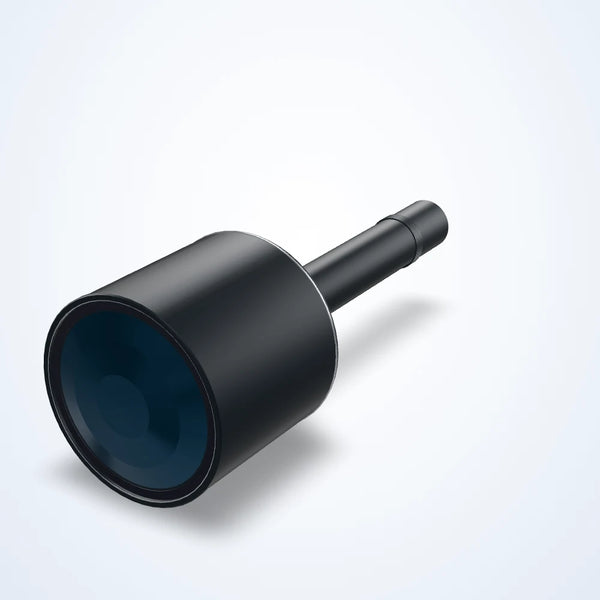

0.122x bi-telecentric lens, WD 288 mm, 1", C-mount
LS-TCL-1051
- Magnification 0.122x
- Mount C-mount
- Sensor 1"
$2,350.00
Ships in 3-4 weeks

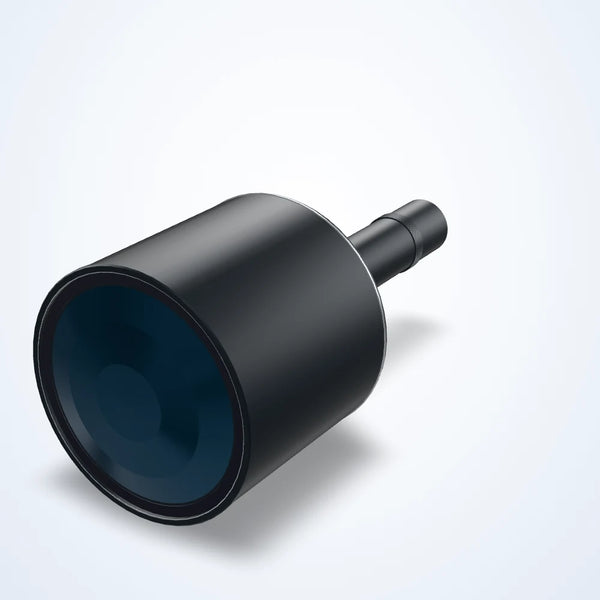

0.11x bi-telecentric lens, WD 300 mm, 1", C-mount
LS-TCL-1050
- Magnification 0.11x
- Mount C-mount
- Sensor 1"
$2,350.00
Ships in 3-4 weeks
0.184x bi-telecentric lens, WD 208 mm, 1", C-mount
LS-TCL-1055
- Magnification 0.184x
- Mount C-mount
- Sensor 1"
$1,925.00
Ships in 3-4 weeks
0.166x bi-telecentric lens, WD 258 mm, 1", C-mount
LS-TCL-1054
- Magnification 0.166x
- Mount C-mount
- Sensor 1"
$1,875.00
Ships in 3-4 weeks

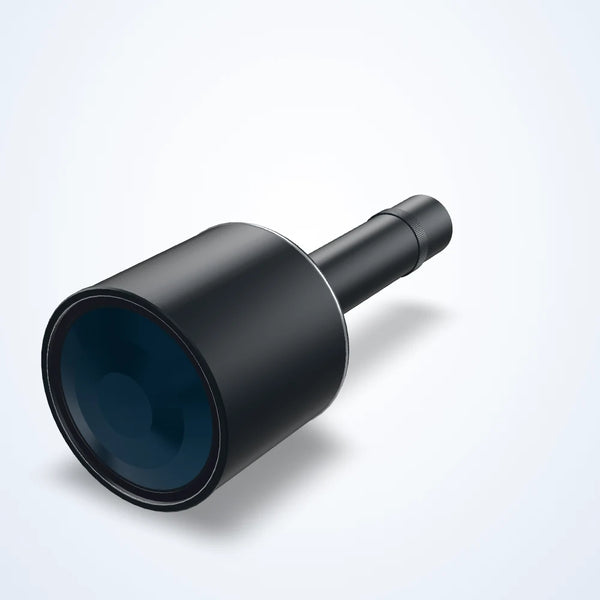

0.151x bi-telecentric lens, WD 263 mm, 1", C-mount
LS-TCL-1053
- Magnification 0.151x
- Mount C-mount
- Sensor 1"
$1,875.00
Ships in 3-4 weeks

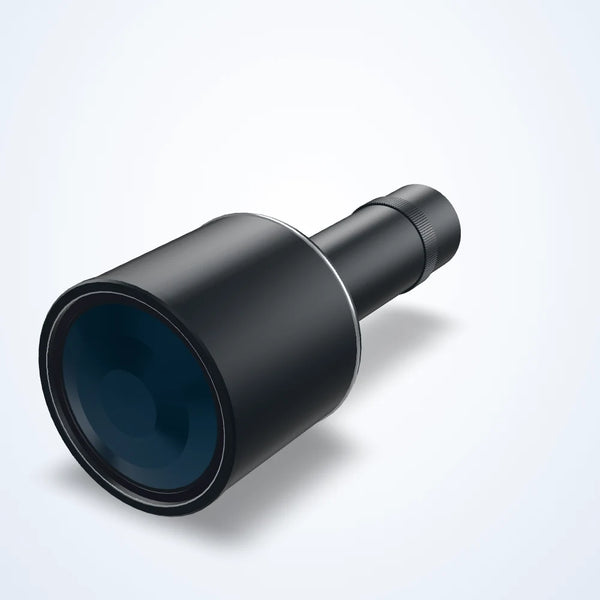

0.208x bi-telecentric lens, WD 228 mm, 1", C-mount
LS-TCL-1056
- Magnification 0.208x
- Mount C-mount
- Sensor 1"
$1,720.00
Ships in 3-4 weeks

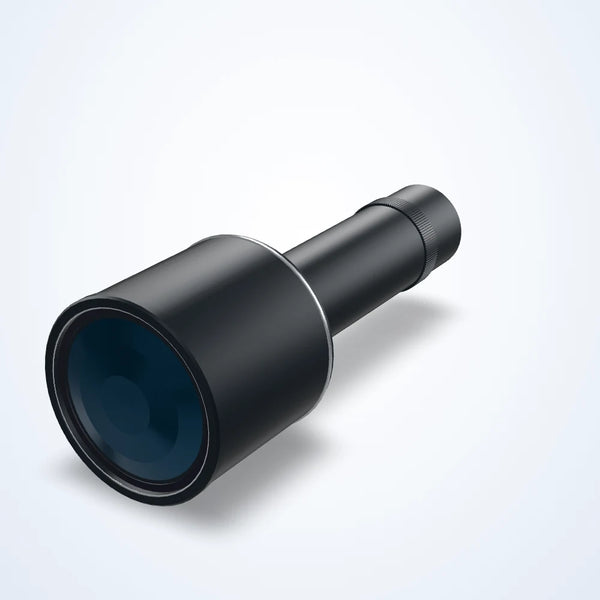

0.231x bi-telecentric lens, WD 178 mm, 1", C-mount
LS-TCL-1057
- Magnification 0.231x
- Mount C-mount
- Sensor 1"
$1,285.00
Ships in 3-4 weeks
0.296x bi-telecentric lens, WD 138 mm, 1", C-mount
LS-TCL-1059
- Magnification 0.296x
- Mount C-mount
- Sensor 1"
$1,060.00
Ships in 3-4 weeks
| Compare | |||||||||
|---|---|---|---|---|---|---|---|---|---|
 LS-TCL-10850.256x bi-telecentric lens, WD 178 mm, 1.1"
| 0.256x | C-mount | 1.1" | 178±3 mm | F6.2 | dia. 72 mm | $1,305.00 | Ships in 3-4 weeks | |
 LS-TCL-10870.288x bi-telecentric lens, WD 158 mm, 1.1"
| 0.288x | C-mount | 1.1" | 158±3 mm | F6.2 | dia. 64 mm | $1,060.00 | Ships in 3-4 weeks | |
 LS-TCL-10880.329x bi-telecentric lens, WD 138 mm, 1.1"
| 0.329x | C-mount | 1.1" | 138±3 mm | F6.2 | dia. 56 mm | $1,020.00 | Ships in 3-4 weeks | |
 LS-TCL-10920.383x bi-telecentric lens, WD 138 mm, 1.1"
| 0.383x | C-mount | 1.1" | 138±3 mm | F10.8 | dia. 48 mm | $900.00 | Ships in 3-4 weeks | |
 LS-TCL-10910.383x bi-telecentric lens, WD 128 mm, 1.1"
| 0.383x | C-mount | 1.1" | 128±3 mm | F7.2 | dia. 48 mm | $900.00 | Ships in 3-4 weeks | |
 LS-TCL-11010.708x bi-telecentric lens, WD 73 mm, 1.1"
| 0.708x | C-mount | 1.1" | 73±1 mm | F9.6 | dia. 26 mm | $870.00 | Ships in 3-4 weeks | |
 LS-TCL-10930.428x bi-telecentric lens, WD 118 mm, 1.1"
| 0.428x | C-mount | 1.1" | 118±3 mm | F7.2 | dia. 42 mm | $780.00 | Ships in 3-4 weeks | |
 LS-TCL-10950.511x bi-telecentric lens, WD 110 mm, 1.1"
| 0.511x | C-mount | 1.1" | 110±2 mm | F8.7 | dia. 36 mm | $770.00 | Ships in 3-4 weeks | |
 LS-TCL-11091.5x bi-telecentric lens, WD 110 mm, 1.1"
| 1.5x | C-mount | 1.1" | 110±2 mm | F10 | - | $620.00 | Ships in 3-4 weeks | |
 LS-TCL-10440.055x bi-telecentric lens, WD 465 mm, 1", C-mount
| 0.055x | C-mount | 1" | 465±6 mm | - | dia. 300 mm | $8,560.00Quote | Ships in 3-4 weeks | |
 LS-TCL-10450.064x bi-telecentric lens, WD 338 mm, 1", C-mount
| 0.064x | C-mount | 1" | 338±5 mm | F6.5 | dia. 258 mm | $8,025.00Quote | Ships in 3-4 weeks | |
 LS-TCL-10460.069x bi-telecentric lens, WD 410 mm, 1", C-mount
| 0.069x | C-mount | 1" | 410±6 mm | F6.5 | dia. 240 mm | $5,245.00Quote | Ships in 3-4 weeks | |
 LS-TCL-10470.077x bi-telecentric lens, WD 372 mm, 1", C-mount
| 0.077x | C-mount | 1" | 372±5 mm | F6.5 | dia. 216 mm | $4,925.00 | Ships in 3-4 weeks | |
 LS-TCL-10480.087x bi-telecentric lens, WD 330 mm, 1", C-mount
| 0.087x | C-mount | 1" | 330±5 mm | F6.5 | dia. 190 mm | $3,425.00 | Ships in 3-4 weeks | |
 LS-TCL-10490.098x bi-telecentric lens, WD 318 mm, 1", C-mount
| 0.098x | C-mount | 1" | 318±5 mm | F6.5 | dia. 170 mm | $3,000.00 | Ships in 3-4 weeks | |
 LS-TCL-10520.138x bi-telecentric lens, WD 273 mm, 1", C-mount
| 0.138x | C-mount | 1" | 273±5 mm | F6.5 | dia. 120 mm | $2,350.00 | Ships in 3-4 weeks | |
 LS-TCL-10510.122x bi-telecentric lens, WD 288 mm, 1", C-mount
| 0.122x | C-mount | 1" | 288±5 mm | F6.5 | dia. 136 mm | $2,350.00 | Ships in 3-4 weeks | |
 LS-TCL-10500.11x bi-telecentric lens, WD 300 mm, 1", C-mount
| 0.11x | C-mount | 1" | 300±5 mm | F6.5 | dia. 150 mm | $2,350.00 | Ships in 3-4 weeks | |
 LS-TCL-10550.184x bi-telecentric lens, WD 208 mm, 1", C-mount
| 0.184x | C-mount | 1" | 208±3 mm | F6.5 | dia. 90 mm | $1,925.00 | Ships in 3-4 weeks | |
 LS-TCL-10540.166x bi-telecentric lens, WD 258 mm, 1", C-mount
| 0.166x | C-mount | 1" | 258±4 mm | F6.5 | dia. 100 mm | $1,875.00 | Ships in 3-4 weeks | |
 LS-TCL-10530.151x bi-telecentric lens, WD 263 mm, 1", C-mount
| 0.151x | C-mount | 1" | 263±4 mm | F6.5 | dia. 110 mm | $1,875.00 | Ships in 3-4 weeks | |
 LS-TCL-10560.208x bi-telecentric lens, WD 228 mm, 1", C-mount
| 0.208x | C-mount | 1" | 228±4 mm | F6.5 | dia. 80 mm | $1,720.00 | Ships in 3-4 weeks | |
 LS-TCL-10570.231x bi-telecentric lens, WD 178 mm, 1", C-mount
| 0.231x | C-mount | 1" | 178±3 mm | F6.5 | dia. 72 mm | $1,285.00 | Ships in 3-4 weeks | |
 LS-TCL-10590.296x bi-telecentric lens, WD 138 mm, 1", C-mount
| 0.296x | C-mount | 1" | 138±3 mm | F6.5 | dia. 56 mm | $1,060.00 | Ships in 3-4 weeks |
Choose a double-telecentric optical layout
Bi-telecentric optics are telecentric on both the object and image sides. The design class differs from object-side-only optics. Use the model data to establish the usable field and measurement conditions; the design label does not set one universal accuracy or depth-of-field value.
- Match magnification and sensor dimensions to the required object field, then check the image-circle rating and mount for the actual camera.
- Compare the published working distance, distortion and telecentricity for the intended object position and aperture. Keep model-specific values separate from general design principles.
- Check the lens outline and illumination clearance before fixing the station geometry. A suitable sensor format alone does not establish mechanical fit or measurement capability.
