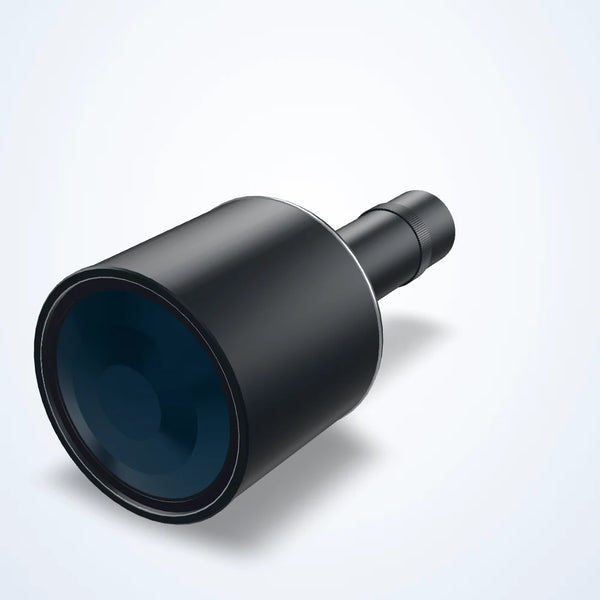

0.09x bi-telecentric lens, WD 258 mm, 1/1.8"
LS-TCL-1129
- Magnification 0.09x
- Mount C-mount
- Sensor 1/1.8"
$1,600.00
Ships in 3-4 weeks
Lenses
Bi-telecentric lenses
Choose a double-telecentric optical layoutCompare cataloged bi-telecentric, or double-telecentric, lenses for dimensional imaging. Narrow the choice by sensor coverage, magnification, working distance and the published optical tolerances.
Products
0.1x bi-telecentric lens, WD 208 mm, 1/1.8"
LS-TCL-1130
- Magnification 0.1x
- Mount C-mount
- Sensor 1/1.8"
$1,400.00
Ships in 3-4 weeks
0.125x bi-telecentric lens, WD 178 mm, 1/1.8"
LS-TCL-1133
- Magnification 0.125x
- Mount C-mount
- Sensor 1/1.8"
$1,285.00
Ships in 3-4 weeks

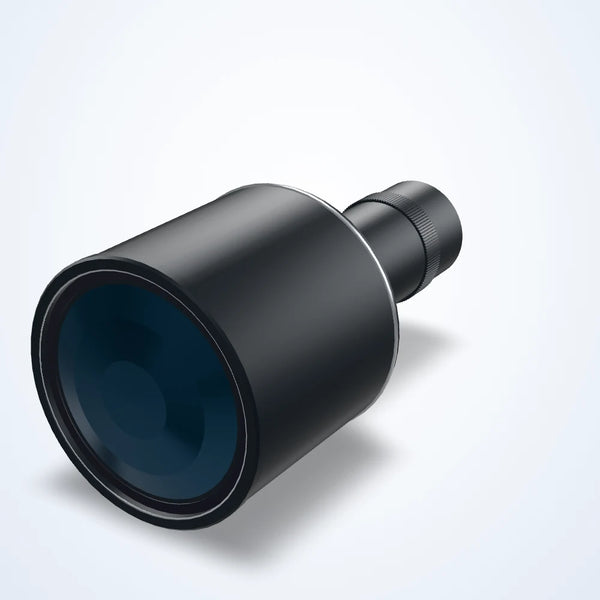

0.113x bi-telecentric lens, WD 228 mm, 1/1.8"
LS-TCL-1132
- Magnification 0.113x
- Mount C-mount
- Sensor 1/1.8"
$1,070.00
Ships in 3-4 weeks

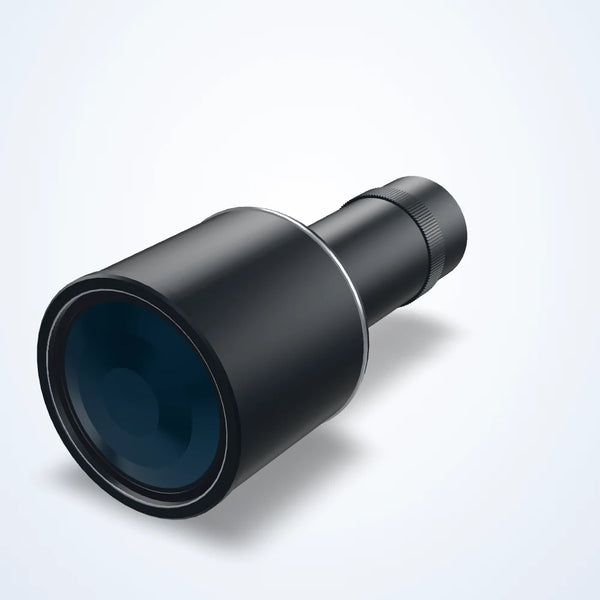

0.141x bi-telecentric lens, WD 158 mm, 1/1.8"
LS-TCL-1134
- Magnification 0.141x
- Mount C-mount
- Sensor 1/1.8"
$995.00
Ships in 3-4 weeks

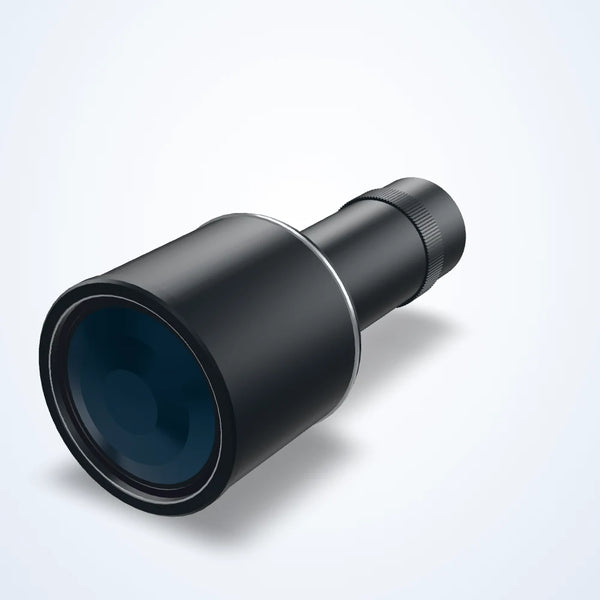

0.161x bi-telecentric lens, WD 138 mm, 1/1.8"
LS-TCL-1136
- Magnification 0.161x
- Mount C-mount
- Sensor 1/1.8"
$820.00
Ships in 3-4 weeks

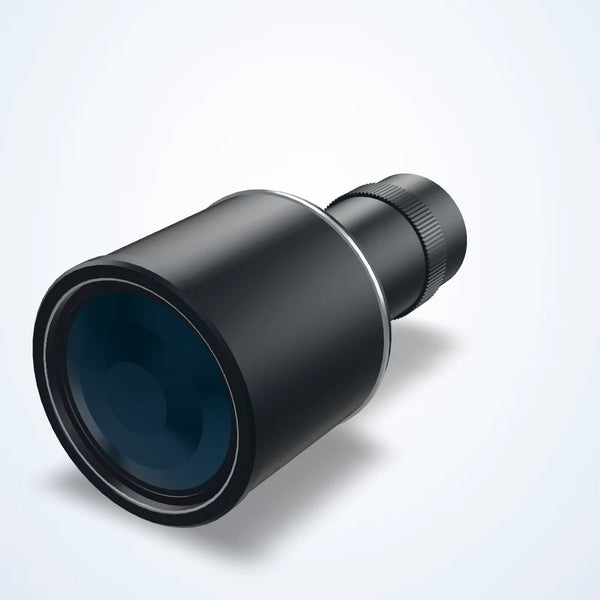

0.188x bi-telecentric lens, WD 138 mm, 1/1.8"
LS-TCL-1138
- Magnification 0.188x
- Mount C-mount
- Sensor 1/1.8"
$790.00
Ships in 3-4 weeks

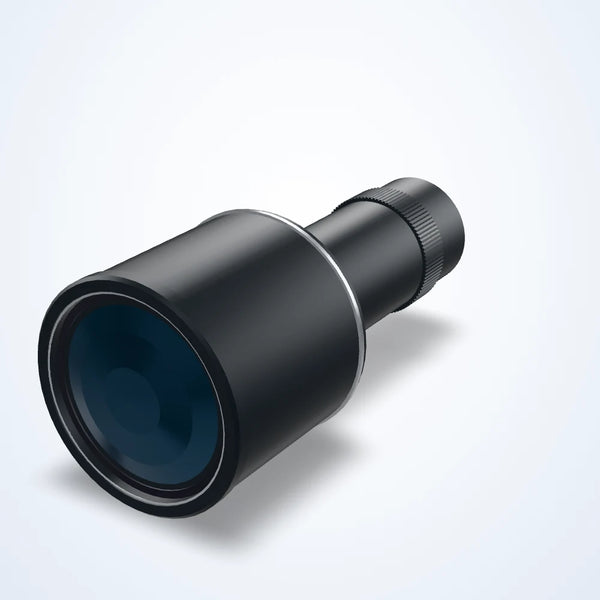

0.188x bi-telecentric lens, WD 128 mm, 1/1.8"
LS-TCL-1137
- Magnification 0.188x
- Mount C-mount
- Sensor 1/1.8"
$790.00
Ships in 3-4 weeks
0.214x bi-telecentric lens, WD 118 mm, 1/1.8"
LS-TCL-1139
- Magnification 0.214x
- Mount C-mount
- Sensor 1/1.8"
$775.00
Ships in 3-4 weeks

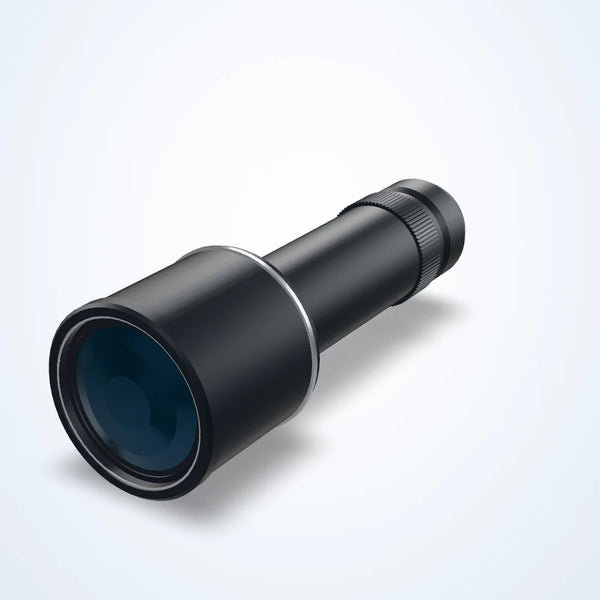

0.25x bi-telecentric lens, WD 110 mm, 1/1.8"
LS-TCL-1142
- Magnification 0.25x
- Mount C-mount
- Sensor 1/1.8"
$735.00
Ships in 3-4 weeks
0.346x bi-telecentric lens, WD 73 mm, 1/1.8"
LS-TCL-1147
- Magnification 0.346x
- Mount C-mount
- Sensor 1/1.8"
$645.00
Ships in 3-4 weeks

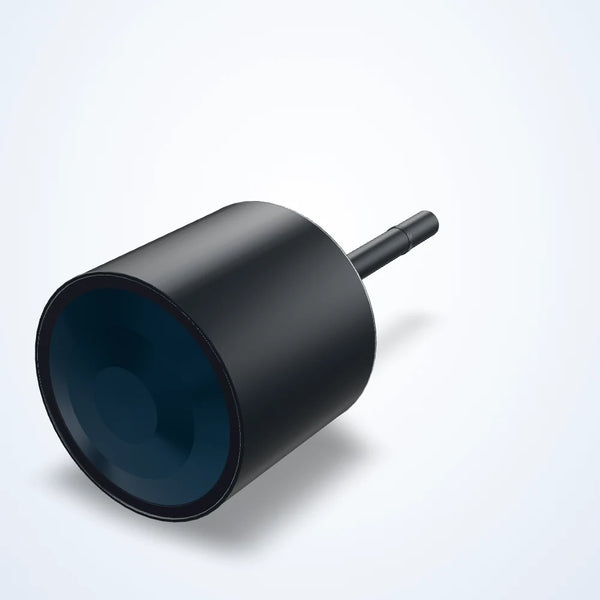

0.061x bi-telecentric lens, WD 465 mm, 1.1"
LS-TCL-1069
- Magnification 0.061x
- Mount C-mount
- Sensor 1.1"
$8,560.00Quote
Ships in 3-4 weeks
0.077x bi-telecentric lens, WD 410 mm, 1.1"
LS-TCL-1071
- Magnification 0.077x
- Mount C-mount
- Sensor 1.1"
$8,025.00Quote
Ships in 3-4 weeks
0.071x bi-telecentric lens, WD 338 mm, 1.1"
LS-TCL-1070
- Magnification 0.071x
- Mount C-mount
- Sensor 1.1"
$8,025.00Quote
Ships in 3-4 weeks

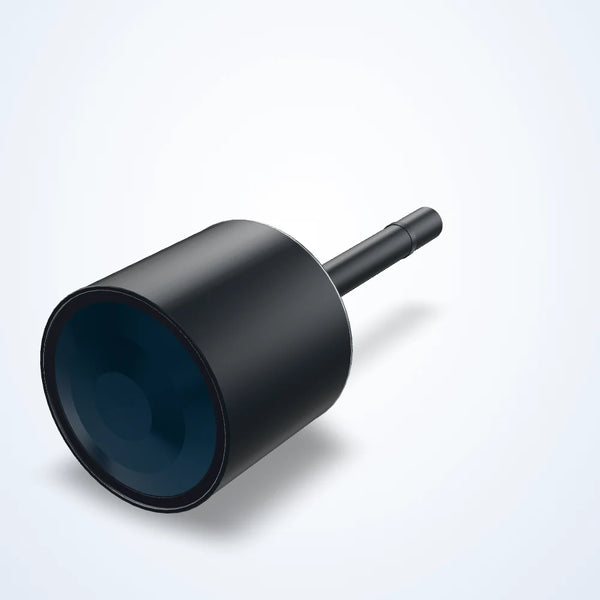

0.085x bi-telecentric lens, WD 372 mm, 1.1"
LS-TCL-1072
- Magnification 0.085x
- Mount C-mount
- Sensor 1.1"
$4,925.00
Ships in 3-4 weeks
0.097x bi-telecentric lens, WD 330 mm, 1.1"
LS-TCL-1073
- Magnification 0.097x
- Mount C-mount
- Sensor 1.1"
$4,815.00
Ships in 3-4 weeks

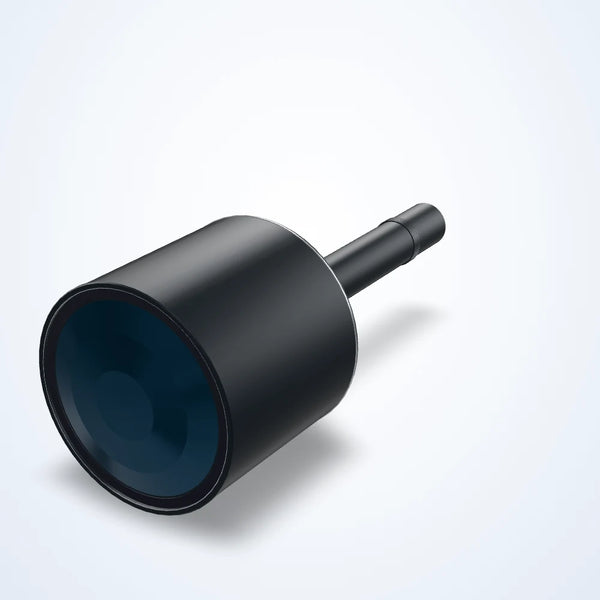

0.108x bi-telecentric lens, WD 318 mm, 1.1"
LS-TCL-1074
- Magnification 0.108x
- Mount C-mount
- Sensor 1.1"
$3,100.00
Ships in 3-4 weeks

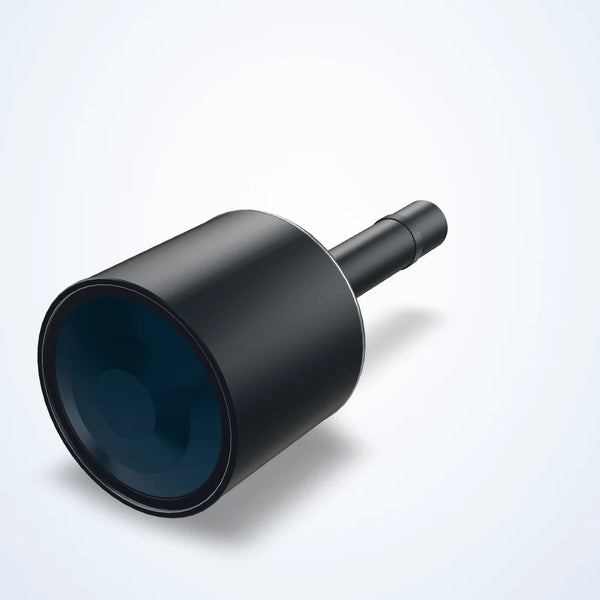

0.123x bi-telecentric lens, WD 300 mm, 1.1"
LS-TCL-1075
- Magnification 0.123x
- Mount C-mount
- Sensor 1.1"
$2,835.00
Ships in 3-4 weeks

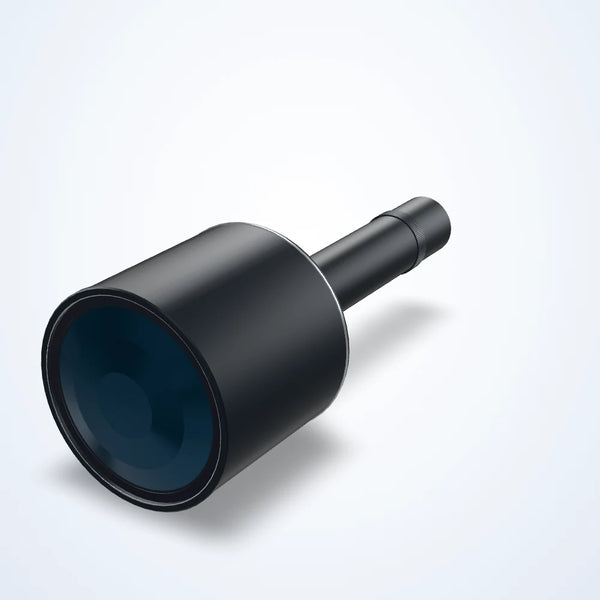

0.153x bi-telecentric lens, WD 273 mm, 1.1"
LS-TCL-1077
- Magnification 0.153x
- Mount C-mount
- Sensor 1.1"
$2,460.00
Ships in 3-4 weeks

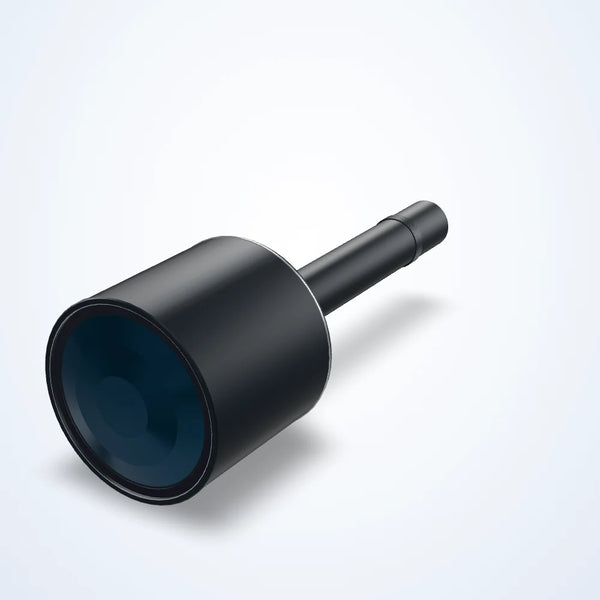

0.135x bi-telecentric lens, WD 288 mm, 1.1"
LS-TCL-1076
- Magnification 0.135x
- Mount C-mount
- Sensor 1.1"
$2,350.00
Ships in 3-4 weeks
0.184x bi-telecentric lens, WD 258 mm, 1.1"
LS-TCL-1079
- Magnification 0.184x
- Mount C-mount
- Sensor 1.1"
$1,925.00
Ships in 3-4 weeks
0.167x bi-telecentric lens, WD 263 mm, 1.1"
LS-TCL-1078
- Magnification 0.167x
- Mount C-mount
- Sensor 1.1"
$1,875.00
Ships in 3-4 weeks

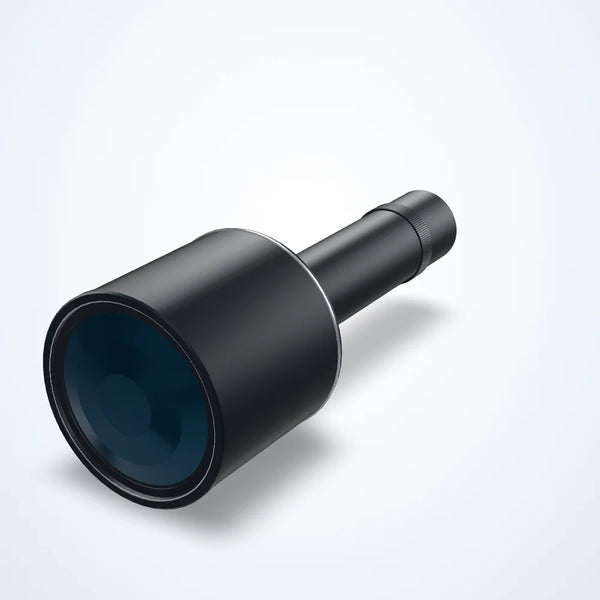

0.204x bi-telecentric lens, WD 208 mm, 1.1"
LS-TCL-1080
- Magnification 0.204x
- Mount C-mount
- Sensor 1.1"
$1,715.00
Ships in 3-4 weeks

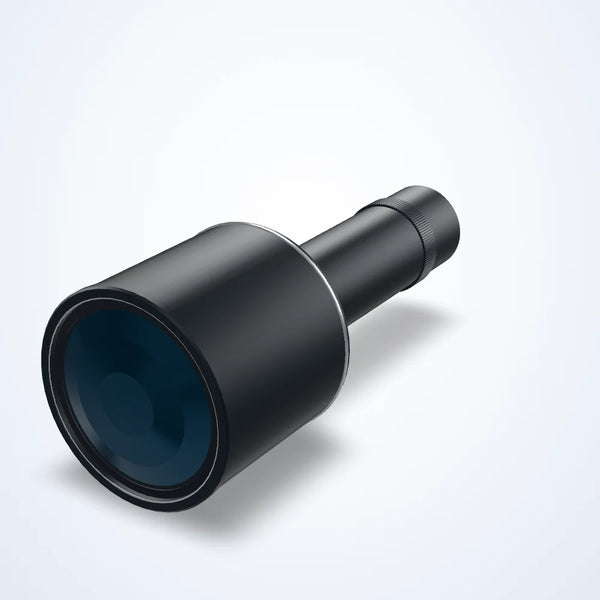

0.23x bi-telecentric lens, WD 228 mm, 1.1"
LS-TCL-1083
- Magnification 0.23x
- Mount C-mount
- Sensor 1.1"
$1,605.00
Ships in 3-4 weeks
| Compare | |||||||||
|---|---|---|---|---|---|---|---|---|---|
 LS-TCL-11290.09x bi-telecentric lens, WD 258 mm, 1/1.8"
| 0.09x | C-mount | 1/1.8" | 258±4 mm | F4.6 | dia. 100 mm | $1,600.00 | Ships in 3-4 weeks | |
 LS-TCL-11300.1x bi-telecentric lens, WD 208 mm, 1/1.8"
| 0.1x | C-mount | 1/1.8" | 208±3 mm | F4.6 | dia. 90 mm | $1,400.00 | Ships in 3-4 weeks | |
 LS-TCL-11330.125x bi-telecentric lens, WD 178 mm, 1/1.8"
| 0.125x | C-mount | 1/1.8" | 178±3 mm | F4.6 | dia. 72 mm | $1,285.00 | Ships in 3-4 weeks | |
 LS-TCL-11320.113x bi-telecentric lens, WD 228 mm, 1/1.8"
| 0.113x | C-mount | 1/1.8" | 228±4 mm | F5.3 | dia. 80 mm | $1,070.00 | Ships in 3-4 weeks | |
 LS-TCL-11340.141x bi-telecentric lens, WD 158 mm, 1/1.8"
| 0.141x | C-mount | 1/1.8" | 158±3 mm | F5.3 | dia. 64 mm | $995.00 | Ships in 3-4 weeks | |
 LS-TCL-11360.161x bi-telecentric lens, WD 138 mm, 1/1.8"
| 0.161x | C-mount | 1/1.8" | 138±3 mm | F4.6 | dia. 56 mm | $820.00 | Ships in 3-4 weeks | |
 LS-TCL-11380.188x bi-telecentric lens, WD 138 mm, 1/1.8"
| 0.188x | C-mount | 1/1.8" | 138±3 mm | F5.3 | dia. 48 mm | $790.00 | Ships in 3-4 weeks | |
 LS-TCL-11370.188x bi-telecentric lens, WD 128 mm, 1/1.8"
| 0.188x | C-mount | 1/1.8" | 128±3 mm | F4.6 | dia. 48 mm | $790.00 | Ships in 3-4 weeks | |
 LS-TCL-11390.214x bi-telecentric lens, WD 118 mm, 1/1.8"
| 0.214x | C-mount | 1/1.8" | 118±3 mm | F4.6 | dia. 42 mm | $775.00 | Ships in 3-4 weeks | |
 LS-TCL-11420.25x bi-telecentric lens, WD 110 mm, 1/1.8"
| 0.25x | C-mount | 1/1.8" | 110±2 mm | F4.6 | dia. 36 mm | $735.00 | Ships in 3-4 weeks | |
 LS-TCL-11470.346x bi-telecentric lens, WD 73 mm, 1/1.8"
| 0.346x | C-mount | 1/1.8" | 73±1 mm | F4.6 | dia. 26 mm | $645.00 | Ships in 3-4 weeks | |
 LS-TCL-10690.061x bi-telecentric lens, WD 465 mm, 1.1"
| 0.061x | C-mount | 1.1" | 465±6 mm | F6.2 | dia. 300 mm | $8,560.00Quote | Ships in 3-4 weeks | |
 LS-TCL-10710.077x bi-telecentric lens, WD 410 mm, 1.1"
| 0.077x | C-mount | 1.1" | 410±6 mm | F6.2 | dia. 240 mm | $8,025.00Quote | Ships in 3-4 weeks | |
 LS-TCL-10700.071x bi-telecentric lens, WD 338 mm, 1.1"
| 0.071x | C-mount | 1.1" | 338±5 mm | - | dia. 258 mm | $8,025.00Quote | Ships in 3-4 weeks | |
 LS-TCL-10720.085x bi-telecentric lens, WD 372 mm, 1.1"
| 0.085x | C-mount | 1.1" | 372±5 mm | F6.2 | dia. 216 mm | $4,925.00 | Ships in 3-4 weeks | |
 LS-TCL-10730.097x bi-telecentric lens, WD 330 mm, 1.1"
| 0.097x | C-mount | 1.1" | 330±5 mm | F6.2 | dia. 190 mm | $4,815.00 | Ships in 3-4 weeks | |
 LS-TCL-10740.108x bi-telecentric lens, WD 318 mm, 1.1"
| 0.108x | C-mount | 1.1" | 318±5 mm | F6.2 | dia. 170 mm | $3,100.00 | Ships in 3-4 weeks | |
 LS-TCL-10750.123x bi-telecentric lens, WD 300 mm, 1.1"
| 0.123x | C-mount | 1.1" | 300±5 mm | F6.2 | dia. 150 mm | $2,835.00 | Ships in 3-4 weeks | |
 LS-TCL-10770.153x bi-telecentric lens, WD 273 mm, 1.1"
| 0.153x | C-mount | 1.1" | 273±5 mm | F6.2 | dia. 120 mm | $2,460.00 | Ships in 3-4 weeks | |
 LS-TCL-10760.135x bi-telecentric lens, WD 288 mm, 1.1"
| 0.135x | C-mount | 1.1" | 288±5 mm | F6.2 | dia. 136 mm | $2,350.00 | Ships in 3-4 weeks | |
 LS-TCL-10790.184x bi-telecentric lens, WD 258 mm, 1.1"
| 0.184x | C-mount | 1.1" | 258±4 mm | F6.2 | dia. 100 mm | $1,925.00 | Ships in 3-4 weeks | |
 LS-TCL-10780.167x bi-telecentric lens, WD 263 mm, 1.1"
| 0.167x | C-mount | 1.1" | 263±4 mm | F6.2 | dia. 110 mm | $1,875.00 | Ships in 3-4 weeks | |
 LS-TCL-10800.204x bi-telecentric lens, WD 208 mm, 1.1"
| 0.204x | C-mount | 1.1" | 208±3 mm | F6.2 | dia. 90 mm | $1,715.00 | Ships in 3-4 weeks | |
 LS-TCL-10830.23x bi-telecentric lens, WD 228 mm, 1.1"
| 0.23x | C-mount | 1.1" | 228±4 mm | F6.2 | dia. 80 mm | $1,605.00 | Ships in 3-4 weeks |
Choose a double-telecentric optical layout
Bi-telecentric optics are telecentric on both the object and image sides. The design class differs from object-side-only optics. Use the model data to establish the usable field and measurement conditions; the design label does not set one universal accuracy or depth-of-field value.
- Match magnification and sensor dimensions to the required object field, then check the image-circle rating and mount for the actual camera.
- Compare the published working distance, distortion and telecentricity for the intended object position and aperture. Keep model-specific values separate from general design principles.
- Check the lens outline and illumination clearance before fixing the station geometry. A suitable sensor format alone does not establish mechanical fit or measurement capability.
