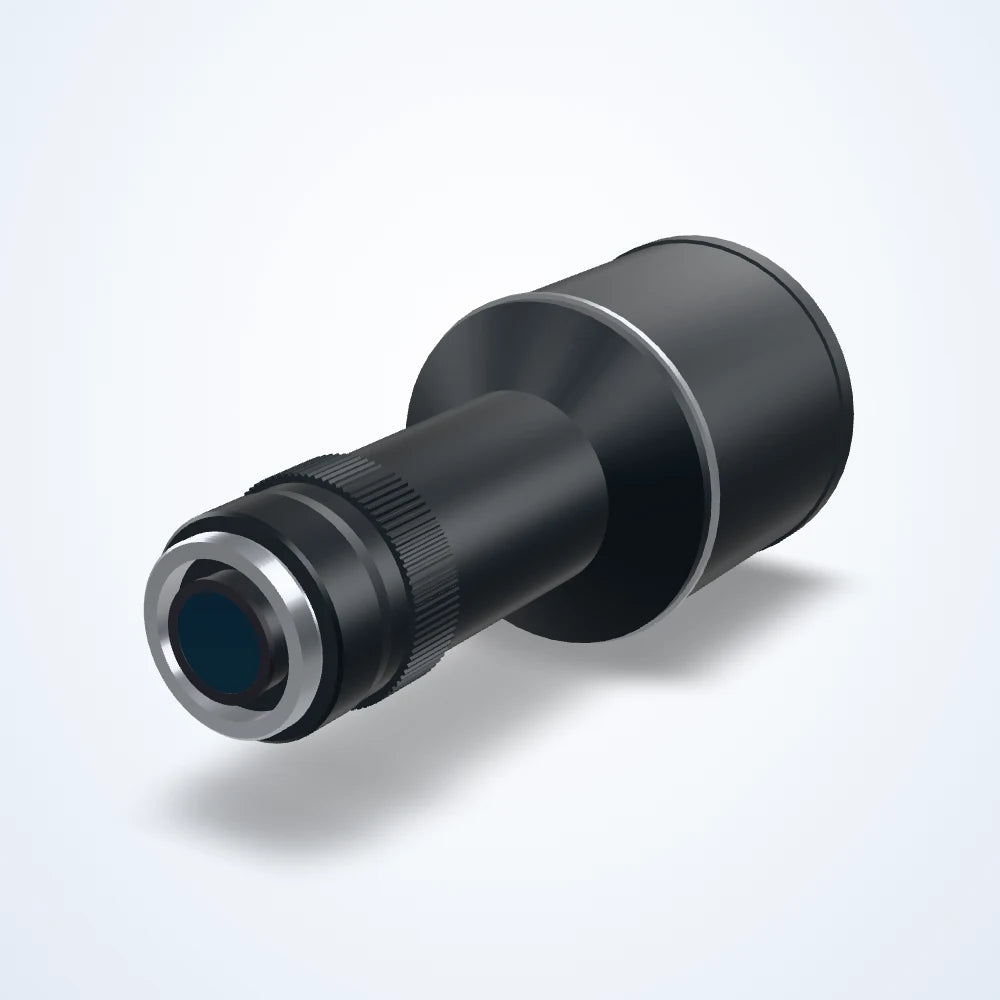

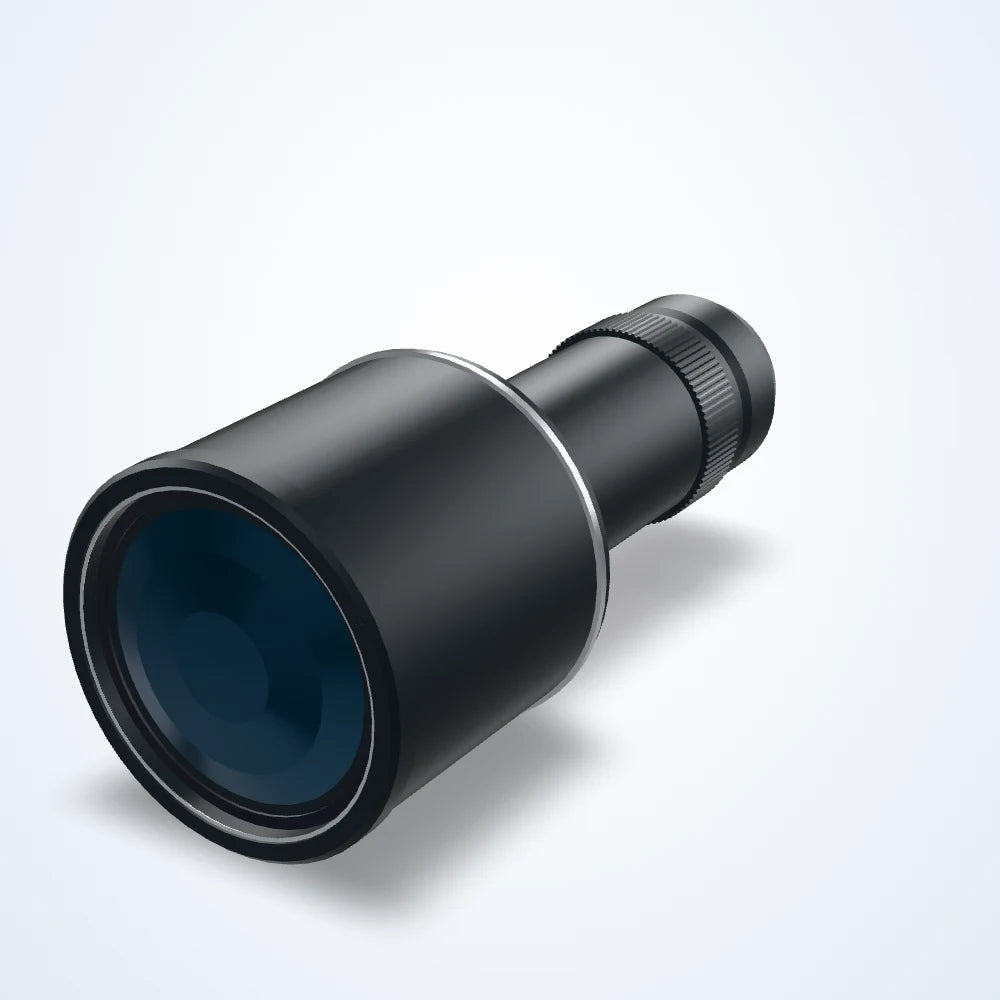

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.214x bi-telecentric lens, WD 118 mm, 1/1.8" (LS-TCL-1139)
Model LS-TCL-1139
- Magnification0.214x
- MountC-mount
- Sensor1/1.8"
- Working distance118±3 mm
- ApertureF4.6
- Field of viewdia. 42 mm
$775.00
Ships in 3-4 weeks
0.4 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
0.214x bi-telecentric lens for non-contact measurement and gauging. Magnification 0.214x; working distance 118 mm; covers sensors up to 1/1.8".
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-1139 |
|---|
Optics
| Working distance | 118±3 mm |
|---|---|
| Magnification | 0.214x |
| Field of view | dia. 42 mm |
| Aperture | F4.6 |
| MTF | >195lp/mm |
| Depth of field | ±9.6 mm@F11 |
| Distortion | <0.1% |
| Telecentricity | <0.1° |
| Object-to-image distance | 249±3 mm |
Sensor and imaging
| Sensor format | 9.0(1/1.8") |
|---|
Environment and compliance
| Operating temperature | -10 - 50°C(Operating), -20 - 60°C(Storage) |
|---|
Mechanical
| Mount | C-mount |
|---|---|
| Length | 113.8 mm |
| Weight | 0.4 Kg |
