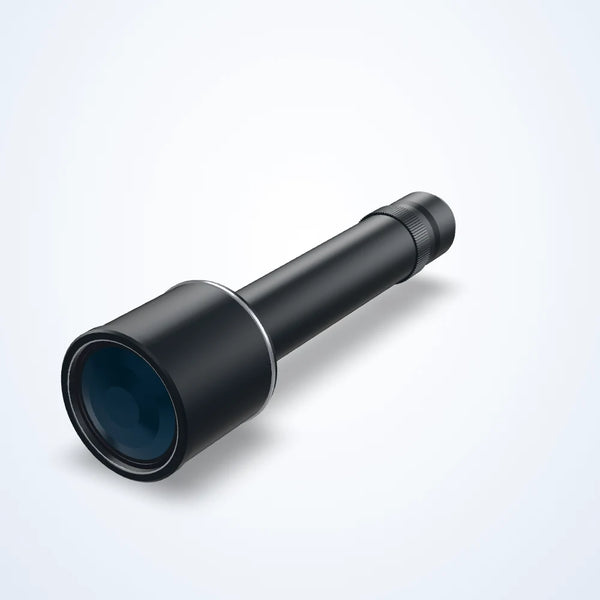

0.69x bi-telecentric lens, WD 118 mm, 1.75"
LS-TCL-1206
- Magnification 0.69x
- Mount F-mount
- Sensor 1.75"
$695.00
Ships in 3-4 weeks
Lenses
Bi-telecentric lenses
Choose a double-telecentric optical layoutCompare cataloged bi-telecentric, or double-telecentric, lenses for dimensional imaging. Narrow the choice by sensor coverage, magnification, working distance and the published optical tolerances.
Products
1.115x bi-telecentric lens, WD 73 mm, 1.75"
LS-TCL-1208
- Magnification 1.115x
- Mount F-mount
- Sensor 1.75"
$590.00
Ships in 3-4 weeks

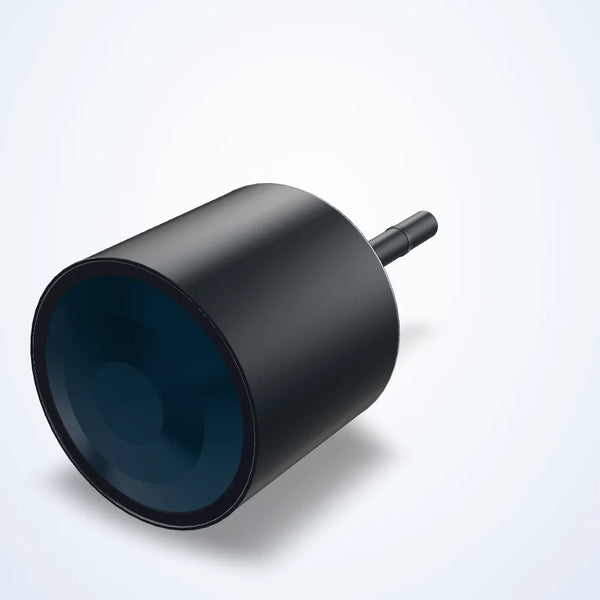

0.024x bi-telecentric lens, WD 465 mm, 1/2.5", C-mount
LS-TCL-1171
- Magnification 0.024x
- Mount C-mount
- Sensor 1/2.5"
$8,345.00Quote
Ships in 3-4 weeks
0.038x bi-telecentric lens, WD 330 mm, 1/2.5", C-mount
LS-TCL-1172
- Magnification 0.038x
- Mount C-mount
- Sensor 1/2.5"
$3,850.00
Ships in 3-4 weeks
0.042x bi-telecentric lens, WD 318 mm, 1/2.5", C-mount
LS-TCL-1173
- Magnification 0.042x
- Mount C-mount
- Sensor 1/2.5"
$3,425.00
Ships in 3-4 weeks
0.048x bi-telecentric lens, WD 300 mm, 1/2.5", C-mount
LS-TCL-1174
- Magnification 0.048x
- Mount C-mount
- Sensor 1/2.5"
$2,195.00
Ships in 3-4 weeks

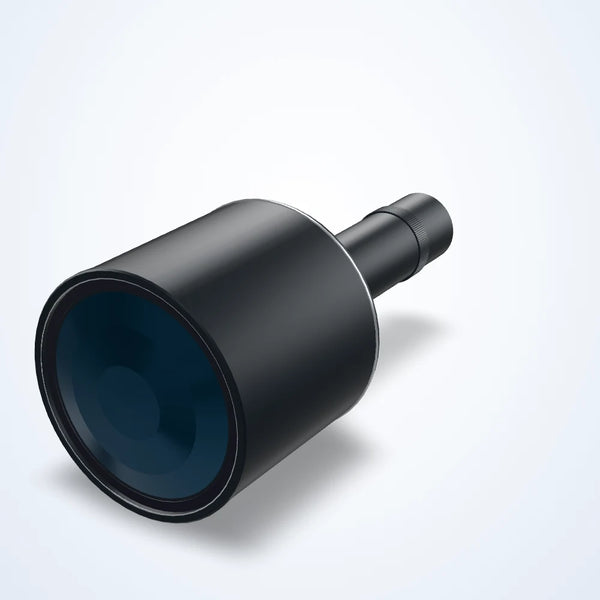

0.066x bi-telecentric lens, WD 263 mm, 1/2.5", C-mount
LS-TCL-1176
- Magnification 0.066x
- Mount C-mount
- Sensor 1/2.5"
$1,660.00
Ships in 3-4 weeks
0.06x bi-telecentric lens, WD 273 mm, 1/2.5", C-mount
LS-TCL-1175
- Magnification 0.06x
- Mount C-mount
- Sensor 1/2.5"
$1,585.00
Ships in 3-4 weeks
0.072x bi-telecentric lens, 1/2.5", C-mount
LS-TCL-1177
- Magnification 0.072x
- Mount C-mount
- Sensor 1/2.5"
$1,520.00
Ships in 3-4 weeks

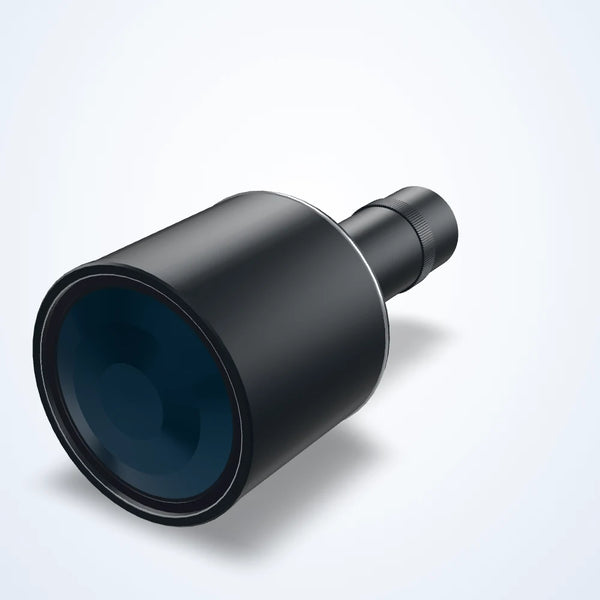

0.08x bi-telecentric lens, WD 208 mm, 1/2.5", C-mount
LS-TCL-1178
- Magnification 0.08x
- Mount C-mount
- Sensor 1/2.5"
$1,240.00
Ships in 3-4 weeks

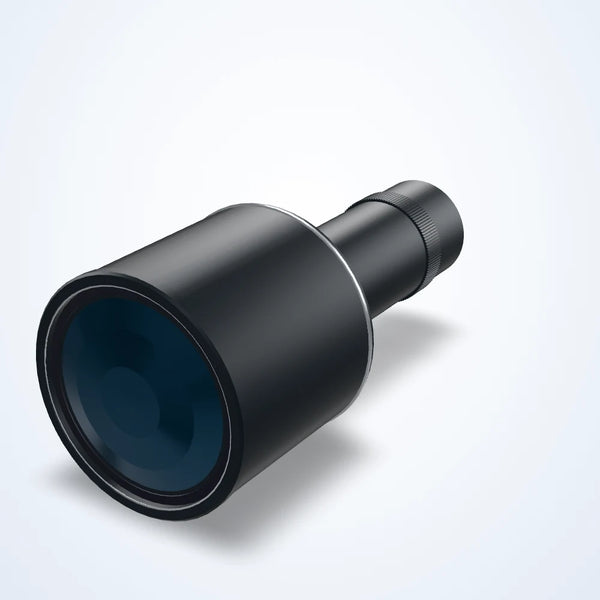

0.1x bi-telecentric lens, WD 178 mm, 1/2.5", C-mount
LS-TCL-1179
- Magnification 0.1x
- Mount C-mount
- Sensor 1/2.5"
$1,070.00
Ships in 3-4 weeks

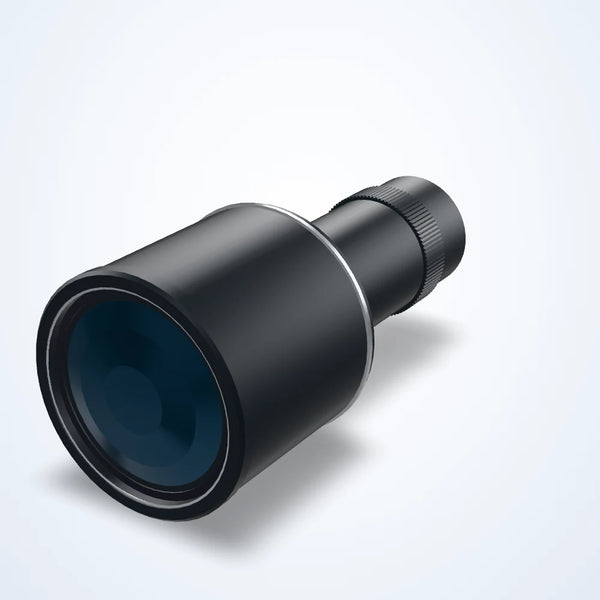

0.15x bi-telecentric lens, WD 128 mm, 1/2.5"
LS-TCL-1183
- Magnification 0.15x
- Mount C-mount
- Sensor 1/2.5"
$725.00
Ships in 3-4 weeks

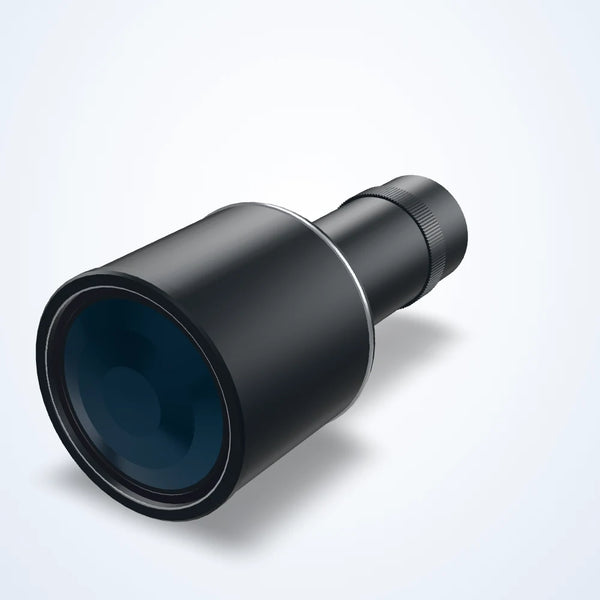

0.113x bi-telecentric lens, WD 158 mm, 1/2.5", C-mount
LS-TCL-1180
- Magnification 0.113x
- Mount C-mount
- Sensor 1/2.5"
$700.00
Ships in 3-4 weeks
0.129x bi-telecentric lens, WD 138 mm, 1/2.5", C-mount
LS-TCL-1181
- Magnification 0.129x
- Mount C-mount
- Sensor 1/2.5"
$685.00
Ships in 3-4 weeks

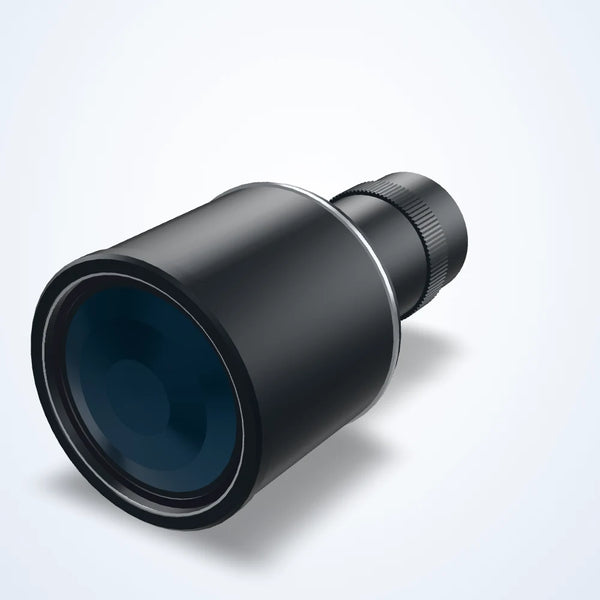

0.15x bi-telecentric lens, WD 138 mm, 1/2.5", C-mount
LS-TCL-1185
- Magnification 0.15x
- Mount C-mount
- Sensor 1/2.5"
$665.00
Ships in 3-4 weeks
0.277x bi-telecentric lens, WD 73 mm, 1/2.5", C-mount
LS-TCL-1187
- Magnification 0.277x
- Mount C-mount
- Sensor 1/2.5"
$645.00
Ships in 3-4 weeks

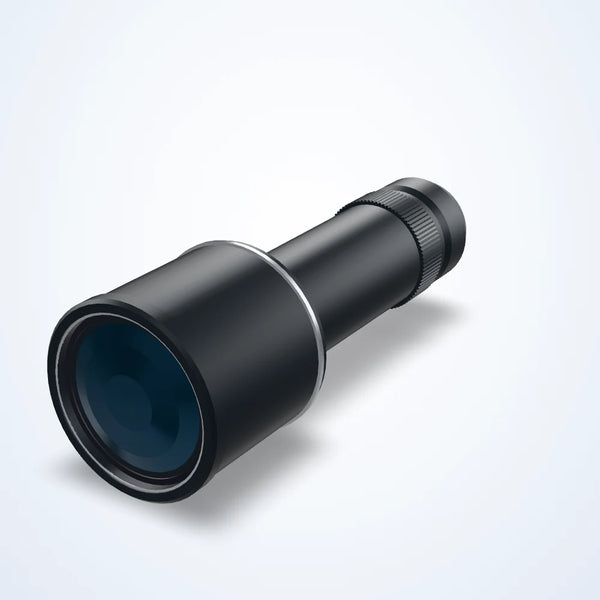

0.2x bi-telecentric lens, WD 110 mm, 1/2.5", C-mount
LS-TCL-1186
- Magnification 0.2x
- Mount C-mount
- Sensor 1/2.5"
$645.00
Ships in 3-4 weeks

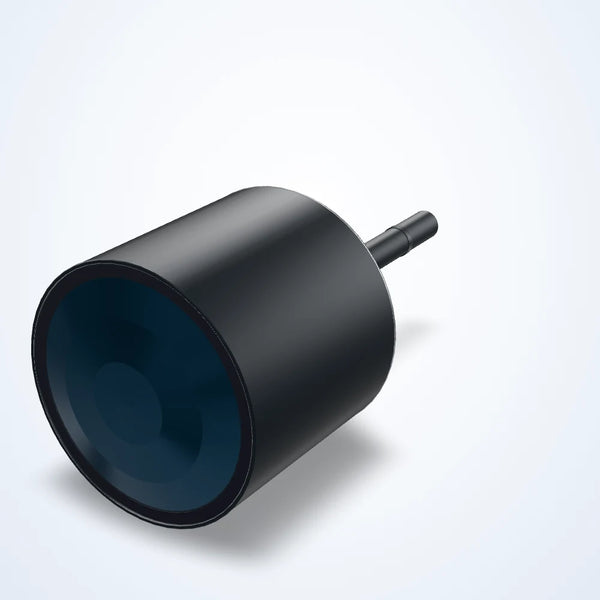

0.027x bi-telecentric lens, WD 465 mm, 1/2"
LS-TCL-1150
- Magnification 0.027x
- Mount C-mount
- Sensor 1/2"
$8,580.00Quote
Ships in 3-4 weeks

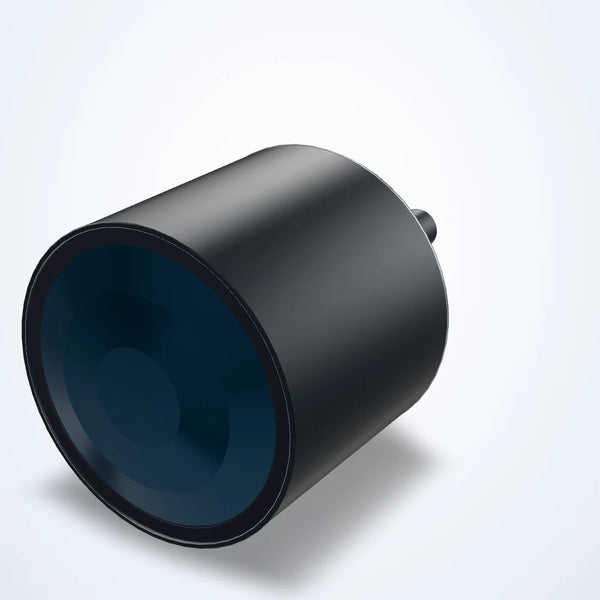

0.031x bi-telecentric lens, WD 338 mm, 1/2"
LS-TCL-1151
- Magnification 0.031x
- Mount C-mount
- Sensor 1/2"
$8,345.00Quote
Ships in 3-4 weeks
0.037x bi-telecentric lens, WD 372 mm, 1/2"
LS-TCL-1153
- Magnification 0.037x
- Mount C-mount
- Sensor 1/2"
$5,500.00Quote
Ships in 3-4 weeks

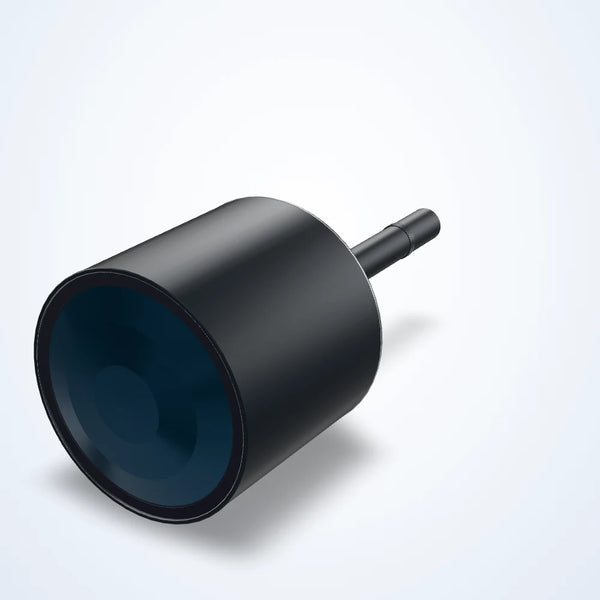

0.033x bi-telecentric lens, WD 410 mm, 1/2"
LS-TCL-1152
- Magnification 0.033x
- Mount C-mount
- Sensor 1/2"
$5,340.00Quote
Ships in 3-4 weeks

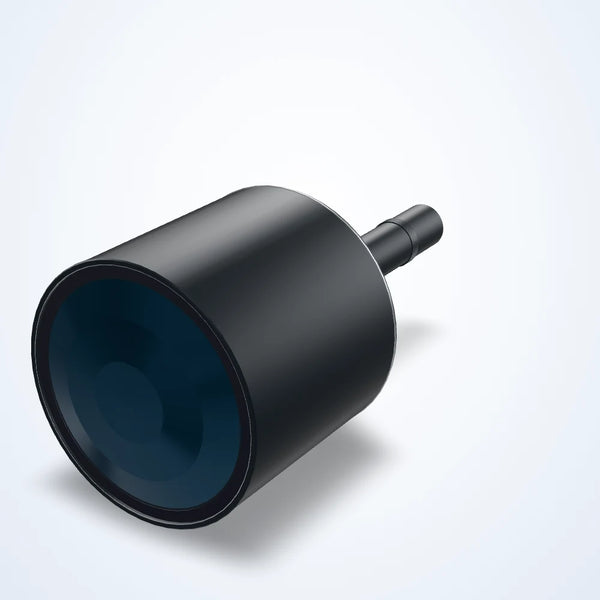

0.042x bi-telecentric lens, WD 330 mm, 1/2"
LS-TCL-1154
- Magnification 0.042x
- Mount C-mount
- Sensor 1/2"
$3,850.00
Ships in 3-4 weeks
0.053x bi-telecentric lens, WD 300 mm, 1/2"
LS-TCL-1156
- Magnification 0.053x
- Mount C-mount
- Sensor 1/2"
$2,600.00
Ships in 3-4 weeks
0.047x bi-telecentric lens, WD 318 mm, 1/2"
LS-TCL-1155
- Magnification 0.047x
- Mount C-mount
- Sensor 1/2"
$2,525.00
Ships in 3-4 weeks
| Compare | |||||||||
|---|---|---|---|---|---|---|---|---|---|
 LS-TCL-12060.69x bi-telecentric lens, WD 118 mm, 1.75"
| 0.69x | F-mount | 1.75" | 118±3 mm | F11.4 | dia. 42 mm | $695.00 | Ships in 3-4 weeks | |
 LS-TCL-12081.115x bi-telecentric lens, WD 73 mm, 1.75"
| 1.115x | F-mount | 1.75" | 73±1 mm | F15.0 | dia. 26 mm | $590.00 | Ships in 3-4 weeks | |
 LS-TCL-11710.024x bi-telecentric lens, WD 465 mm, 1/2.5", C-mount
| 0.024x | C-mount | 1/2.5" | 465±6 mm | F4.2 | dia. 300 mm | $8,345.00Quote | Ships in 3-4 weeks | |
 LS-TCL-11720.038x bi-telecentric lens, WD 330 mm, 1/2.5", C-mount
| 0.038x | C-mount | 1/2.5" | 330±5 mm | F4.2 | dia. 190 mm | $3,850.00 | Ships in 3-4 weeks | |
 LS-TCL-11730.042x bi-telecentric lens, WD 318 mm, 1/2.5", C-mount
| 0.042x | C-mount | 1/2.5" | 318±5 mm | F4.2 | dia. 170 mm | $3,425.00 | Ships in 3-4 weeks | |
 LS-TCL-11740.048x bi-telecentric lens, WD 300 mm, 1/2.5", C-mount
| 0.048x | C-mount | 1/2.5" | 300±5 mm | F4.2 | dia. 150 mm | $2,195.00 | Ships in 3-4 weeks | |
 LS-TCL-11760.066x bi-telecentric lens, WD 263 mm, 1/2.5", C-mount
| 0.066x | C-mount | 1/2.5" | 263±4 mm | F4.2 | dia. 110 mm | $1,660.00 | Ships in 3-4 weeks | |
 LS-TCL-11750.06x bi-telecentric lens, WD 273 mm, 1/2.5", C-mount
| 0.06x | C-mount | 1/2.5" | 273±5 mm | F4.2 | dia. 120 mm | $1,585.00 | Ships in 3-4 weeks | |
 LS-TCL-11770.072x bi-telecentric lens, 1/2.5", C-mount
| 0.072x | C-mount | 1/2.5" | 238±4 mm | F4.2 | 100 Φmm | $1,520.00 | Ships in 3-4 weeks | |
 LS-TCL-11780.08x bi-telecentric lens, WD 208 mm, 1/2.5", C-mount
| 0.08x | C-mount | 1/2.5" | 208±3 mm | F4.2 | dia. 90 mm | $1,240.00 | Ships in 3-4 weeks | |
 LS-TCL-11790.1x bi-telecentric lens, WD 178 mm, 1/2.5", C-mount
| 0.1x | C-mount | 1/2.5" | 178±3 mm | F4.2 | dia. 72 mm | $1,070.00 | Ships in 3-4 weeks | |
 LS-TCL-11830.15x bi-telecentric lens, WD 128 mm, 1/2.5"
| 0.15x | C-mount | 1/2.5" | 128±3 mm | F4.2 | dia. 48 mm | $725.00 | Ships in 3-4 weeks | |
 LS-TCL-11800.113x bi-telecentric lens, WD 158 mm, 1/2.5", C-mount
| 0.113x | C-mount | 1/2.5" | 158±3 mm | F4.2 | dia. 64 mm | $700.00 | Ships in 3-4 weeks | |
 LS-TCL-11810.129x bi-telecentric lens, WD 138 mm, 1/2.5", C-mount
| 0.129x | C-mount | 1/2.5" | 138±3 mm | F4.2 | dia. 56 mm | $685.00 | Ships in 3-4 weeks | |
 LS-TCL-11850.15x bi-telecentric lens, WD 138 mm, 1/2.5", C-mount
| 0.15x | C-mount | 1/2.5" | 138±3 mm | F4.2 | dia. 48 mm | $665.00 | Ships in 3-4 weeks | |
 LS-TCL-11870.277x bi-telecentric lens, WD 73 mm, 1/2.5", C-mount
| 0.277x | C-mount | 1/2.5" | 73±1 mm | F4.2 | dia. 26 mm | $645.00 | Ships in 3-4 weeks | |
 LS-TCL-11860.2x bi-telecentric lens, WD 110 mm, 1/2.5", C-mount
| 0.2x | C-mount | 1/2.5" | 110±2 mm | F4.2 | dia. 36 mm | $645.00 | Ships in 3-4 weeks | |
 LS-TCL-11500.027x bi-telecentric lens, WD 465 mm, 1/2"
| 0.027x | C-mount | 1/2" | 465±6 mm | F4.2 | dia. 300 mm | $8,580.00Quote | Ships in 3-4 weeks | |
 LS-TCL-11510.031x bi-telecentric lens, WD 338 mm, 1/2"
| 0.031x | C-mount | 1/2" | 338±5 mm | F4.2 | dia. 258 mm | $8,345.00Quote | Ships in 3-4 weeks | |
 LS-TCL-11530.037x bi-telecentric lens, WD 372 mm, 1/2"
| 0.037x | C-mount | 1/2" | 372±5 mm | F4.2 | dia. 216 mm | $5,500.00Quote | Ships in 3-4 weeks | |
 LS-TCL-11520.033x bi-telecentric lens, WD 410 mm, 1/2"
| 0.033x | C-mount | 1/2" | 410±6 mm | F4.2 | dia. 240 mm | $5,340.00Quote | Ships in 3-4 weeks | |
 LS-TCL-11540.042x bi-telecentric lens, WD 330 mm, 1/2"
| 0.042x | C-mount | 1/2" | 330±5 mm | F4.2 | dia. 190 mm | $3,850.00 | Ships in 3-4 weeks | |
 LS-TCL-11560.053x bi-telecentric lens, WD 300 mm, 1/2"
| 0.053x | C-mount | 1/2" | 300±5 mm | F4.2 | dia. 150 mm | $2,600.00 | Ships in 3-4 weeks | |
 LS-TCL-11550.047x bi-telecentric lens, WD 318 mm, 1/2"
| 0.047x | C-mount | 1/2" | 318±5 mm | F4.2 | dia. 170 mm | $2,525.00 | Ships in 3-4 weeks |
Choose a double-telecentric optical layout
Bi-telecentric optics are telecentric on both the object and image sides. The design class differs from object-side-only optics. Use the model data to establish the usable field and measurement conditions; the design label does not set one universal accuracy or depth-of-field value.
- Match magnification and sensor dimensions to the required object field, then check the image-circle rating and mount for the actual camera.
- Compare the published working distance, distortion and telecentricity for the intended object position and aperture. Keep model-specific values separate from general design principles.
- Check the lens outline and illumination clearance before fixing the station geometry. A suitable sensor format alone does not establish mechanical fit or measurement capability.
