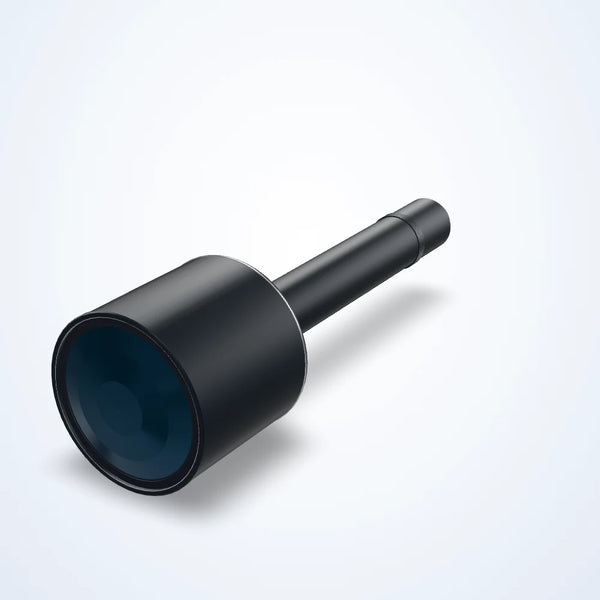

0.243x bi-telecentric lens, WD 288 mm, 2"
LS-TCL-1213
- Magnification 0.243x
- Mount M42, M58
- Sensor 2"
$3,630.00
Ships in 3-4 weeks
Lenses
Bi-telecentric lenses
Choose a double-telecentric optical layoutCompare cataloged bi-telecentric, or double-telecentric, lenses for dimensional imaging. Narrow the choice by sensor coverage, magnification, working distance and the published optical tolerances.
Products

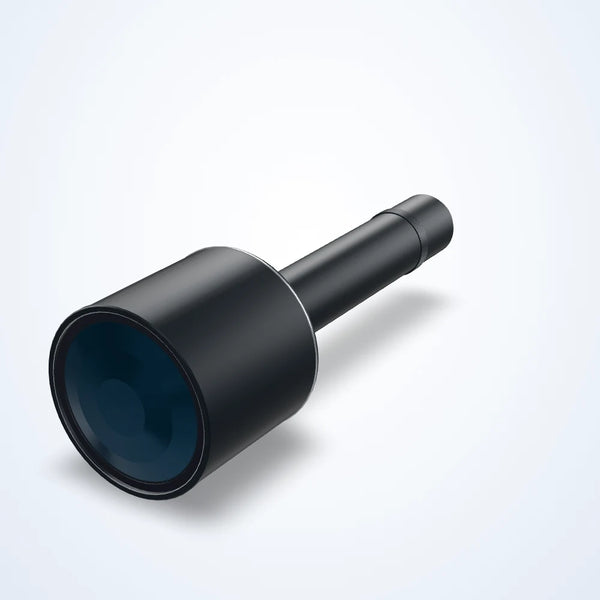

0.275x bi-telecentric lens, WD 273 mm, 2"
LS-TCL-1214
- Magnification 0.275x
- Mount F-mount
- Sensor 2"
$3,585.00
Ships in 3-4 weeks

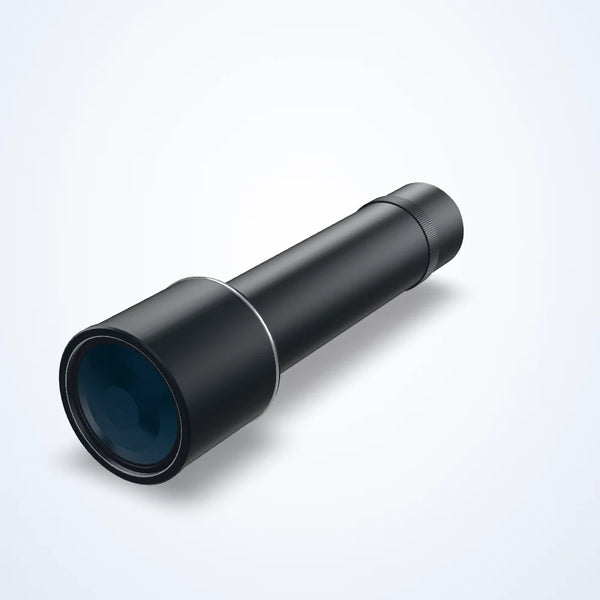

0.516x bi-telecentric lens, WD 158 mm, 2"
LS-TCL-1215
- Magnification 0.516x
- Mount F-mount
- Sensor 2"
$2,650.00
Ships in 3-4 weeks

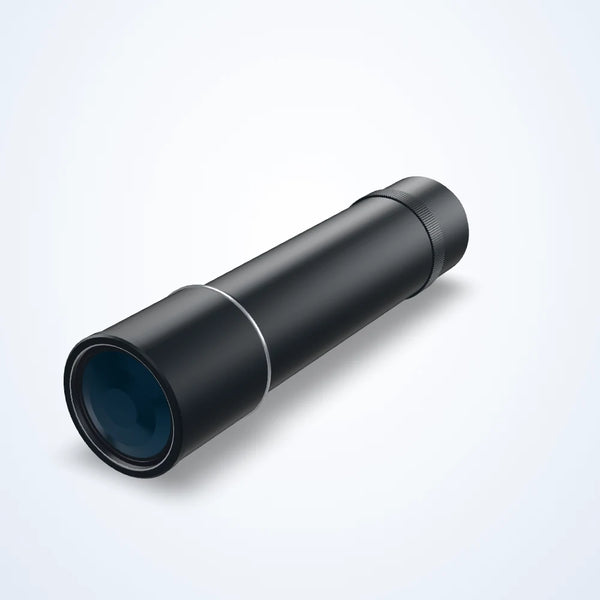

0.688x bi-telecentric lens, WD 128 mm, 2"
LS-TCL-1216
- Magnification 0.688x
- Mount M42, M58
- Sensor 2"
$2,035.00
Ships in 3-4 weeks

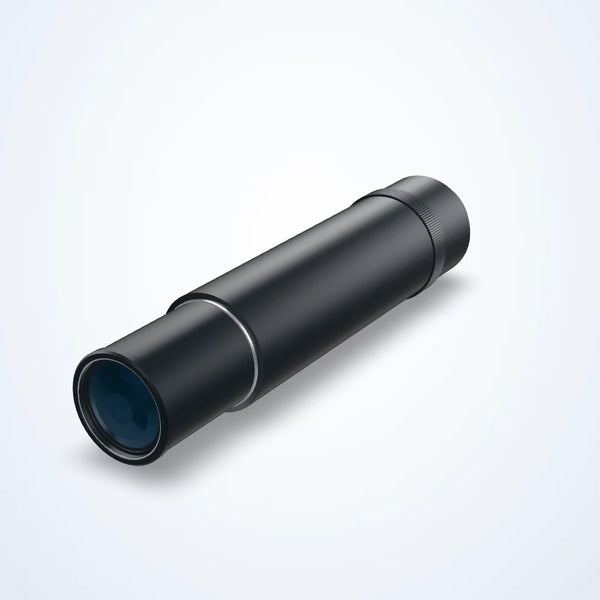

0.917x bi-telecentric lens, WD 110 mm, 2"
LS-TCL-1217
- Magnification 0.917x
- Mount M42, M58
- Sensor 2"
$1,815.00
Ships in 3-4 weeks

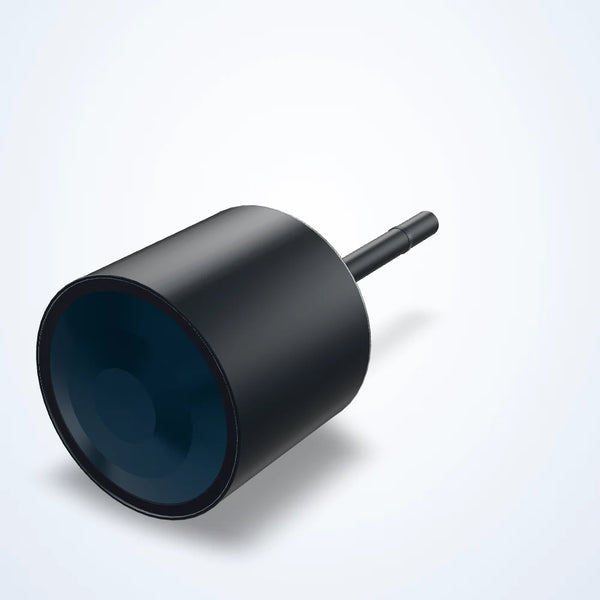

0.097x bi-telecentric lens, WD 465 mm, 1.75"
LS-TCL-1188
- Magnification 0.097x
- Mount F-mount
- Sensor 1.75"
$8,800.00Quote
Ships in 3-4 weeks

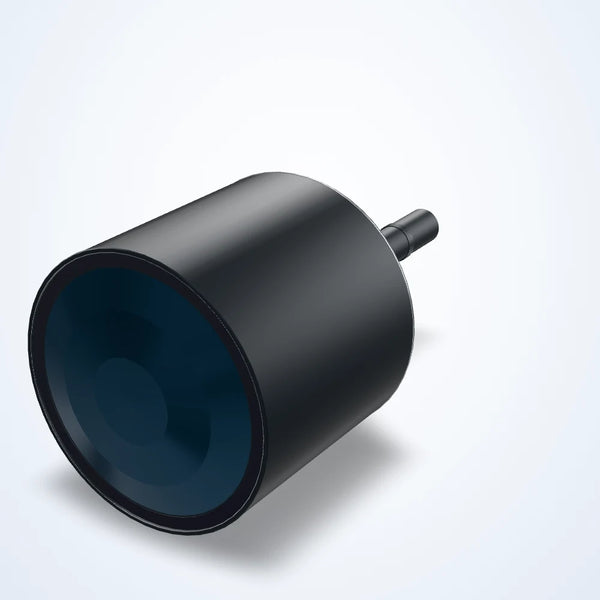

0.112x bi-telecentric lens, WD 338 mm, 1.75"
LS-TCL-1189
- Magnification 0.112x
- Mount M42, M58
- Sensor 1.75"
$8,345.00Quote
Ships in 3-4 weeks

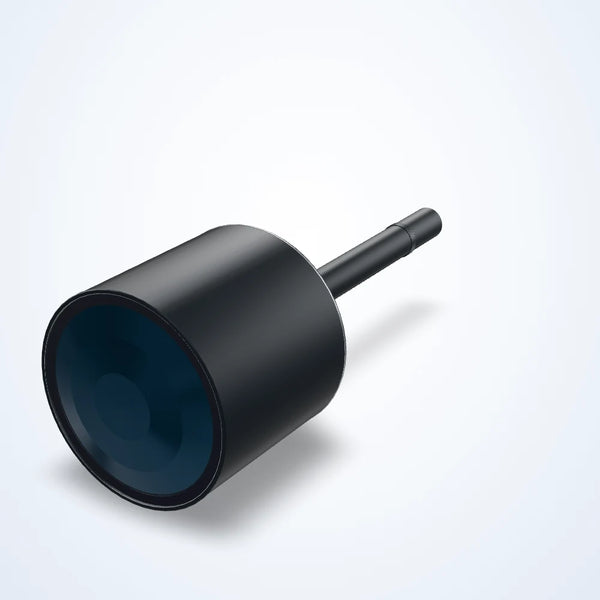

0.134x bi-telecentric lens, WD 372 mm, 1.75"
LS-TCL-1191
- Magnification 0.134x
- Mount M42, M58
- Sensor 1.75"
$5,340.00Quote
Ships in 3-4 weeks

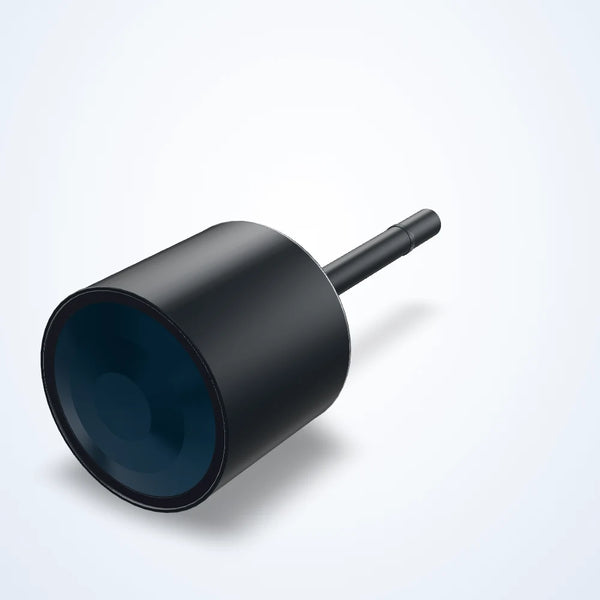

0.121x bi-telecentric lens, WD 410 mm, 1.75"
LS-TCL-1190
- Magnification 0.121x
- Mount F-mount
- Sensor 1.75"
$5,340.00Quote
Ships in 3-4 weeks

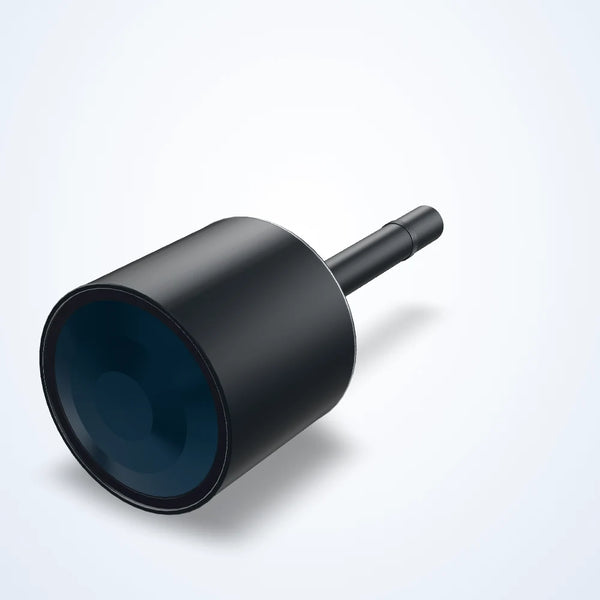

0.153x bi-telecentric lens, WD 330 mm, 1.75"
LS-TCL-1192
- Magnification 0.153x
- Mount F-mount
- Sensor 1.75"
$4,200.00
Ships in 3-4 weeks
0.171x bi-telecentric lens, WD 318 mm, 1.75"
LS-TCL-1193
- Magnification 0.171x
- Mount M42, M58
- Sensor 1.75"
$3,650.00
Ships in 3-4 weeks

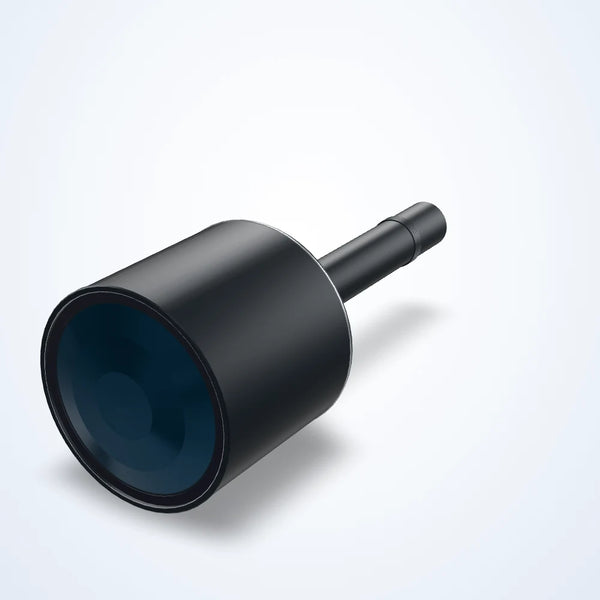

0.193x bi-telecentric lens, WD 300 mm, 1.75"
LS-TCL-1194
- Magnification 0.193x
- Mount F-mount
- Sensor 1.75"
$3,520.00
Ships in 3-4 weeks

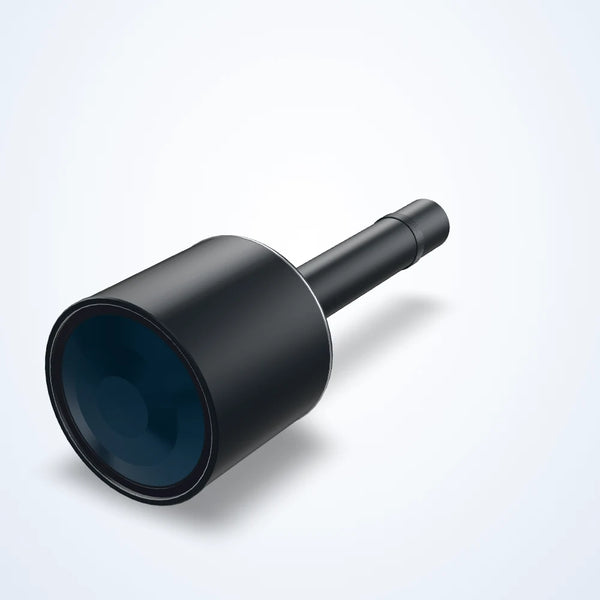

0.242x bi-telecentric lens, WD 273 mm, 1.75"
LS-TCL-1196
- Magnification 0.242x
- Mount F-mount
- Sensor 1.75"
$2,750.00
Ships in 3-4 weeks

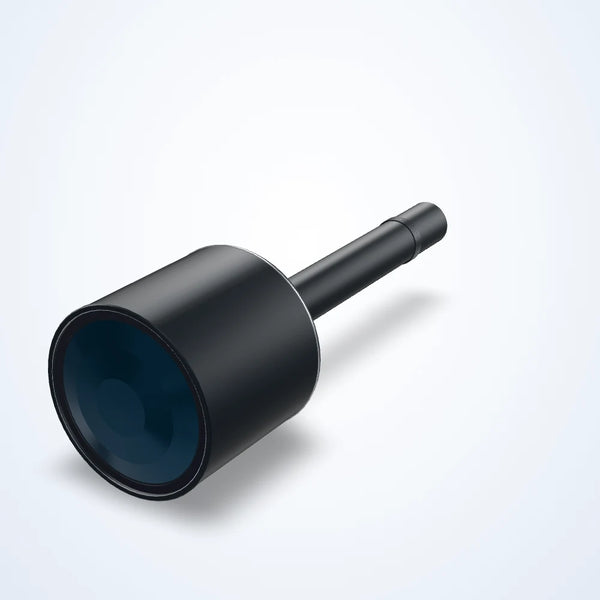

0.213x bi-telecentric lens, WD 288 mm, 1.75"
LS-TCL-1195
- Magnification 0.213x
- Mount M42, M58
- Sensor 1.75"
$2,750.00
Ships in 3-4 weeks
0.806x bi-telecentric lens, WD 110 mm, 1.75"
LS-TCL-1207
- Magnification 0.806x
- Mount F-mount
- Sensor 1.75"
$1,705.00
Ships in 3-4 weeks

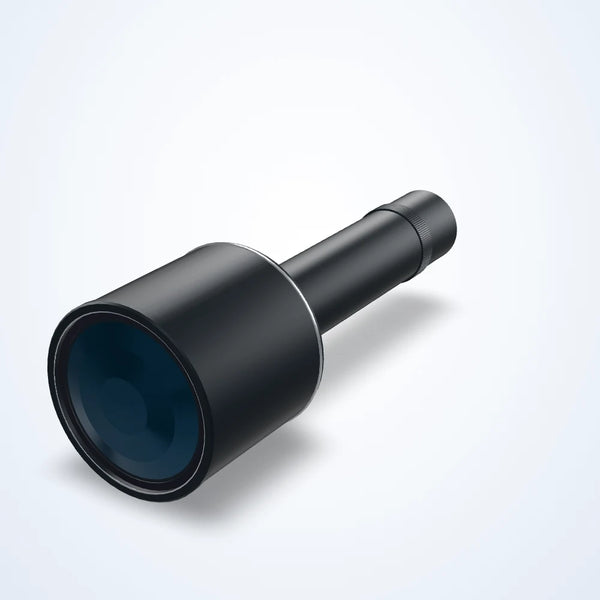

0.363x bi-telecentric lens, WD 228 mm, 1.75"
LS-TCL-1200
- Magnification 0.363x
- Mount F-mount
- Sensor 1.75"
$1,705.00
Ships in 3-4 weeks

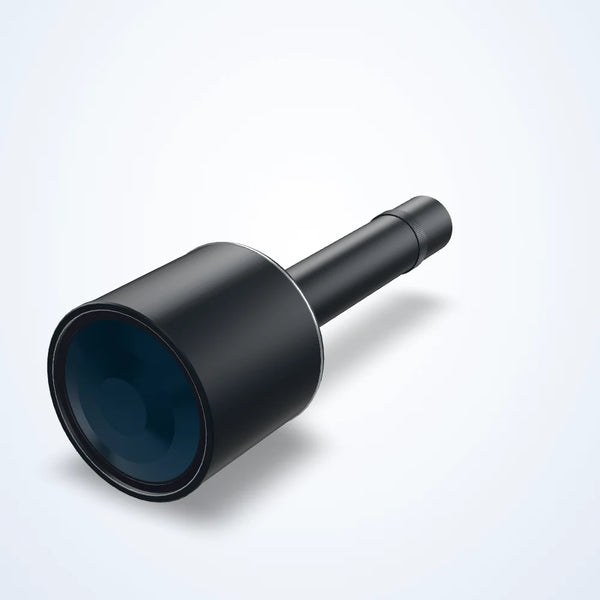

0.29x bi-telecentric lens, WD 258 mm, 1.75"
LS-TCL-1198
- Magnification 0.29x
- Mount F-mount
- Sensor 1.75"
$1,340.00
Ships in 3-4 weeks
0.264x bi-telecentric lens, WD 263 mm, 1.75"
LS-TCL-1197
- Magnification 0.264x
- Mount M42, M58
- Sensor 1.75"
$1,340.00
Ships in 3-4 weeks
0.322x bi-telecentric lens, WD 208 mm, 1.75"
LS-TCL-1199
- Magnification 0.322x
- Mount F-mount
- Sensor 1.75"
$1,285.00
Ships in 3-4 weeks

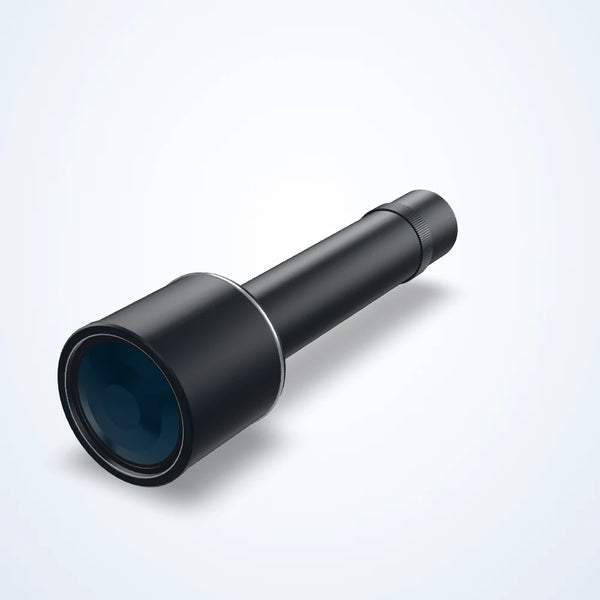

0.518x bi-telecentric lens, WD 128 mm, 1.75"
LS-TCL-1203
- Magnification 0.518x
- Mount F-mount
- Sensor 1.75"
$740.00
Ships in 3-4 weeks

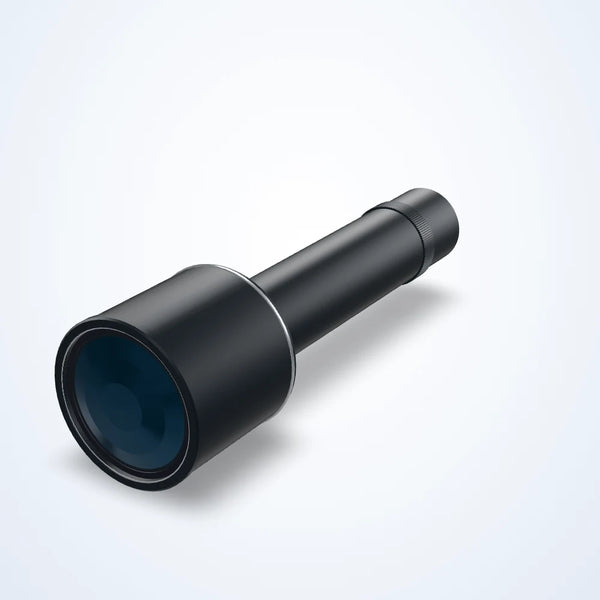

0.453x bi-telecentric lens, WD 158 mm, 1.75"
LS-TCL-1202
- Magnification 0.453x
- Mount F-mount
- Sensor 1.75"
$740.00
Ships in 3-4 weeks
0.403x bi-telecentric lens, WD 178 mm, 1.75"
LS-TCL-1201
- Magnification 0.403x
- Mount F-mount
- Sensor 1.75"
$740.00
Ships in 3-4 weeks

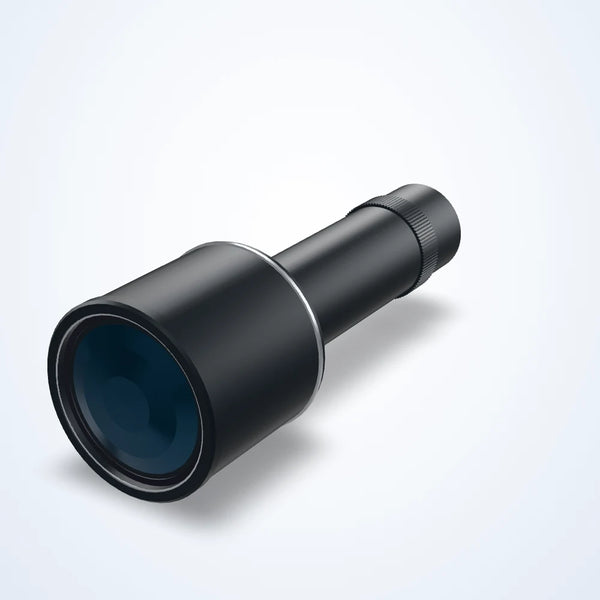

0.604x bi-telecentric lens, WD 128 mm, 1.75", F17.1
LS-TCL-1205
- Magnification 0.604x
- Mount F-mount
- Sensor 1.75"
$705.00
Ships in 3-4 weeks

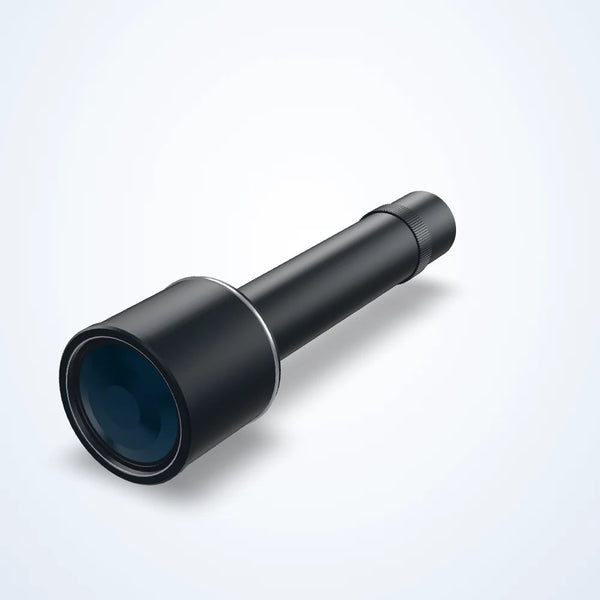

0.604x bi-telecentric lens, WD 128 mm, 1.75", F11.3
LS-TCL-1204
- Magnification 0.604x
- Mount F-mount
- Sensor 1.75"
$705.00
Ships in 3-4 weeks
| Compare | |||||||||
|---|---|---|---|---|---|---|---|---|---|
 LS-TCL-12130.243x bi-telecentric lens, WD 288 mm, 2"
| 0.243x | M42, M58 | 2" | 288±5 mm | F7.8 | dia. 136 mm | $3,630.00 | Ships in 3-4 weeks | |
 LS-TCL-12140.275x bi-telecentric lens, WD 273 mm, 2"
| 0.275x | F-mount | 2" | 273±5 mm | F7.8 | dia. 120 mm | $3,585.00 | Ships in 3-4 weeks | |
 LS-TCL-12150.516x bi-telecentric lens, WD 158 mm, 2"
| 0.516x | F-mount | 2" | 158±3 mm | F9.7 | dia. 64 mm | $2,650.00 | Ships in 3-4 weeks | |
 LS-TCL-12160.688x bi-telecentric lens, WD 128 mm, 2"
| 0.688x | M42, M58 | 2" | 128±3 mm | F12.9 | dia. 48 mm | $2,035.00 | Ships in 3-4 weeks | |
 LS-TCL-12170.917x bi-telecentric lens, WD 110 mm, 2"
| 0.917x | M42, M58 | 2" | 110±2 mm | F15.5 | dia. 36 mm | $1,815.00 | Ships in 3-4 weeks | |
 LS-TCL-11880.097x bi-telecentric lens, WD 465 mm, 1.75"
| 0.097x | F-mount | 1.75" | 465±6 mm | F8.5 | dia. 300 mm | $8,800.00Quote | Ships in 3-4 weeks | |
 LS-TCL-11890.112x bi-telecentric lens, WD 338 mm, 1.75"
| 0.112x | M42, M58 | 1.75" | 338±5 mm | F6.8 | dia. 258 mm | $8,345.00Quote | Ships in 3-4 weeks | |
 LS-TCL-11910.134x bi-telecentric lens, WD 372 mm, 1.75"
| 0.134x | M42, M58 | 1.75" | 372±5 mm | F6.8 | dia. 216 mm | $5,340.00Quote | Ships in 3-4 weeks | |
 LS-TCL-11900.121x bi-telecentric lens, WD 410 mm, 1.75"
| 0.121x | F-mount | 1.75" | 410±6 mm | F6.8 | dia. 240 mm | $5,340.00Quote | Ships in 3-4 weeks | |
 LS-TCL-11920.153x bi-telecentric lens, WD 330 mm, 1.75"
| 0.153x | F-mount | 1.75" | 330±5 mm | F6.8 | dia. 190 mm | $4,200.00 | Ships in 3-4 weeks | |
 LS-TCL-11930.171x bi-telecentric lens, WD 318 mm, 1.75"
| 0.171x | M42, M58 | 1.75" | 318±5 mm | F6.8 | dia. 170 mm | $3,650.00 | Ships in 3-4 weeks | |
 LS-TCL-11940.193x bi-telecentric lens, WD 300 mm, 1.75"
| 0.193x | F-mount | 1.75" | 300±5 mm | F9.7 | dia. 150 mm | $3,520.00 | Ships in 3-4 weeks | |
 LS-TCL-11960.242x bi-telecentric lens, WD 273 mm, 1.75"
| 0.242x | F-mount | 1.75" | 273±5 mm | F6.8 | dia. 120 mm | $2,750.00 | Ships in 3-4 weeks | |
 LS-TCL-11950.213x bi-telecentric lens, WD 288 mm, 1.75"
| 0.213x | M42, M58 | 1.75" | 288±5 mm | F6.8 | dia. 136 mm | $2,750.00 | Ships in 3-4 weeks | |
 LS-TCL-12070.806x bi-telecentric lens, WD 110 mm, 1.75"
| 0.806x | F-mount | 1.75" | 110±2 mm | F13.5 | dia. 36 mm | $1,705.00 | Ships in 3-4 weeks | |
 LS-TCL-12000.363x bi-telecentric lens, WD 228 mm, 1.75"
| 0.363x | F-mount | 1.75" | 228±4 mm | F6.8 | dia. 80 mm | $1,705.00 | Ships in 3-4 weeks | |
 LS-TCL-11980.29x bi-telecentric lens, WD 258 mm, 1.75"
| 0.29x | F-mount | 1.75" | 258±4 mm | F6.8 | dia. 100 mm | $1,340.00 | Ships in 3-4 weeks | |
 LS-TCL-11970.264x bi-telecentric lens, WD 263 mm, 1.75"
| 0.264x | M42, M58 | 1.75" | 263±4 mm | F6.8 | dia. 110 mm | $1,340.00 | Ships in 3-4 weeks | |
 LS-TCL-11990.322x bi-telecentric lens, WD 208 mm, 1.75"
| 0.322x | F-mount | 1.75" | 208±3 mm | F8.5 | dia. 90 mm | $1,285.00 | Ships in 3-4 weeks | |
 LS-TCL-12030.518x bi-telecentric lens, WD 128 mm, 1.75"
| 0.518x | F-mount | 1.75" | 128±3 mm | F9.7 | dia. 56 mm | $740.00 | Ships in 3-4 weeks | |
 LS-TCL-12020.453x bi-telecentric lens, WD 158 mm, 1.75"
| 0.453x | F-mount | 1.75" | 158±3 mm | F8.5 | dia. 64 mm | $740.00 | Ships in 3-4 weeks | |
 LS-TCL-12010.403x bi-telecentric lens, WD 178 mm, 1.75"
| 0.403x | F-mount | 1.75" | 178±3 mm | F8.5 | dia. 72 mm | $740.00 | Ships in 3-4 weeks | |
 LS-TCL-12050.604x bi-telecentric lens, WD 128 mm, 1.75", F17.1
| 0.604x | F-mount | 1.75" | 128±3 mm | F17.1 | dia. 48 mm | $705.00 | Ships in 3-4 weeks | |
 LS-TCL-12040.604x bi-telecentric lens, WD 128 mm, 1.75", F11.3
| 0.604x | F-mount | 1.75" | 128±3 mm | F11.3 | dia. 48 mm | $705.00 | Ships in 3-4 weeks |
Choose a double-telecentric optical layout
Bi-telecentric optics are telecentric on both the object and image sides. The design class differs from object-side-only optics. Use the model data to establish the usable field and measurement conditions; the design label does not set one universal accuracy or depth-of-field value.
- Match magnification and sensor dimensions to the required object field, then check the image-circle rating and mount for the actual camera.
- Compare the published working distance, distortion and telecentricity for the intended object position and aperture. Keep model-specific values separate from general design principles.
- Check the lens outline and illumination clearance before fixing the station geometry. A suitable sensor format alone does not establish mechanical fit or measurement capability.
