4x liquid-focus telecentric lens, WD 64.7 mm, 2/3", C-mount
LS-TCL-1294
- Magnification 4.0x
- Mount C-mount
- Sensor 2/3"
$2,500.00
Ships in 3-4 weeks
Lenses

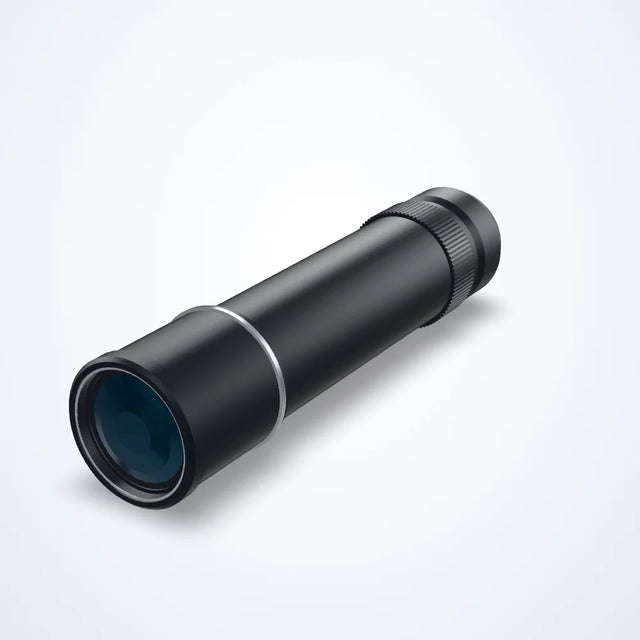

Object-side telecentric lenses
Select object-space telecentric opticsBrowse lenses cataloged as object-side telecentric. Compare their measurement field, sensor format, magnification and working distance alongside the separate bi-telecentric range.
Products
4x liquid-focus telecentric lens, WD 62.8 mm, 2/3", C-mount
LS-TCL-1293
- Magnification 4.0x
- Mount C-mount
- Sensor 2/3"
$2,500.00
Ships in 3-4 weeks
4x liquid-focus telecentric lens, 2/3", C-mount
LS-TCL-1289
- Magnification 4.0x
- Mount C-mount
- Sensor 2/3"
$2,400.00
Ships in 3-4 weeks
1.75x liquid-focus telecentric lens, WD 100-120 mm, 2/3", C-mount
LS-TCL-1280
- Magnification 1.75x
- Mount C-mount
- Sensor 2/3"
$2,400.00
Ships in 3-4 weeks
0.5x liquid-focus telecentric lens, WD 110-120 mm, 2/3", C-mount
LS-TCL-1262
- Magnification 0.5x
- Mount C-mount
- Sensor 2/3"
$2,400.00
Ships in 3-4 weeks
0.5x liquid-focus telecentric lens, WD 100-120 mm, 2/3", C-mount
LS-TCL-1261
- Magnification 0.5x
- Mount C-mount
- Sensor 2/3"
$2,400.00
Ships in 3-4 weeks
0.4x liquid-focus telecentric lens, WD 100-120 mm, 2/3", C-mount
LS-TCL-1252
- Magnification 0.4x
- Mount C-mount
- Sensor 2/3"
$2,400.00
Ships in 3-4 weeks

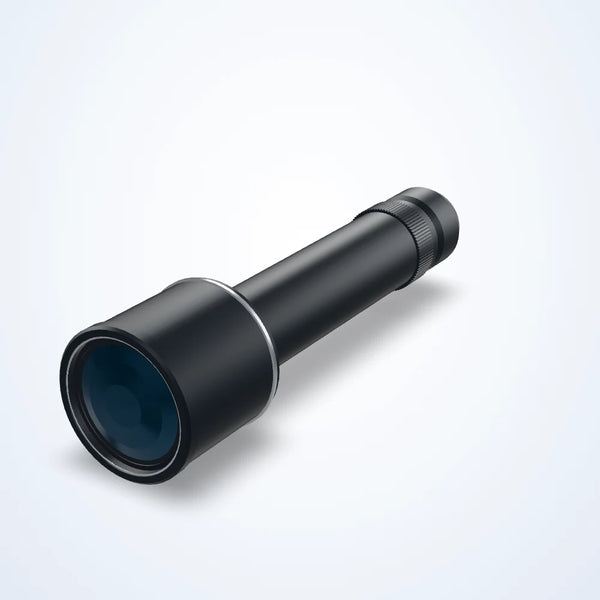

0.3x telecentric lens, 2/3", 0.3x Coaxial
LS-TCL-1241
- Magnification 0.3x
- Mount C-mount
- Sensor 2/3"
$830.00
Ships in 3-4 weeks

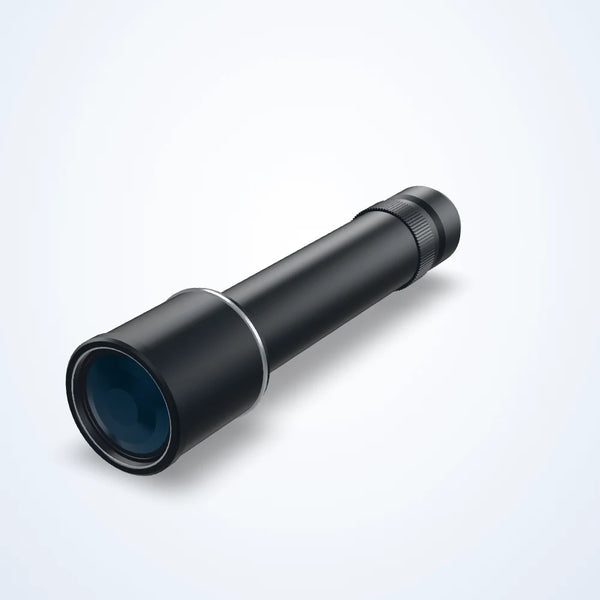

0.3x telecentric lens, WD 180 mm, 2/3", C-mount
LS-TCL-1245
- Magnification 0.3x
- Mount C-mount
- Sensor 2/3"
$800.00
Ships in 3-4 weeks

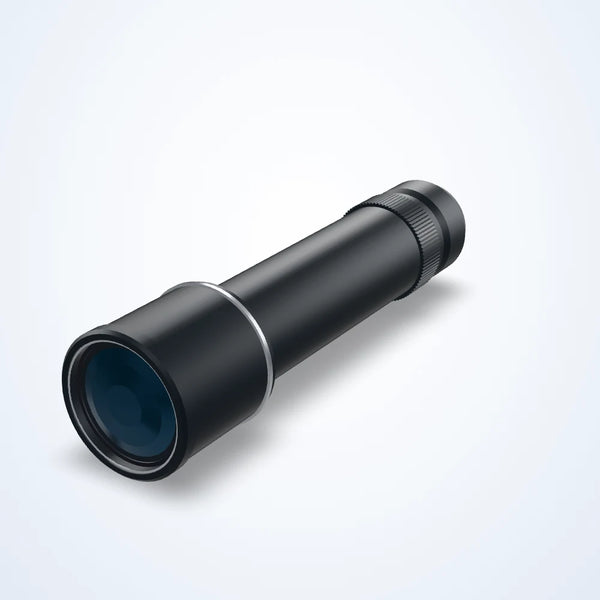

0.4x telecentric lens, 2/3", C-mount
LS-TCL-1248
- Magnification 0.4x
- Mount C-mount
- Sensor 2/3"
$740.00
Ships in 3-4 weeks

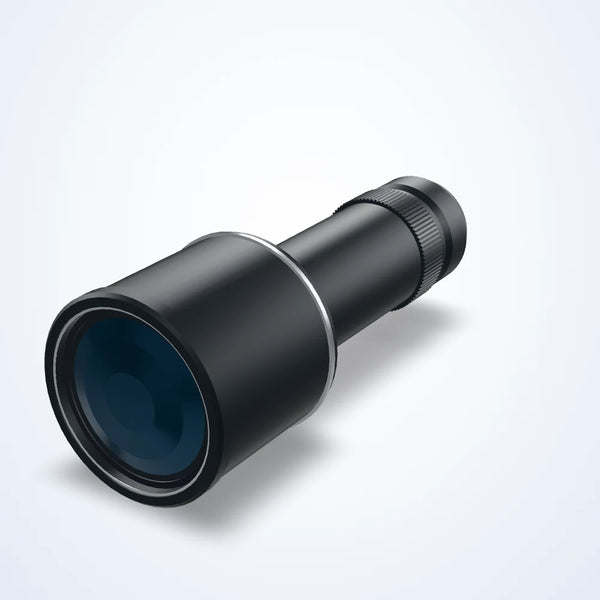

0.3x telecentric lens, 2/3", C-mount, Sensor 11.0 mm 2/3''
LS-TCL-1242
- Magnification 0.3x
- Mount C-mount
- Sensor 2/3"
$740.00
Ships in 3-4 weeks

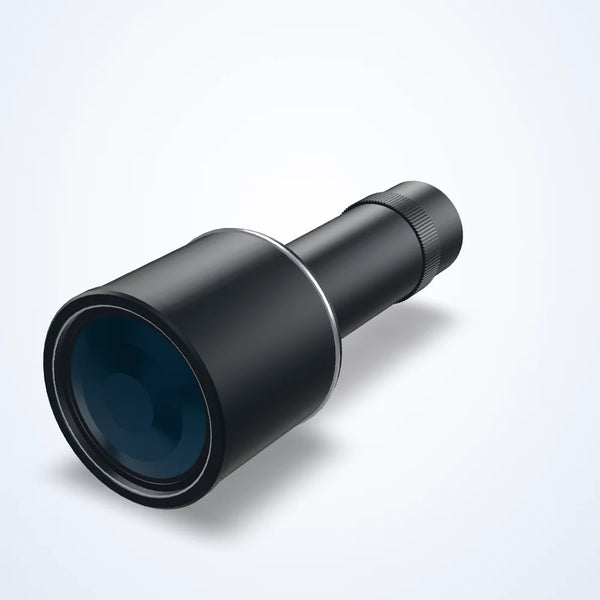

0.22x telecentric lens, WD 200 mm, 2/3", C-mount
LS-TCL-1236
- Magnification 0.22x
- Mount C-mount
- Sensor 2/3"
$740.00
Ships in 3-4 weeks
0.3x telecentric lens, WD 180 mm, 2/3", C-mount
LS-TCL-1244
- Magnification 0.3x
- Mount C-mount
- Sensor 2/3"
$730.00
Ships in 3-4 weeks
0.5x telecentric lens, 2/3", C-mount
LS-TCL-1258
- Magnification 0.5x
- Mount C-mount
- Sensor 2/3"
$700.00
Ships in 3-4 weeks

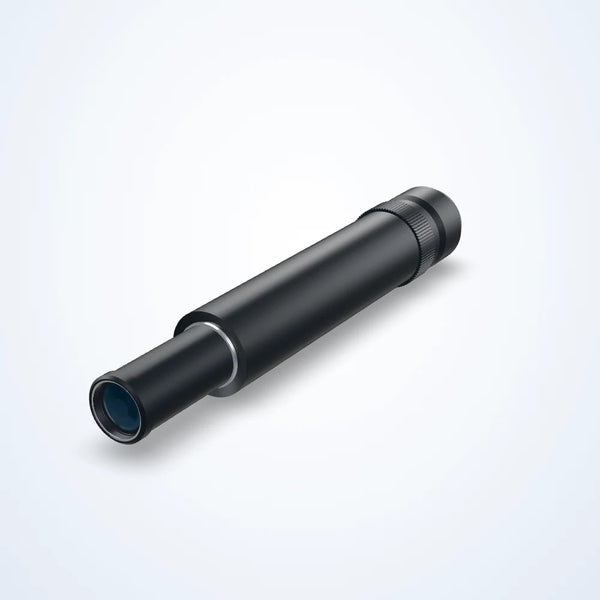

1x telecentric lens, WD 510 mm, 2/3", Coaxial
LS-TCL-1275
- Magnification 1.0x
- Mount C-mount
- Sensor 2/3"
$365.00
Ships in 3-4 weeks
1x telecentric lens, WD 410 mm, 2/3", Coaxial
LS-TCL-1273
- Magnification 1.0x
- Mount C-mount
- Sensor 2/3"
$365.00
Ships in 3-4 weeks
1x telecentric lens, WD 510 mm, 2/3"
LS-TCL-1276
- Magnification 1.0x
- Mount C-mount
- Sensor 2/3"
$355.00
Ships in 3-4 weeks
0.5x telecentric lens, 2/3", with coaxial light, variable iris
LS-TCL-1257
- Magnification 0.5x
- Mount C-mount
- Sensor 2/3"
$355.00
Ships in 3-4 weeks

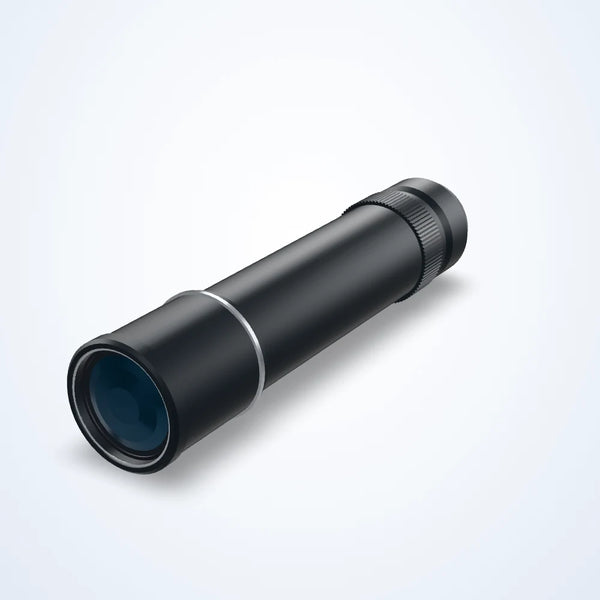

0.5x telecentric lens, 2/3", with coaxial light
LS-TCL-1256
- Magnification 0.5x
- Mount C-mount
- Sensor 2/3"
$355.00
Ships in 3-4 weeks
6x telecentric lens, 2/3"
LS-TCL-1296
- Magnification 6.0x
- Mount C-mount
- Sensor 2/3"
$350.00
Ships in 3-4 weeks
6x telecentric lens, 2/3"
LS-TCL-1295
- Magnification 6.0x
- Mount C-mount
- Sensor 2/3"
$350.00
Ships in 3-4 weeks

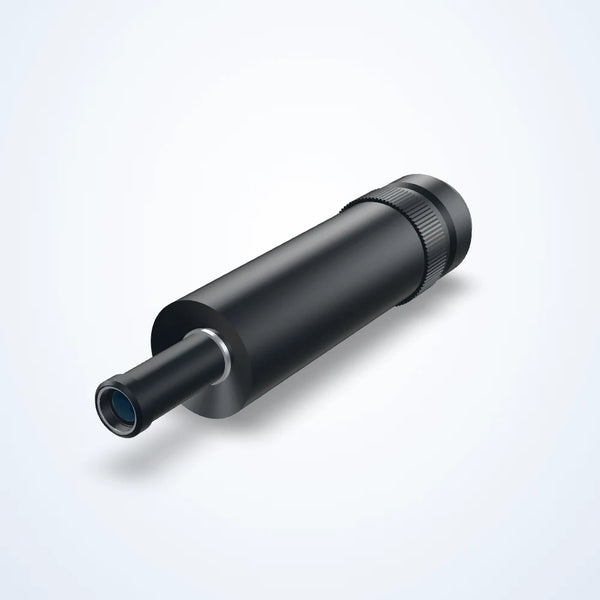

4x telecentric lens, 2/3", WD 110 mm, with coaxial light
LS-TCL-1291
- Magnification 4.0x
- Mount C-mount
- Sensor 2/3"
$350.00
Ships in 3-4 weeks
4x telecentric lens, 2/3", WD 110 mm
LS-TCL-1290
- Magnification 4.0x
- Mount C-mount
- Sensor 2/3"
$350.00
Ships in 3-4 weeks
3x telecentric lens, 2/3"
LS-TCL-1287
- Magnification 3.0x
- Mount C-mount
- Sensor 2/3"
$350.00
Ships in 3-4 weeks
| Compare | |||||||||
|---|---|---|---|---|---|---|---|---|---|
 LS-TCL-12944x liquid-focus telecentric lens, WD 64.7 mm, 2/3", C-mount
| 4.0x | C-mount | 2/3" | 64.7 mm | F17 | - | $2,500.00 | Ships in 3-4 weeks | |
|
LS-TCL-12934x liquid-focus telecentric lens, WD 62.8 mm, 2/3", C-mount
| 4.0x | C-mount | 2/3" | 62.778 mm | F17 | - | $2,500.00 | Ships in 3-4 weeks | |
|
LS-TCL-12894x liquid-focus telecentric lens, 2/3", C-mount
| 4.0x | C-mount | 2/3" | - | F17 | - | $2,400.00 | Ships in 3-4 weeks | |
|
LS-TCL-12801.75x liquid-focus telecentric lens, WD 100-120 mm, 2/3", C-mount
| 1.75x | C-mount | 2/3" | 100-120 mm | F13 | - | $2,400.00 | Ships in 3-4 weeks | |
|
LS-TCL-12620.5x liquid-focus telecentric lens, WD 110-120 mm, 2/3", C-mount
| 0.5x | C-mount | 2/3" | 110-120 mm | F10 | - | $2,400.00 | Ships in 3-4 weeks | |
|
LS-TCL-12610.5x liquid-focus telecentric lens, WD 100-120 mm, 2/3", C-mount
| 0.5x | C-mount | 2/3" | 100-120 mm | F10 | - | $2,400.00 | Ships in 3-4 weeks | |
|
LS-TCL-12520.4x liquid-focus telecentric lens, WD 100-120 mm, 2/3", C-mount
| 0.4x | C-mount | 2/3" | 100-120 mm | F6.5 | - | $2,400.00 | Ships in 3-4 weeks | |
 LS-TCL-12410.3x telecentric lens, 2/3", 0.3x Coaxial
| 0.3x | C-mount | 2/3" | 220±3 mm | F13.6 | 10 MP | $830.00 | Ships in 3-4 weeks | |
 LS-TCL-12450.3x telecentric lens, WD 180 mm, 2/3", C-mount
| 0.3x | C-mount | 2/3" | 180±2 mm | F10 | 10 MP | $800.00 | Ships in 3-4 weeks | |
 LS-TCL-12480.4x telecentric lens, 2/3", C-mount
| 0.4x | C-mount | 2/3" | 110±2 mm | F7 | 10 MP | $740.00 | Ships in 3-4 weeks | |
 LS-TCL-12420.3x telecentric lens, 2/3", C-mount, Sensor 11.0 mm 2/3''
| 0.3x | C-mount | 2/3" | 110±2 mm | F5.6 | 10 MP | $740.00 | Ships in 3-4 weeks | |
 LS-TCL-12360.22x telecentric lens, WD 200 mm, 2/3", C-mount
| 0.22x | C-mount | 2/3" | 200±3 mm | F10 | 10 MP | $740.00 | Ships in 3-4 weeks | |
|
LS-TCL-12440.3x telecentric lens, WD 180 mm, 2/3", C-mount
| 0.3x | C-mount | 2/3" | 180±2 mm | F10 | 10 MP | $730.00 | Ships in 3-4 weeks | |
 LS-TCL-12580.5x telecentric lens, 2/3", C-mount
| 0.5x | C-mount | 2/3" | 110±2 mm | F7 | 10 MP | $700.00 | Ships in 3-4 weeks | |
 LS-TCL-12751x telecentric lens, WD 510 mm, 2/3", Coaxial
| 1.0x | C-mount | 2/3" | 510±3 mm | F25.7 | 17.0 μm | $365.00 | Ships in 3-4 weeks | |
 LS-TCL-12731x telecentric lens, WD 410 mm, 2/3", Coaxial
| 1.0x | C-mount | 2/3" | 410±3 mm | F17.9 | 12.3 μm | $365.00 | Ships in 3-4 weeks | |
 LS-TCL-12761x telecentric lens, WD 510 mm, 2/3"
| 1.0x | C-mount | 2/3" | 510±3 mm | F25.7 | 17.0 μm | $355.00 | Ships in 3-4 weeks | |
 LS-TCL-12570.5x telecentric lens, 2/3", with coaxial light, variable iris
| 0.5x | C-mount | 2/3" | 110±2 mm | F9.6 | 12.9 μm | $355.00 | Ships in 3-4 weeks | |
 LS-TCL-12560.5x telecentric lens, 2/3", with coaxial light
| 0.5x | C-mount | 2/3" | 110±2 mm | F9.6 | 12.9 μm | $355.00 | Ships in 3-4 weeks | |
 LS-TCL-12966x telecentric lens, 2/3"
| 6.0x | C-mount | 2/3" | - | F38.9 | - | $350.00 | Ships in 3-4 weeks | |
|
LS-TCL-12956x telecentric lens, 2/3"
| 6.0x | C-mount | 2/3" | - | F38.9 | - | $350.00 | Ships in 3-4 weeks | |
 LS-TCL-12914x telecentric lens, 2/3", WD 110 mm, with coaxial light
| 4.0x | C-mount | 2/3" | 110±2 mm | F25.6 | 4.5 μm | $350.00 | Ships in 3-4 weeks | |
 LS-TCL-12904x telecentric lens, 2/3", WD 110 mm
| 4.0x | C-mount | 2/3" | 110±2 mm | F25.6 | 4.5 μm | $350.00 | Ships in 3-4 weeks | |
|
LS-TCL-12873x telecentric lens, 2/3"
| 3.0x | C-mount | 2/3" | - | F18.3 | - | $350.00 | Ships in 3-4 weeks |
Select object-space telecentric optics
Object-side telecentric optics control perspective on the object side. They are a distinct class from bi-telecentric designs. Choose a lens using the required object field and the model specifications, then verify the complete camera, illumination and mechanical arrangement for the inspection task.
- Match the required field with sensor size and magnification, allowing room for part-position variation instead of framing the nominal part edge exactly.
- Check the published working distance, depth of field, resolution and distortion at the intended aperture. Do not substitute a family description for the selected model data.
- Compare object-side and bi-telecentric designs when sensor placement and measurement stability are critical, and verify the mount and body clearance before installation.
