1.2-inch telecentric lenses

Match the measurement field to the sensor

Select telecentric optics cataloged for a 1.2-inch sensor format. Compare magnification, working distance, mount and the actual field of view for measurement and inspection.

All Telecentric lenses

27 models Configure a systemAll lenses
1.2-inch telecentric lenses

1-24 of 27 models

Products

Compare
LS-TCL-0582Fixed-magnification lens, 0.13x, 630 mm WD, 1.2" 0.13xC-mount1.2"630 mmF6-$5,699.00Quote Ships in 2-3 weeks
LS-TCL-0570Fixed-magnification lens, 0.2x, 604 mm WD, 1.2" 0.2xC-mount1.2"604 mmF7.1-$5,699.00Quote Ships in 2-3 weeks
LS-TCL-0569Fixed-magnification lens, 0.1x, 778 mm WD, 1.2" 0.1xC-mount1.2"778 mmF5.1-$4,669.00Quote Ships in 2-3 weeks
LS-TCL-0586Fixed-magnification lens, 0.25x, 423 mm WD, 1.2" 0.25xC-mount1.2"423 mmF8-$4,669.00Quote Ships in 2-3 weeks
LS-TCL-0585Fixed-magnification lens, 0.25x, 310 mm WD, 1.2" 0.25xC-mount1.2"310 mmF4.9-$3,469.00Quote Ships in 2-3 weeks
LS-TCL-0588Fixed-magnification lens, 0.35x, 254 mm WD, 1.2" 0.35xC-mount1.2"254 mmF6.6-$2,439.00 Ships in 2-3 weeks
LS-TCL-0574Fixed-magnification lens, 0.4x, 227 mm WD, 1.2" 0.4xC-mount1.2"227 mmF6.9-$2,269.00 Ships in 2-3 weeks
LS-TCL-0573Fixed-magnification lens, 0.4x, 190 mm WD, 1.2" 0.4xC-mount1.2"190 mmF5.7-$1,789.00 Ships in 2-3 weeks
LS-TCL-0592Fixed-magnification lens, 0.45x, 189 mm WD, 1.2" 0.45xC-mount1.2"189 mmF6.5-$1,649.00 Ships in 2-3 weeks
LS-TCL-0587Fixed-magnification lens, 0.35x, 232 mm WD, 1.2" 0.35xC-mount1.2"232 mmF5.6-$1,449.00 Ships in 2-3 weeks

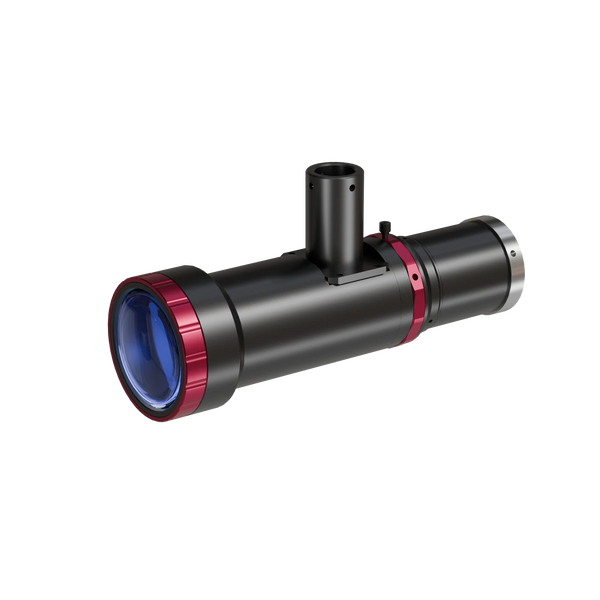

LS-TCL-0600Object-side telecentric lens, 1x, 80 mm WD, 1.2", coaxial light port 1xC-mount1.2"80 mmF5.3~32-$1,309.00 Ships in 2-3 weeks
LS-TCL-0577Fixed-magnification lens, 0.5x, 316 mm WD, 1.2" 0.5xC-mount1.2"316 mmF12-$829.00 Ships in 2-3 weeks
LS-TCL-0580Fixed-magnification lens, 0.8x, 135 mm WD, 1.2" 0.8xC-mount1.2"135 mmF9.2-$739.00 Ships in 2-3 weeks
LS-TCL-0610Object-side telecentric lens, 4x, 60 mm WD, 1.2" 4xC-mount1.2"60 mmF9.9-F32-$739.00 Ships in 2-3 weeks
LS-TCL-13462x, WD 63 mm, 1.2", C-mount telecentric lens with coaxial light 2xC-mount1.2"63 mm6.6Ø 10 mm$1,239.00 Ships in 2-3 weeks
LS-TCL-13452x, WD 63 mm, 1.2", C-mount telecentric lens with coaxial light 2xC-mount1.2"63 mm6.6Ø 10 mm$1,239.00 Ships in 2-3 weeks

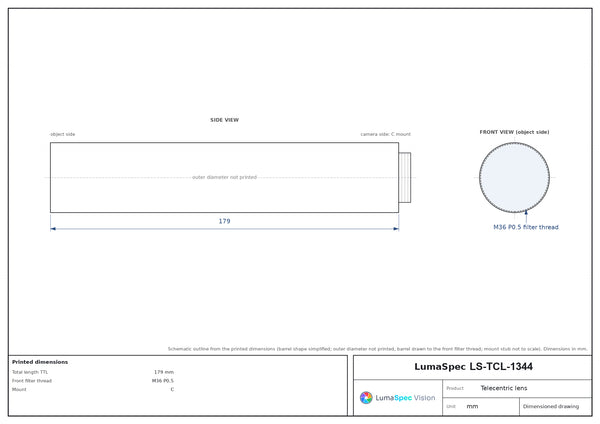

LS-TCL-13442x, WD 63 mm, 1.2", C-mount telecentric lens 2xC-mount1.2"63 mm6.6Ø 10 mm$1,239.00 Ships in 2-3 weeks
LS-TCL-13432.74x, WD 64 mm, 1.2", C-mount telecentric lens with coaxial light 2.74xC-mount1.2"64 mm8.5Ø 7.3 mm$1,239.00 Ships in 2-3 weeks
LS-TCL-13422.74x, WD 64 mm, 1.2", C-mount telecentric lens with coaxial light 2.74xC-mount1.2"64 mm8.5Ø 7.3 mm$1,239.00 Ships in 2-3 weeks
LS-TCL-13412.74x, WD 64 mm, 1.2", C-mount telecentric lens 2.74xC-mount1.2"64 mm8.5Ø 7.3 mm$1,239.00 Ships in 2-3 weeks
LS-TCL-13403.025x, WD 61 mm, 1.2", C-mount telecentric lens with coaxial light 3.025xC-mount1.2"61 mm9.4Ø 6.6 mm$1,239.00 Ships in 2-3 weeks
LS-TCL-13393.025x, WD 61 mm, 1.2", C-mount telecentric lens with coaxial light 3.025xC-mount1.2"61 mm9.4Ø 6.6 mm$1,239.00 Ships in 2-3 weeks
LS-TCL-13383.025x, WD 61 mm, 1.2", C-mount telecentric lens 3.025xC-mount1.2"61 mm9.4Ø 6.6 mm$1,239.00 Ships in 2-3 weeks

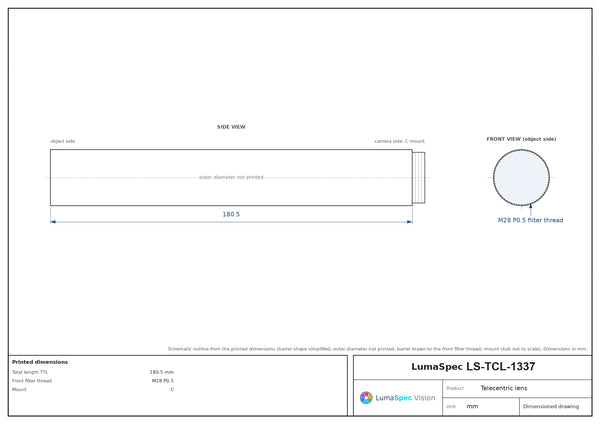

LS-TCL-13374x, WD 45 mm, 1.2", C-mount telecentric lens with coaxial light, F11.7 4xC-mount1.2"45 mm11.7Ø 5 mm$1,259.00 Ships in 2-3 weeks

Match the measurement field to the sensor

For a fixed-magnification telecentric lens, the object field is set by the active sensor size and magnification. The format rating describes coverage; it does not by itself specify the measurement field. Start with the part envelope, smallest feature and available mounting distance.

  • Confirm that the camera uses the decimal 1.2-inch format, not the fractional 1/2-inch format, and check its actual active dimensions against the lens coverage.
  • Choose magnification from the required object field and sensor dimensions. Check the model-specific working distance, depth of field and mounting drawing.
  • Evaluate distortion, telecentricity and resolution for the measurement task, and reserve room for the illumination geometry rather than selecting by format alone.

Configure a system · Browse all Telecentric lenses
