Object-Side Telecentric Lens, 0.25x, 423 mm WD, 1.2" (LS-KS-025-423)

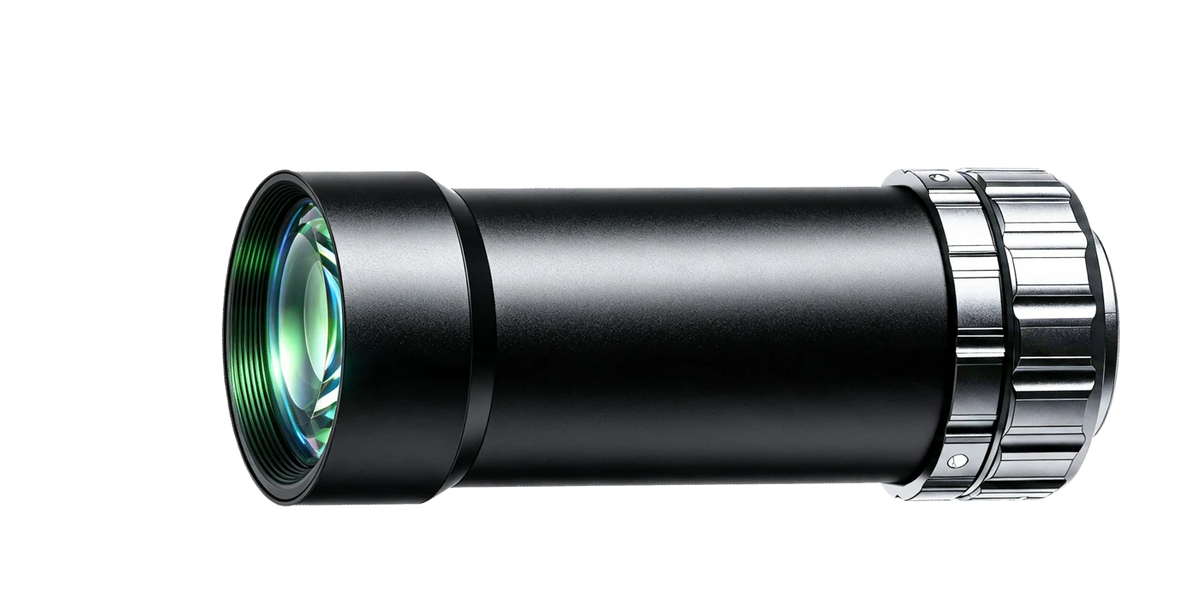

  • Object-Side Telecentric Lens, 0.25x, 423 mm WD, 1.2" (LS-KS-025-423)

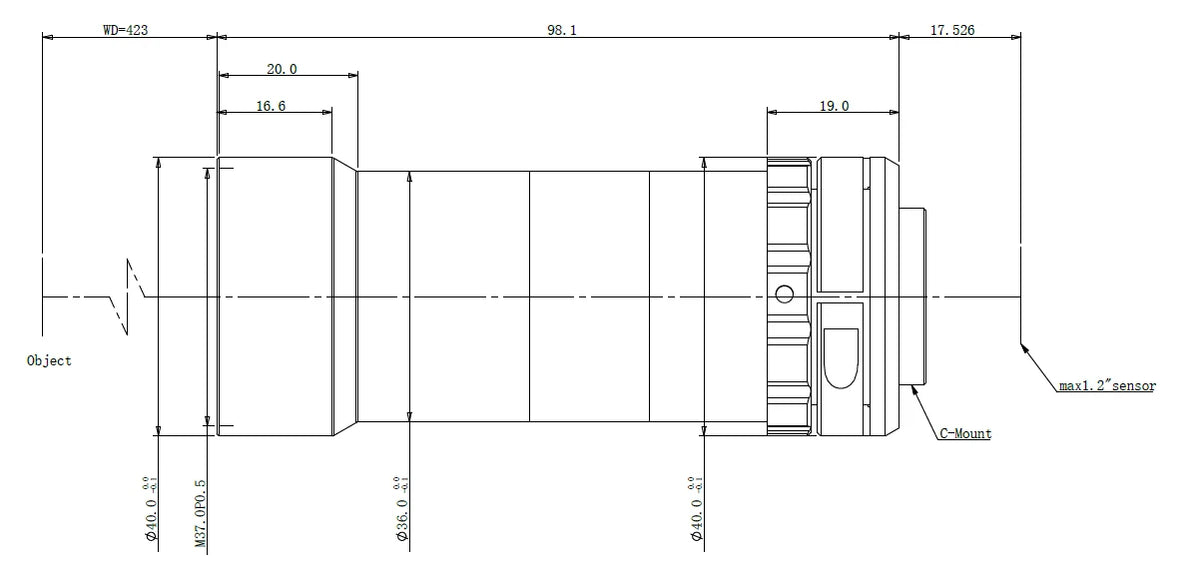

  • LS-KS-025-423 dimensions (mm)

Telecentric lenses

Quasi-Telecentric Lens, 0.25x, 423 mm WD, 1.2" (LS-TCL-0586)

Model LS-TCL-0586

  • Magnification0.25
  • MountC-mount
  • Sensor1.2"
  • Working distance423 mm
  • ApertureF8
$4,669.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Ships in 2-3 weeks

0.66 kg shipping weight

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

Quasi-Telecentric Lens, 0.25x, 423 mm WD, 1.2" (LS-TCL-0586)LS-TCL-0586

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Object-Side Telecentric Lens, 0.25x, 423 mm WD, 1.2". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 1.2"

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0586

Optics

Magnification0.25
Working distance423 mm
Image size1.2"
F-numberF8
Depth of field10.2 mm
Distortion≤ 0.3%
Object-side resolution21.4 μm
Object-side telecentricityNon-telecentric
Coaxial lightNot supported

Interfaces and I/O

Connector typeC-Mount

Environment and compliance

Temperature-10~50°C
CertificationRoHS2.0

Mechanical

Dimension98.1 mm × Φ40 mm
Shipping weight (estimated)0.66 kg
