Quasi-Telecentric Lens, 0.15x, 963 mm WD, 1.1" (LS-TCL-0584)

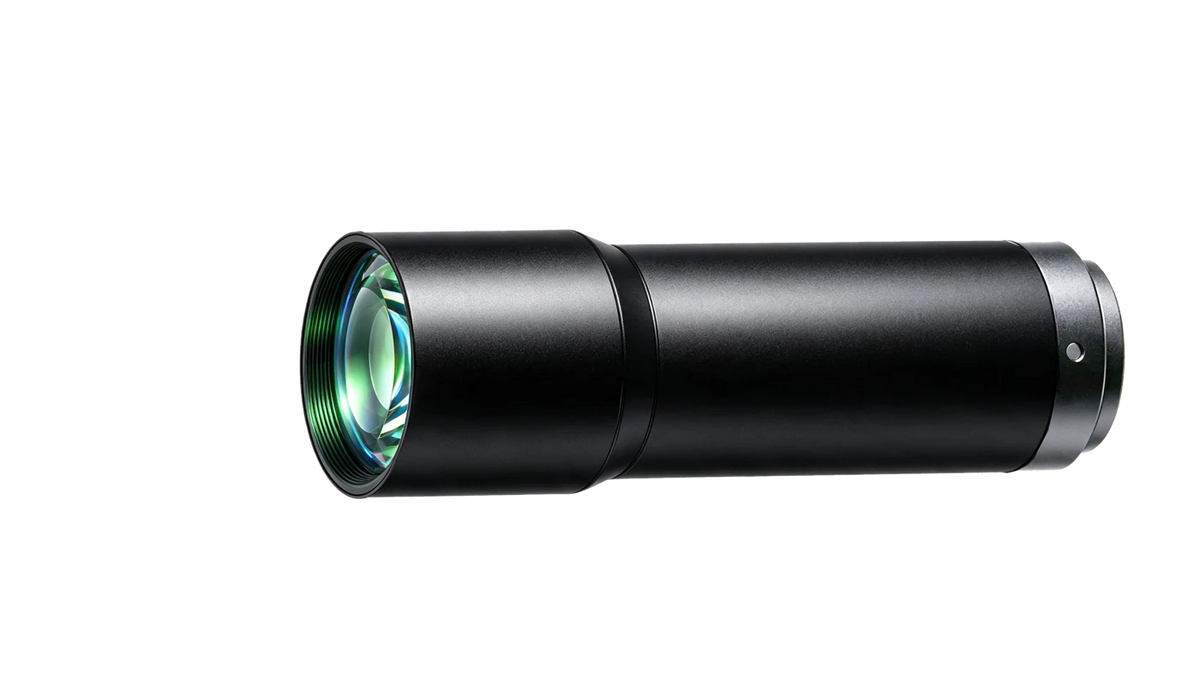

  • Quasi-Telecentric Lens, 0.15x, 963 mm WD, 1.1" (LS-TCL-0584)

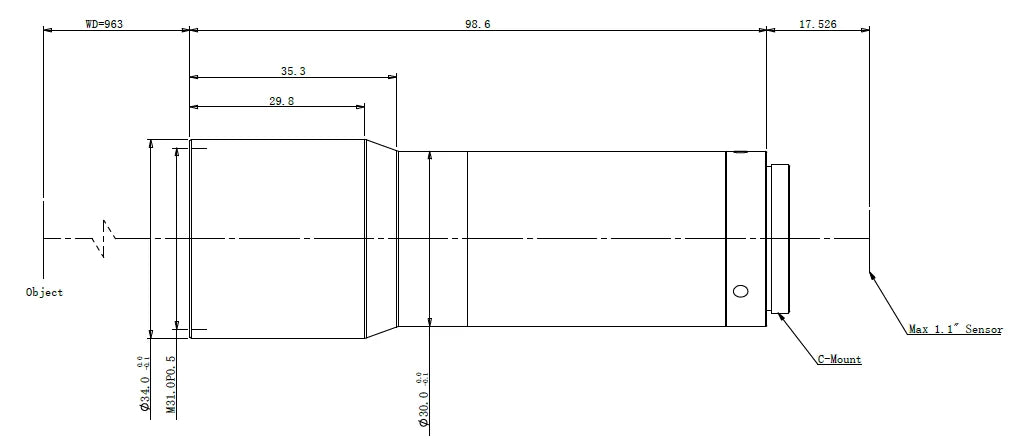

  • LS-TCL-0584 dimensions (mm)

Telecentric lenses

Quasi-Telecentric Lens, 0.15x, 963 mm WD, 1.1" (LS-TCL-0584)

Model LS-TCL-0584

  • Magnification0.15
  • MountC-mount
  • Sensor1.1"
  • Working distance963 mm
  • ApertureF6.5
$4,259.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Ships in 2-3 weeks

0.66 kg shipping weight

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

Quasi-Telecentric Lens, 0.15x, 963 mm WD, 1.1" (LS-TCL-0584)LS-TCL-0584

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Object-Side Telecentric Lens, 0.15x, 963 mm WD, 1.1". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 1.1"

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0584

Optics

Magnification0.15
Working distance963 mm
Image size1.1"
F-numberF6.5
Depth of field23.1 mm
Distortion≤ 0.0023%
Object-side resolution29.1 μm
Object-side telecentricityNon-telecentric
Coaxial lightNot supported

Interfaces and I/O

Connector typeC-Mount

Environment and compliance

Temperature-10~50°C
CertificationRoHS2.0

Mechanical

Dimension98.6 mm × Φ 34 mm
Shipping weight (estimated)0.66 kg

Other models in the LS-TCL-S38 Series Object-Side Telecentric lenses series

See all 123 models
ModelSize / key dataPriceAvailabilityLink
LS-TCL-0574 0.4x, 227 mm WD, 1.2" $2,269.00 4 in stock View
LS-TCL-0667 0.4x, 250 mm WD, 1" $2,439.00 2 in stock View
LS-TCL-0588 0.35x, 254 mm WD, 1.2" $2,439.00 2 in stock View
LS-TCL-0645 0.36x, 291 mm WD, 1" $2,609.00 Quote Ships in 2-3 weeks View
LS-TCL-0599 0.42x, 285 mm WD, 1" $2,889.00 Quote Ships in 2-3 weeks View
LS-TCL-0668 0.4x, 300 mm WD, 4/3" $3,469.00 Quote Ships in 2-3 weeks View
LS-TCL-0585 0.25x, 310 mm WD, 1.2" $3,469.00 Quote Ships in 2-3 weeks View
LS-TCL-0575 0.4x, 425 mm WD, 1.1" $3,469.00 Quote Ships in 2-3 weeks View
LS-TCL-0664 0.3x, 340 mm WD, 1" $3,819.00 Quote Ships in 2-3 weeks View
LS-TCL-0678 0.22x, 380 mm WD, 1" $4,259.00 Quote Ships in 2-3 weeks View
LS-TCL-0665 0.3x, 360 mm WD, 1" $4,259.00 Quote Ships in 2-3 weeks View
LS-TCL-0583 0.15x, 640 mm WD, 1.1" $4,259.00 Quote Ships in 2-3 weeks View
LS-TCL-0689 0.175x, 640 mm WD, 1" $4,669.00 Quote Ships in 2-3 weeks View
LS-TCL-0677 0.18x, 630 mm WD, 1" $4,669.00 Quote Ships in 2-3 weeks View
LS-TCL-0681 0.25x, 415 mm WD, 4/3" $4,669.00 Quote Ships in 2-3 weeks View
LS-TCL-0684 0.28x, 680 mm WD, 1" $4,669.00 Quote Ships in 2-3 weeks View
LS-TCL-0685 0.29x, 742 mm WD, 1" $4,669.00 Quote Ships in 2-3 weeks View
LS-TCL-0586 0.25x, 423 mm WD, 1.2" $4,669.00 Quote Ships in 2-3 weeks View
LS-TCL-0594 0.128x, 1115 mm WD, 1.1" $4,669.00 Quote Ships in 2-3 weeks View
LS-TCL-0569 0.1x, 778 mm WD, 1.2" $4,669.00 Quote Ships in 2-3 weeks View
LS-TCL-0679 0.22x, 530 mm WD, 1" $5,699.00 Quote Ships in 2-3 weeks View
LS-TCL-0662 0.2x, 550 mm WD, 1" $5,699.00 Quote Ships in 2-3 weeks View
LS-TCL-0680 0.24x, 760 mm WD, 1" $5,699.00 Quote Ships in 2-3 weeks View
LS-TCL-0682 0.25x, 465 mm WD, 1" $5,699.00 Quote Ships in 2-3 weeks View
