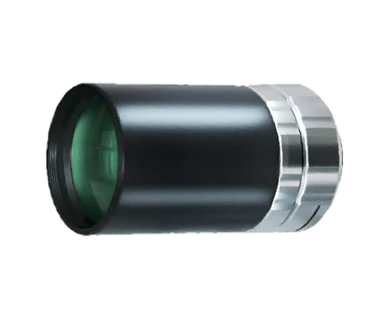

Quasi-Telecentric Lens, 0.35x, 254 mm WD, 1.2" (LS-TCL-0588)
  • Quasi-Telecentric Lens, 0.35x, 254 mm WD, 1.2" (LS-TCL-0588)

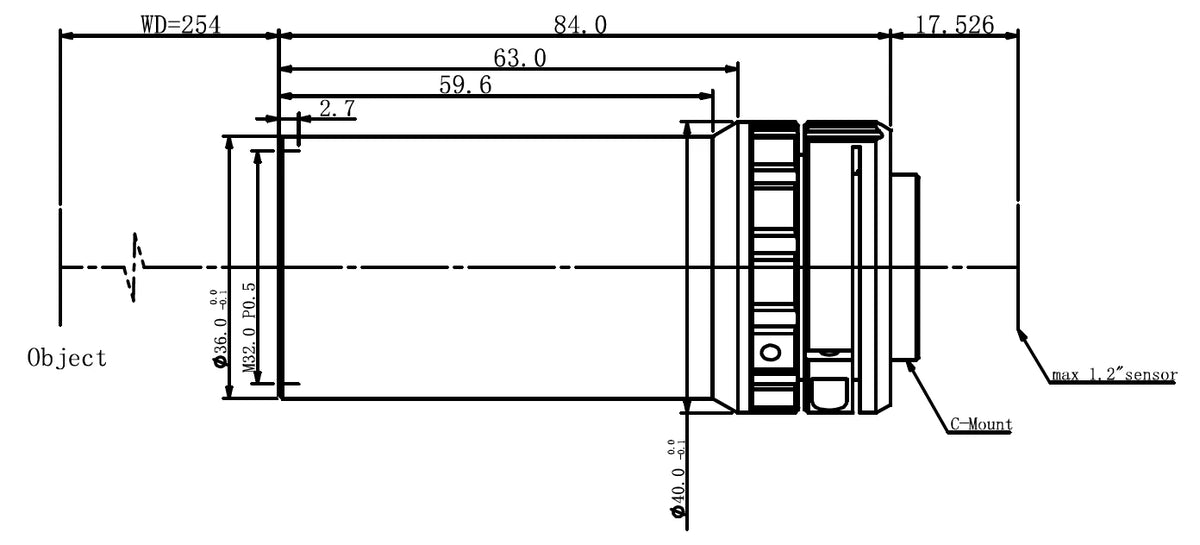

  • LS-TCL-0588 dimensions (mm)

Telecentric lenses

Quasi-Telecentric Lens, 0.35x, 254 mm WD, 1.2" (LS-TCL-0588)

Model LS-TCL-0588

  • Magnification0.35
  • MountC-mount
  • Sensor1.2"
  • Working distance254 mm
  • ApertureF6.6
$2,439.00

Ships in 2-3 weeks

0.66 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Quasi-Telecentric Lens, 0.35x, 254 mm WD, 1.2" (LS-TCL-0588)LS-TCL-0588

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Object-Side Telecentric Lens, 0.35x, 254 mm WD, 1.2". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 1.2"

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0588

Optics

Magnification0.35
Working distance254 mm
Image size1.2"
F-numberF6.6
Depth of field4.3 mm
Distortion≤ 0.52%
Object-side resolution12.8 μm
Object-side telecentricityNon-telecentric
Coaxial lightNot supported

Interfaces and I/O

Connector typeC-Mount

Environment and compliance

Temperature-10~50°C
CertificationRoHS2.0

Mechanical

Dimension84 mm × Φ 36 mm
Shipping weight (estimated)0.66 kg
