1.2-inch telecentric lenses

Match the measurement field to the sensor

Select telecentric optics cataloged for a 1.2-inch sensor format. Compare magnification, working distance, mount and the actual field of view for measurement and inspection.

All Telecentric lenses

27 models Configure a systemAll lenses
1.2-inch telecentric lenses

25-27 of 27 models

Products

Compare

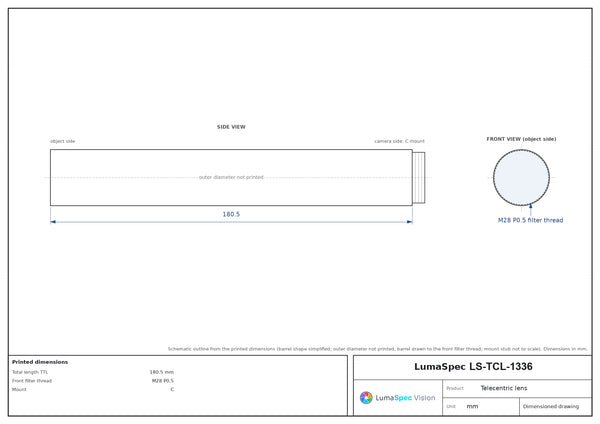

LS-TCL-13364x, WD 45 mm, 1.2", C-mount telecentric lens with coaxial light, F11.7 4xC-mount1.2"45 mm11.7Ø 5 mm$1,259.00 Ships in 2-3 weeks
LS-TCL-13354x, WD 45 mm, 1.2", C-mount telecentric lens with coaxial light 4xC-mount1.2"45 mm11.7 to closedØ 5 mm$1,259.00 Ships in 2-3 weeks
LS-TCL-13344x, WD 45 mm, 1.2", C-mount telecentric lens, F11.7 4xC-mount1.2"45 mm11.7Ø 5 mm$1,259.00 Ships in 2-3 weeks

Match the measurement field to the sensor

For a fixed-magnification telecentric lens, the object field is set by the active sensor size and magnification. The format rating describes coverage; it does not by itself specify the measurement field. Start with the part envelope, smallest feature and available mounting distance.

  • Confirm that the camera uses the decimal 1.2-inch format, not the fractional 1/2-inch format, and check its actual active dimensions against the lens coverage.
  • Choose magnification from the required object field and sensor dimensions. Check the model-specific working distance, depth of field and mounting drawing.
  • Evaluate distortion, telecentricity and resolution for the measurement task, and reserve room for the illumination geometry rather than selecting by format alone.

Configure a system · Browse all Telecentric lenses
