0.076x bi-telecentric lens, WD 300 mm, 2/3"
LS-TCL-1224
- Magnification 0.076x
- Mount C-mount
- Sensor 2/3"
$2,200.00
Ships in 3-4 weeks
Lenses
Bi-telecentric lenses
Choose a double-telecentric optical layoutCompare cataloged bi-telecentric, or double-telecentric, lenses for dimensional imaging. Narrow the choice by sensor coverage, magnification, working distance and the published optical tolerances.
Products

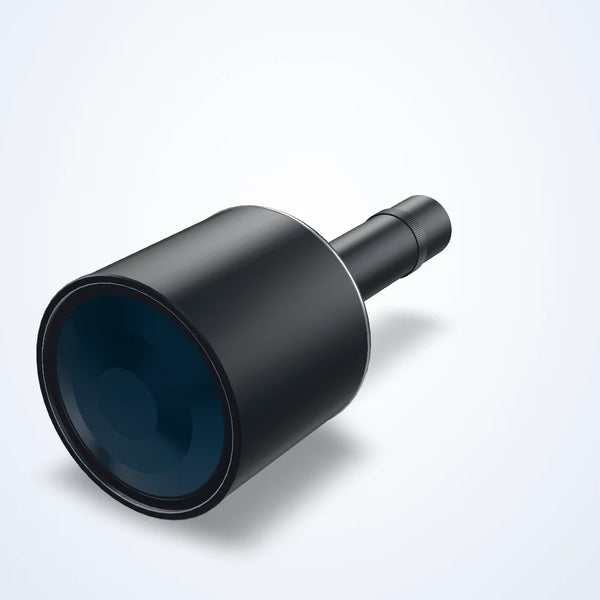

0.095x bi-telecentric lens, WD 273 mm, 2/3"
LS-TCL-1226
- Magnification 0.095x
- Mount C-mount
- Sensor 2/3"
$1,705.00
Ships in 3-4 weeks

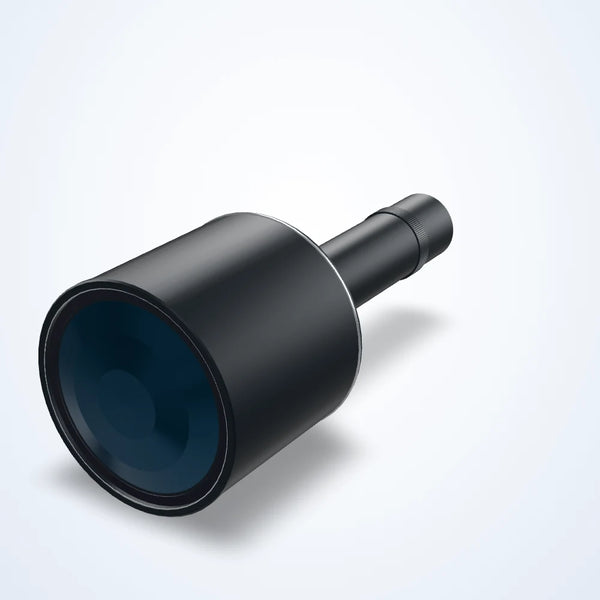

0.104x bi-telecentric lens, WD 263 mm, 2/3"
LS-TCL-1227
- Magnification 0.104x
- Mount C-mount
- Sensor 2/3"
$1,600.00
Ships in 3-4 weeks

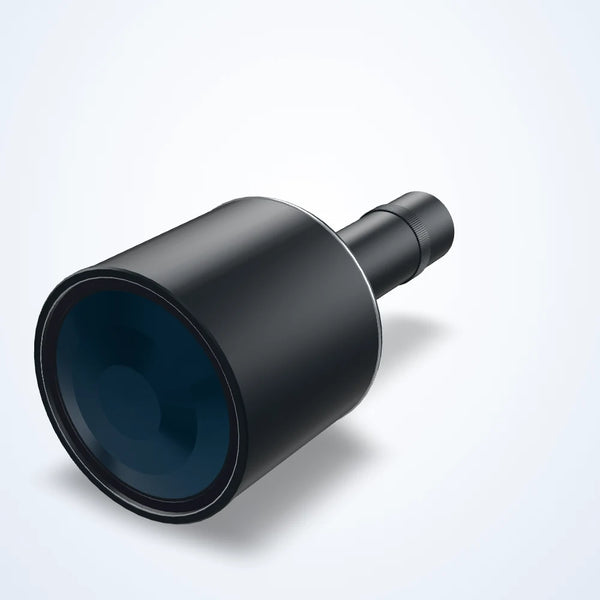

0.106x bi-telecentric lens, WD 258 mm, 2/3"
LS-TCL-1228
- Magnification 0.106x
- Mount C-mount
- Sensor 2/3"
$1,265.00
Ships in 3-4 weeks

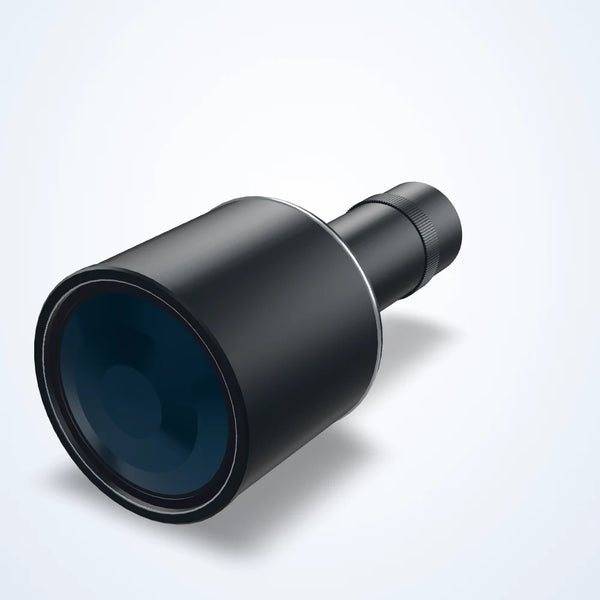

0.142x bi-telecentric lens, WD 228 mm, 2/3"
LS-TCL-1230
- Magnification 0.142x
- Mount C-mount
- Sensor 2/3"
$1,210.00
Ships in 3-4 weeks

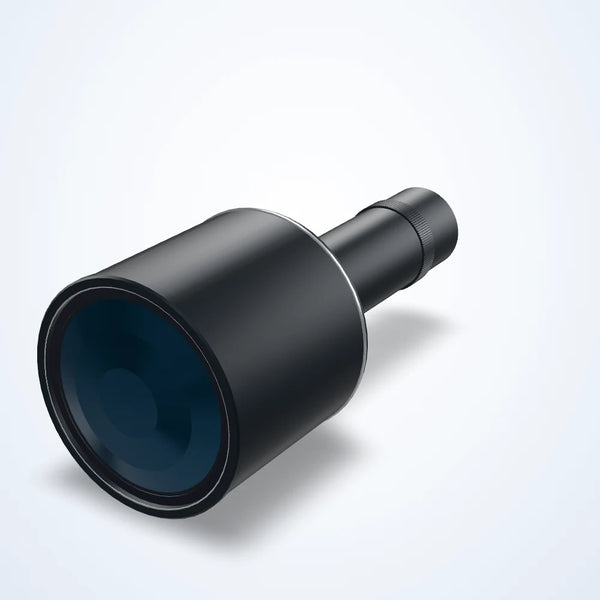

0.127x bi-telecentric lens, WD 208 mm, 2/3"
LS-TCL-1229
- Magnification 0.127x
- Mount C-mount
- Sensor 2/3"
$1,210.00
Ships in 3-4 weeks
0.158x bi-telecentric lens, WD 178 mm, 2/3"
LS-TCL-1231
- Magnification 0.158x
- Mount C-mount
- Sensor 2/3"
$1,045.00
Ships in 3-4 weeks

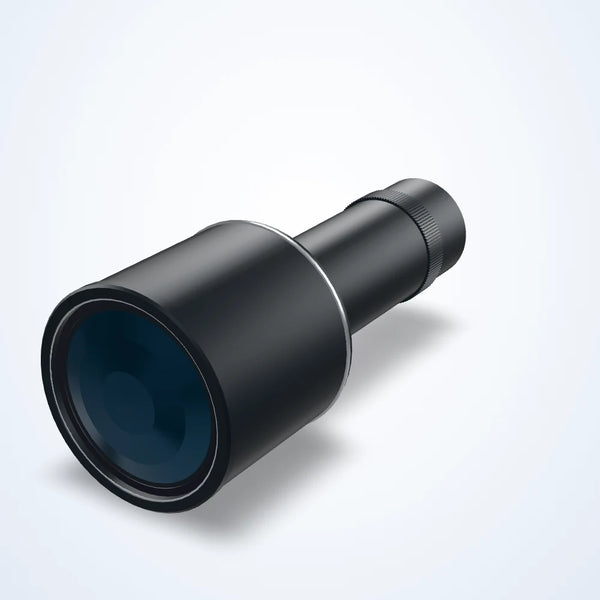

0.178x bi-telecentric lens, WD 158 mm, 2/3"
LS-TCL-1233
- Magnification 0.178x
- Mount C-mount
- Sensor 2/3"
$880.00
Ships in 3-4 weeks

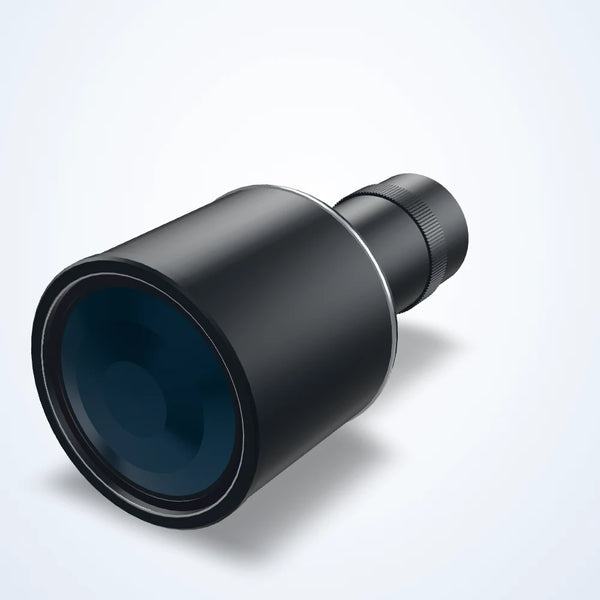

0.166x bi-telecentric lens, WD 173 mm, 2/3"
LS-TCL-1232
- Magnification 0.166X
- Mount C-mount
- Sensor 2/3"
$825.00
Ships in 3-4 weeks
0.5x bi-telecentric lens, WD 65 mm, 2/3", coaxial
LS-TCL-1260
- Magnification 0.5X
- Mount C-mount
- Sensor 2/3"
$780.00
Ships in 3-4 weeks

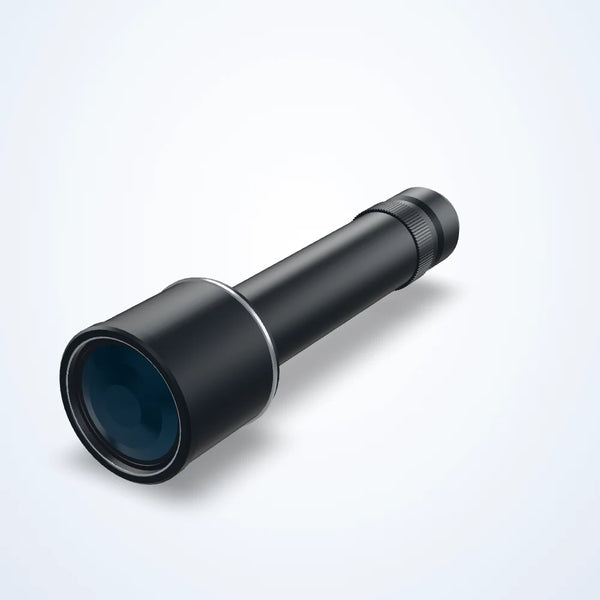

0.3x bi-telecentric lens, WD 220 mm, 2/3"
LS-TCL-1246
- Magnification 0.3x
- Mount C-mount
- Sensor 2/3"
$740.00
Ships in 3-4 weeks

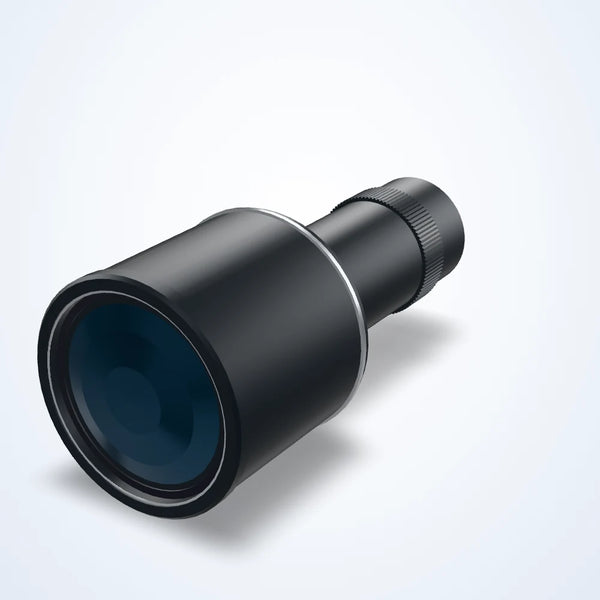

0.238x bi-telecentric lens, WD 138 mm, 2/3"
LS-TCL-1238
- Magnification 0.238x
- Mount C-mount
- Sensor 2/3"
$740.00
Ships in 3-4 weeks
0.238x bi-telecentric lens, WD 128 mm, 2/3"
LS-TCL-1237
- Magnification 0.238x
- Mount C-mount
- Sensor 2/3"
$740.00
Ships in 3-4 weeks

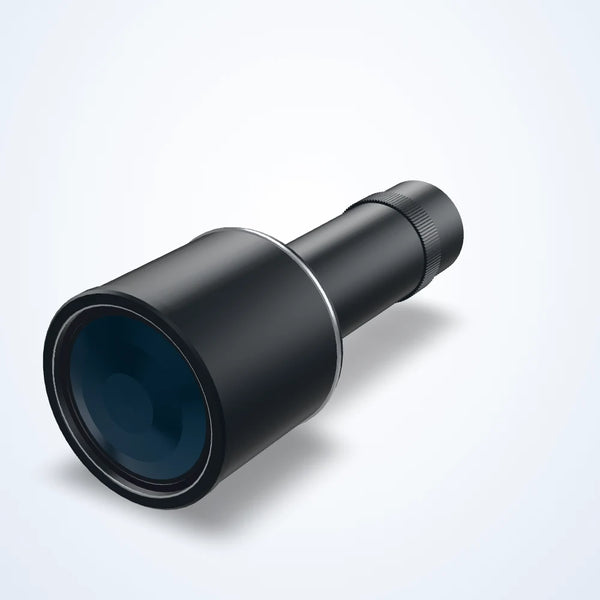

0.204x bi-telecentric lens, WD 138 mm, 2/3"
LS-TCL-1234
- Magnification 0.204x
- Mount C-mount
- Sensor 2/3"
$740.00
Ships in 3-4 weeks
0.5x bi-telecentric lens, WD 65 mm, 2/3"
LS-TCL-1259
- Magnification 0.5X
- Mount C-mount
- Sensor 2/3"
$725.00
Ships in 3-4 weeks
0.4x bi-telecentric lens, WD 85 mm, 2/3", coaxial
LS-TCL-1251
- Magnification 0.4X
- Mount C-mount
- Sensor 2/3"
$715.00
Ships in 3-4 weeks

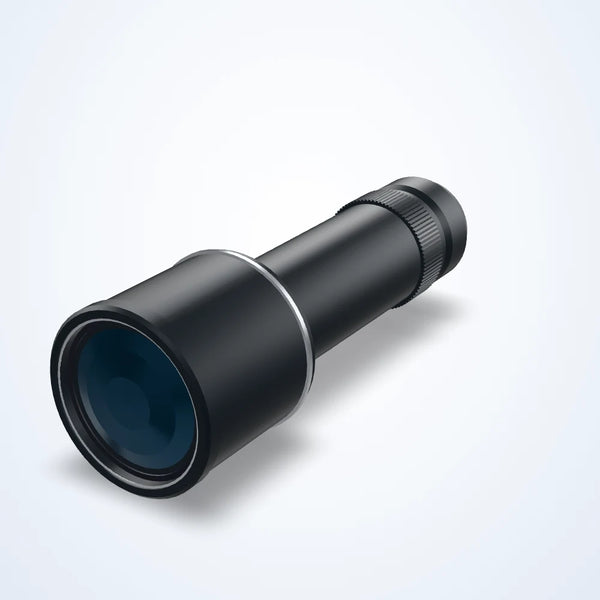

0.271x bi-telecentric lens, WD 118 mm, 2/3"
LS-TCL-1239
- Magnification 0.271x
- Mount C-mount
- Sensor 2/3"
$715.00
Ships in 3-4 weeks

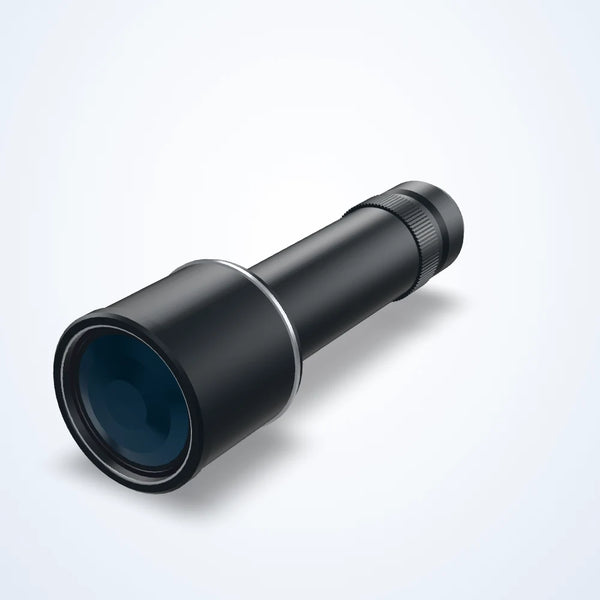

0.317x bi-telecentric lens, WD 110 mm, 2/3"
LS-TCL-1247
- Magnification 0.317x
- Mount C-mount
- Sensor 2/3"
$705.00
Ships in 3-4 weeks

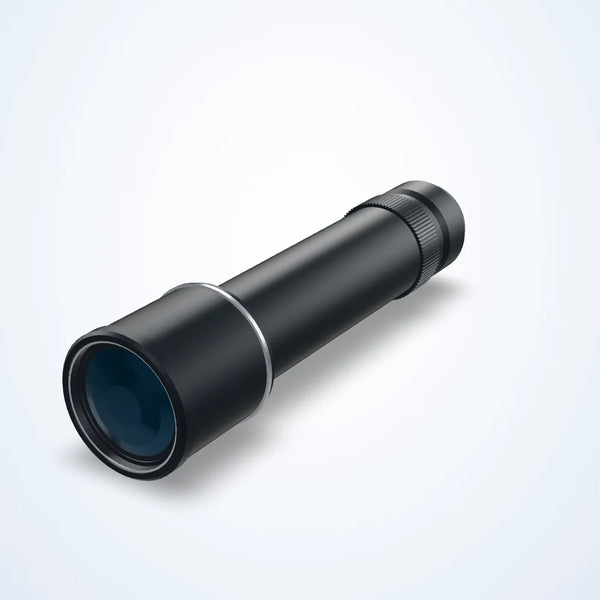

0.4x bi-telecentric lens, WD 85 mm, 2/3"
LS-TCL-1249
- Magnification 0.4x
- Mount C-mount
- Sensor 2/3"
$700.00
Ships in 3-4 weeks
0.438x bi-telecentric lens, WD 73 mm, 2/3"
LS-TCL-1253
- Magnification 0.438x
- Mount C-mount
- Sensor 2/3"
$660.00
Ships in 3-4 weeks

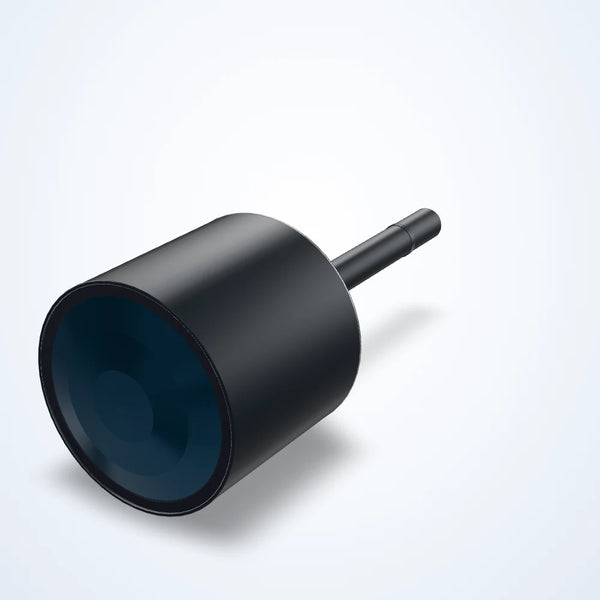

0.11x bi-telecentric lens, WD 465 mm, 2"
LS-TCL-1209
- Magnification 0.110x
- Mount M42, M58
- Sensor 2"
$8,855.00Quote
Ships in 3-4 weeks

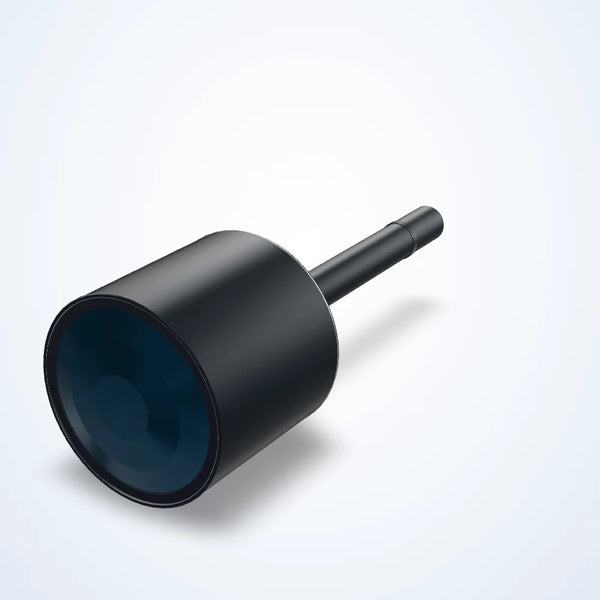

0.138x bi-telecentric lens, WD 410 mm, 2"
LS-TCL-1210
- Magnification 0.138x
- Mount M42, M58
- Sensor 2"
$7,315.00Quote
Ships in 3-4 weeks

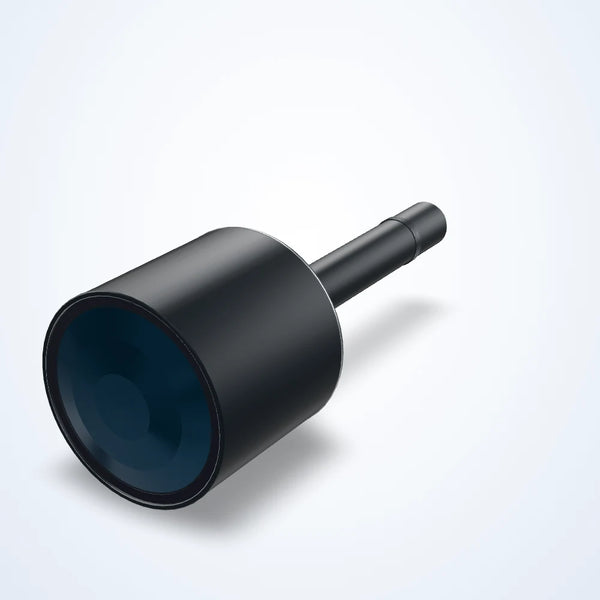

0.174x bi-telecentric lens, WD 330 mm, 2"
LS-TCL-1211
- Magnification 0.174x
- Mount M42, M58
- Sensor 2"
$4,280.00
Ships in 3-4 weeks

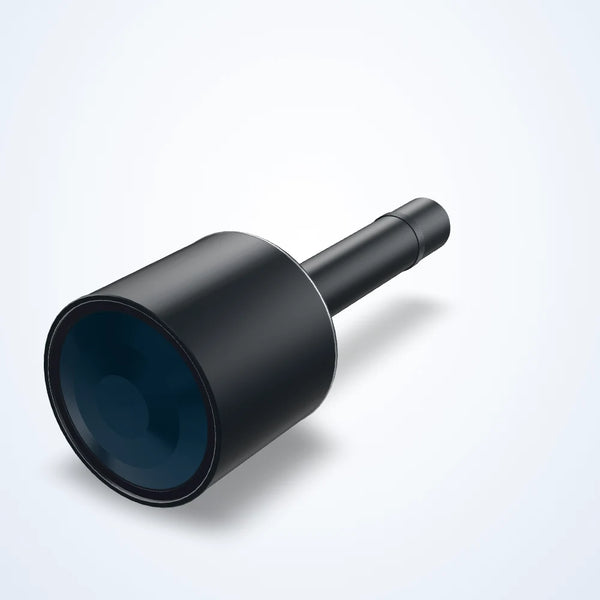

0.22x bi-telecentric lens, WD 300 mm, 2"
LS-TCL-1212
- Magnification 0.220x
- Mount M42, M58
- Sensor 2"
$3,850.00
Ships in 3-4 weeks
| Compare | |||||||||
|---|---|---|---|---|---|---|---|---|---|
 LS-TCL-12240.076x bi-telecentric lens, WD 300 mm, 2/3"
| 0.076x | C-mount | 2/3" | 300±5 mm | F4.9 | dia. 150 mm | $2,200.00 | Ships in 3-4 weeks | |
 LS-TCL-12260.095x bi-telecentric lens, WD 273 mm, 2/3"
| 0.095x | C-mount | 2/3" | 273±5 mm | F4.9 | dia. 120 mm | $1,705.00 | Ships in 3-4 weeks | |
 LS-TCL-12270.104x bi-telecentric lens, WD 263 mm, 2/3"
| 0.104x | C-mount | 2/3" | 263±4 mm | F4.9 | dia. 100 mm | $1,600.00 | Ships in 3-4 weeks | |
 LS-TCL-12280.106x bi-telecentric lens, WD 258 mm, 2/3"
| 0.106x | C-mount | 2/3" | 258±4 mm | F4.9 | dia. 100 mm | $1,265.00 | Ships in 3-4 weeks | |
 LS-TCL-12300.142x bi-telecentric lens, WD 228 mm, 2/3"
| 0.142x | C-mount | 2/3" | 228±4 mm | F4.9 | dia. 80 mm | $1,210.00 | Ships in 3-4 weeks | |
 LS-TCL-12290.127x bi-telecentric lens, WD 208 mm, 2/3"
| 0.127x | C-mount | 2/3" | 208±3 mm | F4.9 | dia. 90 mm | $1,210.00 | Ships in 3-4 weeks | |
 LS-TCL-12310.158x bi-telecentric lens, WD 178 mm, 2/3"
| 0.158x | C-mount | 2/3" | 178±3 mm | F4.9 | dia. 72 mm | $1,045.00 | Ships in 3-4 weeks | |
 LS-TCL-12330.178x bi-telecentric lens, WD 158 mm, 2/3"
| 0.178x | C-mount | 2/3" | 158±3 mm | F4.9 | dia. 64 mm | $880.00 | Ships in 3-4 weeks | |
 LS-TCL-12320.166x bi-telecentric lens, WD 173 mm, 2/3"
| 0.166X | C-mount | 2/3" | 173±3 mm | F3.3 | 66 Φmm | $825.00 | Ships in 3-4 weeks | |
 LS-TCL-12600.5x bi-telecentric lens, WD 65 mm, 2/3", coaxial
| 0.5X | C-mount | 2/3" | 65±1 mm | F5.0 | 22 Φmm | $780.00 | Ships in 3-4 weeks | |
 LS-TCL-12460.3x bi-telecentric lens, WD 220 mm, 2/3"
| 0.3x | C-mount | 2/3" | 220±3 mm | F13.6 | - | $740.00 | Ships in 3-4 weeks | |
 LS-TCL-12380.238x bi-telecentric lens, WD 138 mm, 2/3"
| 0.238x | C-mount | 2/3" | 138±3 mm | F6.7 | dia. 48 mm | $740.00 | Ships in 3-4 weeks | |
 LS-TCL-12370.238x bi-telecentric lens, WD 128 mm, 2/3"
| 0.238x | C-mount | 2/3" | 128±3 mm | F5.4 | dia. 48 mm | $740.00 | Ships in 3-4 weeks | |
 LS-TCL-12340.204x bi-telecentric lens, WD 138 mm, 2/3"
| 0.204x | C-mount | 2/3" | 138±3 mm | F4.9 | dia. 56 mm | $740.00 | Ships in 3-4 weeks | |
|
LS-TCL-12590.5x bi-telecentric lens, WD 65 mm, 2/3"
| 0.5X | C-mount | 2/3" | 65±1 mm | F5.0 | 22 Φmm | $725.00 | Ships in 3-4 weeks | |
 LS-TCL-12510.4x bi-telecentric lens, WD 85 mm, 2/3", coaxial
| 0.4X | C-mount | 2/3" | 85±2 mm | F4.5 | 27.5 Φmm | $715.00 | Ships in 3-4 weeks | |
 LS-TCL-12390.271x bi-telecentric lens, WD 118 mm, 2/3"
| 0.271x | C-mount | 2/3" | 118±3 mm | F4.9 | dia. 42 mm | $715.00 | Ships in 3-4 weeks | |
 LS-TCL-12470.317x bi-telecentric lens, WD 110 mm, 2/3"
| 0.317x | C-mount | 2/3" | 110±2 mm | F5.4 | dia. 36 mm | $705.00 | Ships in 3-4 weeks | |
 LS-TCL-12490.4x bi-telecentric lens, WD 85 mm, 2/3"
| 0.4x | C-mount | 2/3" | 85±2 mm | F4.5 | 27.5 Φmm | $700.00 | Ships in 3-4 weeks | |
 LS-TCL-12530.438x bi-telecentric lens, WD 73 mm, 2/3"
| 0.438x | C-mount | 2/3" | 73±1 mm | F6.0 | dia. 26 mm | $660.00 | Ships in 3-4 weeks | |
 LS-TCL-12090.11x bi-telecentric lens, WD 465 mm, 2"
| 0.110x | M42, M58 | 2" | 465±6 mm | F7.8 | dia. 300 mm | $8,855.00Quote | Ships in 3-4 weeks | |
 LS-TCL-12100.138x bi-telecentric lens, WD 410 mm, 2"
| 0.138x | M42, M58 | 2" | 410±6 mm | F7.8 | dia. 240 mm | $7,315.00Quote | Ships in 3-4 weeks | |
 LS-TCL-12110.174x bi-telecentric lens, WD 330 mm, 2"
| 0.174x | M42, M58 | 2" | 330±5 mm | F7.8 | dia. 190 mm | $4,280.00 | Ships in 3-4 weeks | |
 LS-TCL-12120.22x bi-telecentric lens, WD 300 mm, 2"
| 0.220x | M42, M58 | 2" | 300±5 mm | F11.1 | dia. 150 mm | $3,850.00 | Ships in 3-4 weeks |
Choose a double-telecentric optical layout
Bi-telecentric optics are telecentric on both the object and image sides. The design class differs from object-side-only optics. Use the model data to establish the usable field and measurement conditions; the design label does not set one universal accuracy or depth-of-field value.
- Match magnification and sensor dimensions to the required object field, then check the image-circle rating and mount for the actual camera.
- Compare the published working distance, distortion and telecentricity for the intended object position and aperture. Keep model-specific values separate from general design principles.
- Check the lens outline and illumination clearance before fixing the station geometry. A suitable sensor format alone does not establish mechanical fit or measurement capability.
