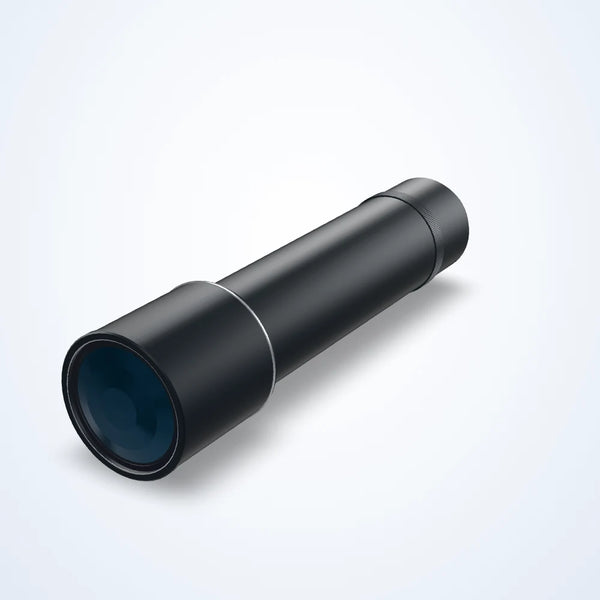

0.606x bi-telecentric lens, WD 178 mm
LS-TCL-0925
- Magnification 0.606x
- Mount M58
- Sensor Full frame
$3,160.00
Ships in 3-4 weeks
Lenses
Bi-telecentric lenses
Choose a double-telecentric optical layoutCompare cataloged bi-telecentric, or double-telecentric, lenses for dimensional imaging. Narrow the choice by sensor coverage, magnification, working distance and the published optical tolerances.
Products

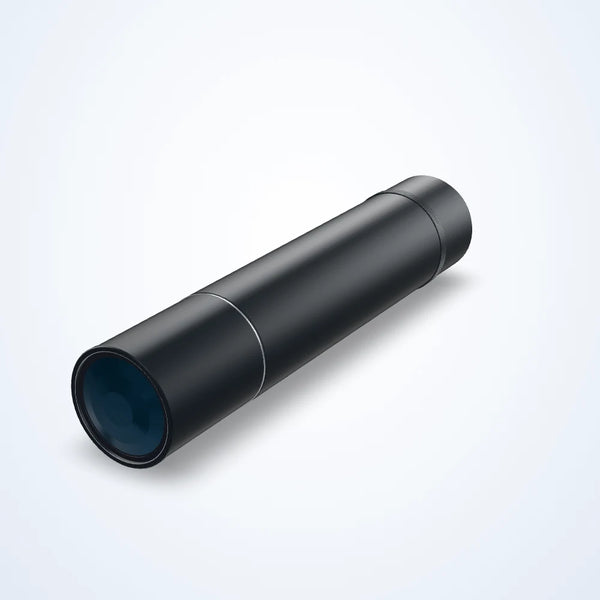

1x bi-telecentric lens, WD 162 mm, M90
LS-TCL-0967
- Magnification 1.000x
- Mount M90
- Sensor Large format
$3,080.00
Ships in 3-4 weeks
1.11x bi-telecentric lens, WD 150 mm, M90
LS-TCL-0972
- Magnification 1.110x
- Mount M90
- Sensor Large format
$3,025.00
Ships in 3-4 weeks

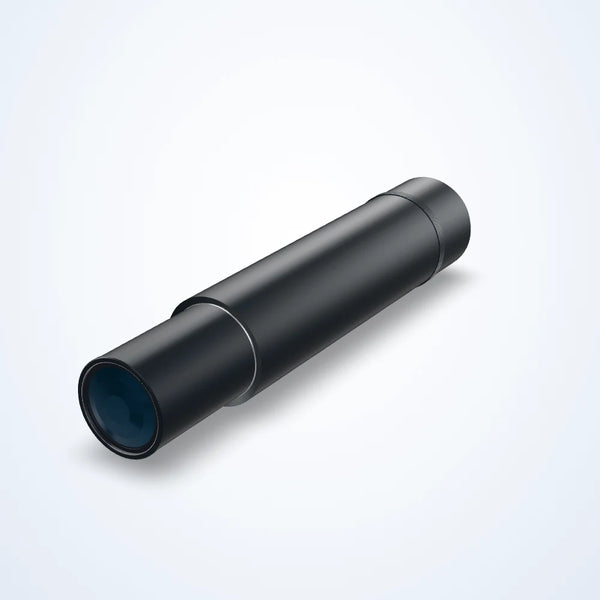

1.173x bi-telecentric lens, WD 152 mm, M90
LS-TCL-0973
- Magnification 1.173x
- Mount M90
- Sensor Large format
$3,000.00
Ships in 3-4 weeks

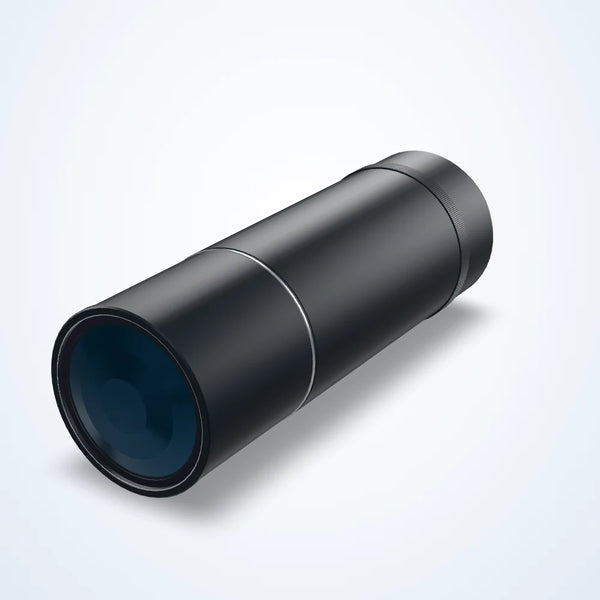

1x bi-telecentric lens, WD 102 mm
LS-TCL-0964
- Magnification 1.000x
- Mount M72
- Sensor Large format
$3,000.00
Ships in 3-4 weeks

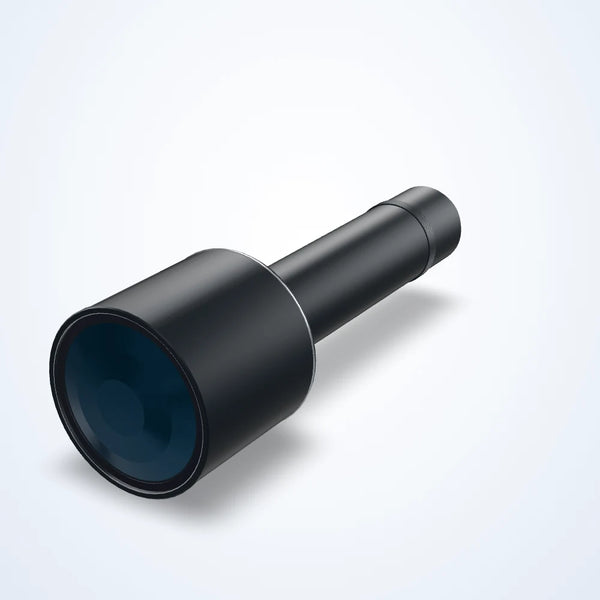

0.325x bi-telecentric lens, WD 273 mm
LS-TCL-0895
- Magnification 0.325x
- Mount M42, M58
- Sensor APS-H
$3,000.00
Ships in 3-4 weeks

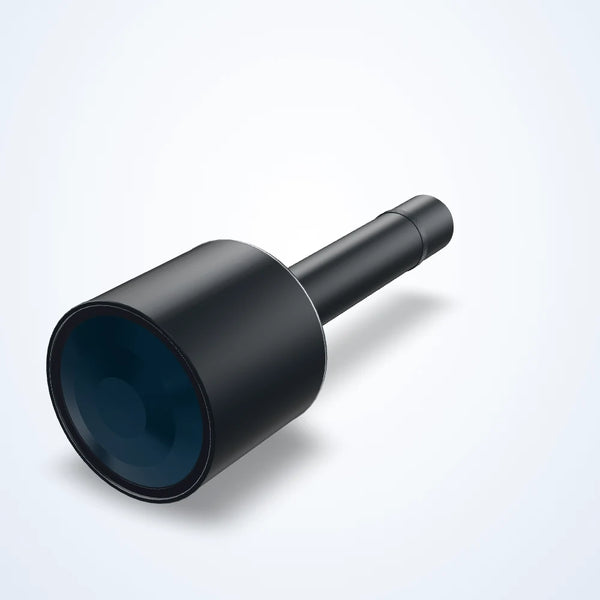

0.256x bi-telecentric lens, WD 318 mm
LS-TCL-0876
- Magnification 0.256x
- Mount M58
- Sensor Full frame
$3,000.00
Ships in 3-4 weeks
1.419x bi-telecentric lens, WD 123 mm, M90
LS-TCL-0974
- Magnification 1.419x
- Mount M90
- Sensor Large format
$2,860.00
Ships in 3-4 weeks
0.853x bi-telecentric lens, WD 125 mm
LS-TCL-0953
- Magnification 0.853x
- Mount M72
- Sensor Large format
$2,800.00
Ships in 3-4 weeks

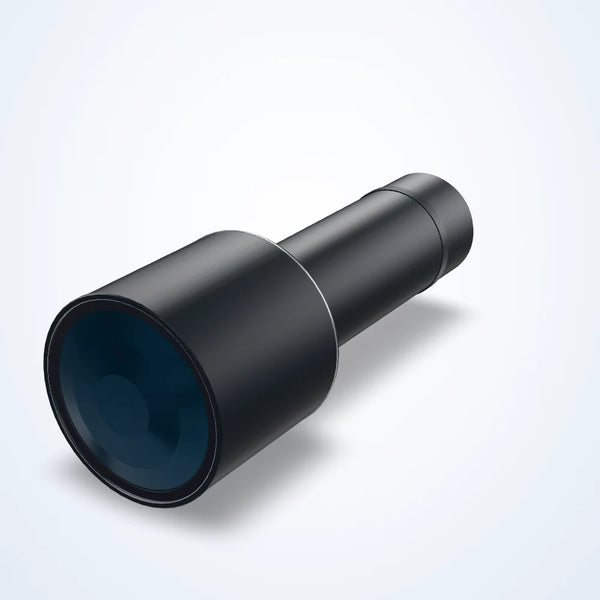

0.59x bi-telecentric lens, WD 238 mm
LS-TCL-0924
- Magnification 0.59x
- Mount M72
- Sensor Large format
$2,800.00
Ships in 3-4 weeks
0.321x bi-telecentric lens, WD 288 mm
LS-TCL-0894
- Magnification 0.321x
- Mount M58
- Sensor Full frame
$2,785.00
Ships in 3-4 weeks

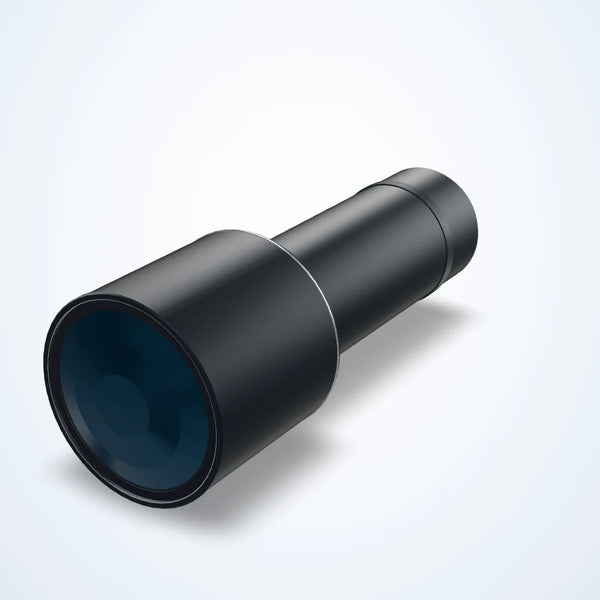

0.656x bi-telecentric lens, WD 208 mm
LS-TCL-0927
- Magnification 0.656x
- Mount M72
- Sensor Large format
$2,750.00
Ships in 3-4 weeks
0.536x bi-telecentric lens, WD 263 mm
LS-TCL-0921
- Magnification 0.536x
- Mount M72
- Sensor Large format
$2,695.00
Ships in 3-4 weeks
0.738x bi-telecentric lens, WD 228 mm
LS-TCL-0935
- Magnification 0.738x
- Mount M72
- Sensor Large format
$2,585.00
Ships in 3-4 weeks
0.434x bi-telecentric lens, WD 300 mm
LS-TCL-0908
- Magnification 0.434x
- Sensor Large format
- Working distance 300±5 mm
$2,500.00
Ships in 3-4 weeks

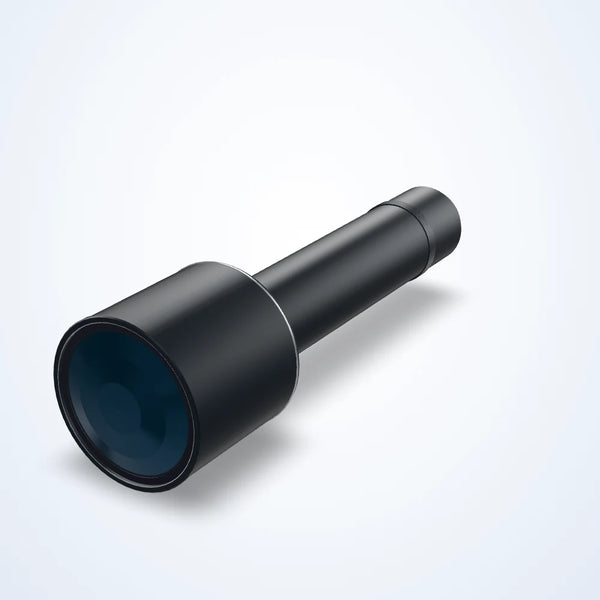

0.396x bi-telecentric lens, WD 263 mm
LS-TCL-0903
- Magnification 0.396x
- Mount M58
- Sensor Full frame
$2,140.00
Ships in 3-4 weeks

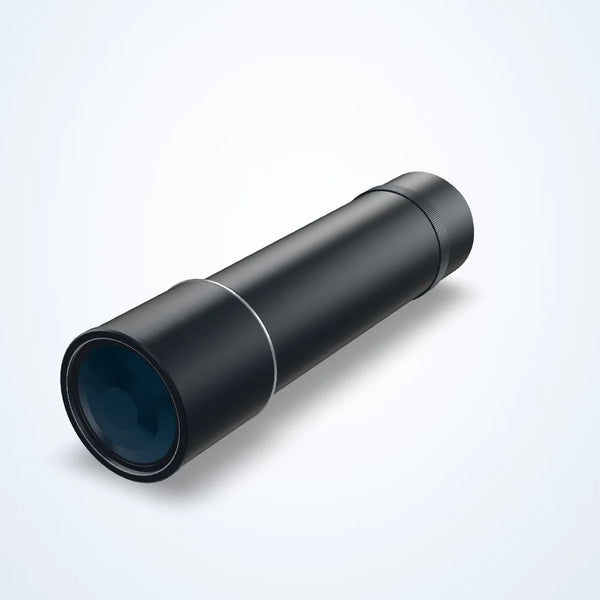

0.609x bi-telecentric lens, WD 158 mm
LS-TCL-0926
- Magnification 0.609x
- Mount M42, M58
- Sensor APS-H
$2,090.00
Ships in 3-4 weeks
0.696x bi-telecentric lens, WD 128 mm
LS-TCL-0929
- Magnification 0.696x
- Mount F-mount
- Sensor APS-H
$1,980.00
Ships in 3-4 weeks
0.929x bi-telecentric lens, WD 118 mm
LS-TCL-0956
- Magnification 0.929x
- Mount F-mount
- Sensor APS-H
$1,925.00
Ships in 3-4 weeks
0.813x bi-telecentric lens, WD 128 mm, F15.3
LS-TCL-0951
- Magnification 0.813x
- Mount F-mount
- Sensor APS-H
$1,925.00
Ships in 3-4 weeks
0.813x bi-telecentric lens, WD 128 mm, F22.9
LS-TCL-0952
- Magnification 0.813x
- Mount F-mount
- Sensor APS-H
$1,870.00
Ships in 3-4 weeks

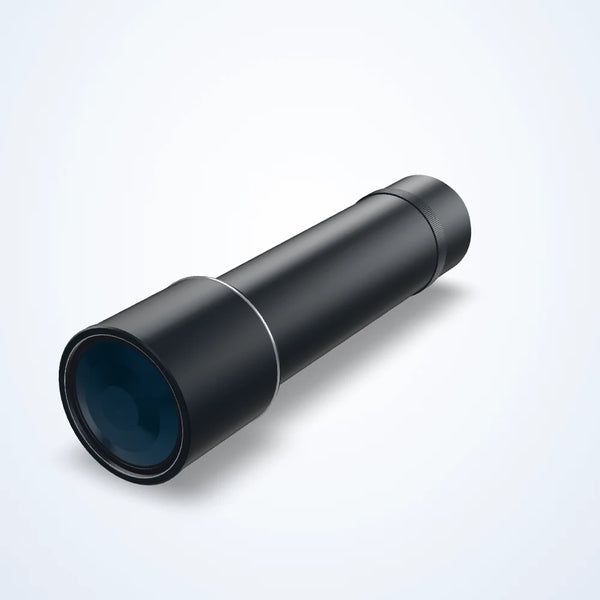

0.542x bi-telecentric lens, WD 178 mm
LS-TCL-0922
- Magnification 0.542x
- Mount F-mount
- Sensor APS-H
$1,870.00
Ships in 3-4 weeks
0.488x bi-telecentric lens, WD 228 mm
LS-TCL-0911
- Magnification 0.488x
- Mount F-mount
- Sensor APS-H
$1,870.00
Ships in 3-4 weeks
0.433x bi-telecentric lens, WD 208 mm
LS-TCL-0907
- Magnification 0.433x
- Mount F-mount
- Sensor APS-H
$1,870.00
Ships in 3-4 weeks
| Compare | |||||||||
|---|---|---|---|---|---|---|---|---|---|
 LS-TCL-09250.606x bi-telecentric lens, WD 178 mm
| 0.606x | M58 | Full frame | 178±3 mm | F12.8 | dia. 72 mm | $3,160.00 | Ships in 3-4 weeks | |
 LS-TCL-09671x bi-telecentric lens, WD 162 mm, M90
| 1.000x | M90 | Large format | 162±3 mm | F7.0 | dia. 88 mm | $3,080.00 | Ships in 3-4 weeks | |
 LS-TCL-09721.11x bi-telecentric lens, WD 150 mm, M90
| 1.110x | M90 | Large format | 150±3 mm | F7.0 | dia. 79.2 mm | $3,025.00 | Ships in 3-4 weeks | |
 LS-TCL-09731.173x bi-telecentric lens, WD 152 mm, M90
| 1.173x | M90 | Large format | 152±3 mm | F7.0 | dia. 75 mm | $3,000.00 | Ships in 3-4 weeks | |
 LS-TCL-09641x bi-telecentric lens, WD 102 mm
| 1.000x | M72 | Large format | 102±2 mm | F7.0 | dia. 62 mm | $3,000.00 | Ships in 3-4 weeks | |
 LS-TCL-08950.325x bi-telecentric lens, WD 273 mm
| 0.325x | M42, M58 | APS-H | 273±5 mm | F7.6 | - | $3,000.00 | Ships in 3-4 weeks | |
 LS-TCL-08760.256x bi-telecentric lens, WD 318 mm
| 0.256x | M58 | Full frame | 318±5 mm | F6.0 | dia. 170 mm | $3,000.00 | Ships in 3-4 weeks | |
 LS-TCL-09741.419x bi-telecentric lens, WD 123 mm, M90
| 1.419x | M90 | Large format | 123±3 mm | F7.0 | dia. 62 mm | $2,860.00 | Ships in 3-4 weeks | |
 LS-TCL-09530.853x bi-telecentric lens, WD 125 mm
| 0.853x | M72 | Large format | 125±3 mm | F6.0 | dia. 72.7 mm | $2,800.00 | Ships in 3-4 weeks | |
 LS-TCL-09240.59x bi-telecentric lens, WD 238 mm
| 0.59x | M72 | Large format | 238±3 mm | F13.9 | dia. 100 mm | $2,800.00 | Ships in 3-4 weeks | |
 LS-TCL-08940.321x bi-telecentric lens, WD 288 mm
| 0.321x | M58 | Full frame | 288±5 mm | - | dia. 136 mm | $2,785.00 | Ships in 3-4 weeks | |
 LS-TCL-09270.656x bi-telecentric lens, WD 208 mm
| 0.656x | M72 | Large format | 208±3 mm | F15.4 | dia. 90 mm | $2,750.00 | Ships in 3-4 weeks | |
 LS-TCL-09210.536x bi-telecentric lens, WD 263 mm
| 0.536x | M72 | Large format | 263±4 mm | F12.6 | dia. 110 mm | $2,695.00 | Ships in 3-4 weeks | |
 LS-TCL-09350.738x bi-telecentric lens, WD 228 mm
| 0.738x | M72 | Large format | 228±4 mm | F9.9 | dia. 80 mm | $2,585.00 | Ships in 3-4 weeks | |
 LS-TCL-09080.434x bi-telecentric lens, WD 300 mm
| 0.434x | - | Large format | 300±5 mm | - | dia. 136 mm | $2,500.00 | Ships in 3-4 weeks | |
 LS-TCL-09030.396x bi-telecentric lens, WD 263 mm
| 0.396x | M58 | Full frame | 263±4 mm | F9.3 | dia. 110 mm | $2,140.00 | Ships in 3-4 weeks | |
 LS-TCL-09260.609x bi-telecentric lens, WD 158 mm
| 0.609x | M42, M58 | APS-H | 158±3 mm | F11.5 | - | $2,090.00 | Ships in 3-4 weeks | |
 LS-TCL-09290.696x bi-telecentric lens, WD 128 mm
| 0.696x | F-mount | APS-H | 128±3 mm | F13.1 | - | $1,980.00 | Ships in 3-4 weeks | |
 LS-TCL-09560.929x bi-telecentric lens, WD 118 mm
| 0.929x | F-mount | APS-H | 118±3 mm | F15.3 | - | $1,925.00 | Ships in 3-4 weeks | |
 LS-TCL-09510.813x bi-telecentric lens, WD 128 mm, F15.3
| 0.813x | F-mount | APS-H | 128±3 mm | F15.3 | - | $1,925.00 | Ships in 3-4 weeks | |
 LS-TCL-09520.813x bi-telecentric lens, WD 128 mm, F22.9
| 0.813x | F-mount | APS-H | 128±3 mm | F22.9 | - | $1,870.00 | Ships in 3-4 weeks | |
 LS-TCL-09220.542x bi-telecentric lens, WD 178 mm
| 0.542x | F-mount | APS-H | 178±3 mm | F11.5 | - | $1,870.00 | Ships in 3-4 weeks | |
 LS-TCL-09110.488x bi-telecentric lens, WD 228 mm
| 0.488x | F-mount | APS-H | 228±4 mm | F6.6 | - | $1,870.00 | Ships in 3-4 weeks | |
 LS-TCL-09070.433x bi-telecentric lens, WD 208 mm
| 0.433x | F-mount | APS-H | 208±3 mm | F10.2 | - | $1,870.00 | Ships in 3-4 weeks |
Choose a double-telecentric optical layout
Bi-telecentric optics are telecentric on both the object and image sides. The design class differs from object-side-only optics. Use the model data to establish the usable field and measurement conditions; the design label does not set one universal accuracy or depth-of-field value.
- Match magnification and sensor dimensions to the required object field, then check the image-circle rating and mount for the actual camera.
- Compare the published working distance, distortion and telecentricity for the intended object position and aperture. Keep model-specific values separate from general design principles.
- Check the lens outline and illumination clearance before fixing the station geometry. A suitable sensor format alone does not establish mechanical fit or measurement capability.
