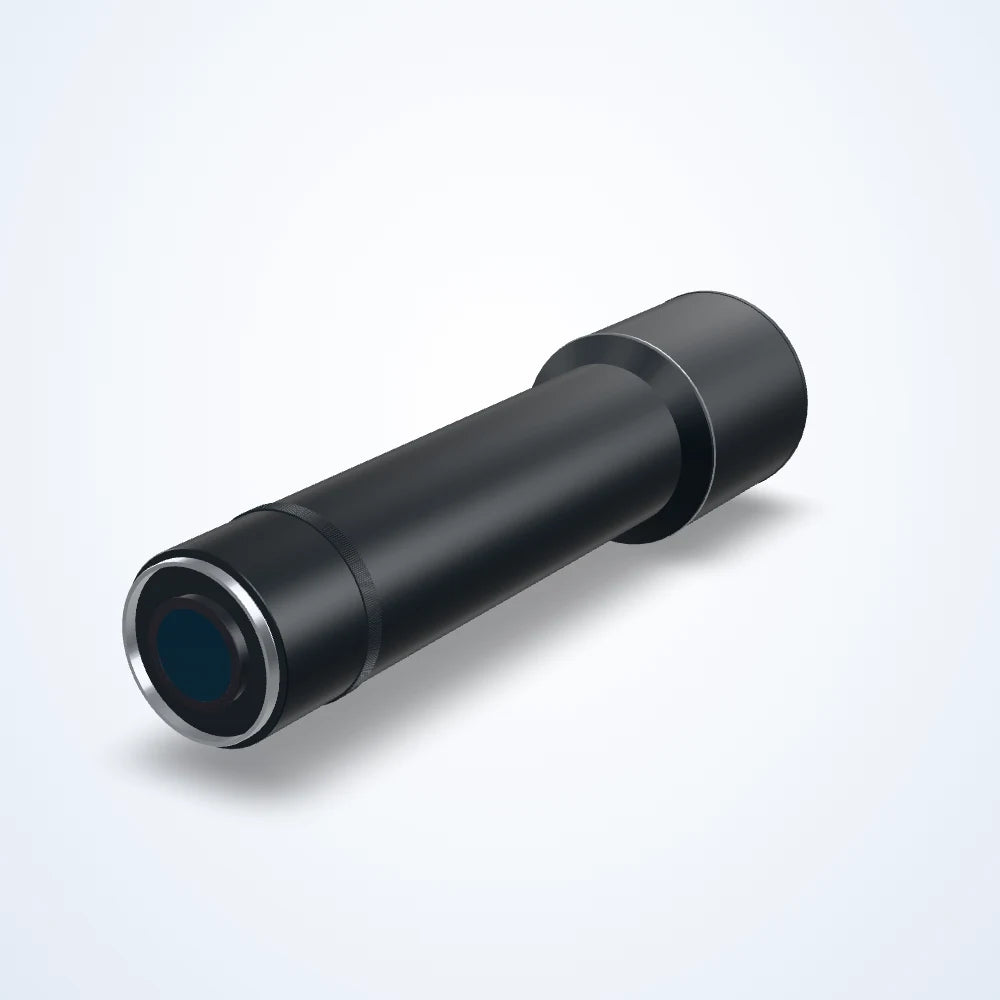

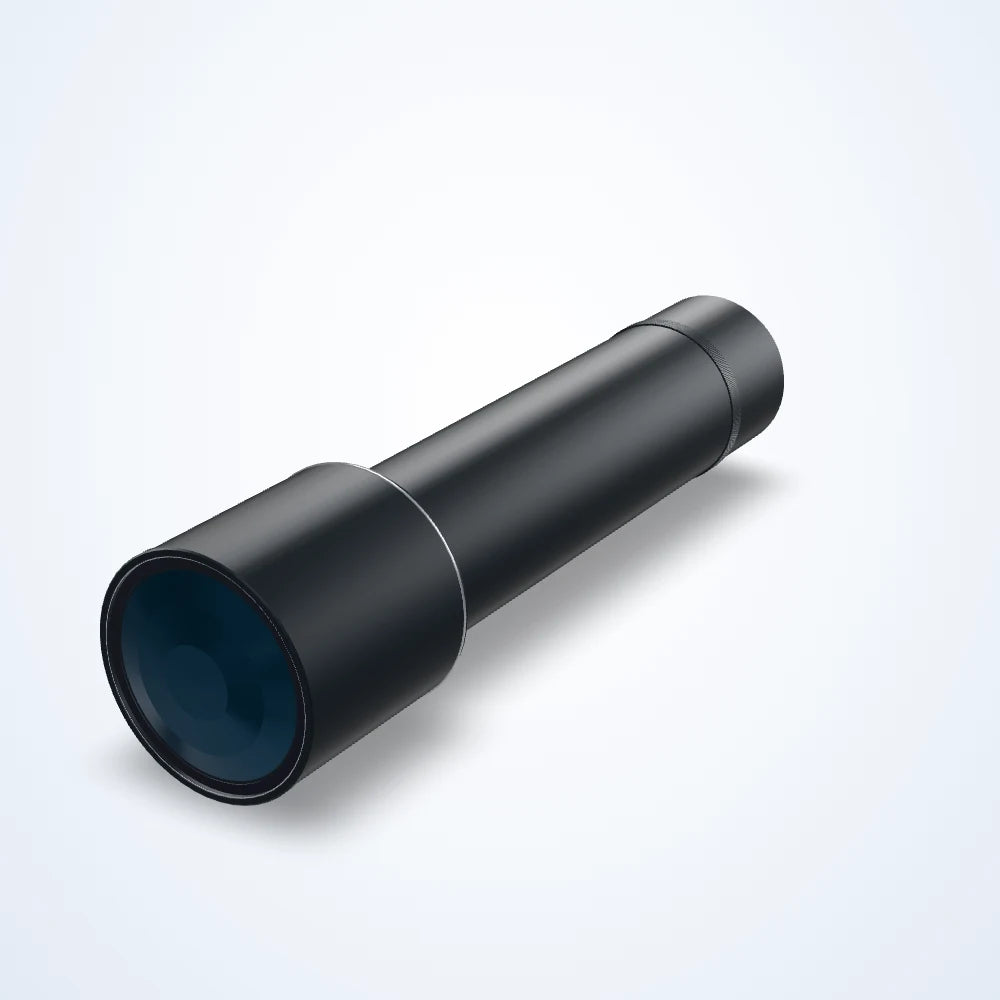

Telecentric lens (series view)
  • Telecentric lens (series view)
  • Telecentric lens (series view)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

1x bi-telecentric lens, WD 102 mm (LS-TCL-0964)

Model LS-TCL-0964

  • Magnification1.000x
  • MountM72
  • SensorLarge format
  • Working distance102±2 mm
  • ApertureF7.0
  • Field of viewdia. 62 mm
$3,000.00

Ships in 3-4 weeks

4.0 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

1x bi-telecentric lens, WD 102 mm (LS-TCL-0964)LS-TCL-0964

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

1x bi-telecentric lens for non-contact measurement and gauging. Magnification 1x; working distance 102 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0964

Optics

Working distance102±2 mm
Field of viewdia. 62 mm
Magnification1.000x
ApertureF7.0
MTF>95lp/mm
Depth of field±0.3@F7.0
Distortion<0.1%
Telecentricity<0.62°
Object-to-image distance400±2 mm

Sensor and imaging

Sensor format62 Φmm

Environment and compliance

Operating temperature-10 - 50°C(Operating), -20 - 60°C(Storage)

Mechanical

MountM72
Length285.9 mm
Weight3.1 Kg
