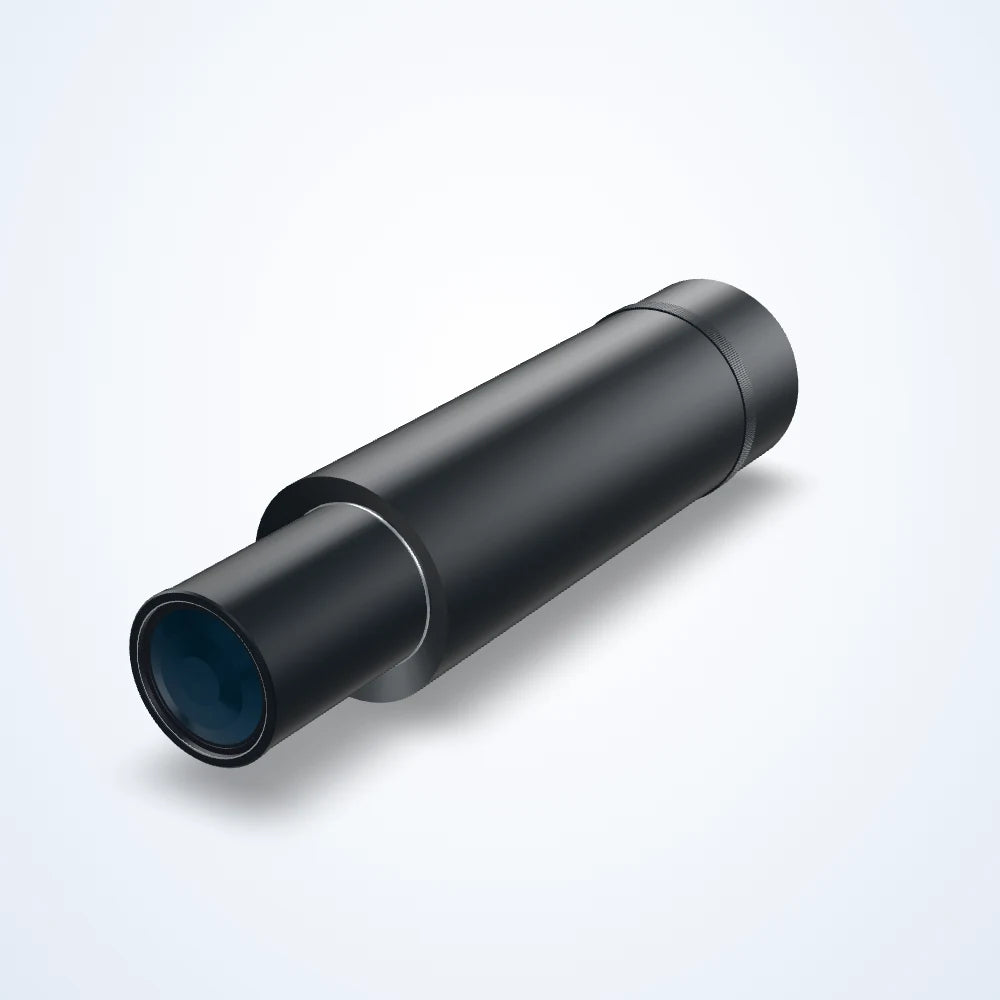

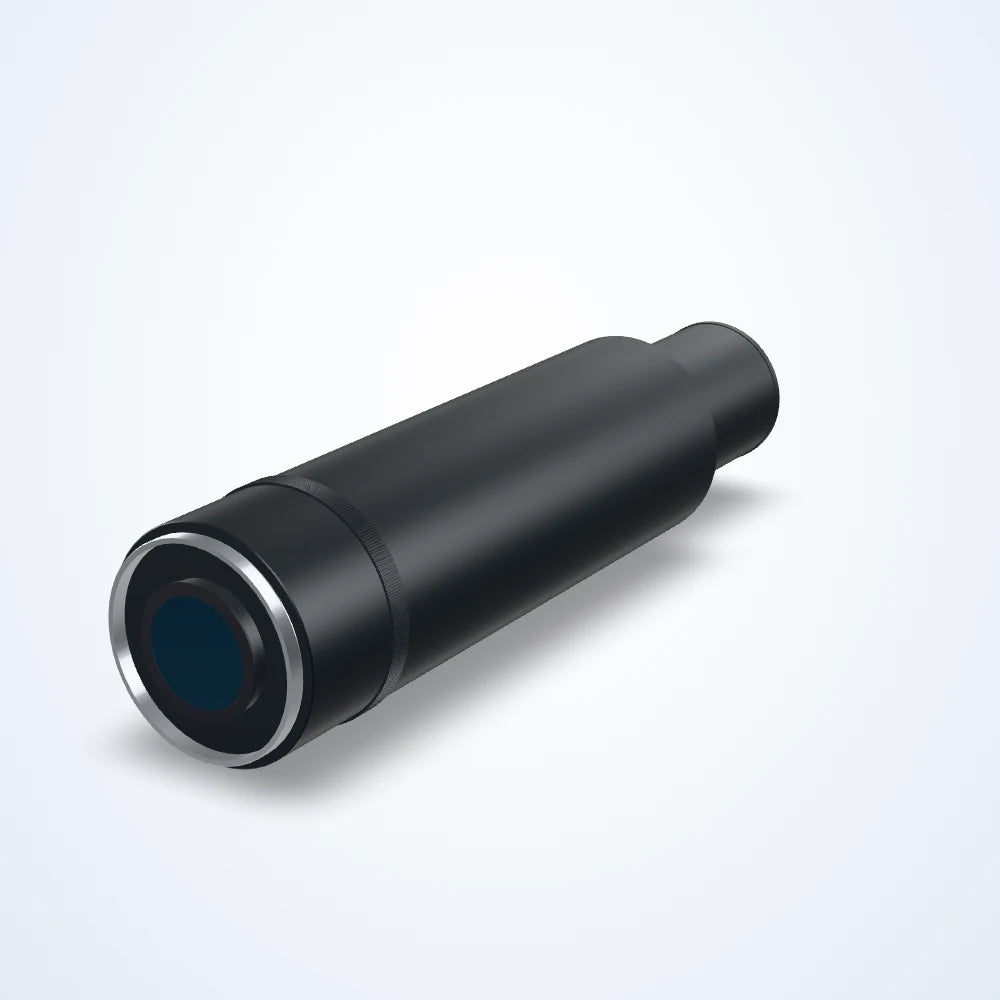

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
1x bi-telecentric lens, WD 162 mm, M90 (LS-TCL-0967)
Model LS-TCL-0967
- Magnification1.000x
- MountM90
- SensorLarge format
- Working distance162±3 mm
- ApertureF7.0
- Field of viewdia. 88 mm
$3,080.00
Ships in 3-4 weeks
6.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
1x bi-telecentric lens for non-contact measurement and gauging. Magnification 1x; working distance 162 mm; M90 mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0967 |
|---|---|
| KAI-47051 (48.7x29.0) | 45.3x38.3 |
| Linescan-12K 5 μm (81.9 mm) | 57.7 |
| Linescan-16K 3.5/3.53 μm(86.0 mm) | 60.6 |
Optics
| Working distance | 162±3 mm |
|---|---|
| Field of view | dia. 88 mm |
| Magnification | 1.000x |
| Aperture | F7.0 |
| MTF | >115lp/mm |
| Depth of field | ±0.1@F7.0 |
| Distortion | <0.1% |
| Telecentricity | <0.1° |
| Object-to-image distance | 601±3 mm |
| Variable Iris | No |
| Coaxial illumination port | No |
Sensor and imaging
| Sensor format | 88 mm |
|---|
Environment and compliance
| Operating temperature | -10 - 50°C(Operating), -20 - 60°C(Storage) |
|---|
Mechanical
| Mount | M90 |
|---|---|
| Length | 466.3 mm |
| Weight | 5.5 Kg |
