Lenses

Bi-telecentric lenses

Choose a double-telecentric optical layout

Compare cataloged bi-telecentric, or double-telecentric, lenses for dimensional imaging. Narrow the choice by sensor coverage, magnification, working distance and the published optical tolerances.

All Telecentric lenses

1422 models Configure a systemAll lenses
Bi-telecentric lenses

265-288 of 1422 models

Products

Compare

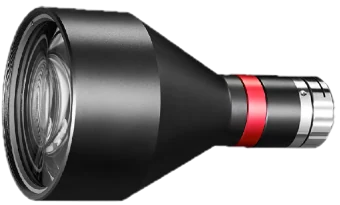

LS-TCL-0709Bi-telecentric lens, 0.178x, 158 mm WD, 2/3" 0.178xC-mount2/3"158 mmF4.9$1,649.00 Ships in 2-3 weeks

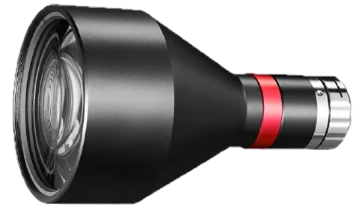

LS-TCL-0710Bi-telecentric lens, 0.204x, 138 mm WD, 2/3" 0.204xC-mount2/3"138 mmF4.9$1,409.00 Ships in 2-3 weeks

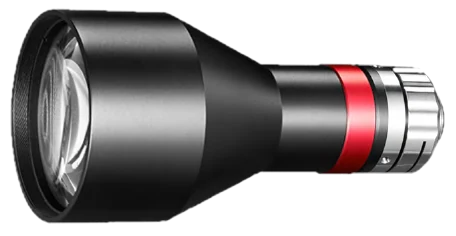

LS-TCL-0711Bi-telecentric lens, 0.238x, 128 mm WD, 2/3" 0.238xC-mount2/3"128 mmF5.4$1,379.00 Ships in 2-3 weeks
LS-TCL-0712Bi-telecentric lens, 0.271x, 118 mm WD, 2/3" 0.271xC-mount2/3"118 mmF4.9$1,279.00 Ships in 2-3 weeks

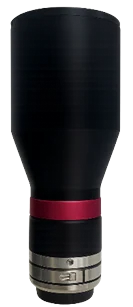

LS-TCL-0713Bi-telecentric lens, 0.317x, 110 mm WD, 2/3" 0.317xC-mount2/3"110 mmF5.4$1,039.00 Ships in 2-3 weeks

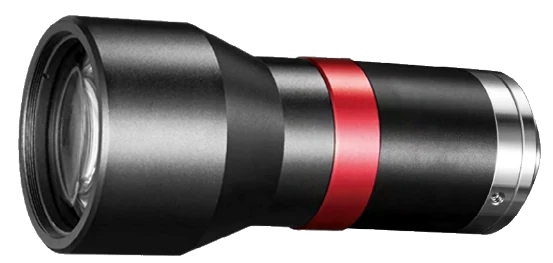

LS-TCL-0714Bi-telecentric lens, 0.438x, 73 mm WD, 2/3" 0.438xC-mount2/3"73 mmF6$1,029.00 Ships in 2-3 weeks
LS-TCL-0706Bi-telecentric lens, 0.500x, 65 mm WD, 2/3" 0.500xC-mount2/3"65 mmF5$929.00 Ships in 2-3 weeks

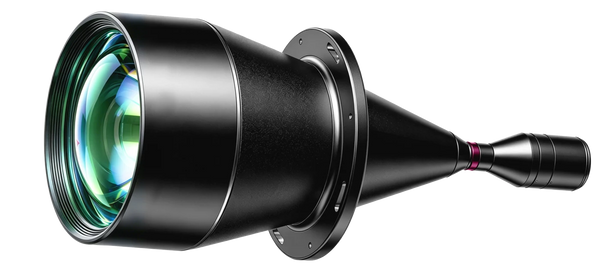

LS-TCL-0696Bi-telecentric lens, 0.163x, 410 mm WD, size 657.7 mm × Φ286 mm 0.163xM58APS-H410 mmF7.5$4,669.00Quote Ships in 2-3 weeks

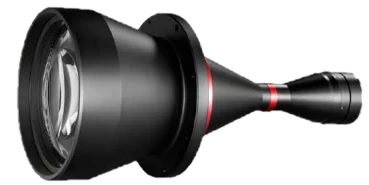

LS-TCL-0695Bi-telecentric lens, 0.163x, 410 mm WD, size 623.2 mm × Φ286 mm 0.163xF-mountAPS-H410 mmF7.5$4,669.00Quote Ships in 2-3 weeks
LS-TCL-0698Bi-telecentric lens, 0.205x, 330 mm WD 0.205xF-mountAPS-H330 mmF6.5$3,819.00Quote Ships in 2-3 weeks

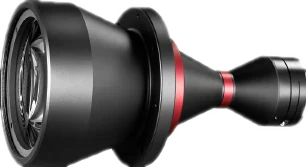

LS-TCL-0694Bi-telecentric lens, 0.39x, 238 mm WD 0.39xF-mountAPS-H238 mmF9.2$2,439.00Quote Ships in 2-3 weeks

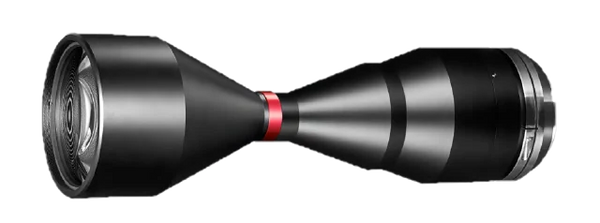

LS-TCL-0702Bi-telecentric lens, 0.738x, 228 mm WD 0.738xM58Large format228 mmF9.9$1,929.00 Ships in 2-3 weeks
LS-TCL-0700Bi-telecentric lens, 0.497x, 288 mm WD 0.497xM72Large format288 mmF12.2$1,929.00 Ships in 2-3 weeks
LS-TCL-0691Bi-telecentric lens, 1x, 162 mm WD, object-side resolution 5.368-14.762 um 1xM72Large format162 mmF8 ~ F32$1,649.00 Ships in 2-3 weeks

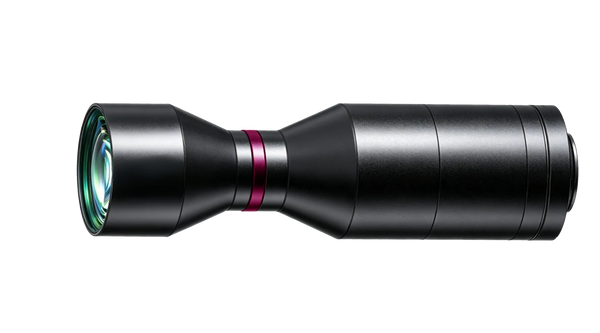

LS-TCL-0692Bi-telecentric lens, 1x, 162 mm WD, object-side resolution 5.6 um 1xM72Large format162 mmF8$1,649.00 Ships in 2-3 weeks
LS-TCL-0701Bi-telecentric lens, 0.696x, 138 mm WD 0.696xM58APS-H138 mmF13.1$1,379.00 Ships in 2-3 weeks
LS-TCL-0690Bi-telecentric lens, 1x, 102 mm WD 1xM72Large format102 mmF7$1,309.00 Ships in 2-3 weeks
LS-TCL-0703Bi-telecentric lens, 0.929x, 118 mm WD, object-side resolution 9.8 um 0.929xM58APS-H118 mmF15.3$1,279.00 Ships in 2-3 weeks

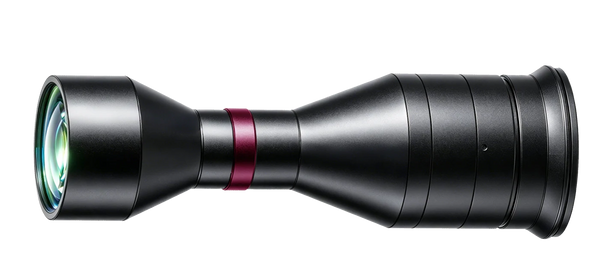

LS-TCL-0704Bi-telecentric lens, 0.929x, 118 mm WD, object-side resolution 9.79 um 0.929xM72APS-H118 mmF15.3$1,279.00 Ships in 2-3 weeks

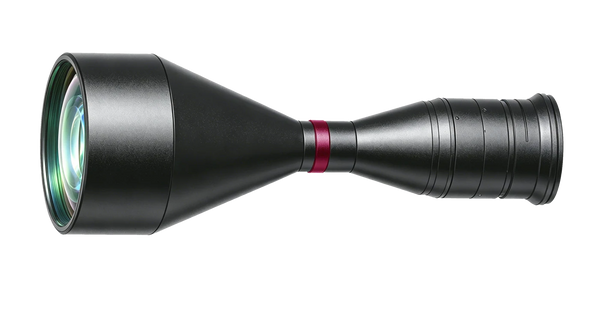

LS-TCL-0699Bi-telecentric lens, 0.489x, 208 mm WD 0.489xM72Full frame208 mmF32.4$1,279.00 Ships in 2-3 weeks

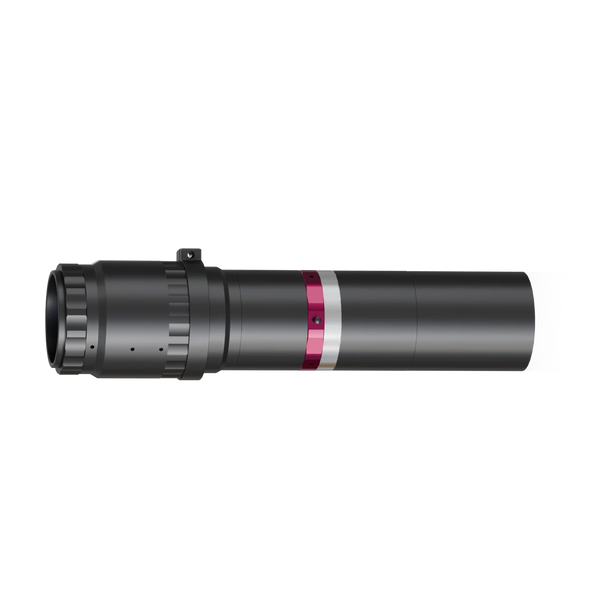

LS-TCL-0693Bi-telecentric lens, 2x, 102 mm WD 2xM58Full frame102 mmF8 ~ F32$929.00 Ships in 2-3 weeks
LS-TCL-0705Bi-telecentric lens, 1.083x, 110 mm WD 1.083xM58APS-H110 mmF18.3$799.00 Ships in 2-3 weeks

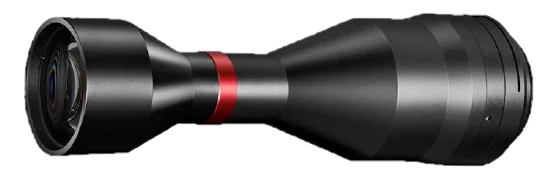

LS-TCL-0697Bi-telecentric lens, 1.65x, 40 mm WD 1.65xM58APS-H40 mmF6.2$749.00 Ships in 2-3 weeks

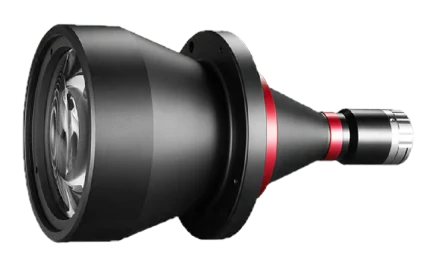

LS-TCL-0532Bi-telecentric lens, 0.085x, 372 mm WD, 1.1" 0.085xC-mount1.1"372 mmF6.2$3,679.00Quote Ships in 2-3 weeks

Choose a double-telecentric optical layout

Bi-telecentric optics are telecentric on both the object and image sides. The design class differs from object-side-only optics. Use the model data to establish the usable field and measurement conditions; the design label does not set one universal accuracy or depth-of-field value.

  • Match magnification and sensor dimensions to the required object field, then check the image-circle rating and mount for the actual camera.
  • Compare the published working distance, distortion and telecentricity for the intended object position and aperture. Keep model-specific values separate from general design principles.
  • Check the lens outline and illumination clearance before fixing the station geometry. A suitable sensor format alone does not establish mechanical fit or measurement capability.
