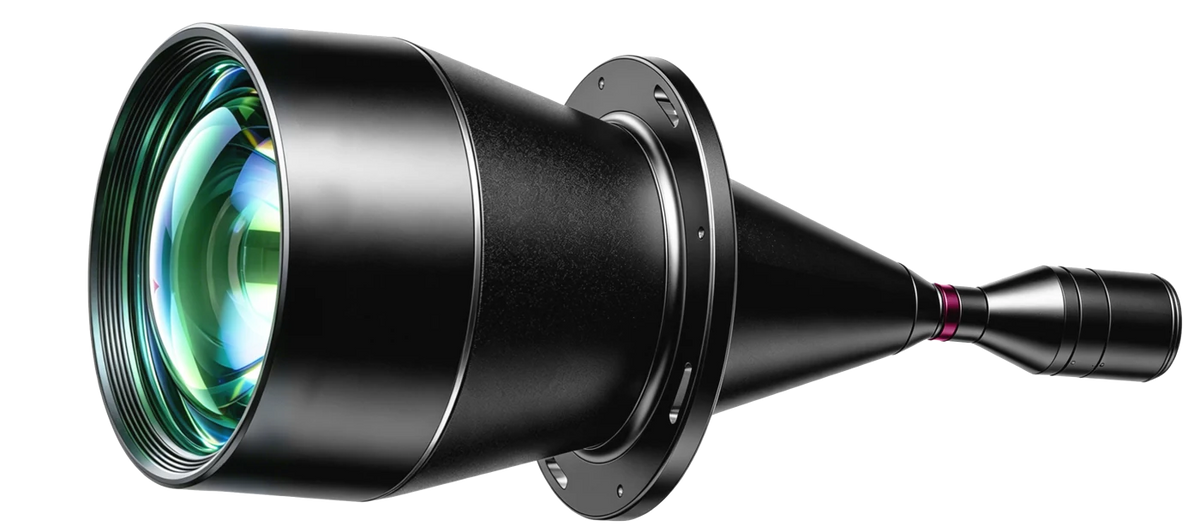

Bi-Telecentric Lens, 0.163x, 410 mm WD, size 657.7 mm × Φ286 mm (LS-TCL-0696)
  • Bi-Telecentric Lens, 0.163x, 410 mm WD, size 657.7 mm × Φ286 mm (LS-TCL-0696)

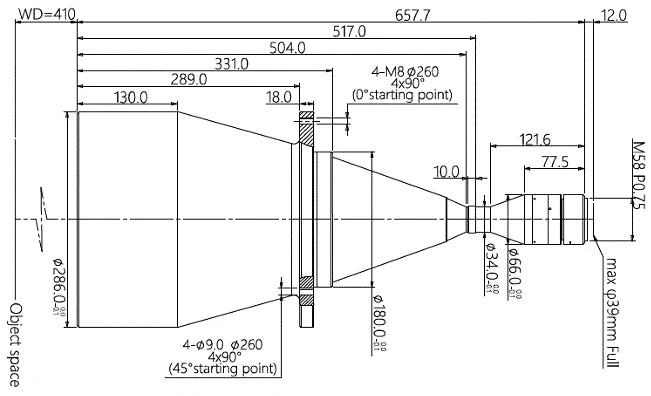

  • LS-TCL-0696 dimensions (mm)

Telecentric lenses

Bi-Telecentric Lens, 0.163x, 410 mm WD, size 657.7 mm × Φ286 mm (LS-TCL-0696)

Model LS-TCL-0696

  • Magnification0.163
  • MountM58
  • SensorAPS-H
  • Working distance410mm
  • ApertureF7.5
$4,669.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Ships in 2-3 weeks

0.66 kg shipping weight

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

Bi-Telecentric Lens, 0.163x, 410 mm WD, size 657.7 mm × Φ286 mm (LS-TCL-0696)LS-TCL-0696

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Bi-Telecentric Lens, 0.163x, 410 mm WD. High resolution with consistent sharpness across the image Low distortion and high telecentricity for high-precision measurement and positioning

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0696

Optics

Magnification0.163
Working distance410mm
F-numberF7.5
Image sizeΦ39mm
Depth of field±24.3mm@F16
Distortion≤ 0.1%
Object-side resolution23.6um
Object-side telecentricity≤ 0.1°
Coaxial lightNot supported

Interfaces and I/O

Connector typeM58-Mount

Environment and compliance

Temperature-10~50°C
CertificationRoHS2.0

Mechanical

Dimension657.7 mm × Φ286 mm
Shipping weight (estimated)0.66 kg
