Bi-Telecentric Lens, 0.205x, 330 mm WD (LS-TCL-0698)

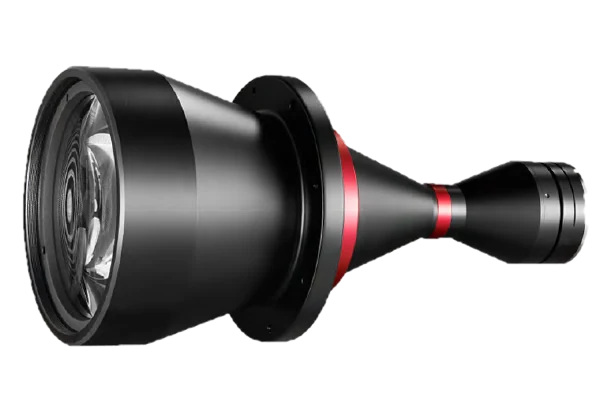

  • Bi-Telecentric Lens, 0.205x, 330 mm WD (LS-TCL-0698)

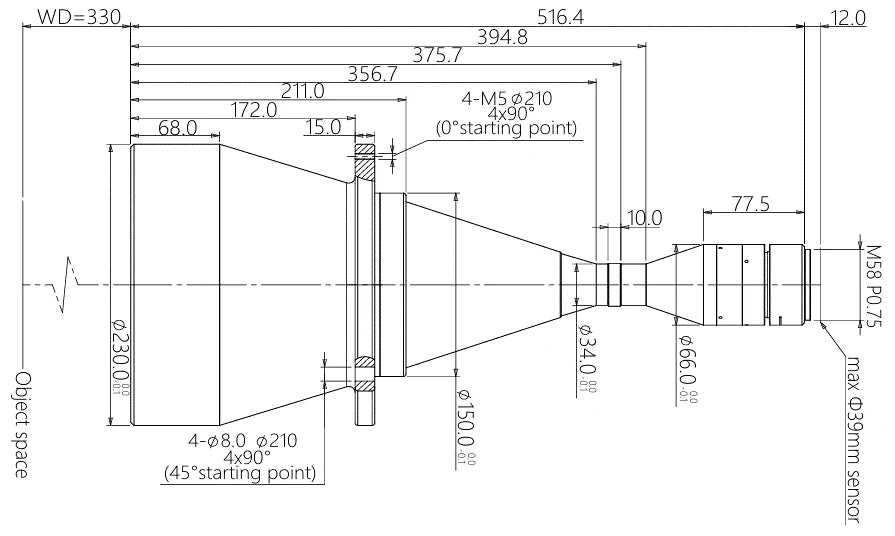

  • LS-TCL-0698 dimensions (mm)

Telecentric lenses

Bi-Telecentric Lens, 0.205x, 330 mm WD (LS-TCL-0698)

Model LS-TCL-0698

  • Magnification0.205
  • MountF-mount
  • SensorAPS-H
  • Working distance330mm
  • ApertureF6.5
$3,819.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Ships in 2-3 weeks

0.66 kg shipping weight

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

Bi-Telecentric Lens, 0.205x, 330 mm WD (LS-TCL-0698)LS-TCL-0698

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Bi-Telecentric Lens, 0.205x, 330 mm WD. High resolution with consistent sharpness across the image Low distortion and high telecentricity for high-precision measurement and positioning

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0698

Optics

Magnification0.205
Working distance330mm
F-numberF6.5
Image sizeΦ39mm
Depth of field±10.5mm@F11
Distortion≤ 0.1%
Object-side resolution18um
Object-side telecentricity≤ 0.1°
Coaxial lightNot supported

Interfaces and I/O

Connector typeF-Mount

Environment and compliance

Temperature-10~50°C
CertificationRoHS2.0

Mechanical

Dimension516.4 mm × Φ230 mm
Shipping weight (estimated)0.66 kg
