Bi-telecentric lens, 0.383x, 128 mm WD, 1.1"
LS-TCL-0557
- Magnification 0.383x
- Mount C-mount
- Sensor 1.1"
$1,379.00
Ships in 2-3 weeks
Lenses
Bi-telecentric lenses
Choose a double-telecentric optical layoutCompare cataloged bi-telecentric, or double-telecentric, lenses for dimensional imaging. Narrow the choice by sensor coverage, magnification, working distance and the published optical tolerances.
Products

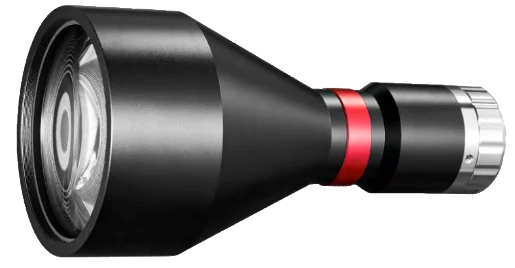

Bi-telecentric lens, 0.395x, 118 mm WD, 1"
LS-TCL-0558
- Magnification 0.395x
- Mount C-mount
- Sensor 1"
$1,279.00
Ships in 2-3 weeks
Bi-telecentric lens, 0.438x, 118 mm WD, 1.1"
LS-TCL-0560
- Magnification 0.438x
- Mount C-mount
- Sensor 1.1"
$1,269.00
Ships in 2-3 weeks

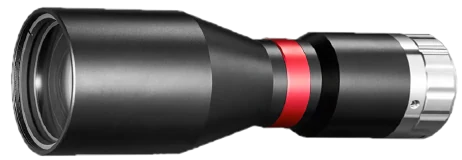

Bi-telecentric lens, 0.46x, 110 mm WD, 1"
LS-TCL-0530
- Magnification 0.46x
- Mount C-mount
- Sensor 1"
$1,169.00
Ships in 2-3 weeks
Bi-telecentric lens, 0.69x, 118 mm WD, 1.75"
LS-TCL-0531
- Magnification 0.69x
- Mount M42
- Sensor 1.75"
$1,109.00
Ships in 2-3 weeks

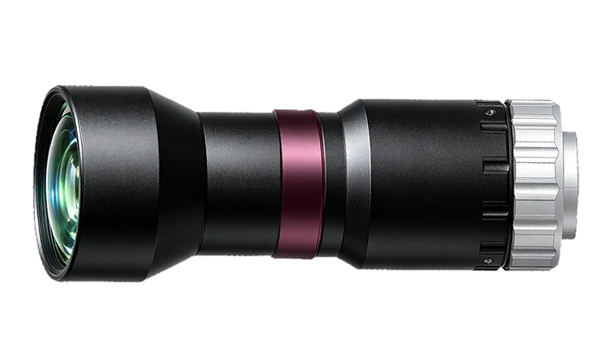

Bi-telecentric lens, 0.377x, 82 mm WD, 1"
LS-TCL-0556
- Magnification 0.377x
- Mount C-mount
- Sensor 1"
$1,029.00
Ships in 2-3 weeks
Bi-telecentric lens, 0.511x, 110 mm WD, 1.1"
LS-TCL-0562
- Magnification 0.511x
- Mount C-mount
- Sensor 1.1"
$1,019.00
Ships in 2-3 weeks

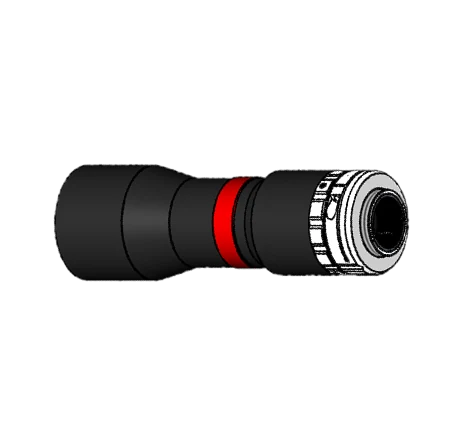

Bi-telecentric lens, 0.638x, 73 mm WD, 1"
LS-TCL-0564
- Magnification 0.638x
- Mount C-mount
- Sensor 1"
$999.00
Ships in 2-3 weeks
Bi-telecentric lens, 0.708x, 73 mm WD, 1.1"
LS-TCL-0565
- Magnification 0.708x
- Mount C-mount
- Sensor 1.1"
$999.00
Ships in 2-3 weeks
Bi-telecentric lens, 0.634x, 45 mm WD, 1.1"
LS-TCL-0563
- Magnification 0.634x
- Mount C-mount
- Sensor 1.1"
$999.00
Ships in 2-3 weeks

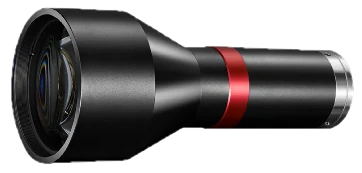

Bi-telecentric lens, 0.503x, 48 mm WD, 1"
LS-TCL-0561
- Magnification 0.503x
- Mount C-mount
- Sensor 1"
$929.00
Ships in 2-3 weeks
Bi-telecentric lens, 0.806x, 110 mm WD, 1.75"
LS-TCL-0566
- Magnification 0.806x
- Mount M42
- Sensor 1.75"
$859.00
Ships in 2-3 weeks
Bi-telecentric lens, 0.09x, 238 mm WD, 1/1.8"
LS-TCL-0481
- Magnification 0.09x
- Mount C-mount
- Sensor 1/1.8"
$2,269.00
Ships in 2-3 weeks
Bi-telecentric lens, 0.1x, 178 mm WD, 1/2.5"
LS-TCL-0483
- Magnification 0.1x
- Mount C-mount
- Sensor 1/2.5"
$1,789.00
Ships in 2-3 weeks
Bi-telecentric lens, 0.125x, 158 mm WD, 1/2"
LS-TCL-0485
- Magnification 0.125x
- Mount C-mount
- Sensor 1/2"
$1,649.00
Ships in 2-3 weeks
Bi-telecentric lens, 0.113x, 158 mm WD, 1/2.5"
LS-TCL-0484
- Magnification 0.113x
- Mount C-mount
- Sensor 1/2.5"
$1,649.00
Ships in 2-3 weeks
Bi-telecentric lens, 0.141x, 158 mm WD, 1/1.8"
LS-TCL-0486
- Magnification 0.141x
- Mount C-mount
- Sensor 1/1.8"
$1,649.00
Ships in 2-3 weeks
Bi-telecentric lens, 0.19x, 118 mm WD, 1/2"
LS-TCL-0482
- Magnification 0.19x
- Mount C-mount
- Sensor 1/2"
$1,379.00
Ships in 2-3 weeks

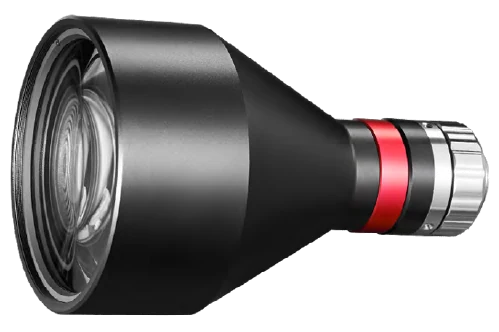

Bi-telecentric lens, 0.171x, 118 mm WD, 1/2.5"
LS-TCL-0487
- Magnification 0.171x
- Mount C-mount
- Sensor 1/2.5"
$1,279.00
Ships in 2-3 weeks

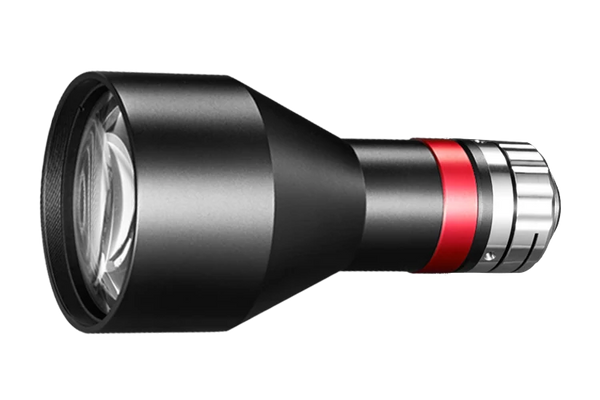

Bi-telecentric lens, 0.214x, 118 mm WD, 1/1.8"
LS-TCL-0488
- Magnification 0.214x
- Mount C-mount
- Sensor 1/1.8"
$1,259.00
Ships in 2-3 weeks

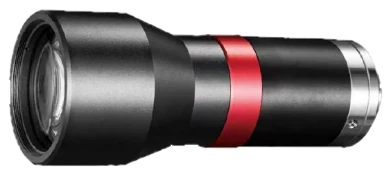

Bi-telecentric lens, 0.381x, 40 mm WD, 1/1.8"
LS-TCL-0489
- Magnification 0.381x
- Mount C-mount
- Sensor 1/1.8"
$1,029.00
Ships in 2-3 weeks
Bi-telecentric lens for 2/3" sensor, 0.063x, WD 320 mm, C-mount
LS-TCL-3071
- Mount C-mount
- Sensor 2/3"
- Working distance 320 mm
$3,859.00
Ships in 2-3 weeks
Bi-telecentric lens for 2/3" sensor, 0.78x, WD 290 mm, C-mount
LS-TCL-3072
- Mount C-mount
- Sensor 2/3"
- Working distance 290 mm
$3,269.00
Ships in 2-3 weeks
Bi-telecentric lens for 2/3" sensor, 0.095x, WD 250 mm, C-mount
LS-TCL-3073
- Mount C-mount
- Sensor 2/3"
- Working distance 250 mm
$2,839.00
Ships in 2-3 weeks
| Compare | |||||||||
|---|---|---|---|---|---|---|---|---|---|
 LS-TCL-0557Bi-telecentric lens, 0.383x, 128 mm WD, 1.1"
| 0.383x | C-mount | 1.1" | 128 mm | F7.2 | - | $1,379.00 | Ships in 2-3 weeks | |
 LS-TCL-0558Bi-telecentric lens, 0.395x, 118 mm WD, 1"
| 0.395x | C-mount | 1" | 118 mm | F6.5 | - | $1,279.00 | Ships in 2-3 weeks | |
 LS-TCL-0560Bi-telecentric lens, 0.438x, 118 mm WD, 1.1"
| 0.438x | C-mount | 1.1" | 118 mm | F7.2 | - | $1,269.00 | Ships in 2-3 weeks | |
 LS-TCL-0530Bi-telecentric lens, 0.46x, 110 mm WD, 1"
| 0.46x | C-mount | 1" | 110 mm | F7.8 | - | $1,169.00 | Ships in 2-3 weeks | |
 LS-TCL-0531Bi-telecentric lens, 0.69x, 118 mm WD, 1.75"
| 0.69x | M42 | 1.75" | 118 mm | F11.4 | - | $1,109.00 | Ships in 2-3 weeks | |
 LS-TCL-0556Bi-telecentric lens, 0.377x, 82 mm WD, 1"
| 0.377x | C-mount | 1" | 82 mm | F6.5 | - | $1,029.00 | Ships in 2-3 weeks | |
 LS-TCL-0562Bi-telecentric lens, 0.511x, 110 mm WD, 1.1"
| 0.511x | C-mount | 1.1" | 110 mm | F8.7 | - | $1,019.00 | Ships in 2-3 weeks | |
 LS-TCL-0564Bi-telecentric lens, 0.638x, 73 mm WD, 1"
| 0.638x | C-mount | 1" | 73 mm | F8.7 | - | $999.00 | Ships in 2-3 weeks | |
 LS-TCL-0565Bi-telecentric lens, 0.708x, 73 mm WD, 1.1"
| 0.708x | C-mount | 1.1" | 73 mm | F9.6 | - | $999.00 | Ships in 2-3 weeks | |
 LS-TCL-0563Bi-telecentric lens, 0.634x, 45 mm WD, 1.1"
| 0.634x | C-mount | 1.1" | 45 mm | F6.2 | - | $999.00 | Ships in 2-3 weeks | |
 LS-TCL-0561Bi-telecentric lens, 0.503x, 48 mm WD, 1"
| 0.503x | C-mount | 1" | 48 mm | F6.5 | - | $929.00 | Ships in 2-3 weeks | |
 LS-TCL-0566Bi-telecentric lens, 0.806x, 110 mm WD, 1.75"
| 0.806x | M42 | 1.75" | 110 mm | F13.5 | - | $859.00 | Ships in 2-3 weeks | |
 LS-TCL-0481Bi-telecentric lens, 0.09x, 238 mm WD, 1/1.8"
| 0.09x | C-mount | 1/1.8" | 238 ± 4 mm | F4.6 | - | $2,269.00 | Ships in 2-3 weeks | |
 LS-TCL-0483Bi-telecentric lens, 0.1x, 178 mm WD, 1/2.5"
| 0.1x | C-mount | 1/2.5" | 178 ± 3 mm | F4.2 | - | $1,789.00 | Ships in 2-3 weeks | |
 LS-TCL-0485Bi-telecentric lens, 0.125x, 158 mm WD, 1/2"
| 0.125x | C-mount | 1/2" | 158 ± 3 mm | F4.2 | - | $1,649.00 | Ships in 2-3 weeks | |
 LS-TCL-0484Bi-telecentric lens, 0.113x, 158 mm WD, 1/2.5"
| 0.113x | C-mount | 1/2.5" | 158 ± 3 mm | F4.2 | - | $1,649.00 | Ships in 2-3 weeks | |
 LS-TCL-0486Bi-telecentric lens, 0.141x, 158 mm WD, 1/1.8"
| 0.141x | C-mount | 1/1.8" | 158 ± 3 mm | F4.6 | - | $1,649.00 | Ships in 2-3 weeks | |
 LS-TCL-0482Bi-telecentric lens, 0.19x, 118 mm WD, 1/2"
| 0.19x | C-mount | 1/2" | 118 ± 3 mm | F4.2 | - | $1,379.00 | Ships in 2-3 weeks | |
 LS-TCL-0487Bi-telecentric lens, 0.171x, 118 mm WD, 1/2.5"
| 0.171x | C-mount | 1/2.5" | 118 ± 3 mm | F4.2 | - | $1,279.00 | Ships in 2-3 weeks | |
 LS-TCL-0488Bi-telecentric lens, 0.214x, 118 mm WD, 1/1.8"
| 0.214x | C-mount | 1/1.8" | 118 ± 3 mm | F4.6 | - | $1,259.00 | Ships in 2-3 weeks | |
 LS-TCL-0489Bi-telecentric lens, 0.381x, 40 mm WD, 1/1.8"
| 0.381x | C-mount | 1/1.8" | 40 ± 1 mm | F6.8 | - | $1,029.00 | Ships in 2-3 weeks | |
 LS-TCL-3071Bi-telecentric lens for 2/3" sensor, 0.063x, WD 320 mm, C-mount
| - | C-mount | 2/3" | 320 mm | F5 | φ174.6 | $3,859.00 | Ships in 2-3 weeks | |
|
LS-TCL-3072Bi-telecentric lens for 2/3" sensor, 0.78x, WD 290 mm, C-mount
| - | C-mount | 2/3" | 290 mm | F5 | φ141 | $3,269.00 | Ships in 2-3 weeks | |
|
LS-TCL-3073Bi-telecentric lens for 2/3" sensor, 0.095x, WD 250 mm, C-mount
| - | C-mount | 2/3" | 250 mm | F7.5 | φ115.7 | $2,839.00 | Ships in 2-3 weeks |
Choose a double-telecentric optical layout
Bi-telecentric optics are telecentric on both the object and image sides. The design class differs from object-side-only optics. Use the model data to establish the usable field and measurement conditions; the design label does not set one universal accuracy or depth-of-field value.
- Match magnification and sensor dimensions to the required object field, then check the image-circle rating and mount for the actual camera.
- Compare the published working distance, distortion and telecentricity for the intended object position and aperture. Keep model-specific values separate from general design principles.
- Check the lens outline and illumination clearance before fixing the station geometry. A suitable sensor format alone does not establish mechanical fit or measurement capability.
