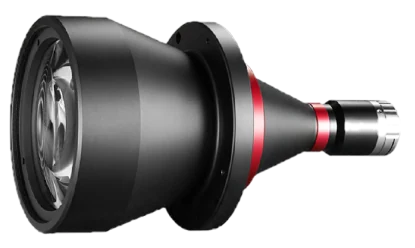

Bi-telecentric lens, 0.087x, 330 mm WD, 1"
LS-TCL-0533
- Magnification 0.087x
- Mount C-mount
- Sensor 1"
$3,549.00Quote
Ships in 2-3 weeks
Lenses
Bi-telecentric lenses
Choose a double-telecentric optical layoutCompare cataloged bi-telecentric, or double-telecentric, lenses for dimensional imaging. Narrow the choice by sensor coverage, magnification, working distance and the published optical tolerances.
Products
Bi-telecentric lens, 0.108x, 318 mm WD, 1.1"
LS-TCL-0534
- Magnification 0.108x
- Mount C-mount
- Sensor 1.1"
$3,049.00Quote
Ships in 2-3 weeks
Bi-telecentric lens, 0.315x, 350 mm WD, 1.75"
LS-TCL-0551
- Magnification 0.315x
- Mount C-mount
- Sensor 1.75"
$2,909.00Quote
Ships in 2-3 weeks
Bi-telecentric lens, 0.122x, 288 mm WD, 1"
LS-TCL-0535
- Magnification 0.122x
- Mount C-mount
- Sensor 1"
$2,889.00Quote
Ships in 2-3 weeks
Bi-telecentric lens, 0.138x, 273 mm WD, 1"
LS-TCL-0536
- Magnification 0.138x
- Mount C-mount
- Sensor 1"
$2,779.00Quote
Ships in 2-3 weeks
Bi-telecentric lens, 0.153x, 273 mm WD, 1.1"
LS-TCL-0537
- Magnification 0.153x
- Mount C-mount
- Sensor 1.1"
$2,529.00Quote
Ships in 2-3 weeks
Bi-telecentric lens, 0.167x, 263 mm WD, 1.1"
LS-TCL-0539
- Magnification 0.167x
- Mount C-mount
- Sensor 1.1"
$2,269.00
Ships in 2-3 weeks
Bi-telecentric lens, 0.166x, 238 mm WD, 1"
LS-TCL-0538
- Magnification 0.166x
- Mount C-mount
- Sensor 1"
$2,269.00
Ships in 2-3 weeks

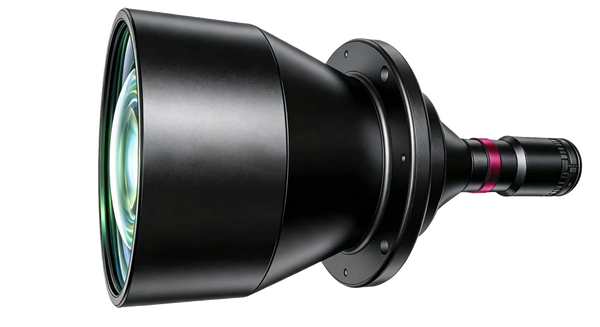

Bi-telecentric lens, 0.184x, 238 mm WD, 1.1"
LS-TCL-0542
- Magnification 0.184x
- Mount C-mount
- Sensor 1.1"
$2,229.00
Ships in 2-3 weeks
Bi-telecentric lens, 0.184x, 208 mm WD, 1"
LS-TCL-0541
- Magnification 0.184x
- Mount C-mount
- Sensor 1"
$2,099.00
Ships in 2-3 weeks
Bi-telecentric lens, 0.204x, 208 mm WD, 1.1"
LS-TCL-0543
- Magnification 0.204x
- Mount C-mount
- Sensor 1.1"
$1,929.00
Ships in 2-3 weeks

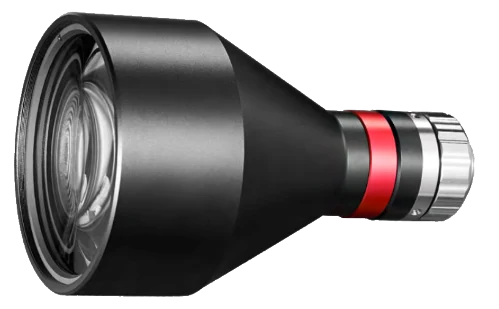

Bi-telecentric lens, 0.208x, 228 mm WD, 1"
LS-TCL-0544
- Magnification 0.208x
- Mount C-mount
- Sensor 1"
$1,929.00
Ships in 2-3 weeks
Bi-telecentric lens, 0.23x, 228 mm WD, 1.1"
LS-TCL-0545
- Magnification 0.23x
- Mount C-mount
- Sensor 1.1"
$1,909.00
Ships in 2-3 weeks

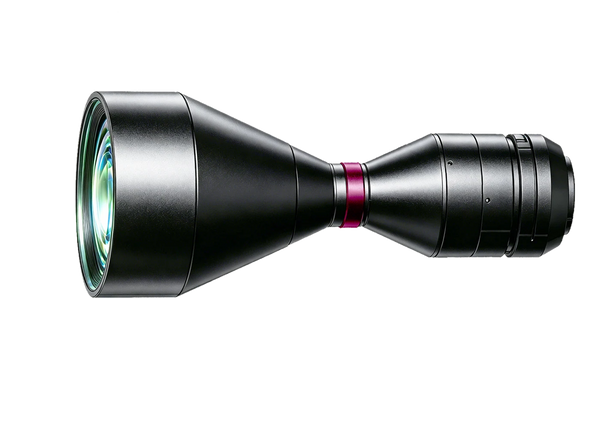

Bi-telecentric lens, 0.363x, 228 mm WD, 1.75"
LS-TCL-0555
- Magnification 0.363x
- Mount M42
- Sensor 1.75"
$1,809.00
Ships in 2-3 weeks

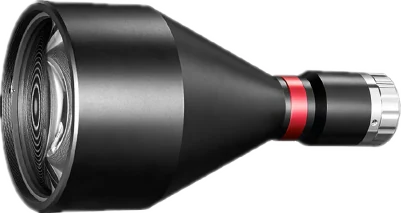

Bi-telecentric lens, 0.231x, 178 mm WD, 1"
LS-TCL-0546
- Magnification 0.231x
- Mount C-mount
- Sensor 1"
$1,789.00
Ships in 2-3 weeks

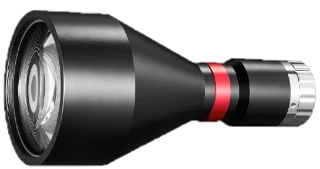

Bi-telecentric lens, 0.259x, 158 mm WD, 1"
LS-TCL-0548
- Magnification 0.259x
- Mount C-mount
- Sensor 1"
$1,759.00
Ships in 2-3 weeks

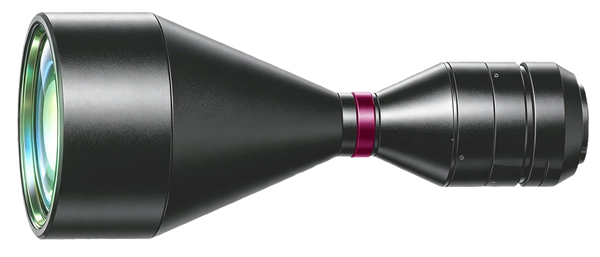

Bi-telecentric lens, 0.322x, 208 mm WD, 1.75"
LS-TCL-0552
- Magnification 0.322x
- Mount M42
- Sensor 1.75"
$1,749.00
Ships in 2-3 weeks

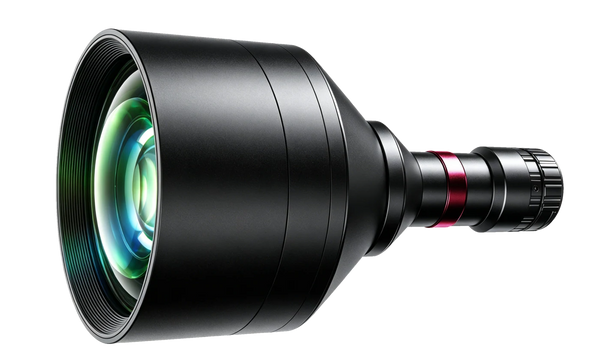

Bi-telecentric lens, 0.175x, 160 mm WD, 1.1"
LS-TCL-0540
- Magnification 0.175x
- Mount C-mount
- Sensor 1.1"
$1,649.00
Ships in 2-3 weeks
Bi-telecentric lens, 0.256x, 178 mm WD, 1.1"
LS-TCL-0547
- Magnification 0.256x
- Mount C-mount
- Sensor 1.1"
$1,649.00
Ships in 2-3 weeks

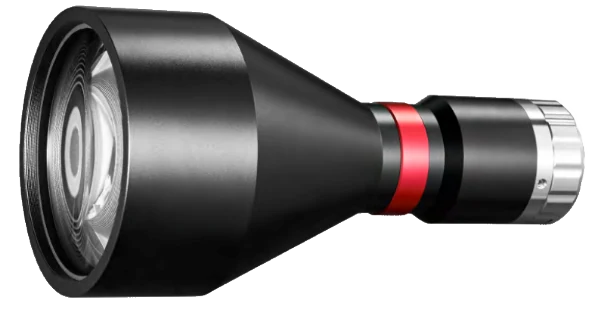

Bi-telecentric lens, 0.288x, 158 mm WD, 1.1"
LS-TCL-0549
- Magnification 0.288x
- Mount C-mount
- Sensor 1.1"
$1,609.00
Ships in 2-3 weeks
Bi-telecentric lens, 0.296x, 138 mm WD, 1"
LS-TCL-0550
- Magnification 0.296x
- Mount C-mount
- Sensor 1"
$1,599.00
Ships in 2-3 weeks

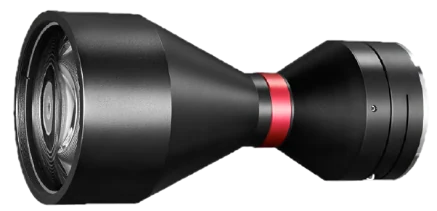

Bi-telecentric lens, 0.403x, 178 mm WD, 1.75"
LS-TCL-0559
- Magnification 0.403x
- Mount M58
- Sensor 1.75"
$1,519.00
Ships in 2-3 weeks

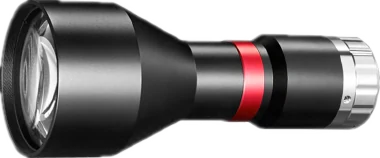

Bi-telecentric lens, 0.346x, 128 mm WD, 1"
LS-TCL-0554
- Magnification 0.346x
- Mount C-mount
- Sensor 1"
$1,379.00
Ships in 2-3 weeks
Bi-telecentric lens, 0.329x, 138 mm WD, 1.1"
LS-TCL-0553
- Magnification 0.329x
- Mount C-mount
- Sensor 1.1"
$1,379.00
Ships in 2-3 weeks
| Compare | ||||||||
|---|---|---|---|---|---|---|---|---|
 LS-TCL-0533Bi-telecentric lens, 0.087x, 330 mm WD, 1"
| 0.087x | C-mount | 1" | 330 mm | F6.5 | $3,549.00Quote | Ships in 2-3 weeks | |
 LS-TCL-0534Bi-telecentric lens, 0.108x, 318 mm WD, 1.1"
| 0.108x | C-mount | 1.1" | 318 mm | F6.2 | $3,049.00Quote | Ships in 2-3 weeks | |
 LS-TCL-0551Bi-telecentric lens, 0.315x, 350 mm WD, 1.75"
| 0.315x | C-mount | 1.75" | 350 mm | F9.7 | $2,909.00Quote | Ships in 2-3 weeks | |
 LS-TCL-0535Bi-telecentric lens, 0.122x, 288 mm WD, 1"
| 0.122x | C-mount | 1" | 288 mm | F6.5 | $2,889.00Quote | Ships in 2-3 weeks | |
 LS-TCL-0536Bi-telecentric lens, 0.138x, 273 mm WD, 1"
| 0.138x | C-mount | 1" | 273 mm | F6.5 | $2,779.00Quote | Ships in 2-3 weeks | |
 LS-TCL-0537Bi-telecentric lens, 0.153x, 273 mm WD, 1.1"
| 0.153x | C-mount | 1.1" | 273 mm | F6.2 | $2,529.00Quote | Ships in 2-3 weeks | |
 LS-TCL-0539Bi-telecentric lens, 0.167x, 263 mm WD, 1.1"
| 0.167x | C-mount | 1.1" | 263 mm | F6.2 | $2,269.00 | Ships in 2-3 weeks | |
 LS-TCL-0538Bi-telecentric lens, 0.166x, 238 mm WD, 1"
| 0.166x | C-mount | 1" | 238 mm | F6.5 | $2,269.00 | Ships in 2-3 weeks | |
 LS-TCL-0542Bi-telecentric lens, 0.184x, 238 mm WD, 1.1"
| 0.184x | C-mount | 1.1" | 238 mm | F6.2 | $2,229.00 | Ships in 2-3 weeks | |
 LS-TCL-0541Bi-telecentric lens, 0.184x, 208 mm WD, 1"
| 0.184x | C-mount | 1" | 208 mm | F6.5 | $2,099.00 | Ships in 2-3 weeks | |
 LS-TCL-0543Bi-telecentric lens, 0.204x, 208 mm WD, 1.1"
| 0.204x | C-mount | 1.1" | 208 mm | F6.2 | $1,929.00 | Ships in 2-3 weeks | |
 LS-TCL-0544Bi-telecentric lens, 0.208x, 228 mm WD, 1"
| 0.208x | C-mount | 1" | 228 mm | F6.5 | $1,929.00 | Ships in 2-3 weeks | |
 LS-TCL-0545Bi-telecentric lens, 0.23x, 228 mm WD, 1.1"
| 0.23x | C-mount | 1.1" | 228 mm | F6.2 | $1,909.00 | Ships in 2-3 weeks | |
 LS-TCL-0555Bi-telecentric lens, 0.363x, 228 mm WD, 1.75"
| 0.363x | M42 | 1.75" | 228 mm | F6.8 | $1,809.00 | Ships in 2-3 weeks | |
 LS-TCL-0546Bi-telecentric lens, 0.231x, 178 mm WD, 1"
| 0.231x | C-mount | 1" | 178 mm | F6.5 | $1,789.00 | Ships in 2-3 weeks | |
 LS-TCL-0548Bi-telecentric lens, 0.259x, 158 mm WD, 1"
| 0.259x | C-mount | 1" | 158 mm | F6.5 | $1,759.00 | Ships in 2-3 weeks | |
 LS-TCL-0552Bi-telecentric lens, 0.322x, 208 mm WD, 1.75"
| 0.322x | M42 | 1.75" | 208 mm | F8.5 | $1,749.00 | Ships in 2-3 weeks | |
 LS-TCL-0540Bi-telecentric lens, 0.175x, 160 mm WD, 1.1"
| 0.175x | C-mount | 1.1" | 160 mm | F8 | $1,649.00 | Ships in 2-3 weeks | |
 LS-TCL-0547Bi-telecentric lens, 0.256x, 178 mm WD, 1.1"
| 0.256x | C-mount | 1.1" | 178 mm | F6.2 | $1,649.00 | Ships in 2-3 weeks | |
 LS-TCL-0549Bi-telecentric lens, 0.288x, 158 mm WD, 1.1"
| 0.288x | C-mount | 1.1" | 158 mm | F6.2 | $1,609.00 | Ships in 2-3 weeks | |
 LS-TCL-0550Bi-telecentric lens, 0.296x, 138 mm WD, 1"
| 0.296x | C-mount | 1" | 138 mm | F6.5 | $1,599.00 | Ships in 2-3 weeks | |
 LS-TCL-0559Bi-telecentric lens, 0.403x, 178 mm WD, 1.75"
| 0.403x | M58 | 1.75" | 178 mm | F8.5 | $1,519.00 | Ships in 2-3 weeks | |
 LS-TCL-0554Bi-telecentric lens, 0.346x, 128 mm WD, 1"
| 0.346x | C-mount | 1" | 128 mm | F6.5 | $1,379.00 | Ships in 2-3 weeks | |
 LS-TCL-0553Bi-telecentric lens, 0.329x, 138 mm WD, 1.1"
| 0.329x | C-mount | 1.1" | 138 mm | F6.2 | $1,379.00 | Ships in 2-3 weeks |
Choose a double-telecentric optical layout
Bi-telecentric optics are telecentric on both the object and image sides. The design class differs from object-side-only optics. Use the model data to establish the usable field and measurement conditions; the design label does not set one universal accuracy or depth-of-field value.
- Match magnification and sensor dimensions to the required object field, then check the image-circle rating and mount for the actual camera.
- Compare the published working distance, distortion and telecentricity for the intended object position and aperture. Keep model-specific values separate from general design principles.
- Check the lens outline and illumination clearance before fixing the station geometry. A suitable sensor format alone does not establish mechanical fit or measurement capability.
