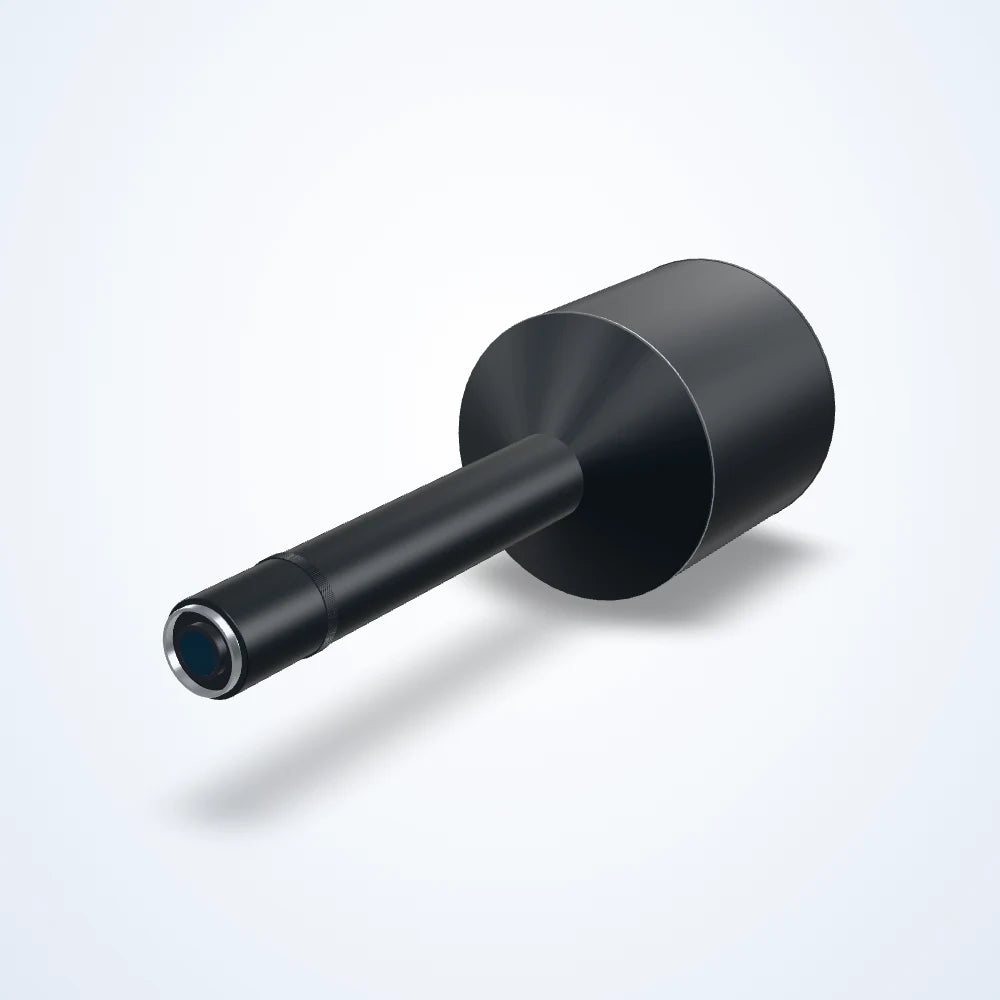

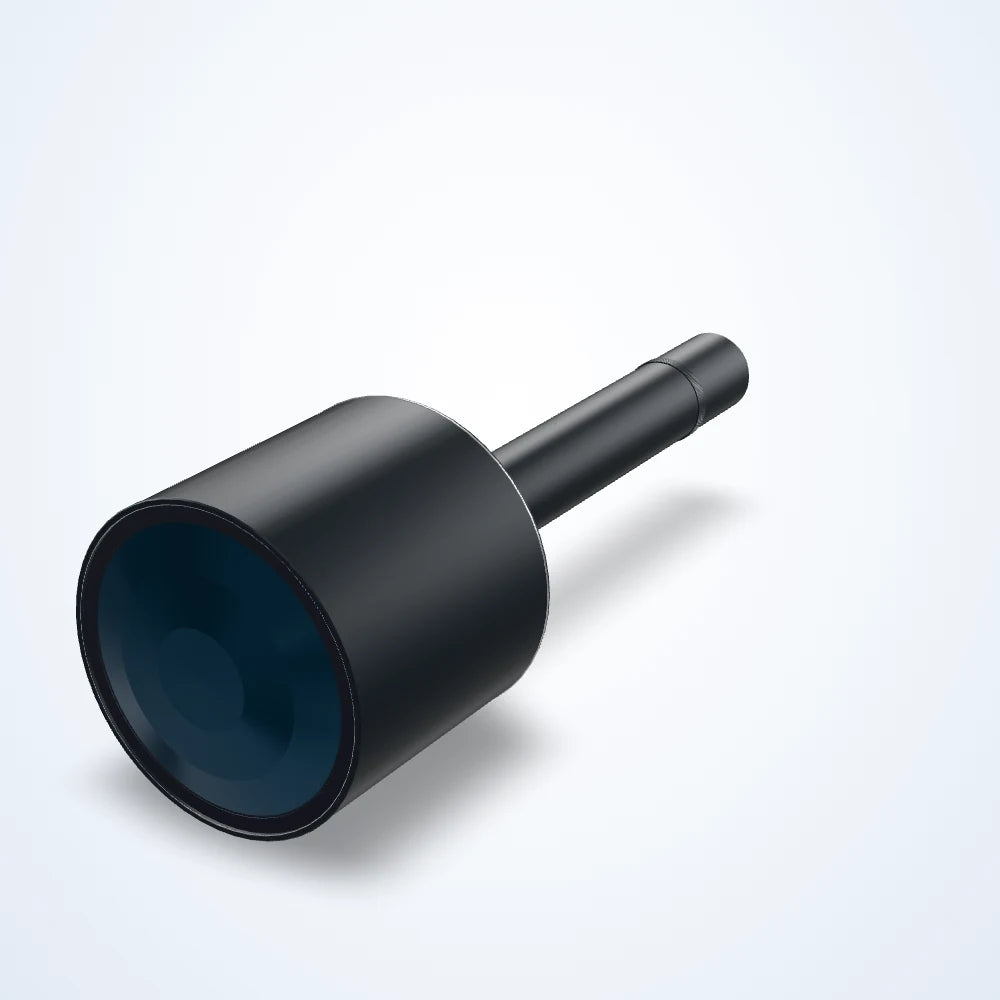

0.202x bi-telecentric lens, WD 372 mm (LS-TCL-0867)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.202x bi-telecentric lens, WD 372 mm (LS-TCL-0867)

Model LS-TCL-0867

Magnification0.202x
MountM58
SensorFull frame
Working distance372±5 mm
Aperture10.4
Field of viewdia. 216 mm

$4,495.00

Ships in 3-4 weeks

13.7 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

LS-TCL-0867: magnification 0.202x, working distance 372±5 mm, depth of field ±19.6@F20, sensor format 43.6 Φmm (35mmFull).

0.202x bi-telecentric lens for non-contact measurement and gauging. Magnification 0.202x; working distance 372 mm.

Tracked worldwide shippingTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-TCL-0867

Optics

Working distance	372±5 mm
Field of view	dia. 216 mm
Magnification	0.202x
Aperture	10.4
MTF	>90 lp/mm
Depth of field	±19.6@F20
Distortion	<0.1 % max
Telecentricity	<0.1 ° max
Object-to-image distance	1017±5 mm

Sensor and imaging

Sensor format	43.6 Φmm (35mmFull)

Mechanical

Length	633.0 mm
Mount	M58
Weight	14.7 kg

Engineering data

Field of view with the LS-TCL-0867

Worked out from this lens's own focal length, image circle and closest focus: what it sees at your working distance, on the sensor you use.

Magnification0.202×

Working distance372 mmDepth of field ±19.6 mm @ F20

Distortion< 0.1 %

Total length633.0 mm

MTF> 90 lp/mm

Weight14.7 kg

Application studies

Applications for this type of part

Real camera images from lighting and optics application tests, with the parts of each setup and why they were chosen.

All application studies

Set up with the LS-TCL-2678, the same type of part

Camera image from the manufacturer's test: the thread as a silhouette in front of the collimated light. Crests and roots are sharp edges with no shading on the flanks.

Metal parts and machining Fasteners and precision machining · Gauging Screw thread pitch with telecentric optics Stabilize scale and edge contrast before judging a tolerance.Field of view19.34 × 16.21 mmExplore the study

Set up with the LS-TCL-2507, the same type of part

The source capture shows repeated oval boundaries with bright rims and dark centres. Several positions have visibly different boundary contrast; the sheet does not define a pass/fail threshold.

Metal parts and machining Precision components · Telecentric gauging Inspecting oval apertures with telecentric optics Treat the lens, collimated light and fixture as one calibrated measurement system.Source field51.16 × 38.84 mmExplore the study

Set up with the LS-TCL-2696, the same type of part

Board-header camera capture: pin outlines and visibly leaning pins under a backlight. The source names an earlier version of LS-TCL-2696.

Electronics and devices Electronics assembly · Position and angle check Bent pins on connectors and boards Separate real pin lean from perspective.Field of view50.46 × 37.85 mmExplore the study
