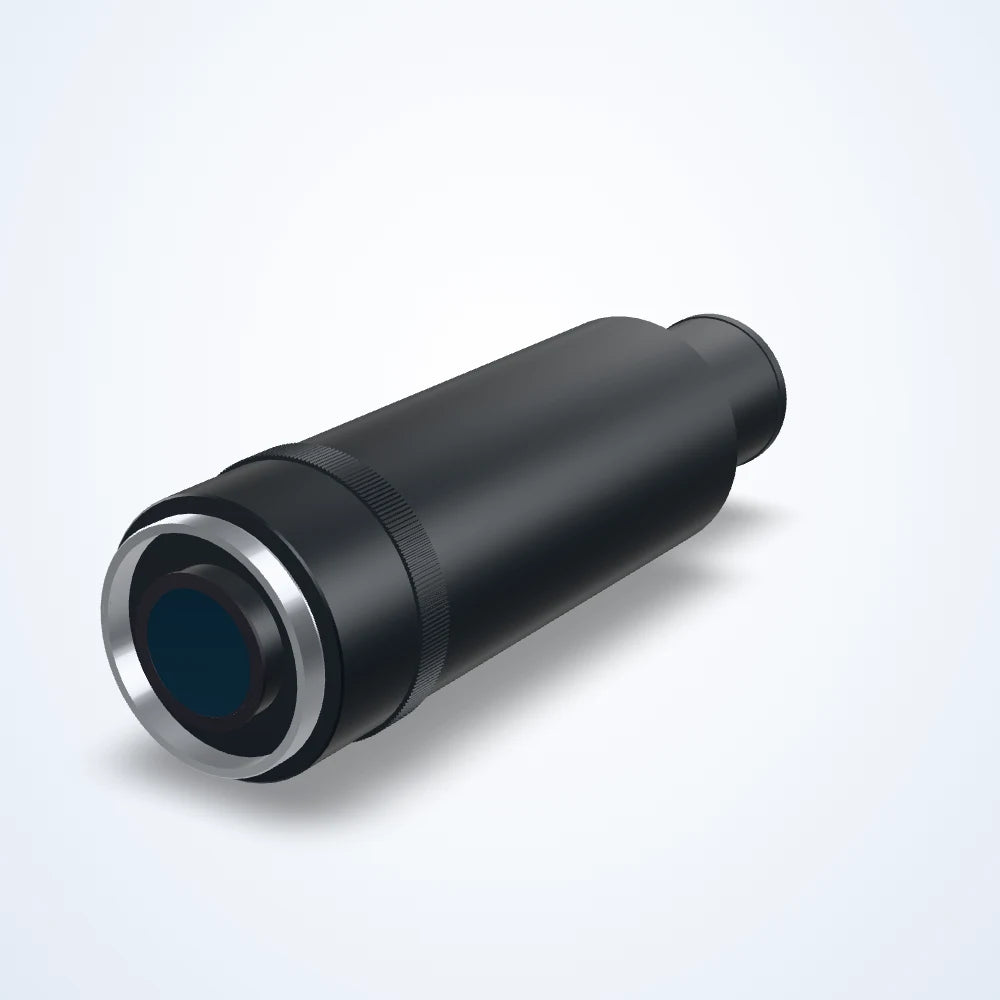

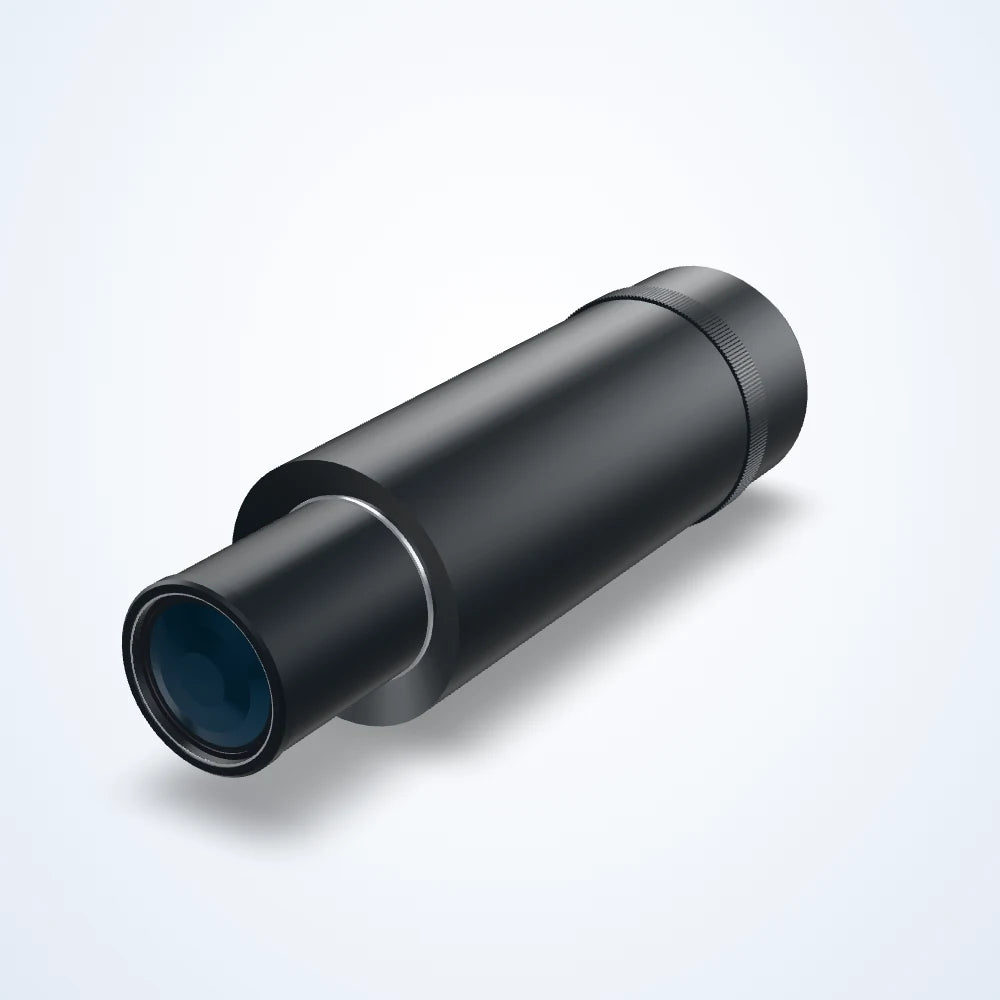

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
1.083x bi-telecentric lens, WD 110 mm (LS-TCL-0971)
Model LS-TCL-0971
- Magnification1.083x
- MountF-mount
- SensorAPS-H
- Working distance110±2 mm
- ApertureF18.3
- Resolution71 MP
$1,815.00
Ships in 3-4 weeks
1.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
1.083x bi-telecentric lens for non-contact measurement and gauging. Magnification 1.083x; working distance 110 mm; resolves 71 MP.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0971 |
|---|
Optics
| Working distance | 110±2 mm |
|---|---|
| Field of view | dia. 36 mm |
| Magnification | 1.083x |
| Aperture | F18.3 |
| MTF | >43lp/mm |
| Depth of field | ±0.65 mm@F20 |
| Distortion | <0.1% |
| Telecentricity | <0.1° |
| Object-to-image distance | 363±2 mm |
Sensor and imaging
| Resolution | 71 MP |
|---|---|
| Sensor format | 39 Φmm |
Environment and compliance
| Operating temperature | -10 - 50°C(Operating), -20 - 60°C(Storage) |
|---|
Mechanical
| Mount | F-mount |
|---|---|
| Length | 241.2 mm |
| Weight | 1.1 Kg |
