Telecentric lenses

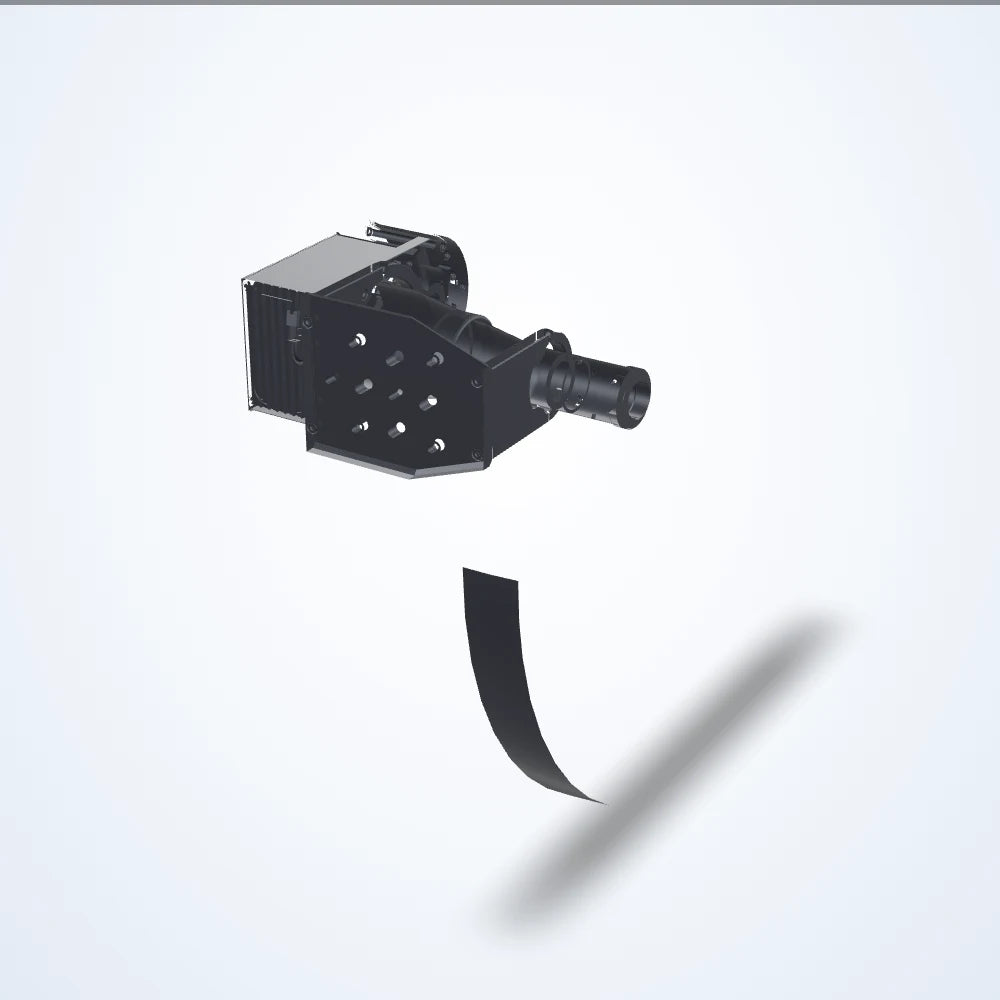

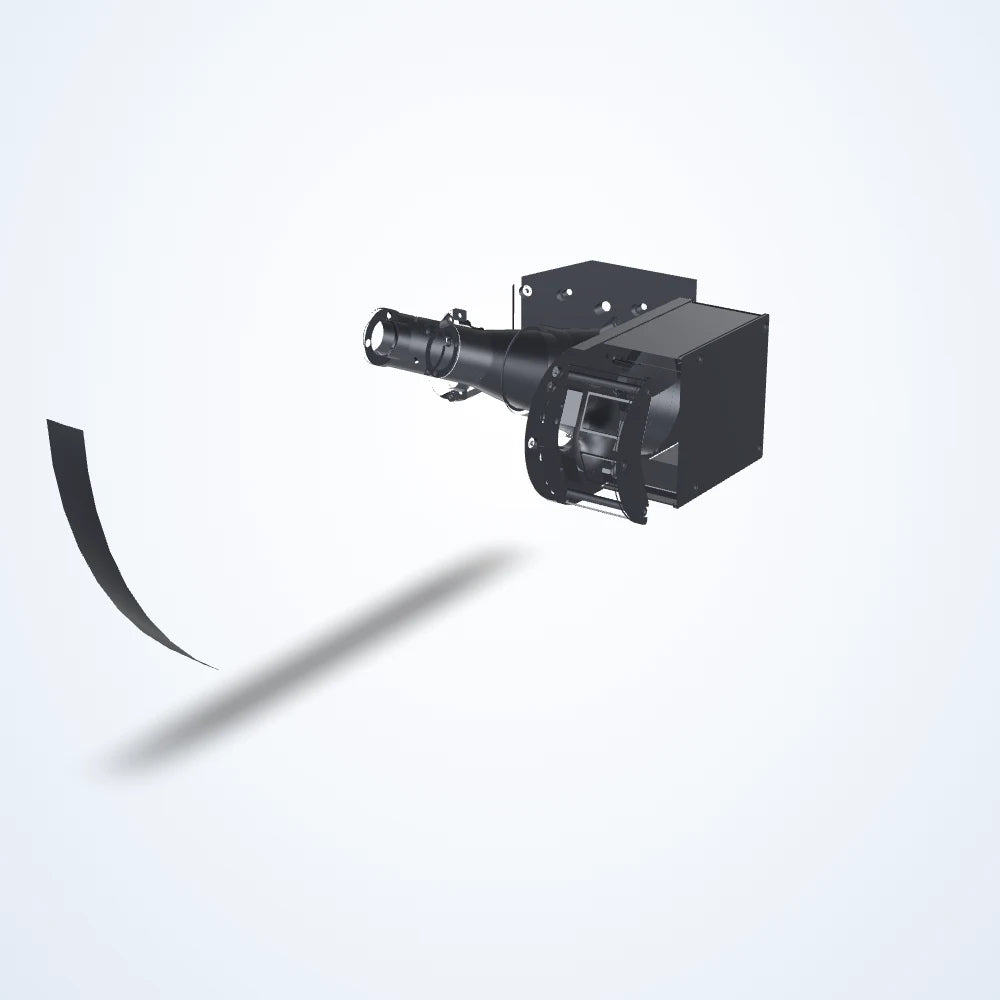

0.267x telecentric lens, 1", C-mount (LS-TCL-0033)
Model LS-TCL-0033
- Magnification0.267x
- MountC-mount
- Sensor1"
- Sensor format1"
$7,499.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Connection: flying leads.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0033 |
|---|---|
| Fov maximum | 7 |
| Lens type | Bi-Telecentric |
| Working ƒ/n | f/16 |
Optics
| Magnification | 0.267x |
|---|---|
| Filter thread | No Filter Threads |
| Image size dimensions | 14.2 x 7.5 mm |
Sensor and imaging
| Sensor format | 1" |
|---|
Interfaces and I/O
| Connector | Flying Leads |
|---|
Light
| LED current | 280 mA |
|---|---|
| LED voltage | 36 Volts |
| Light color | White |
Environment and compliance
| Operating relative humidity (%) | 20-85 Non Condensing |
|---|---|
| Operating temperature range | 0 to 40°C |
| Storage temperature range | 0 to 50°C |
Electrical
| Power consumption maximum | 6.7 Watts |
|---|---|
| Pulse current maximum | 3 mA |
| Supply voltage | 24 Volts |
Mechanical
| Mount | C-mount |
|---|---|

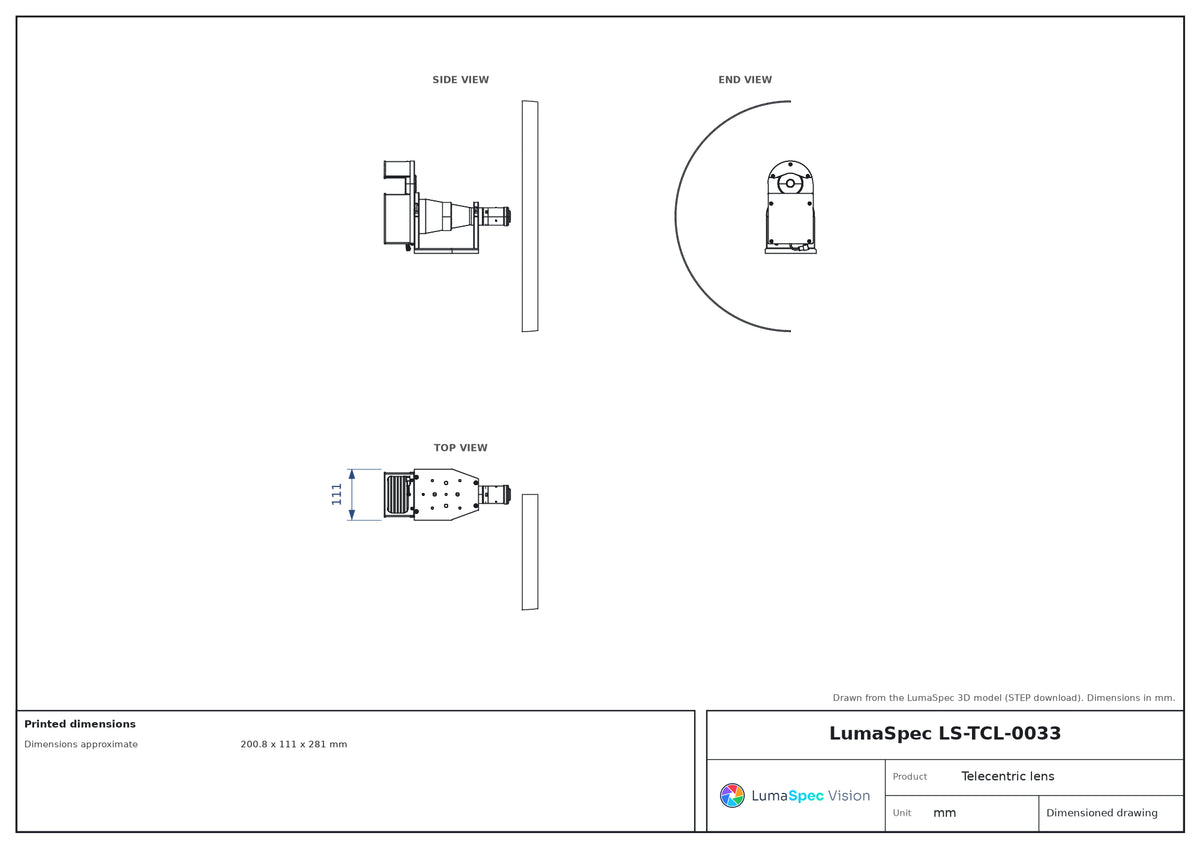

| Dimensions approximate | 200.8 x 111 x 281 mm |
| Weight | 2229 Grams |
