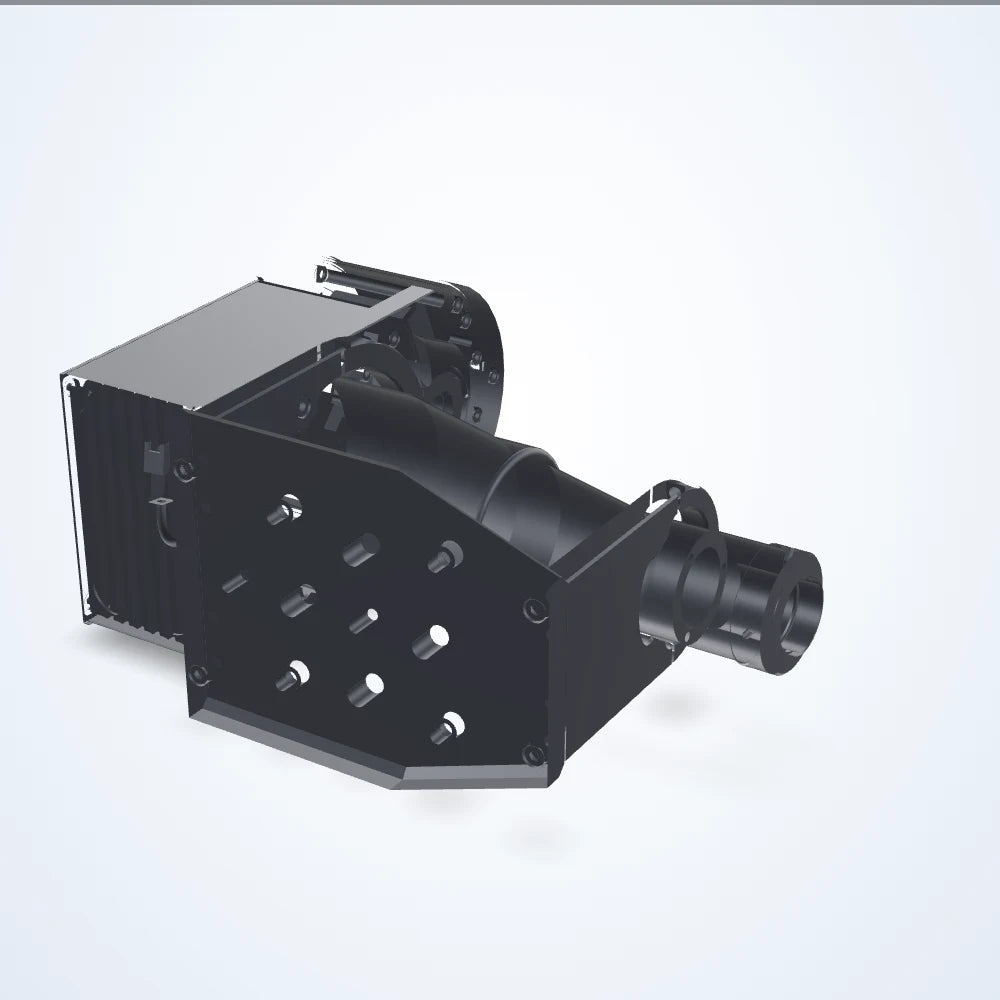

  • 0.134x telecentric lens, 1/2", C-mount, Flying Leads (LS-TCL-0025)

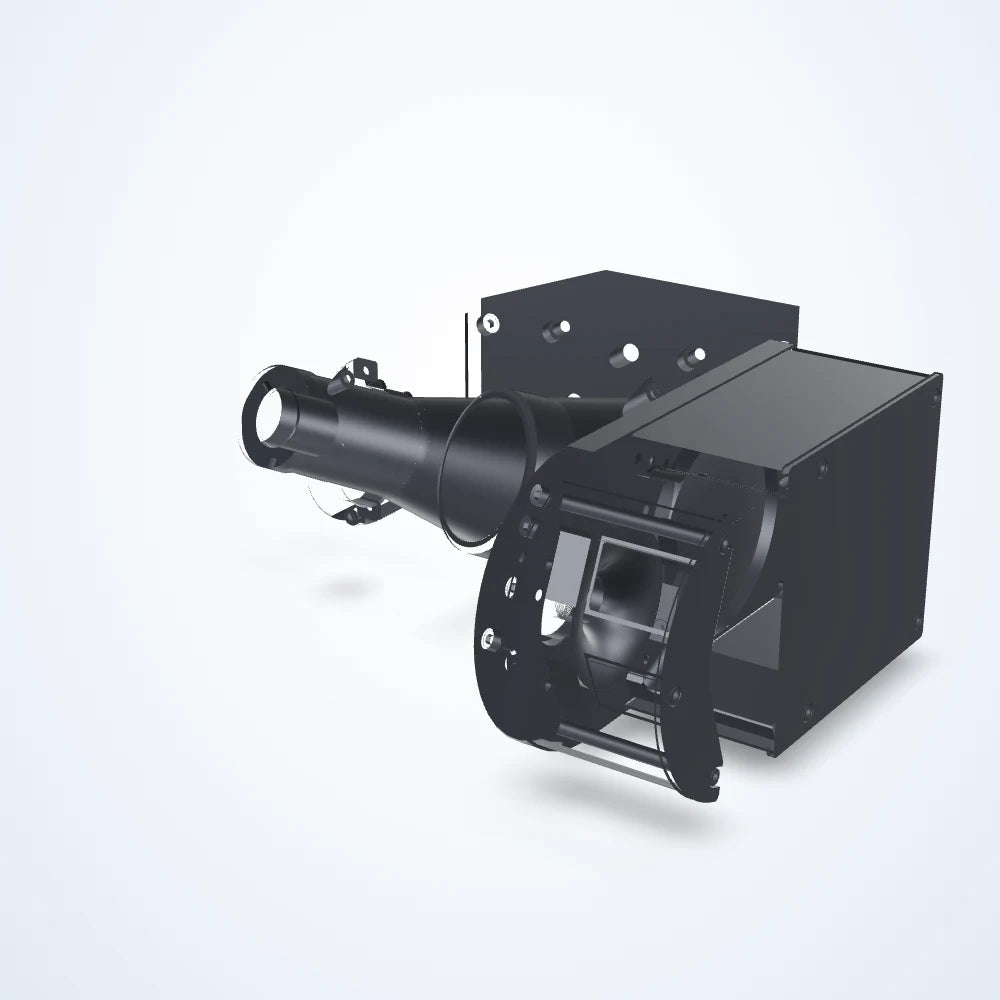

  • 0.134x telecentric lens, 1/2", C-mount, Flying Leads (LS-TCL-0025) - view 2

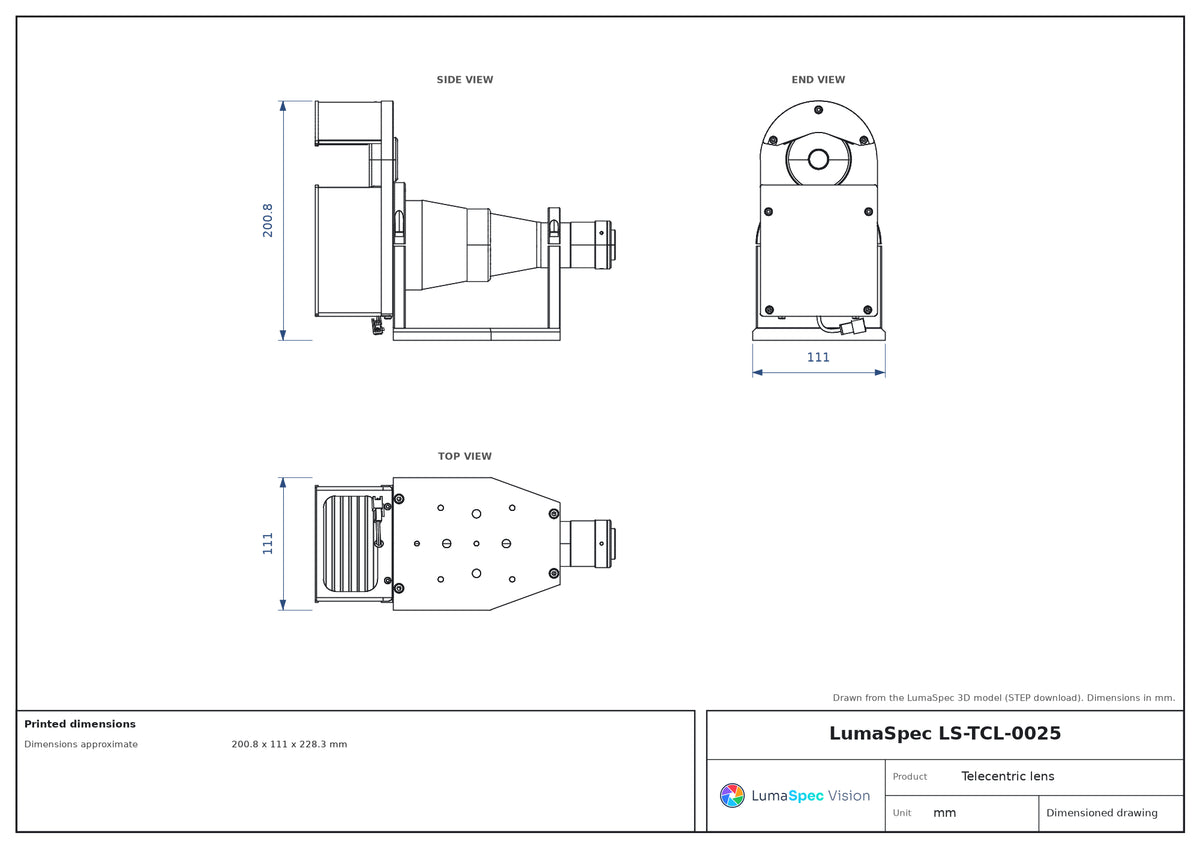

  • LS-TCL-0025 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.134x telecentric lens, 1/2", C-mount, Flying Leads (LS-TCL-0025)

Model LS-TCL-0025

  • Magnification0.134x
  • MountC-mount
  • Sensor1/2"
  • Sensor format1/2"
$6,119.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

0.134x telecentric lens, 1/2", C-mount, Flying Leads (LS-TCL-0025)LS-TCL-0025

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Connection: flying leads.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0025
Fov maximum8
Lens typeBi-Telecentric
Working ƒ/nf/8

Optics

Magnification0.134x
Filter threadNo Filter Threads
Image size dimensions6.4 x 4.8 mm

Sensor and imaging

Sensor format1/2"

Interfaces and I/O

ConnectorFlying Leads

Light

LED current280 mA
LED voltage36 Volts
Light colorWhite

Environment and compliance

Operating relative humidity (%)20-85 Non Condensing
Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Electrical

Power consumption maximum6.7 Watts
Pulse current maximum3 mA
Supply voltage24 Volts

Mechanical

MountC-mount
Dimensions approximate200.8 x 111 x 228.3 mm
Weight2101 Grams

LS-TCL-0025

See this component from every angle.

CAD-based illustration; finish is representative.

Explore the visual library
LS-TCL-0025 — Telecentric lenses, View 1 Source CAD

FROM THE PRINTED SPECIFICATIONS

Magnification
0.134x
Sensor format
1/2"
Mount
C-mount

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
