0.134x telecentric lens, 1/2", C-mount, M8 (LS-TCL-0022)
  • 0.134x telecentric lens, 1/2", C-mount, M8 (LS-TCL-0022)
  • 0.134x telecentric lens, 1/2", C-mount, M8 (LS-TCL-0022) - view 2

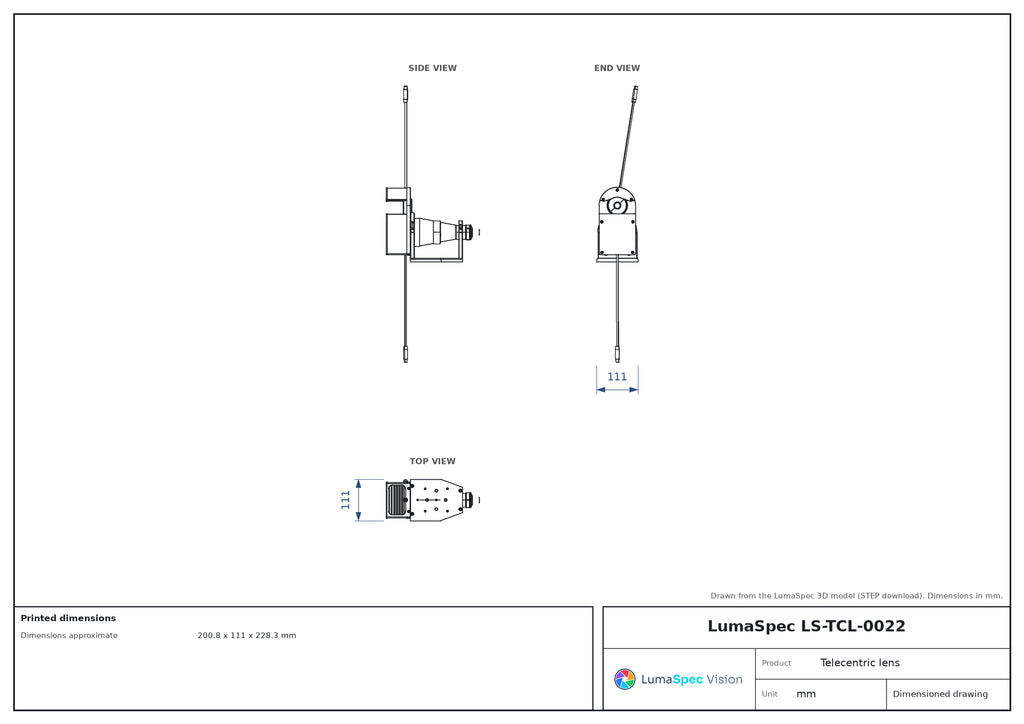

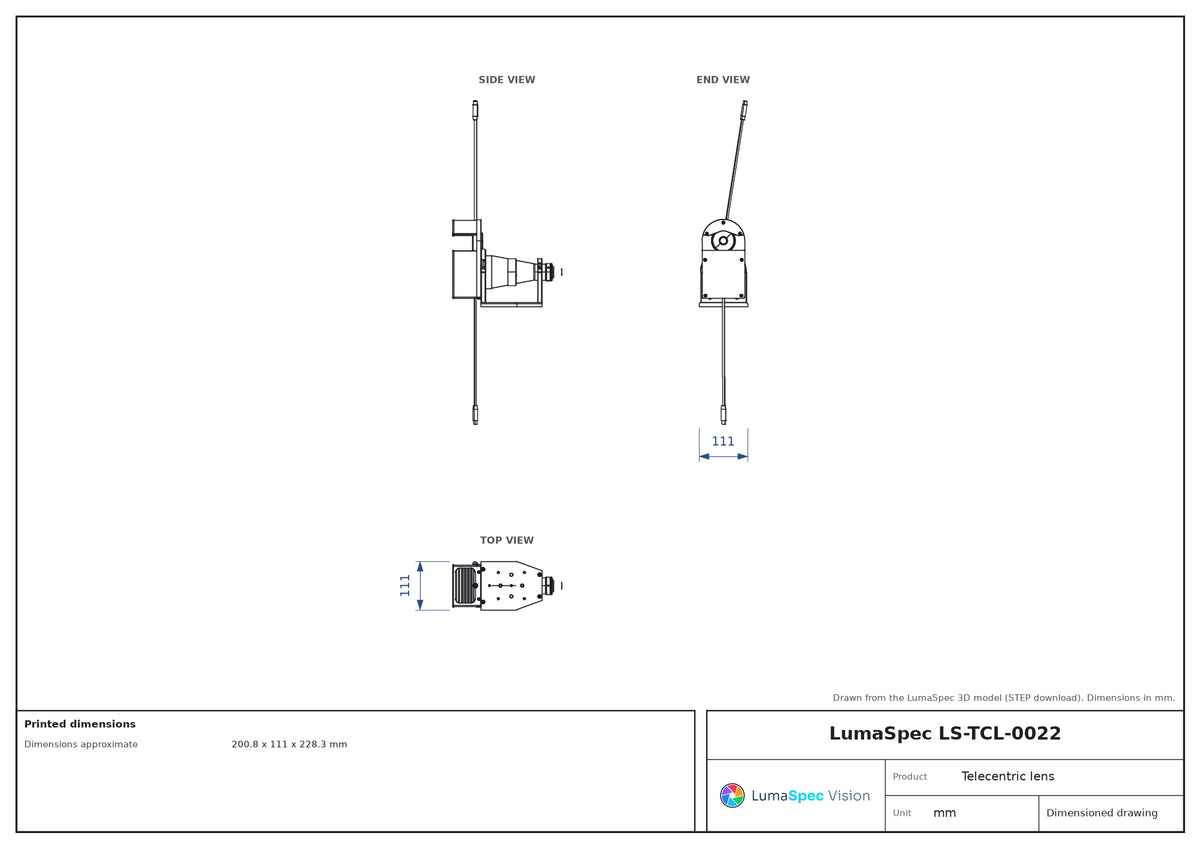

  • LS-TCL-0022 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.134x telecentric lens, 1/2", C-mount, M8 (LS-TCL-0022)

Model LS-TCL-0022

  • Magnification0.134x
  • MountC-mount
  • Sensor1/2"
  • Sensor format1/2"
$8,229.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

0.134x telecentric lens, 1/2", C-mount, M8 (LS-TCL-0022)LS-TCL-0022

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Connection: m8.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0022
Fov maximum8
Lens typeBi-Telecentric
Working ƒ/nf/8

Optics

Magnification0.134x
Filter threadNo Filter Threads
Image size dimensions6.4 x 4.8 mm

Sensor and imaging

Sensor format1/2"

Interfaces and I/O

ConnectorM8

Light

LED voltage30 Volts
Light colorWhite

Environment and compliance

Operating relative humidity (%)20-85 Non Condensing
Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Electrical

Power consumption maximum180 Watts
Pulse current maximum6 mA

Mechanical

MountC-mount
Dimensions approximate200.8 x 111 x 228.3 mm
Weight2011 Grams
