0.153x telecentric lens, 1.1", C-mount, Flying Leads / M8 (LS-TCL-0035)

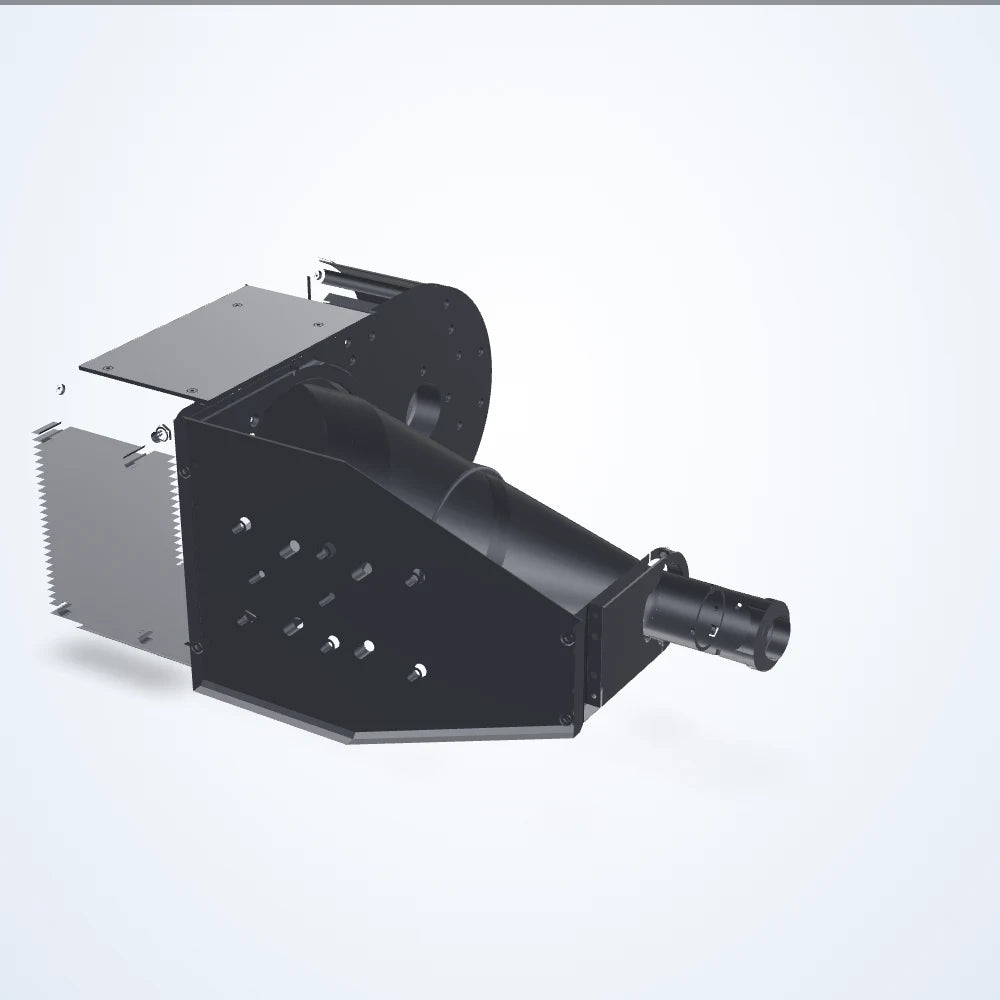

  • 0.153x telecentric lens, 1.1", C-mount, Flying Leads / M8 (LS-TCL-0035)

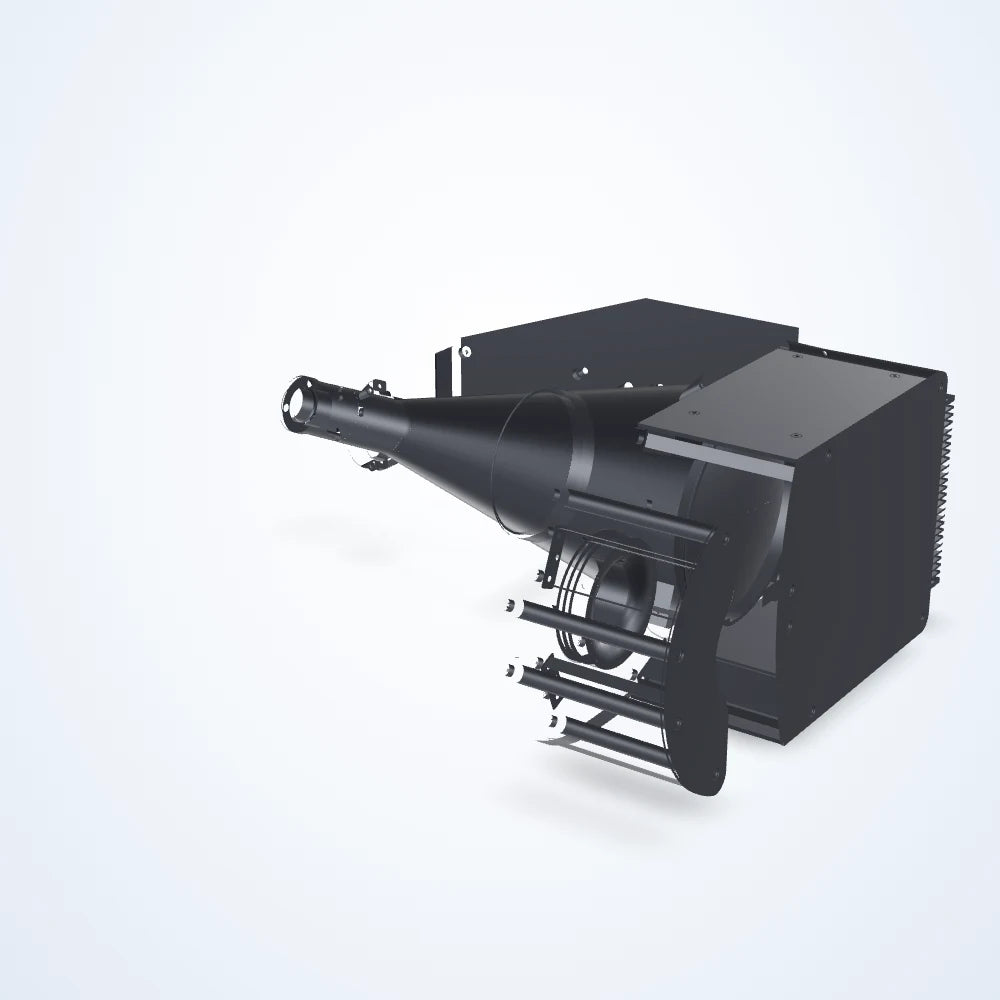

  • 0.153x telecentric lens, 1.1", C-mount, Flying Leads / M8 (LS-TCL-0035) - view 2

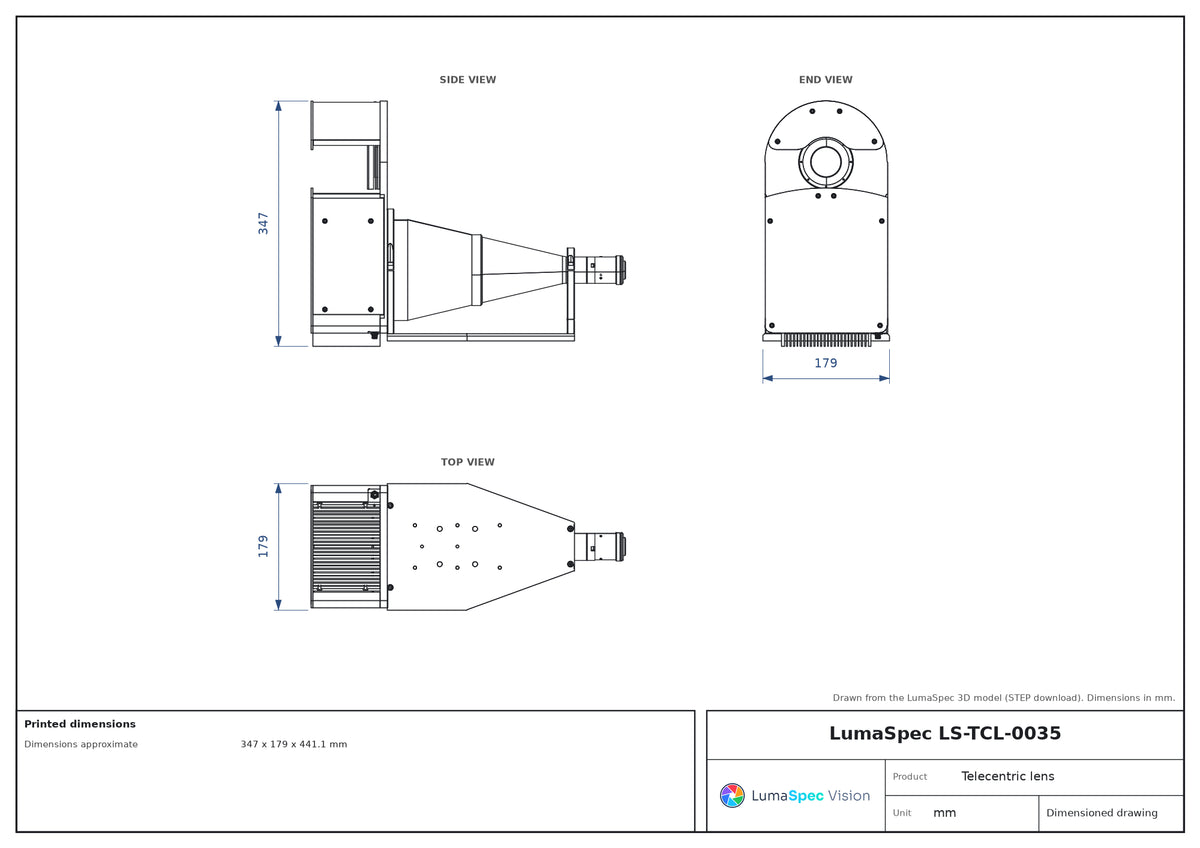

  • LS-TCL-0035 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.153x telecentric lens, 1.1", C-mount, Flying Leads / M8 (LS-TCL-0035)

Model LS-TCL-0035

  • Magnification0.153x
  • MountC-mount
  • Sensor1.1"
  • Sensor format1.1"
$9,309.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

0.153x telecentric lens, 1.1", C-mount, Flying Leads / M8 (LS-TCL-0035)LS-TCL-0035

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Connection: flying leads / m8.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0035
Fov maximum16
Lens typeBi-Telecentric
Working ƒ/nf/16

Optics

Magnification0.153x
Filter threadNo Filter Threads
Image size dimensions14.2 x 10.4 mm

Sensor and imaging

Sensor format1.1"

Interfaces and I/O

ConnectorFlying Leads / M8

Light

LED current620 mA
LED voltage36 Volts
Light colorWhite

Environment and compliance

Operating relative humidity (%)20-85 Non Condensing
Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Electrical

Power consumption maximum14.9 Watts
Pulse current maximum6 mA
Supply voltage24 Volts

Mechanical

MountC-mount
Dimensions approximate347 x 179 x 441.1 mm
Weight6958 Grams

LS-TCL-0035

See this component from every angle.

CAD-based illustration; finish is representative.

Explore the visual library
LS-TCL-0035 — Telecentric lenses, View 1 Source CAD

FROM THE PRINTED SPECIFICATIONS

Magnification
0.153x
Sensor format
1.1"
Mount
C-mount

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.

Other models in the Telecentric lens series, C-mount (S02) series

See all 12 models
ModelSize / key dataPriceAvailabilityLink
