Telecentric lenses

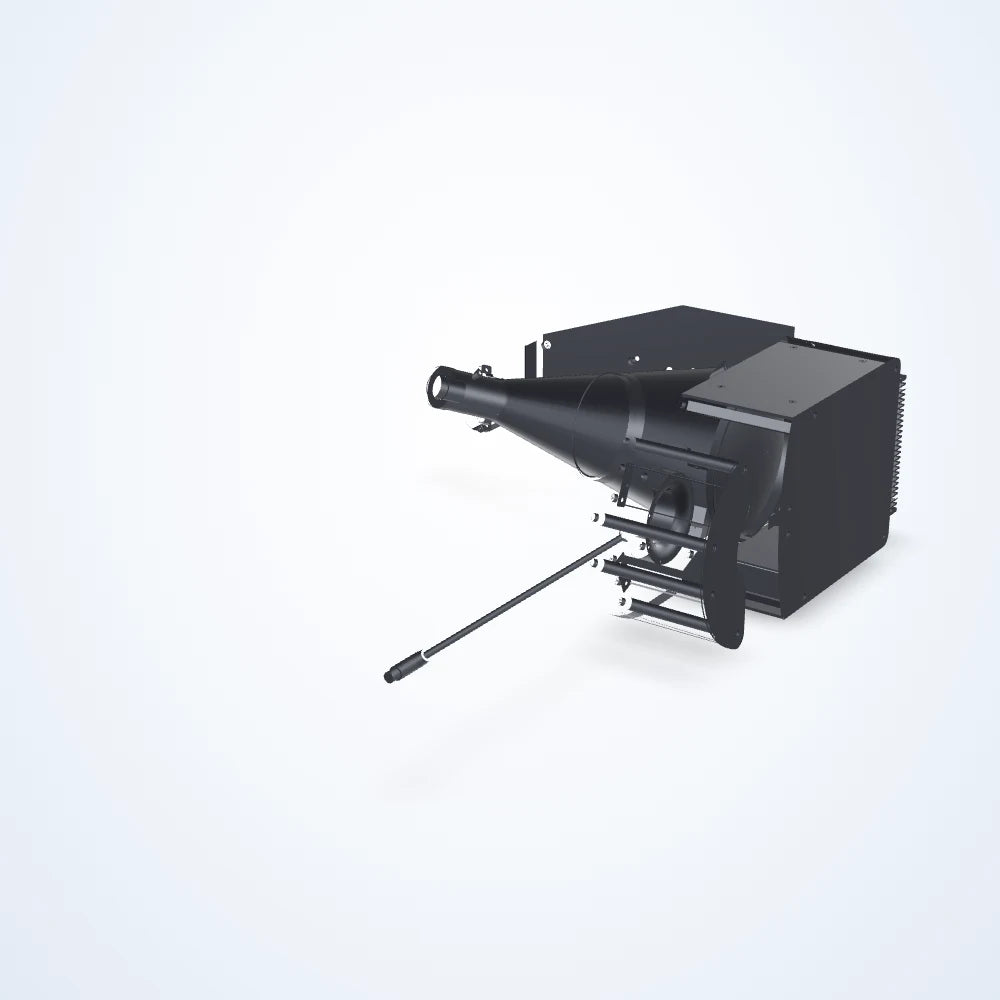

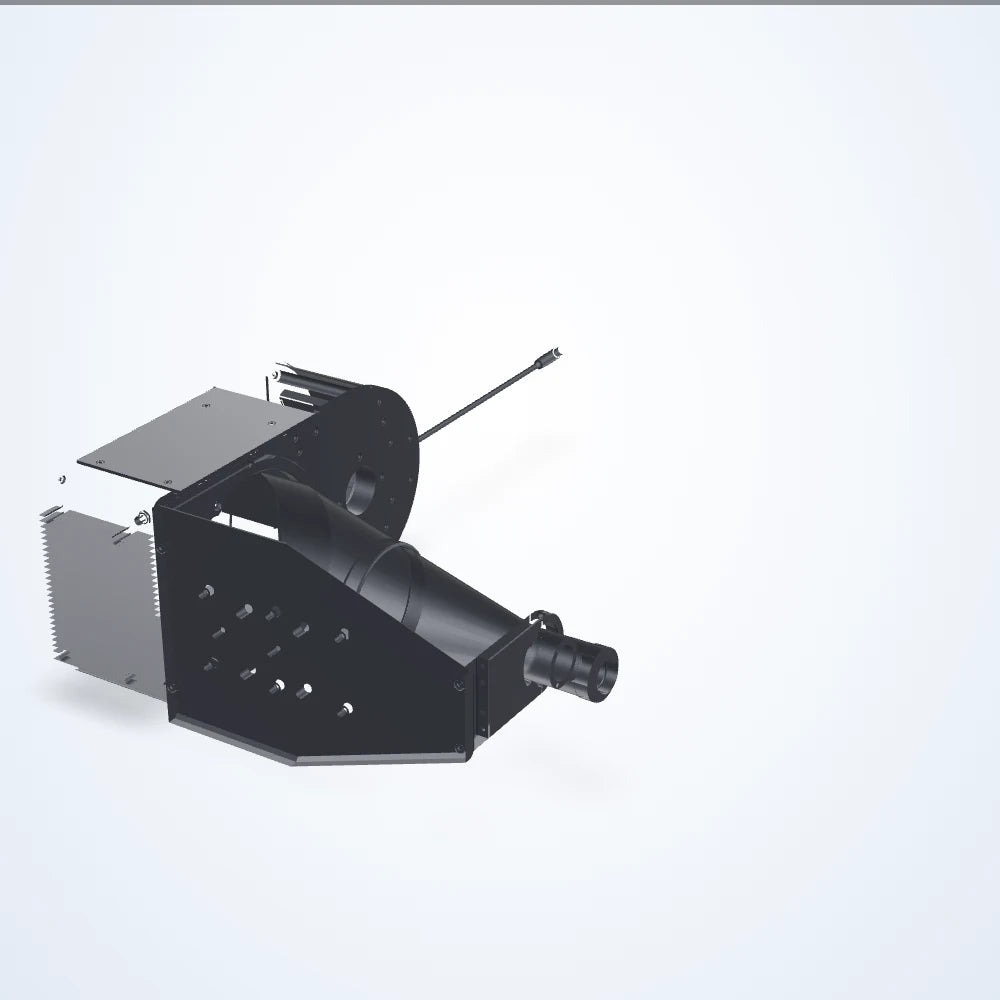

0.093x telecentric lens, 2/3", C-mount (LS-TCL-0028)
Model LS-TCL-0028
- Magnification0.093x
- MountC-mount
- Sensor2/3"
- Sensor format2/3"
$11,739.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Connection: m8.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0028 |
|---|---|
| Fov maximum | 16 |
| Lens type | Bi-Telecentric |
| Working ƒ/n | f/8 |
Optics
| Magnification | 0.093x |
|---|---|
| Filter thread | No Filter Threads |
| Image size dimensions | 8.5 x 7.1 mm |
Sensor and imaging
| Sensor format | 2/3" |
|---|
Interfaces and I/O
| Connector | M8 |
|---|
Light
| LED voltage | 30 Volts |
|---|---|
| Light color | White |
Environment and compliance
| Operating relative humidity (%) | 20-85 Non Condensing |
|---|---|
| Operating temperature range | 0 to 40°C |
| Storage temperature range | 0 to 50°C |
Electrical
| Power consumption maximum | 300 Watts |
|---|---|
| Pulse current maximum | 10 mA |
Mechanical
| Mount | C-mount |
|---|---|

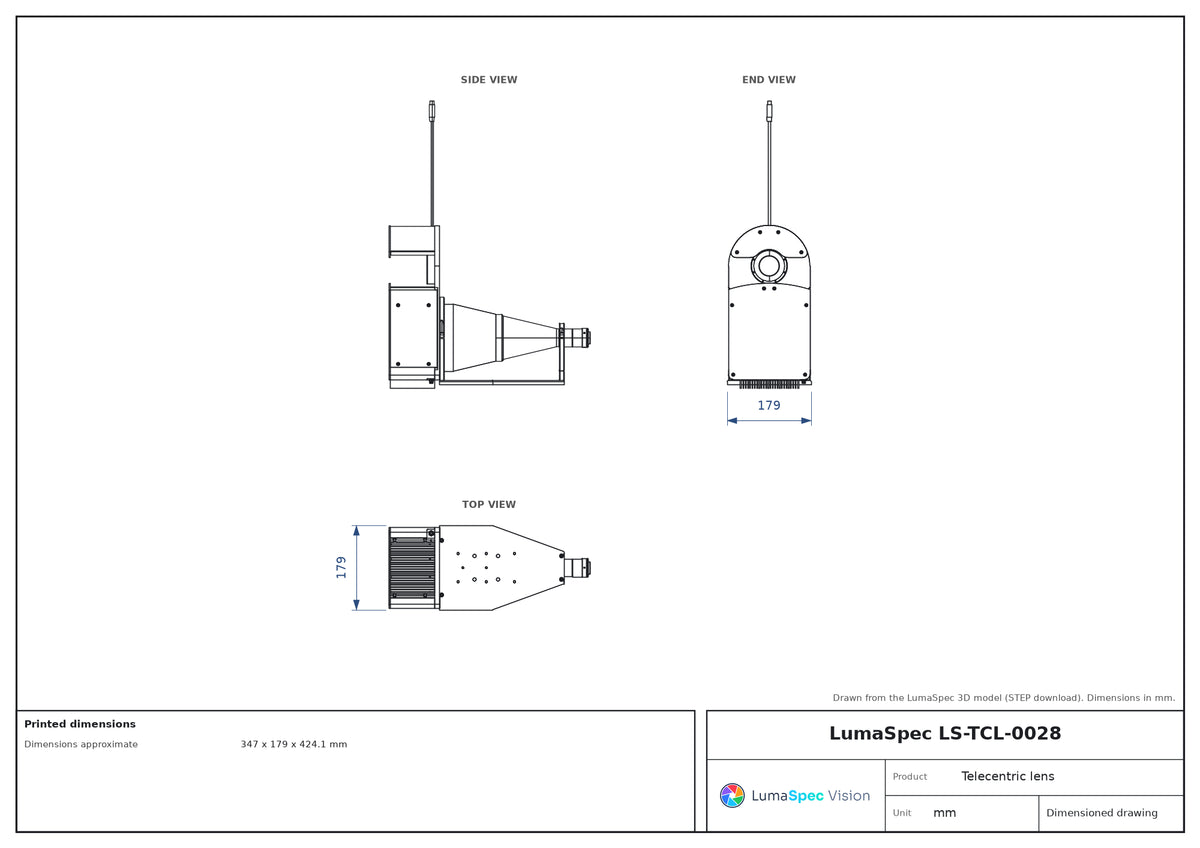

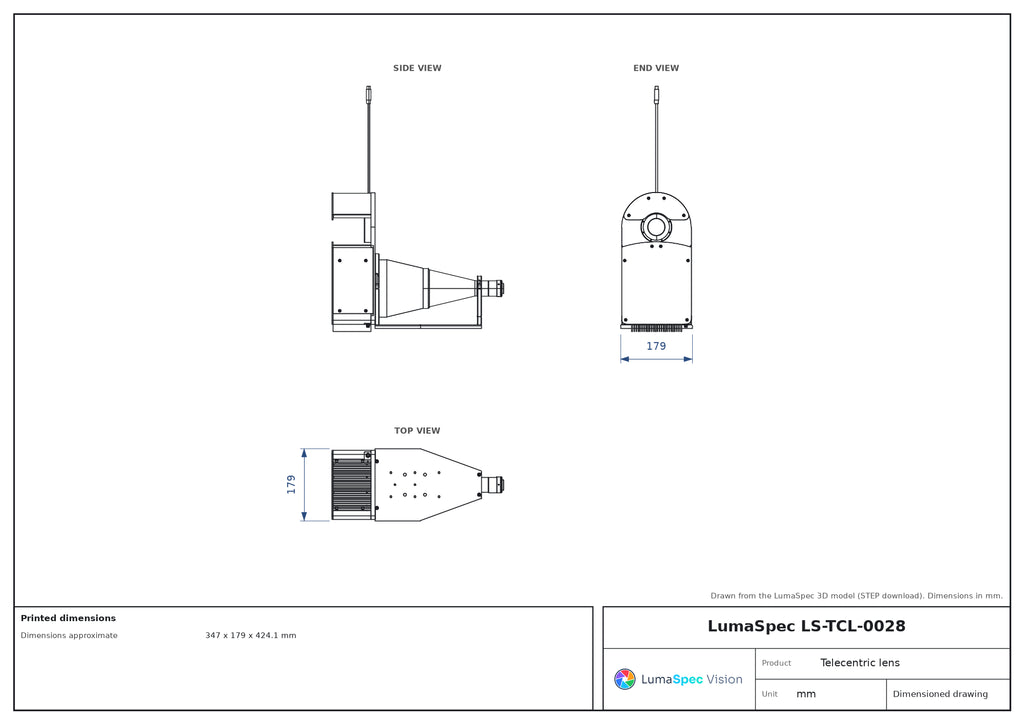

| Dimensions approximate | 347 x 179 x 424.1 mm |
| Weight | 6981 Grams |
