遠心鏡頭
0.093x 遠心鏡頭，2/3"，C-mount（LS-TCL-0028）
型號 LS-TCL-0028
- 倍率0.093x
- 安裝C-mount
- 感測器2/3"
- 感光元件格式2/3"
Sold by quote: request a quote and we confirm the price, lead time and volume pricing.
交期請於詢價時確認
將零件加入詢價清單；我們將回報價格、交期和批量價格。
lumaspecvision.com/zh-hant/products/lumaspec-ls-tcl-0028
在整個景深範圍內具有恆定倍率的遠心鏡頭，用於無透視誤差的測量與量具。連接：m8。
Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts 安全結帳 Shipping, warranty, support and payment details
- 全球追蹤運送追蹤 UPS 或 DHL
- 至少 3 年保固涵蓋材料與工藝缺陷
- 包含專業機器視覺技術支援來自我們工程團隊，包含執照專業工程師
- 數量折扣與淨價 30適用於已核准的商業帶戶；歡迎使用採購訂單
- 由 Shopify 提供安全結帳信用卡、PayPal、Shop Pay 或 Google Pay
90 天退貨 未使用的商品，自交付之日起計算；美國境內免費退貨標籤；無重新入庫費 Return policy
規格
一般
| 型號 | LS-TCL-0028 |
|---|---|
| 最大視野 | 16 |
| 鏡頭類型 | 雙遠心 |
| 工作光圈值 | f/8 |
光學
| 倍率 | 0.093x |
|---|---|
| 濾光片螺紋 | 無濾鏡螺紋 |
| 影像尺寸 | 8.5 x 7.1 mm |
感測器與成像
| 感光元件格式 | 2/3" |
|---|
介面與I/O
| 連接器 | M8 |
|---|
光源
| LED 電壓 | 30 伏特 |
|---|---|
| 光源顏色 | 白色 |
環境與合規性
| 工作相對濕度 (%) | 20-85 非冷凝 |
|---|---|
| 工作溫度範圍 | 0 至 40 °C |
| 儲存溫度範圍 | 0 至 50 °C |
電氣
| 最大功耗 | 300 瓦 |
|---|---|
| 最大脈衝電流 | 10 mA |
機械
| 安裝 | C-mount |
|---|---|
| 尺寸近似值 | 347 x 179 x 424.1 mm |
| 重量 | 6981 公克 |
工程數據
LS-TCL-0028 之視野
| 感光元件格式 | 0.093× |
|---|---|
| 1/2.5"5.76 × 4.29 mm | 61.9 × 46.1 mm |
| 1/2"6.4 × 4.8 mm | 68.8 × 51.6 mm |
| 1/1.8"7.07 × 5.3 mm | 76 × 57 mm |
| 2/3"8.8 × 6.6 mm | 94.6 × 71 mm |
視野 = 感光元件尺寸 ÷ 倍率。感光元件尺寸為各光學格式的典型值。
相容零件
適用於此零件
Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band, and the camera's printed connector for cables.
Complete the setup
This part with the first fit-tested pick from each group below. Swap any of them for another card further down.
-
This part0.093x 遠心鏡頭，2/3"，C-mount（LS-TCL-0028）
$11,739.00
-
適用此鏡頭的相機
USB3.0 面陣相機，5.0 MP，彩色/單色，3.45 μm 像素 (LS-CMR-0344)
$689.00
-
Lights for this lens
120 x 120 mm 同軸燈 (LS-CXL-0030)
$599.00
Set total $13,027.00
Added to your quote list.
適用此鏡頭的相機
Its 11 mm sensor diagonal uses 99 % of this lens's 11.1 mm image circle

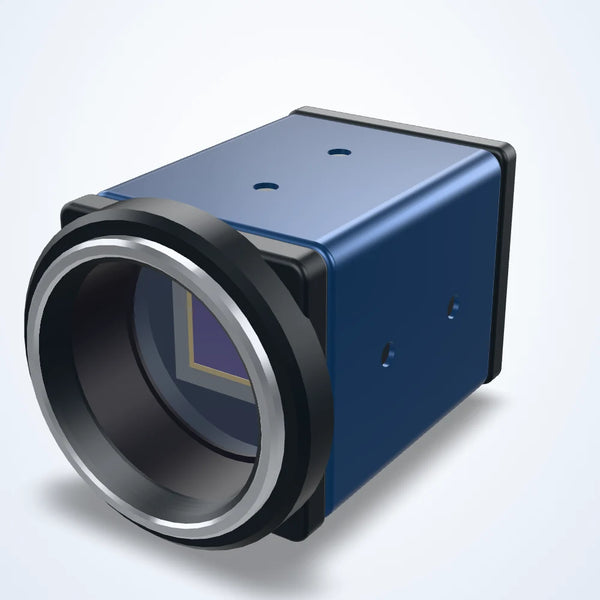

2.3 MP GigE 面陣相機，PYTHON2000，2/3" 全局快門，50 fps
LS-CMR-0025
- 解析度 1920 px x 1200 px
- 感測器 2/3"
$600.00
3-4 週內出貨
Its 10.9 mm sensor diagonal uses 98 % of this lens's 11.1 mm image circle
Its 11 mm sensor diagonal uses 99 % of this lens's 11.1 mm image circle
Its 11 mm sensor diagonal uses 99 % of this lens's 11.1 mm image circle
Its 10.9 mm sensor diagonal uses 98 % of this lens's 11.1 mm image circle

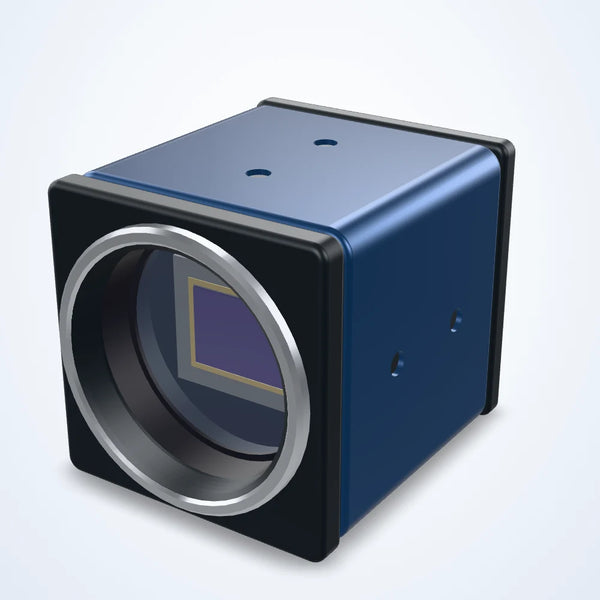

12 MP USB3 面陣相機，IMX226，1/1.7" 捲簾快門，30 fps
LS-CMR-0167
- 解析度 4000 × 3000 (12 MP)
- 感測器 1/1.7"
$560.00
3-4 週內出貨
Its 9.2 mm sensor diagonal uses 83 % of this lens's 11.1 mm image circle
轉接環
Lights for this lens
應用案例
Applications for this type of part
Real camera images from lighting and optics application tests, with the parts of each setup and why they were chosen.
Set up with the LS-TCL-2696, the same type of part
電子設備
連接器與電路板針腳彎曲
將真實的針腳傾斜與透視效果區分開來。視野50.46 × 37.85 mm探索研究
Set up with the LS-TCL-2694, the same type of part
金屬零件與加工
Turned shaft diameters with a 0.114x telecentric lens
Pick the magnification from the longest feature that must fit in one image, then check sampling on the smallest one.Field of view (derived)About 74.1 × 62.0 mm探索研究
Set up with the LS-TCL-2507, the same type of part
金屬零件與加工
使用遠心光學檢測橢圓形光圈
將鏡頭、準直光源和夾具視為一個校準測量系統。光源區域51.16 × 38.84 mm探索研究
購買前須知
Questions about the LS-TCL-0028
Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.
Which cameras does the LS-TCL-0028 cover?
Its image circle (about 11.1 mm) covers these fit-tested cameras: LS-CMR-0344 (2/3", 5 MP), LS-CMR-0025 (2/3", 2.3 MP), LS-CMR-0158 (2/3", 8.1 MP) and LS-CMR-0093 (2/3").
What field of view does the LS-TCL-0028 give?
About 94.6 x 71 mm on a 2/3" sensor (calculated: sensor size / 0.093x magnification).
Does the LS-TCL-0028 need an adapter for C-mount or CS-mount cameras?
Not on a C-mount camera: it is a C-mount lens. On a CS-mount camera, fit a 5 mm C-CS adapter ring such as LS-LXR-0266.
What sensor size is the LS-TCL-0028 made for?
Printed: Sensor format: 2/3"; Image size dimensions: 8.5 x 7.1 mm.
Which light suits the LS-TCL-0028?

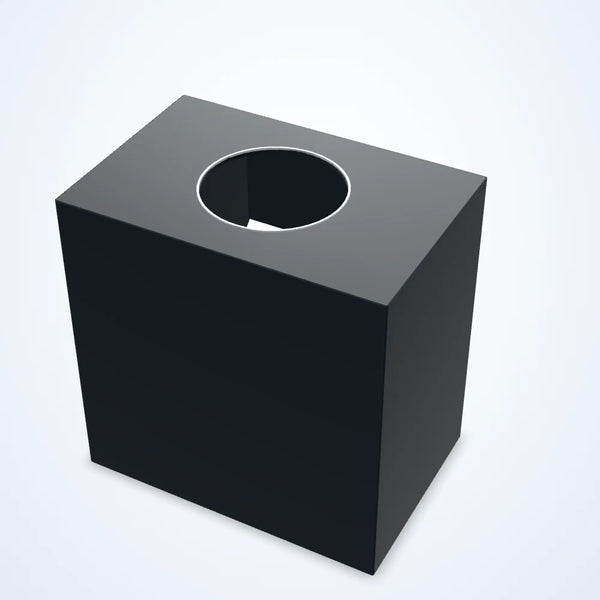

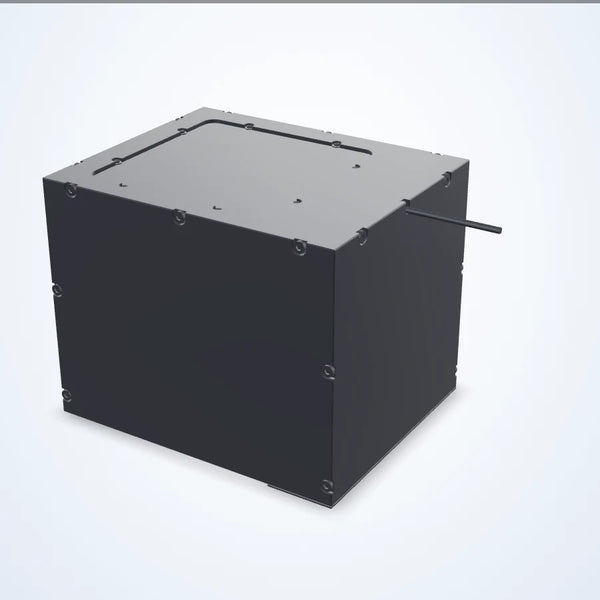

Collimated or coaxial lights whose printed beam covers its field of view: LS-CXL-0030, LS-CXL-0068, LS-CXL-0095 and LS-CXL-0181.
遠心鏡頭，C-mount (LS-TCL-S02) 系列其他型號
查看所有12型號- Joint highest 最大脈衝電流 in this series (3 至 10 mA)
How this model compares
- Compared with LS-TCL-0027: LED voltage 30 Volts here, 36 Volts there; power consumption maximum 300 Watts here, 14.9 Watts there.
- Magnification 0.093x; next down 0.068x (LS-TCL-0024), up 0.134x (LS-TCL-0022), of 6 magnifications from 0.068 to 0.303x.
Swipe to see all columns
| 型號 | 倍率 | 感測器 | 視野 | 連接器 | 價格 | 庫存 | 連結 |
|---|---|---|---|---|---|---|---|
| LS-TCL-0027 | 0.093x | 2/3" | 16.0 x 68.0 mm | Flying Leads / M8 | $8,919.00 詢價 | 交期請於詢價時確認 | View |
| LS-TCL-0024 | 0.068x | 1/2" | 16.0 x 68.0 mm | M8 | $11,739.00 詢價 | 交期請於詢價時確認 | View |
| LS-TCL-0025 | $6,119.00 詢價 | 交期請於詢價時確認 | View | ||||
| LS-TCL-0028This model | 0.093x | 2/3" | 16.0 x 68.0 mm | M8 | $11,739.00 詢價 | 交期請於詢價時確認 | |
| LS-TCL-0022 | 0.134x | 1/2" | 8.0 x 32.0 mm | M8 | $8,229.00 詢價 | 交期請於詢價時確認 | View |
| LS-TCL-0035 | 0.153x | 1.1" | 16.0 x 68.0 mm | Flying Leads / M8 | $9,309.00 詢價 | 交期請於詢價時確認 | View |
| LS-TCL-0036 | 0.153x | 1.1" | 16.0 x 68.0 mm | M8 | $12,289.00 詢價 | 交期請於詢價時確認 | View |
| LS-TCL-0026 | 0.184x | 2/3" | 8.0 x 32.0 mm | M8 | $8,229.00 詢價 | 交期請於詢價時確認 | View |
| LS-TCL-0033 | $7,499.00 詢價 | 交期請於詢價時確認 | View |
