Shadowless lights · 11 models · from $89.00

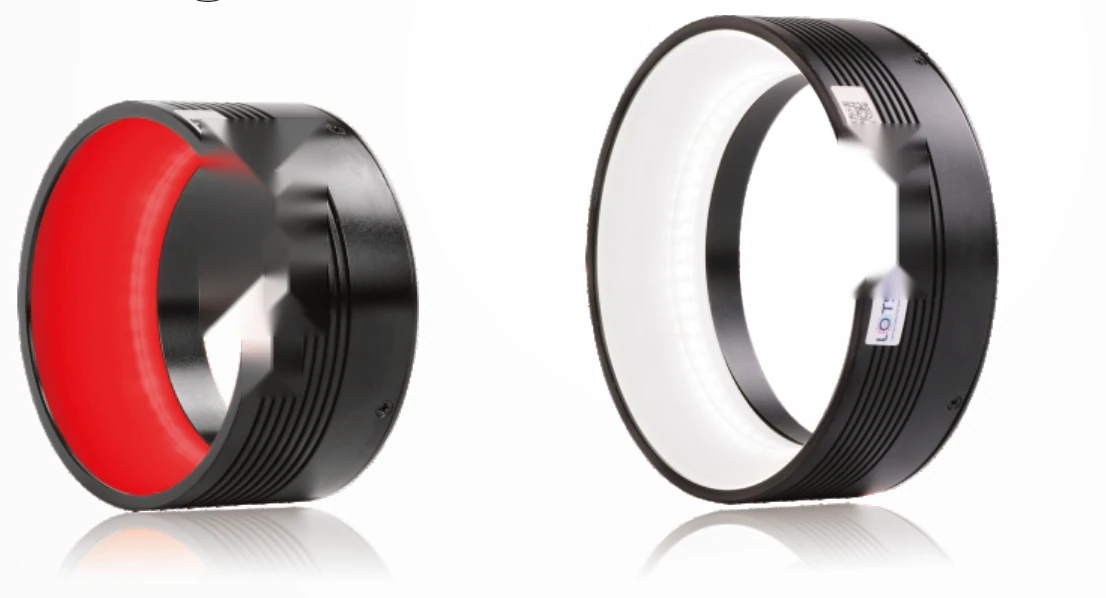

Low angle shadowless light (FPR)
The Low angle shadowless light (FPR) is a range of 11 shadowless lights from LumaSpec Vision, from $89.00. It comes in 7 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 73 mm, 80 mm, 87 mm, 113 mm, 142 mm, 150 mm, 170 mm |
|---|---|
| Colour | Red, Green, Blue, White |
| Voltage | 24 V |
Features
- Special emitting structure, uniform emission
- Efficient low-angle illumination, strengthens surface characteristics
- Highlights defect contrast
- Reduces reflected light and flare
- Wire jacket covers the cable exit, anti-pull
- Customizable: Outer & inner diameter, Colour & colour temperature, Cable length, Installation method
- UV & IR versions can be customized as required
- Special emitting structure, emitting uniformly
Typical uses
- BGA/QFP position inspection
- Integrated circuit material strap inspection
- Connection lead pin pitch and excursion inspection
- Bottle cap crack inspection
- Imaging example: battery packing inspection (LS-FPR120-W), low-angle emission reduces metal reflection and shows the defect clearly
- BGA\QFP position inspection
All 11 models in the Low angle shadowless light (FPR)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-FPR50 | $89.00 | 12 in stock | View | |||
| LS-FPR67 | $119.00 | 10 in stock | View | |||
| LS-FPR80 | 73 mm | 1.9 W | $129.00 | 10 in stock | View | |
| LS-FPR94 | 87 mm | 8.6 W | $139.00 | 12 in stock | View | |
| LS-FPR100 | 80 mm | 3.6 W | $139.00 | 15 in stock | View | |
| LS-FPR120 | 113 mm | 5 W | $179.00 | 16 in stock | View | |
| LS-FPR150 | 142 mm | 19.2 W | $219.00 | 13 in stock | View | |
| LS-FPR140 | $219.00 | 12 in stock | View | |||
| LS-FPR160 | 150 mm | 6.7 W | $229.00 | 15 in stock | View | |
| LS-FPR180 | 170 mm | 8.4 W | $259.00 | 12 in stock | View | |
| LS-FPR230 | $339.00 | 17 in stock | View |
