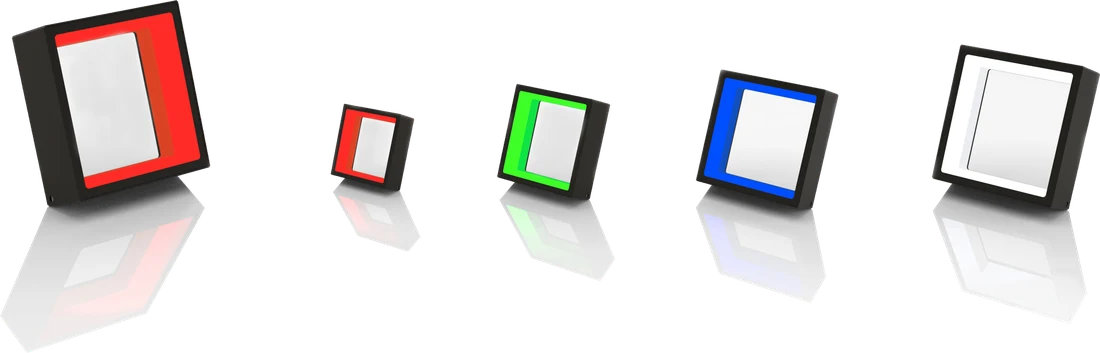

Square shadowless light (SQ series)
The Square shadowless light (SQ series) is a range of 8 shadowless lights from LumaSpec Vision, from $59.00. It comes in 8 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 20 mm, 32 mm, 48 mm, 75 mm, 96 mm, 120 mm, 200 x 120 mm, 300 x 200 mm |
|---|---|
| Colour | Red, Green, Blue, White |
| Voltage | 24 V |
Features
- Illumination area can be customized.
- High-brightness, high uniformity.
- Ideal for square-shaped objects.
- Capable of detecting the contours of the four corners that are difficult to illuminate with ring light, and prevents reflective projections.
Typical uses
- Print surface defect check
- Pin/leg flatness inspection
- Metal scratch detection
- Solder joint inspection
- Pin/leg bend, loss, dirt check
- PCB appearance & pattern inspection
All 8 models in the Square shadowless light (SQ series)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-SQ-20 | 20 mm | 3 W | $59.00 | 14 in stock | View | |
| LS-SQ-32 | 32 mm | 3.5 W | $79.00 | 16 in stock | View | |
| LS-SQ-48 | 48 mm | 3.5 W | $99.00 | 11 in stock | View | |
| LS-SQ-75 | 75 mm | 5.5 W | $159.00 | 16 in stock | View | |
| LS-SQ-96 | 96 mm | 6 W | $209.00 | 15 in stock | View | |
| LS-SQ-120 | 120 mm | 10 W | $269.00 | 17 in stock | View | |
| LS-SQ-200X120 | 200 x 120 mm | 19 W | $539.00 | 12 in stock | View | |
| LS-SQ-300X200 | 300 x 200 mm | 26 W | $539.00 | 14 in stock | View |
