Shadowless lights · 8 models · from $109.00

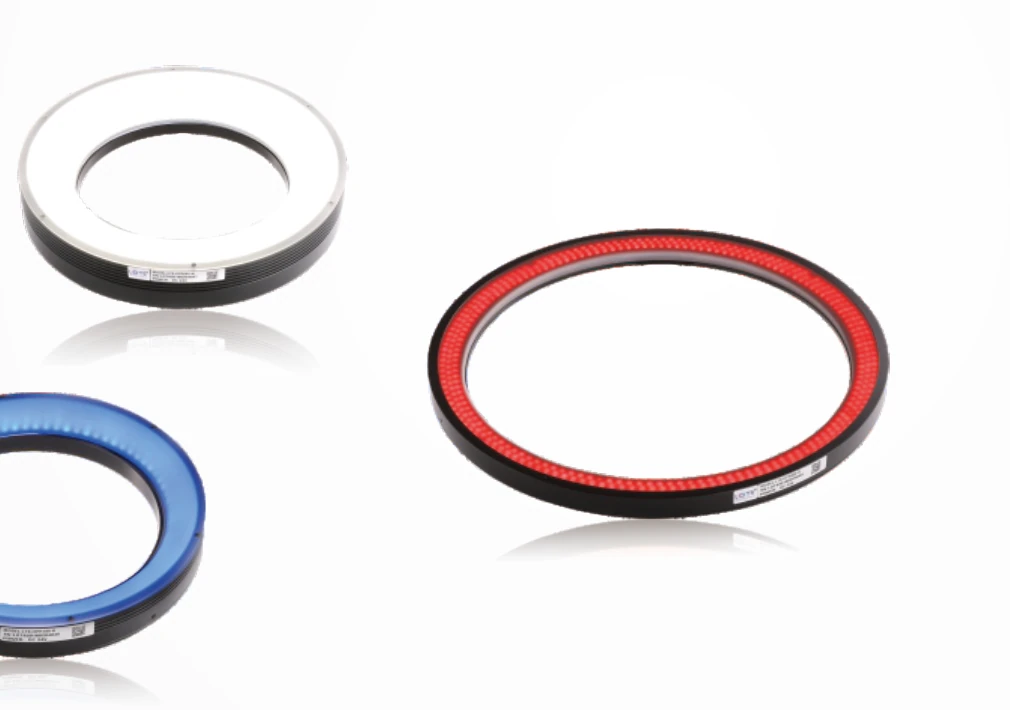

Ring shadowless light (HPR)
The Ring shadowless light (HPR) is a range of 8 shadowless lights from LumaSpec Vision, from $109.00. It comes in 7 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 61 mm, 103 mm, 122 mm, 184 mm, 205 mm, 228 mm, 286 mm |
|---|---|
| Colour | Red, Green, Blue, White |
| Voltage | 24 V |
Features
- Uses surface-mount (paste) LEDs, high uniformity
- High-angle uniform emission
- Wire jacket covers the cable exit, anti-pull
- Customizable: Emitting angle, Outer & inner diameter, Shape, Colour & colour temperature, Multi-area control, Cable length, Installation method
- UV & IR versions can be customized as required
Typical uses
- Date code inspection on food packaging
- Inspection of highly reflective surfaces of workpieces
- Imaging example: air-conditioner fan blade direction inspection (LS-HPR240-W), uniform emission whitens the background to contrast with the black fan blades
All 8 models in the Ring shadowless light (HPR)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-HPR61 | 61 mm | 2.7 W | $109.00 | 16 in stock | View | |
| LS-HPR90 | 5 W | $159.00 | 13 in stock | View | ||
| LS-HPR100 | 103 mm | 8.2 W | $169.00 | 16 in stock | View | |
| LS-HPR130 | 122 mm | 8.6 W | $189.00 | 16 in stock | View | |
| LS-HPR180 | 184 mm | 10.1 W | $279.00 | 12 in stock | View | |
| LS-HPR200 | 205 mm | 16.8 W | $309.00 | 14 in stock | View | |
| LS-HPR240 | 228 mm | 24 W | $339.00 | 14 in stock | View | |
| LS-HPR300 | 286 mm | 17 W | $419.00 | 16 in stock | View |
