Shadowless lights · 6 models · from $99.00

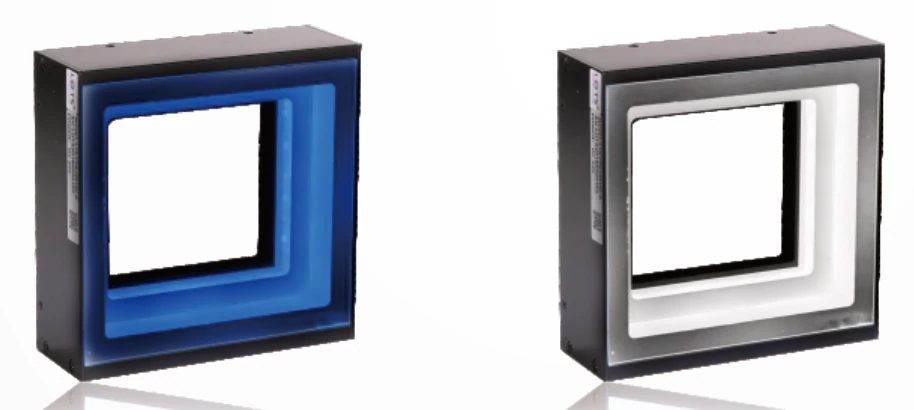

Square shadowless light (FPQ)
The Square shadowless light (FPQ) is a range of 6 shadowless lights from LumaSpec Vision, from $99.00. It comes in 4 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 104 x 56 mm, 108 x 116 mm, 138 x 146 mm, 238 x 246 mm |
|---|---|
| Colour | Red, Green, Blue, White |
| Voltage | 24 V |
Features
- Special emitting structure, uniform emission in the effective working area
- Efficient low-angle illumination, strengthens surface characteristics, highlights defect contrast
- For workpieces that need a balanced surface and reduced reflected light or flare
- Customizable: Length and width, Colour & colour temperature, Cable length, Installation method
- UV & IR versions can be customized as required
Typical uses
- BGA, GFP position inspection (as printed)
- Integrated circuit material strap inspection
- Lead pin pitch inspection
- Integrated circuit character inspection
- Metal surface scratch inspection
- Imaging example: needle column vertical inspection on electronics (LS-FPQ120120-W), white needle shows distortion clearly
All 6 models in the Square shadowless light (FPQ)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-FPQ4848 | 1.2 W | $99.00 | 20 in stock | View | ||
| LS-FPQ6060 | 1.4 W | $129.00 | 12 in stock | View | ||
| LS-FPQ11660 | 104 x 56 mm | 2.2 W | $229.00 | 12 in stock | View | |
| LS-FPQ120120 | 108 x 116 mm | 10.6 W | $259.00 | 14 in stock | View | |
| LS-FPQ150150 | 138 x 146 mm | 11.5 W | $349.00 | 10 in stock | View | |
| LS-FPQ250250 | 238 x 246 mm | 19.7 W | $739.00 | 17 in stock | View |
