Shadowless lights · 9 models · from $169.00

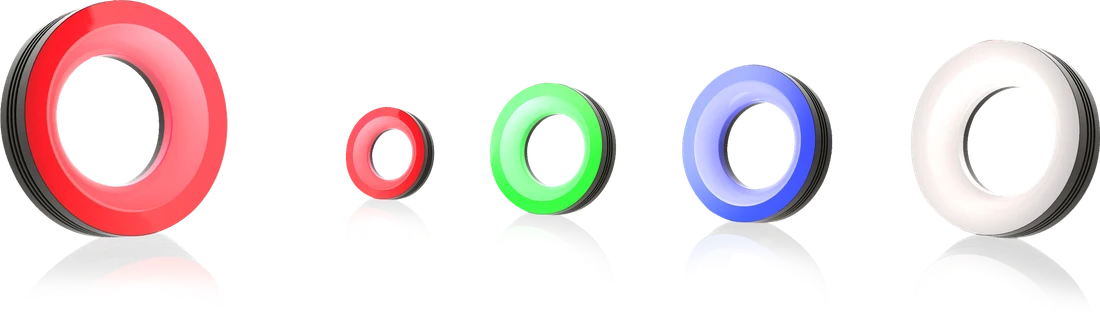

High angle ring shadowless light (SHR series)
The High angle ring shadowless light (SHR series) is a range of 9 shadowless lights from LumaSpec Vision, from $169.00. It comes in 7 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 79 mm OD, 80 mm OD, 116 mm OD, 166 mm OD, 196 mm OD, 230 mm OD, 359 mm OD |
|---|---|
| Colour | Red, Green, Blue, White |
| Voltage | 24 V |
Features
- High brightness, high uniformity shadowless illumination.
- Adopting a special illumination structure to ensure full diffusion of LED light.
- Changing the distance from the object being measured to the light source does not alter the uniformity of the illuminated area.
Typical uses
- High-reflective product surface defect inspection
- Outer packaging inspection
- Electronic component wiring inspection
- Watch dial character inspection
- Inspection of internal defects in pull tabs
- Razor crystal head orientation detection
All 9 models in the High angle ring shadowless light (SHR series)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-SHR-80 | 79 mm OD | 7 W | $169.00 | 15 in stock | View | |
| LS-2SHR-80 | 80 mm OD | 6.3 W | $169.00 | 16 in stock | View | |
| LS-SHR-100 | 116 mm OD | 14 W | $239.00 | 13 in stock | View | |
| LS-2SHR-116 | 116 mm OD | 14.3 W | $239.00 | 15 in stock | View | |
| LS-SHR-150 | 166 mm OD | 20 W | $329.00 | 13 in stock | View | |
| LS-2SHR-166 | 166 mm OD | 26.3 W | $329.00 | 13 in stock | View | |
| LS-2SHR-196 | 196 mm OD | 30.9 W | $379.00 | 17 in stock | View | |
| LS-2SHR-230 | 230 mm OD | 24.2 W | $439.00 | 14 in stock | View | |
| LS-SHR-360 | 359 mm OD | 42 W | $669.00 | 11 in stock | View |
