Shadowless lights · 10 models · from $189.00

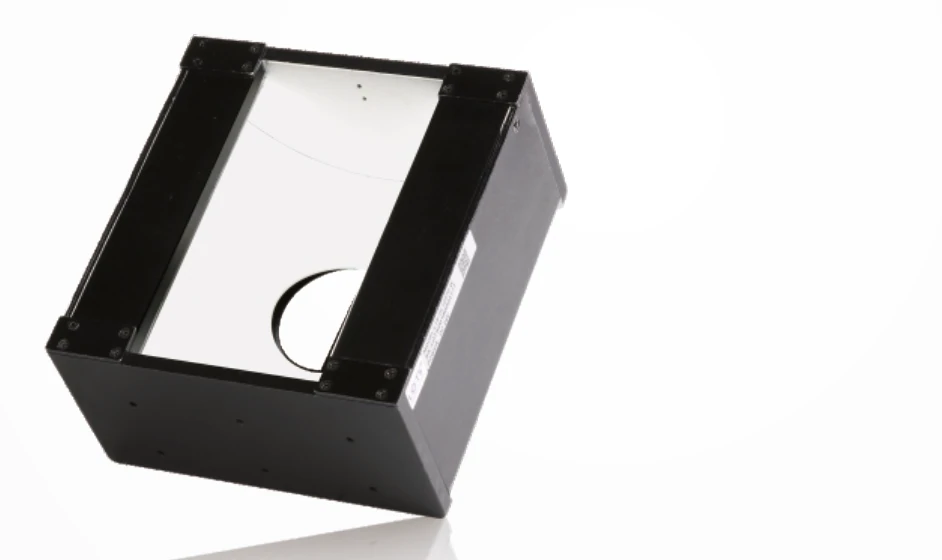

Arch shadowless light (DL)
The Arch shadowless light (DL) is a range of 10 shadowless lights from LumaSpec Vision, from $189.00. It comes in 8 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 90 x 70 mm, 125 x 70 mm, 143 x 95 mm, 145 x 277 mm, 204 x 110 mm, 220 x 25 mm, 260 x 70 mm, 340 x 130 mm |
|---|---|
| Colour | Red, Green, Blue, White |
| Voltage | 24 V |
Features
- High uniformity, high luminance
- For workpieces that need a balanced surface
- Reduces reflected light and flare
- Customizable: Shape, Length, Viewport, Colour & colour temperature, Cable length, Installation method
- UV & IR versions can be customized as required
- Used to the workpiece which need balanced surface
- Reduce the reflect light or flare
Typical uses
- PCB inspection
- Packing inspection
- Plastic surface inspection
- Imaging example: pill (tablet blister) dirty part inspection (LS-DL12570-W), uniform emission highlights the black dirt
- Metal surface scratch inspection
All 10 models in the Arch shadowless light (DL)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-DL9070 | 90 x 70 mm | 5.8 W | $189.00 | 11 in stock | View | |
| LS-DL12570 | 125 x 70 mm | 8.6 W | $279.00 | 13 in stock | View | |
| LS-DL14395 | 143 x 95 mm | 8.7 W | $339.00 | 15 in stock | View | |
| LS-DL16050 | $429.00 | 14 in stock | View | |||
| LS-DL190142 | $539.00 | 14 in stock | View | |||
| LS-DL204110 | 204 x 110 mm | 13 W | $559.00 | 16 in stock | View | |
| LS-DL22025 | 220 x 25 mm | 19.2 W | $619.00 | 12 in stock | View | |
| LS-DL26070 | 260 x 70 mm | 17.3 W | $809.00 | 16 in stock | View | |
| LS-DL277142 | 145 x 277 mm | 15.8 W | $889.00 | 11 in stock | View | |
| LS-DL340130 | 340 x 130 mm | 15.8 W | $1,239.00 | 15 in stock | View |
