Shadowless lights · 5 models · from $189.00

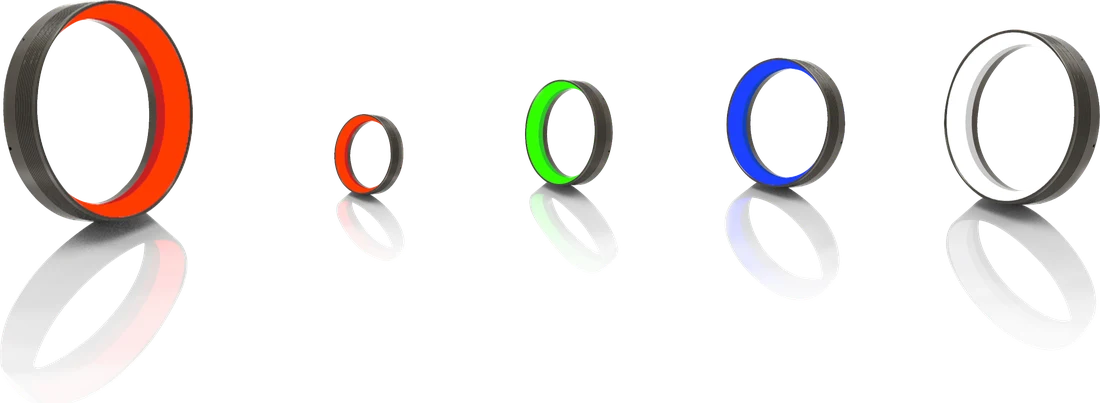

Low angle ring shadowless light (SLR series)
The Low angle ring shadowless light (SLR series) is a range of 5 shadowless lights from LumaSpec Vision, from $189.00. It comes in 5 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 88 mm OD, 100 mm OD, 136 mm OD, 180 mm OD, 250 mm OD |
|---|---|
| Colour | Red, Green, Blue, White |
| Voltage | 24 V |
Features
- Good uniformity, suitable for low-angle illumination.
- High-density LEDs arranged vertically with special light-guiding diffusion.
- Reduces reflective glare.
- Efficient low-angle lighting enhances surface features.
Typical uses
- Surface damage inspection
- IC tape inspection
- BGA/QFP position inspection
- Connector pin spacing/offset detection
- Metal scratches detection
- Metal surface detection
All 5 models in the Low angle ring shadowless light (SLR series)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-SLR-88 | 88 mm OD | 4.5 W | $189.00 | 12 in stock | View | |
| LS-SLR-100 | 100 mm OD | 5 W | $209.00 | 14 in stock | View | |
| LS-SLR-136 | 136 mm OD | 10 W | $269.00 | 17 in stock | View | |
| LS-SLR-180 | 180 mm OD | 13 W | $349.00 | 10 in stock | View | |
| LS-SLR-250 | 250 mm OD | 15 W | $479.00 | 14 in stock | View |
